E521TRT3 — 23750-A
FISHER & PAYKEL — Fridge

W0177176 MOD CNTRL GLTH RT 220V SVC

W0187391 PLUGPIN HGE DAIRY COVER PKT 2

$14.00

W0189875 RAIL BOTTLE SUPPORT 790 SL

$21.10

W0190986 COVER DOOR SHELF 790 RH

$27.90

W0194717 SHELF DOOR LGE 790 WHITE

$68.00

W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT

$75.00

W0196940 FISHER & PAYKEL FRIDGE FAN

$125.00

W0197964 FISHER & PAYKEL FREEZER FAN MOTOR KIT-790/900mm

$198.38

W0175953 BRACKET HINGE BASE RH ASSY

W0176009 BEARING DR CLOSING RH WH PKD

W0176060 CLOSING HOOK DR STOP WH RH

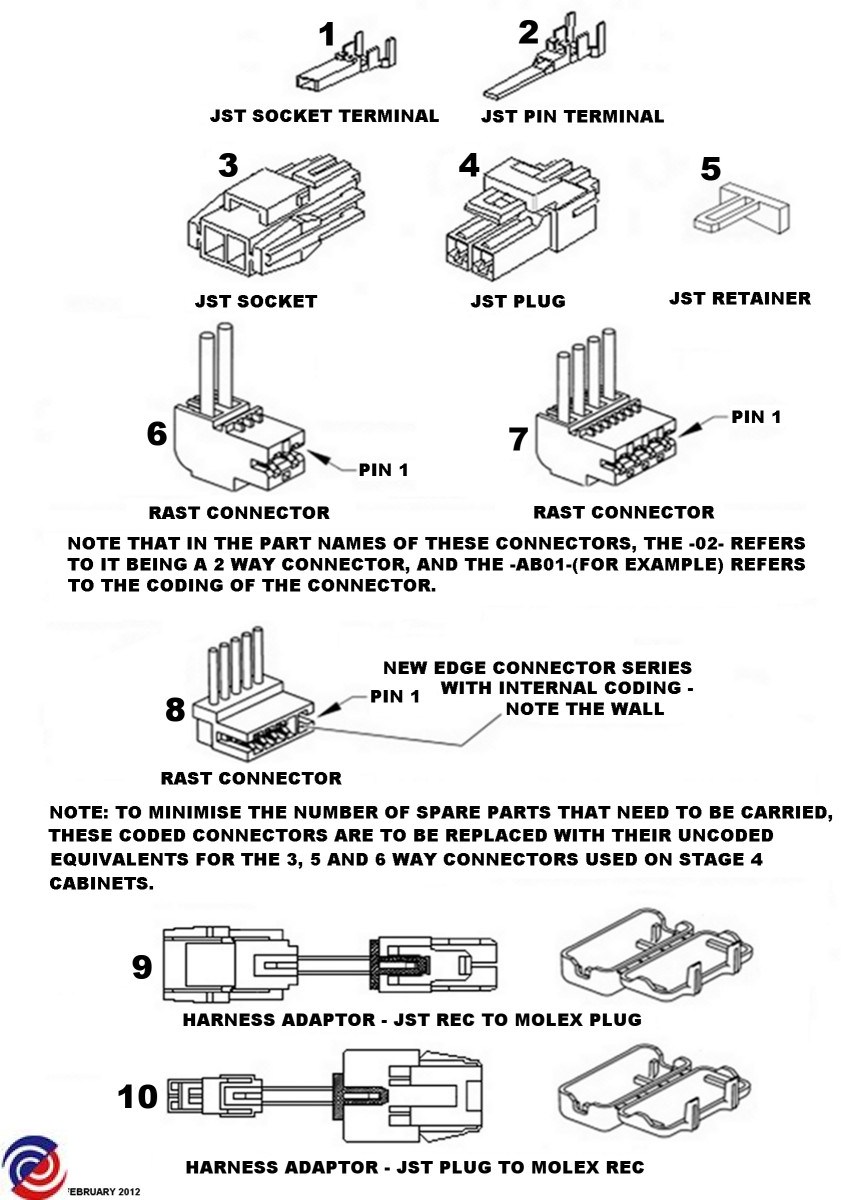

W0177159 ADAPTOR JST REC TO MOLEX KIT

W0177251 BOOKLET UC NONIW NZAUUKIE

W0177933 INSULATION COVER DUCT LONG T

W0183801 CONNECTOR RAST 7234014500

W0184717 DOOR FC G 790X443 C WH T P

W0185216 PLUG HANDLE WH

$4.50

W0185268 SCREW 10X19 AB 2 SQ TV PKT 10

$4.50

W0185289 CAP SCREW CROSS RAIL WHT PKD

$4.50

W0185356 SCREW 8 X12 SP PAN NIB TV PKT

$4.50

W0185405 GROMMET COMPR MTG 26MM

W0185528 CLIP ACTIVE SMART BAFFLE

$4.50

W0185530 SCREW 832X9 TYT PHTV PKT 10

$4.50

W0185531 SCREW 8X16 SP PAN NIB TV PKT

$4.50

W0185533 RETAINER 2 WAY YLS02V

$4.50

W0185534 POST COMPR MOUNTING 26MM

$4.50

W0185535 CLIP EVAP BAFFLE

$4.50

W0185561 COVER REED SWITCH P42 ST4 WH

$4.50

W0185569 COVER COMMS PORT

$4.50

W0186123 GASKET FOAM LIGHT

$4.50

W0186182 RETAINER 3 WAY YLS03V

$4.50

W0186583 WIRE DRAIN HEATER DOUBLE T

$4.50

W0186816 JST PLUG 2PIN YLP02V

$4.80

W0186853 JST PLUG 4PIN YLP04V

$4.50

W0186902 CONNECTOR RAST 7234004500

$5.20

W0186991 PLUG DOOR SHELF WHITE PKT 2

$5.60

W0187044 TRIM CORNER RECESSED WHITE

$5.80

W0187056 WHEEL LEVELING FOOT ASSY RC

$12.50

W0187065 CAP HANDLE SCREW WHT PKT 3

$5.90

W0187080 JST SOCKET 2PIN YLR02V

W0187097 RETAINER HCL FRONT 790

$6.10

W0187119 JST SOCKET 3PIN YLR03V

$5.40

W0187134 CONNECTOR RAST 929002EE01

$5.50

W0187267 JST SOCKET 4PIN YLR04V

$5.90

W0187295 COVER TOP HINGE WH

$7.30

W0187345 CLIP FOOT COMPRESSOR PKT 4

$6.70

W0187386 CONNECTOR RAST 929004EF02

$7.60

W0187448 TERMINAL SYF01T PKT 10

$7.30

W0187532 SLIDE CTRL HUMIDITY RH

$8.90

W0187533 SLIDE CTRL HUMIDITY LH

$8.90

W0187579 CONNECTOR RAST 7234003500

$7.90

W0187589 BEARING HINGE 680790 RHTWHLIP

$9.20

W0187615 JST PLUG 6PIN YLP06V

$8.10

W0187643 INSERT GRAPHICS DISPLAY

$7.90

W0187663 CONNECTOR RAST 7234008500

$9.60

W0187750 COVER HGE DR 680790 LHTRHB W

$8.80

W0187821 JST PLUG 8PIN YLP08V

$8.70

W0187829 JST SOCKET 6PIN YLR06VF

$9.10

W0187871 COVER HGE DR 680790 RHTLHB W

$9.40

W0187876 CONNECTOR RAST 7234010500

$10.90

W0187918 MAGNET DOOR SWITCH ST4

$11.00

W0187984 BOLT BLIND END HINGE BRACKET

$9.90

W0187997 COVER LAMP PC P42

$11.50

W0188011 SCREW 12X12 TAB CSK PH PKT10

$9.60

W0188124 BRACKET TOP HINGE ASSY PLATES

$12.50

W0188175 PLUG TAPPED HOLE WHITE PKT 3

$13.00

W0188206 CONNECTOR RAST 7234005500

$13.30

W0188248 TRAY ICE BASE

$13.40

W0188277 CONNECTOR RAST 929002AB01

$11.30

W0188278 CONNECTOR RAST 929002BA01

$11.30

W0188328 JST SOCKET 8 PIN YLR08V

$11.70

W0188368 KIT SCW M5X20 HEX PH ST TV PKT

$14.50

W0188369 CONNECTOR RAST 7234006500

$14.50

W0188412 NAMEPLATE FP ELEGTASMAN

$14.80

W0188448 GASKET CONTROL BOX ELECTRONIC

$12.50

W0188457 TRAY ICE LID

$15.20

W0188475 SCREW 6 X12 AB TRUSS PH ST TV

$15.20

W0188476 SCREW 8X22 WAFER PHIL TV PKD

$15.20

W0188478 SCREW 10X25 CSK SQ SS PK 10

$15.20

W0188578 CLIP SLIDE PKT X 2

$22.70

W0188585 COVER DUCT TOP PC T

$14.00

W0188586 DIVIDER BOTTLE RAIL WHITE

$16.10

W0188599 LENS PCB ELECTRONIC

$13.40

W0188755 INSULATION COVER DUCT TOP T

$17.60

W0188856 GUIDE CTRL HUMIDITY RH

$17.60

W0188868 HARNESS EARTH 100MM

$16.30

W0189025 GUIDE CTRL HUMIDITY LH

$17.60

W0189077 CHASSIS EVAP T

$17.60

W0189146 ADAPTOR JST PLUG TO MOLEX KIT

$17.60

W0189168 DOOR STOP ASSY

$17.60

W0189708 CONNECTOR RAST 7234012500

$17.60

W0189756 DIVIDER BIN LARGE

$17.60

W0189826 HEATER PCB LOW AMB T MOD RC

$18.00

W0189925 SHELF DOOR SML LH 790

$21.50

W0189926 SHELF DOOR SML RH 790

$21.50

W0189927 BIN FCT 790

$21.50

W0190013 HANDLE TAS SHORT RH WH LHBRHT

$18.70

W0190058 SHIELD COVER 790B

$20.70

W0190389 CONNECTOR RAST 7234017502

$21.90

W0190950 EGG RACK 790

$25.40

W0190985 COVER DOOR SHELF 790 LH

$28.00

W0191022 HARNESS COMP 4 CORE DGX

$22.50

W0191211 SHIELD 790T CHASSIS

$22.20

W0191221 LID HUMIDITY CTRL 790T

$26.80

W0191240 HANDLE TAS LONG RH WH RHBLHT

$36.00

W0191398 BRACKET CTR HINGE RH PKD

$28.40

W0191599 TRAY EVAP AS

$30.20

W0191658 KIT WHEEL BRACKET CLIP

W0191685 CAP 4OUF 450V RAST5 P2

W0191919 CAP DOOR END OUTER WHITE 790

$27.50

W0192098 TRAY COMP MOUNTING 790 VCC

$30.50

W0192497 COVER DUCT T MODEL LONG

$32.60

W0192583 COVER VENT 790T

$40.30

W0192691 RETAINER SLIDE PC T LH ASSY

$36.00

W0192820 SWITCH REED FIELD FIX KIT ST4

$55.00

W0193356 COMPR ANCILL PARTS EGX80 90

$47.30

W0193878 CORDSET PWR AUNZ ST41

$51.30

W0193895 TUBE EVAP TRAY FORMED HSHK 68

$51.50

W0193921 MOD LAMP AS SGL LED RH SVC

$51.90

W0194335 BRACKET STABILITY ASSY

$55.60

W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH

$61.60

W0194714 RETAINER SLIDE PC T RH ASSY

$56.80

W0195151 COVER FAN FC FRONT 790T

$72.40

W0195168 SLIDE 305 RH ASSY

$98.00

W0195169 SLIDE 305 LH ASSY

$72.40

W0195398 TUBE SUCTCAP ASSY 516 2LOOP

$65.40

W0195634 HEATER DEFROST DBLE 230V 790

W0195797 SHELF GL PC 790 WH ASSY

$81.70

W0195836 DISPLAY P42 ST4 SVC ROHS

$87.00

W0195873 SHELF GL HCL 790T ASSY

$83.20

W0196096 GASKET FRAME E521T FC

$122.00

W0196503 BIN LARGE 790 ASSY

$99.20

W0197296 FISHER & PAYKEL FRIDGE DOOR GASKET/SEAL

$131.00

W0197555 PANEL BACK ASSY 1390X780

$112.70

W0197556 KIT JOINER WHITE AJRF17W

$100.20

W0197859 EVAP ASSY 790T 230V DP

$132.00

W0199489 COMPR PKD EMB EGX80CLC 220240

W0201209 CAP DOOR CLOSING RH HGE BRKT G

W0201890 DOOR PC G 790X1200 C WH T P

W0279702 GASKET TOP HINGE

$5.90

W0358723 SINGLE LED HOUSING

$9.00
