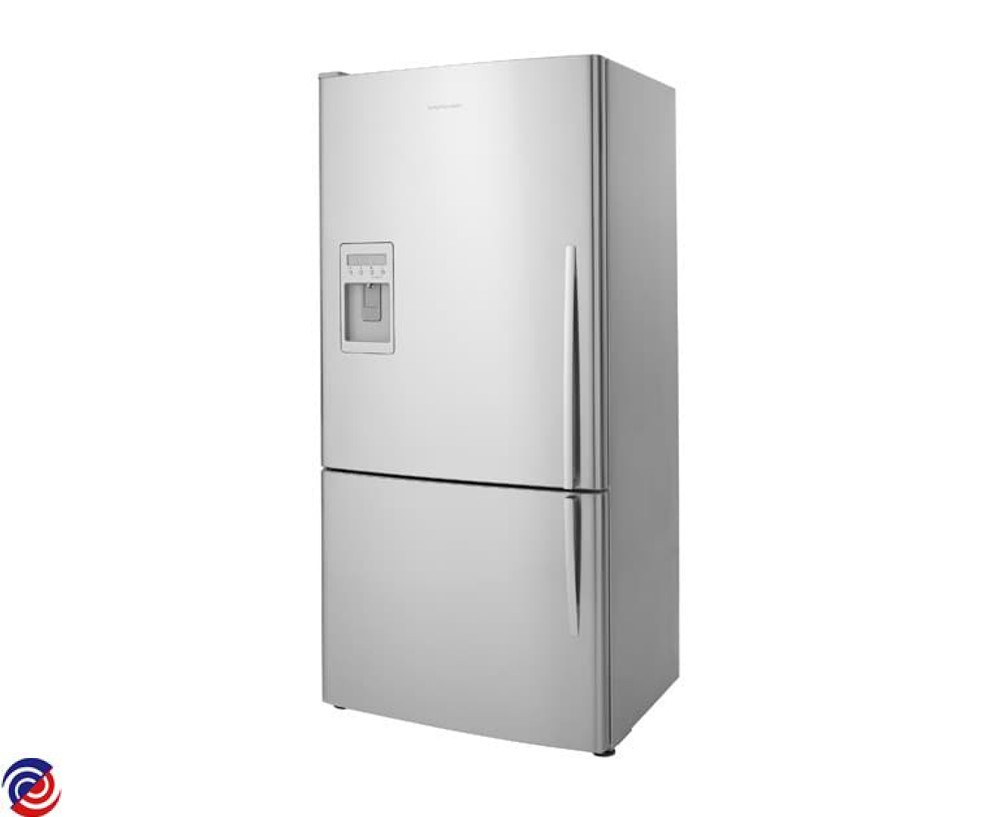

E522BLXU3 — 23792-A
FISHER & PAYKEL — Fridge

W0177176 MOD CNTRL GLTH RT 220V SVC

W0187334 FISHER & PAYKEL FRIDGE SHELF SUPPORT BRACKET

$17.00

W0187391 PLUGPIN HGE DAIRY COVER PKT 2

$14.00

W0189875 RAIL BOTTLE SUPPORT 790 SL

$21.10

W0190986 COVER DOOR SHELF 790 RH

$31.00

W0193970 BIN SMALL

$52.80

W0194717 SHELF DOOR LGE 790 WHITE

$75.00

W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT

$90.85

W0195169 SLIDE 305 LH ASSY

$104.64

W0195546 SLIDE 355 LH ASSY

$95.00

W0195549 SHELF GL PC 790 ASSY SC

$84.83

W0196940 FISHER & PAYKEL FRIDGE FAN

$151.50

W0197132 FREEZER DOOR GASKET/SEAL - 580x774 - E522B FC

$175.00

W0197215 CARTRIDGE FILTER WATER

$62.00

W0197375 FISHER & PAYKEL FRIDGE ICEMAKER & TRAY-E402/E442B/E522/RF522

$184.00

W0197964 FISHER & PAYKEL FREEZER FAN MOTOR KIT-790/900mm

$208.83

W0175922 KIT SURROUND STAINLESS 790 X 2

W0175928 DOOR PC G 790X1030 CU SX B LH

W0176063 CLOSING HOOK DR STOP GR LH

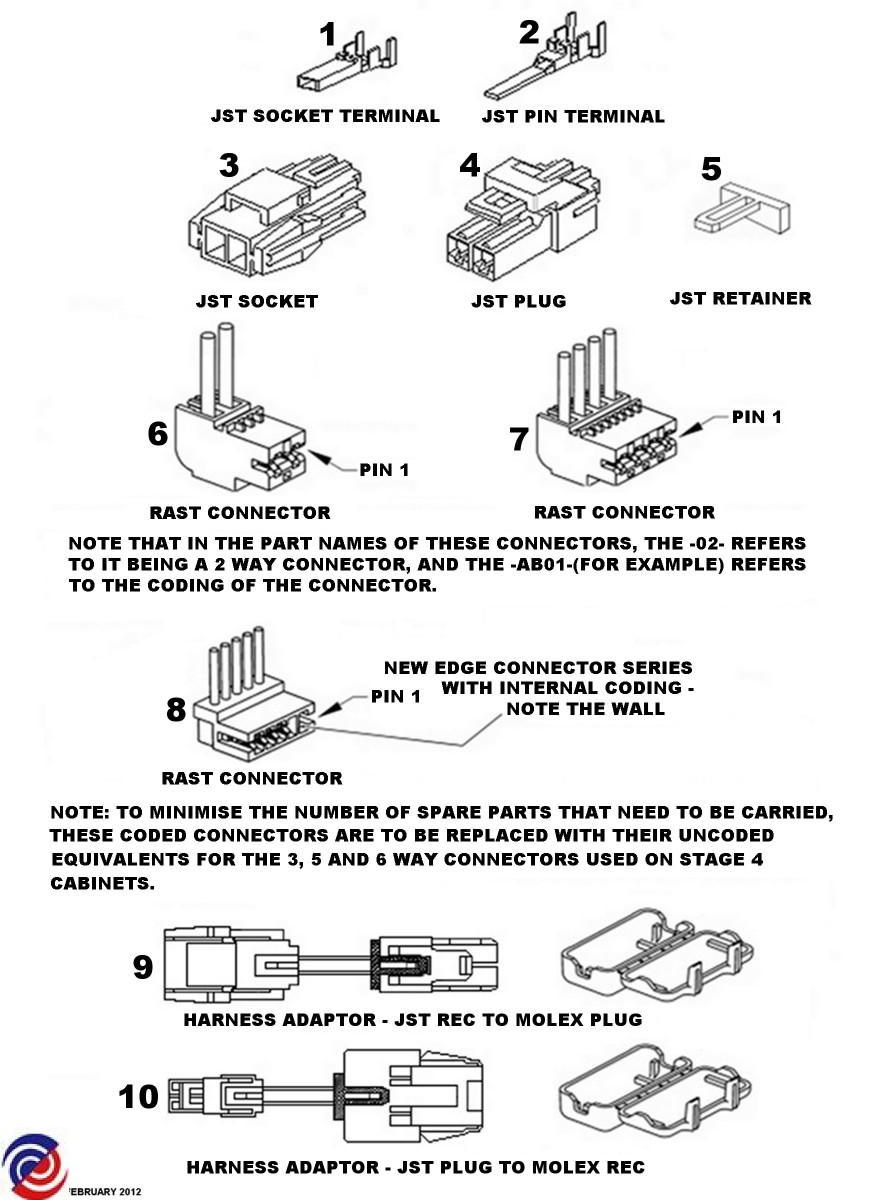

W0177159 ADAPTOR JST REC TO MOLEX KIT

W0177206 KIT FILTER WATER 600KPA 85PSI

W0177677 INSULATION INSERT PID 635B

W0177907 BEARING HINGE LH SIL 680790 I

W0183801 CONNECTOR RAST 7234014500

W0185134 CARD REGISTRATION FP AA

$4.50

W0185268 SCREW 10X19 AB 2 SQ TV PKT 10

$4.50

W0185289 CAP SCREW CROSS RAIL WHT PKD

$4.50

W0185356 SCREW 8 X12 SP PAN NIB TV PKT

$4.50

W0185397 TRIM CORNER SILVER 680790

$4.50

W0185405 GROMMET COMPR MTG 26MM

W0185528 CLIP ACTIVE SMART BAFFLE

$4.50

W0185531 SCREW 8X16 SP PAN NIB TV PKT

$4.50

W0185533 RETAINER 2 WAY YLS02V

$4.50

W0185534 POST COMPR MOUNTING 26MM

$4.50

W0185535 CLIP EVAP BAFFLE

$4.50

W0185536 WIRE DRAIN HEATER DOUBLE B

$4.50

W0185542 SPIGOT FILL ICE MAKER

$4.50

W0185560 PLATE HANDLE SUPPORT PLATED

$4.50

W0185561 COVER REED SWITCH P42 ST4 WH

$4.50

W0185567 COVER REED SWITCH ST4 SILVER

$4.50

W0186182 RETAINER 3 WAY YLS03V

$4.50

W0186781 PLUG TAPPED HOLE SILVER PKT 3

$4.50

W0186782 CAP SCREW CROSS RAIL SILVER

$4.50

W0186787 CLIP DEF HEATER B SHORT

$4.50

W0186808 LEVER BIN DETECT

$4.70

W0186816 JST PLUG 2PIN YLP02V

$4.80

W0186853 JST PLUG 4PIN YLP04V

$4.50

W0186894 FOAM CLIP SENSOR

$8.00

W0186902 CONNECTOR RAST 7234004500

$5.20

W0186991 PLUG DOOR SHELF WHITE PKT 2

$5.60

W0187056 WHEEL LEVELING FOOT ASSY RC

$12.50

W0187080 JST SOCKET 2PIN YLR02V

W0187090 CLIP SENSOR ICE TRAY

$7.00

W0187097 RETAINER HCL FRONT 790

$6.10

W0187119 JST SOCKET 3PIN YLR03V

$5.40

W0187134 CONNECTOR RAST 929002EE01

$5.50

W0187188 DEFLECTOR HEAT 790B

$5.50

W0187230 GUIDE SERVICES DOOR LH

$5.70

W0187267 JST SOCKET 4PIN YLR04V

$5.90

W0187345 CLIP FOOT COMPRESSOR PKT 4

$6.70

W0187386 CONNECTOR RAST 929004EF02

$7.60

W0187448 TERMINAL SYF01T PKT 10

$7.30

W0187471 TUBE WATER TANK INLET

$8.50

W0187532 SLIDE CTRL HUMIDITY RH

$8.90

W0187533 SLIDE CTRL HUMIDITY LH

$8.90

W0187538 TRAY ICE AUTO LARGE

$18.00

W0187579 CONNECTOR RAST 7234003500

$7.90

W0187615 JST PLUG 6PIN YLP06V

$8.10

W0187639 SUPPORT HINGE TOP LEFT

W0187663 CONNECTOR RAST 7234008500

$9.60

W0187817 CLIP COLLET LOCKING PKT X 2

$10.40

W0187821 JST PLUG 8PIN YLP08V

$8.70

W0187829 JST SOCKET 6PIN YLR06VF

$9.10

W0187876 CONNECTOR RAST 7234010500

$10.90

W0187896 COVER HINGE RHTLHB 680790

$10.50

W0187897 COVER HINGE LHTRHB 680790

$11.00

W0187918 MAGNET DOOR SWITCH ST4

$11.00

W0187984 BOLT BLIND END HINGE BRACKET

$9.90

W0188011 SCREW 12X12 TAB CSK PH PKT10

$9.60

W0188012 LEVER GEAR BOX ICE

$14.00

W0188115 SHIELD EVAP CHASSIS 790B

$10.30

W0188206 CONNECTOR RAST 7234005500

$13.30

W0188277 CONNECTOR RAST 929002AB01

$11.30

W0188278 CONNECTOR RAST 929002BA01

$11.30

W0188289 HOUSING FRONT LED PC

W0188328 JST SOCKET 8 PIN YLR08V

$11.70

W0188368 KIT SCW M5X20 HEX PH ST TV PKT

$14.50

W0188369 CONNECTOR RAST 7234006500

$14.50

W0188377 WHEEL CHASSIS ASSY

$14.60

W0188475 SCREW 6 X12 AB TRUSS PH ST TV

$15.20

W0188476 SCREW 8X22 WAFER PHIL TV PKD

$15.20

W0188478 SCREW 10X25 CSK SQ SS PK 10

$15.20

W0188525 SCOOP ICE

$15.60

W0188578 CLIP SLIDE PKT X 2

$22.70

W0188586 DIVIDER BOTTLE RAIL WHITE

$16.10

W0188594 WINDOW LED PC

$14.10

W0188639 COVER TOP HINGE IW

$16.70

W0188681 TRAY DRIP ASSEMBLY IW

$17.10

W0188856 GUIDE CTRL HUMIDITY RH

$17.60

W0188868 HARNESS EARTH 100MM

$16.30

W0188891 INSULATION COVER DUCT LONG B

$15.70

W0188959 SCREW M6X12 PAN SS PKT 10

$17.60

W0189025 GUIDE CTRL HUMIDITY LH

$17.60

W0189146 ADAPTOR JST PLUG TO MOLEX KIT

$17.60

W0189168 DOOR STOP ASSY

$17.60

W0189386 LEVER WATER DISPENSER

$17.60

W0189593 BOTTLE HOLDER SINGLE ASSY

$17.50

W0189639 SKID TRAY LH

$19.60

W0189686 TUBE WATER TANK OUTLET

W0189708 CONNECTOR RAST 7234012500

$17.60

W0189827 SKID TRAY RH

$20.70

W0189837 BRACKET HINGE WATER LH ASSY

$17.60

W0189925 SHELF DOOR SML LH 790

$21.50

W0189926 SHELF DOOR SML RH 790

$21.50

W0190058 SHIELD COVER 790B

$20.70

W0190389 CONNECTOR RAST 7234017502

$21.90

W0190434 CONNECTOR WATER ELBOW C10308W

W0190950 EGG RACK 790

$25.40

W0190985 COVER DOOR SHELF 790 LH

$28.00

W0191022 HARNESS COMP 4 CORE DGX

$22.50

W0191399 BRACKET CTR HINGE LH PKD

$28.40

W0191573 DUCT RETURN AIR FC 790

$24.90

W0191599 TRAY EVAP AS

$30.20

W0191658 KIT WHEEL BRACKET CLIP

W0191660 GRILLE PC RETURN AIR B MODEL

$30.80

W0191685 CAP 4OUF 450V RAST5 P2

W0191754 SPIGOT WATER DISPENSER

$27.60

W0191758 TUBE FILTER WATER 14 4 MTR

$31.80

W0191887 CHASSIS EVAP 790B

$33.00

W0191951 LID HUMIDITY CTRL 790B

$38.00

W0192098 TRAY COMP MOUNTING 790 VCC

$30.50

W0192309 COVER DUCT TOP WATER

$32.60

W0192561 HOUSING ICE MAKER

$39.90

W0192744 WINDOW DISPLAY ASSY

$42.00

W0192820 SWITCH REED FIELD FIX KIT ST4

$70.00

W0193086 CAP DOOR END OUTER 790 SILVER

$46.30

W0193151 FISHER & PAYKEL FRIDGE ICEMAKER SENSOR WIRE KIT

$50.00

W0193277 BIN AND SCOOP ASSY

$65.00

W0193356 COMPR ANCILL PARTS EGX80 90

$47.30

W0193381 ADAPTOR TAP 14 OD X 12BSP

$47.30

W0193535 VALVE CHECK SINGLE 14IN

$47.30

W0193613 RETAINER SLIDE FC B RH

$48.10

W0193614 RETAINER SLIDE FC B LH

$48.10

W0193878 CORDSET PWR AUNZ ST41

$51.30

W0193895 TUBE EVAP TRAY FORMED HSHK 68

$51.50

W0193927 COVER FAN FC FRONT E790B

$52.10

W0194258 COVER DSPLY NMF SX SPARES

$54.50

W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH

$61.60

W0194706 HARNESS DISPLAY DOOR 900

$86.56

W0194835 COVER DUCT PC B LONG WATER

$56.00

W0194843 BIN SMALL 790

$96.00

W0195035 RETAINER SLIDE PC 790 LH ASSY

$71.20

W0195095 MOD LAMP AS 2LED ROHS SVC

$72.40

W0195168 SLIDE 305 RH ASSY

$98.00

W0195356 SHELF GL HCL 790B ASSY SC

$126.00

W0195545 SLIDE 355 RH ASSY

$89.00

W0195634 HEATER DEFROST DBLE 230V 790

W0195638 RETAINER SLIDE PC 790 RH ASSY

$95.50

W0195666 VALVE ICE WATER 16 WATT

$140.00

W0196226 GEARBOX ICE MAKER

$91.60

W0196409 VALVE PRESS LIMIT 600KPA 85PSI

$121.00

W0196503 BIN LARGE 790 ASSY

$99.20

W0196781 HANDLE DOOR CURVED SHORT

$102.00

W0196976 GASKET FRAME E522B PC

$144.00

W0197366 HANDLE DOOR CURVED LONG

W0197531 TANK DISPENSER ASSEMBLY

$177.00

W0197555 PANEL BACK ASSY 1390X780

$112.70

W0197557 KIT JOINER SILVER AJRF17X

$102.00

W0197671 TUBE SUCTCAP ASSY 516 1LOOP

$117.20

W0197791 EVAP ASSY 790B 230V DP

$148.40

W0197991 MOD DISPLY IW NMF 16W SVC

$160.80

W0198367 DOOR FC G 790X613 C SX B LH

$189.40

W0198389 HEAD FILTER WATER

W0199514 COMPR PKD EMB EGX90CLC 220240

$367.39

W0200038 KIT SURROUND STAINLESS 790 LH

W0201078 TRAY 790

W0201147 BEARING DR CLOSING LH GR

W0201703 CAP DOOR CLOSING LH HGE BRKT
