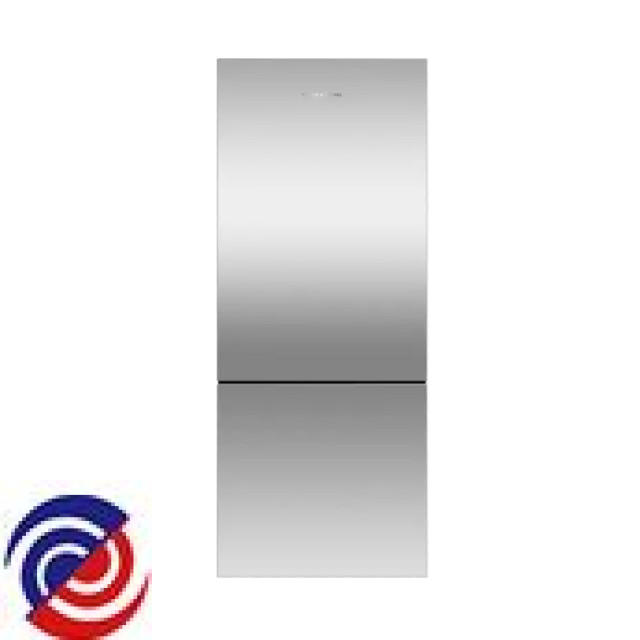

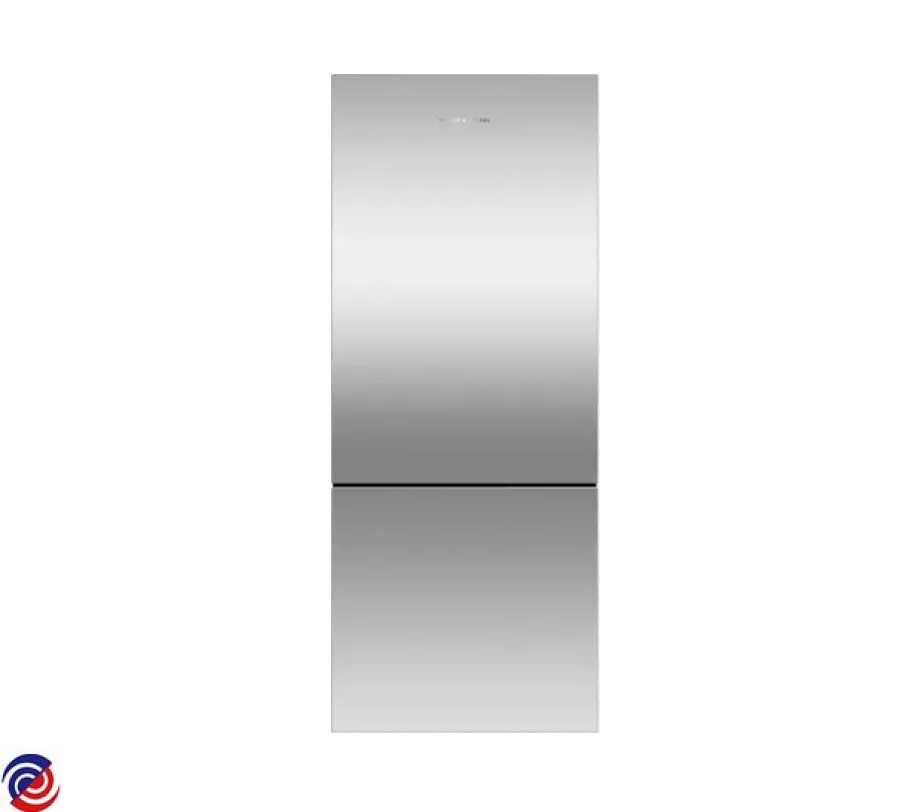

RF442BRPW6 — 24998-D
FISHER & PAYKEL — Fridge
Parts for RF442BRPW6
W0187334 FISHER & PAYKEL FRIDGE SHELF SUPPORT BRACKET
$17.00
.JPG)
W0193970 BIN SMALL
$52.80
W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT
$75.00
W0175953 BRACKET HINGE BASE RH ASSY

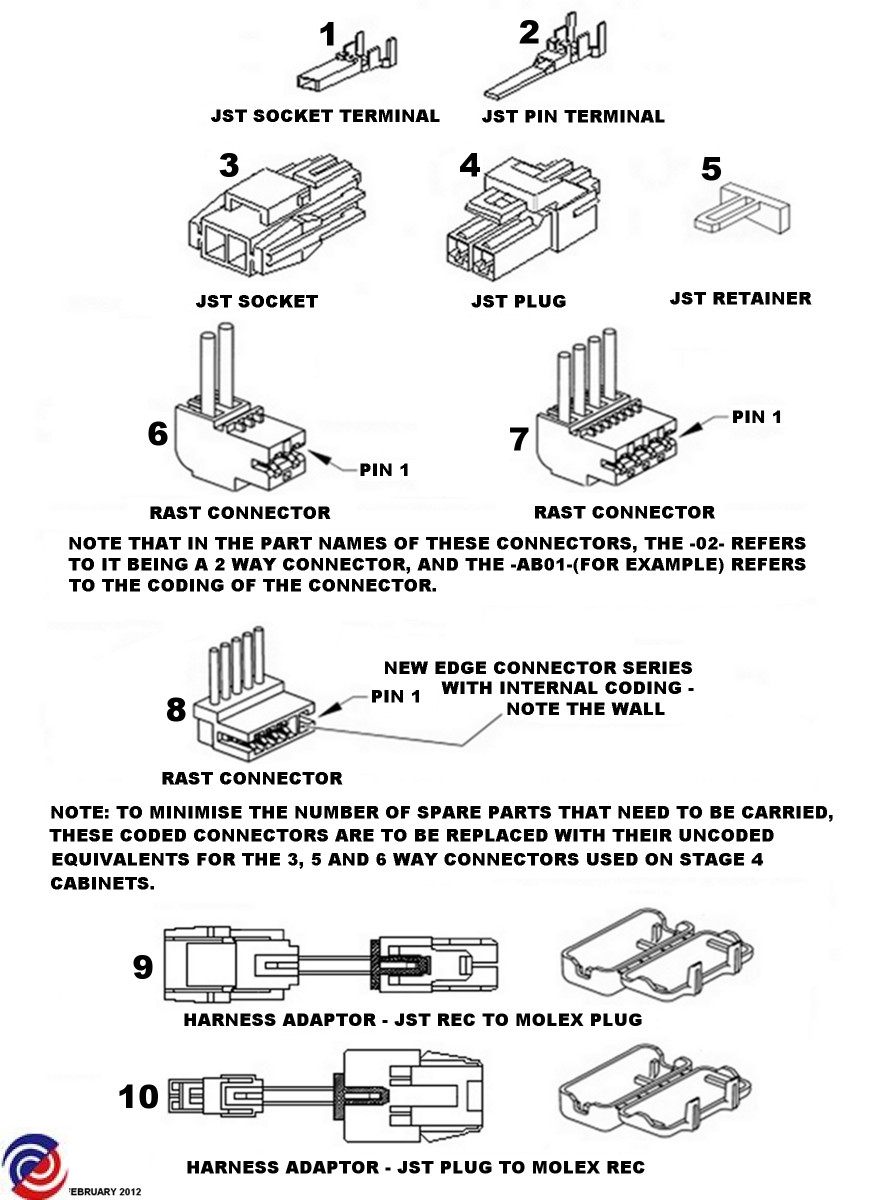

W0177159 ADAPTOR JST REC TO MOLEX KIT
W0183801 CONNECTOR RAST 7234014500
W0185167 COVER PROTECTOR VEM
$4.50
W0185268 SCREW 10X19 AB 2 SQ TV PKT 10
$4.50
W0185289 CAP SCREW CROSS RAIL WHT PKD
$4.50
W0185297 INSULATION INSERT PID
$4.50
W0185356 SCREW 8 X12 SP PAN NIB TV PKT
$4.50
W0185383 PLUG DOOR BOTTOM WH
$4.50
W0185528 CLIP ACTIVE SMART BAFFLE
$4.50
W0185530 SCREW 832X9 TYT PHTV PKT 10
$4.50
W0185532 PKT SCREW 8X16 HEX
$4.50
W0185533 RETAINER 2 WAY YLS02V
$4.50
W0185535 CLIP EVAP BAFFLE
$4.50
W0185536 WIRE DRAIN HEATER DOUBLE B
$4.50
W0185539 COVER PLUG TYCO
$4.50
W0185546 COVER DOOR TOP NONHINGE WH
$4.50
W0185554 COVER DOOR BOT UD HINGE RH WH
$4.50
W0185561 COVER REED SWITCH P42 ST4 WH
$4.50
W0185566 CAP DOOR CLOSING RH HGE BRKT
$4.50
W0186182 RETAINER 3 WAY YLS03V
$4.50
W0186787 CLIP DEF HEATER B SHORT
$4.50
W0186816 JST PLUG 2PIN YLP02V
$4.80
W0186853 JST PLUG 4PIN YLP04V
$4.50
W0186902 CONNECTOR RAST 7234004500
$5.20
W0186939 BEARING HNGE TOP DR FLAT 900 W
$4.50
W0186974 COVER DR BOT NON HINGE RH WH
$5.50
W0186986 BOOK USECARE BOOK NZAUROW
W0187030 DIVIDER BOTTLE 522B
$5.80
W0187044 TRIM CORNER RECESSED WHITE
$5.80
W0187056 WHEEL LEVELING FOOT ASSY RC
$12.50
W0187080 JST SOCKET 2PIN YLR02V
W0187119 JST SOCKET 3PIN YLR03V
$5.40
W0187134 CONNECTOR RAST 929002EE01
$5.50
W0187236 CLOSING HOOK DR STOP RHWHNOFLG
$6.90
W0187267 JST SOCKET 4PIN YLR04V
$5.90
W0187345 CLIP FOOT COMPRESSOR PKT 4
$6.70
W0187386 CONNECTOR RAST 929004EF02
$7.60
W0187448 TERMINAL SYF01T PKT 10
$7.30
W0187532 SLIDE CTRL HUMIDITY RH
$8.90
W0187533 SLIDE CTRL HUMIDITY LH
$8.90
W0187579 CONNECTOR RAST 7234003500
$7.90
W0187615 JST PLUG 6PIN YLP06V
$8.10
W0187663 CONNECTOR RAST 7234008500
$9.60
W0187730 COVER MAGNET DOOR UD WH
$8.30
W0187821 JST PLUG 8PIN YLP08V
$8.70
W0187829 JST SOCKET 6PIN YLR06VF
$9.10
W0187876 CONNECTOR RAST 7234010500
$10.90
W0187898 BEARING HINGE WATER RH UD
$11.00
W0187984 BOLT BLIND END HINGE BRACKET
$9.90
W0188011 SCREW 12X12 TAB CSK PH PKT10
$9.60
W0188057 SHIELD EVAP B CHASSIS
$9.90
W0188134 RETAINER HCL FRONT 680
$11.00
W0188175 PLUG TAPPED HOLE WHITE PKT 3
$13.00
W0188206 CONNECTOR RAST 7234005500
$13.30
W0188248 TRAY ICE BASE
$13.40
W0188250 DEFROST HTR CHASSIS PKD
$11.10
W0188277 CONNECTOR RAST 929002AB01
$11.30
W0188278 CONNECTOR RAST 929002BA01
$11.30
W0188289 HOUSING FRONT LED PC
W0188328 JST SOCKET 8 PIN YLR08V
$11.70
W0188340 COVER SHELF DOOR 680
$11.70
W0188368 KIT SCW M5X20 HEX PH ST TV PKT
$14.50
W0188369 CONNECTOR RAST 7234006500
$14.50
W0188377 WHEEL CHASSIS ASSY
$14.60
W0188457 TRAY ICE LID
$15.20
W0188475 SCREW 6 X12 AB TRUSS PH ST TV
$15.20
W0188476 SCREW 8X22 WAFER PHIL TV PKD
$15.20
W0188478 SCREW 10X25 CSK SQ SS PK 10
$15.20
W0188578 CLIP SLIDE PKT X 2
$22.70
W0188594 WINDOW LED PC
$14.10
W0188856 GUIDE CTRL HUMIDITY RH
$17.60
W0188868 HARNESS EARTH 100MM
$16.30
W0188891 INSULATION COVER DUCT LONG B
$15.70
W0188980 SHELF DOOR SOLID 680
$16.50
W0189025 GUIDE CTRL HUMIDITY LH
$17.60
W0189144 COVER DUCT PC TOP B
$17.50
W0189146 ADAPTOR JST PLUG TO MOLEX KIT
$17.60
W0189168 DOOR STOP ASSY
$17.60
W0189182 SHIELD COVER 680B
$17.60
W0189533 COVER DOOR TOP 680 WH
$17.60
W0189593 BOTTLE HOLDER SINGLE ASSY
$17.50
W0189639 SKID TRAY LH
$19.60
W0189708 CONNECTOR RAST 7234012500
$17.60
W0189827 SKID TRAY RH
$20.70
W0190049 RAIL SHELF DOOR 680
$18.00
W0190117 LID HUMIDITY CTRL 680B
$22.10
W0190282 COVER DOOR TOP 680 WH RH
$21.70
W0190389 CONNECTOR RAST 7234017502
$21.90
W0190431 SHELF DOOR BOTTOM 680
$22.00
W0190452 HARNESS VCC INV IEC EMB
$22.10
W0190484 CHASSIS EVAP 635 B
$19.40
W0190698 SHIELD DRAIN HTR DRAIN 680 B
$20.00
W0191361 DUCT RETURN AIR FC 680
$23.30
W0191398 BRACKET CTR HINGE RH PKD
$28.40
W0191599 TRAY EVAP AS
$30.20
W0191658 KIT WHEEL BRACKET CLIP
W0191660 GRILLE PC RETURN AIR B MODEL
$30.80
W0191724 TRAY COMP MOUNTING 680 VCC
$26.00
W0192354 RETAINER SLIDE PC 680 RH ASSY
$36.10
W0192377 RETAINER SLIDE PC 680 LH ASSY
$36.40
W0193183 COVER FAN FRONT 680B
$47.30
W0193613 RETAINER SLIDE FC B RH
$48.10
W0193614 RETAINER SLIDE FC B LH
$48.10
W0193707 KIT HARNESS DISPLAY 5 PIN
$47.30
W0193878 CORDSET PWR AUNZ ST41
$51.30
W0193895 TUBE EVAP TRAY FORMED HSHK 68
$51.50
W0194333 SHELF GL PC 680 ASSY SC
$84.12
W0194394 BIN SMALL 680
$59.40
W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH
$61.60
W0194648 SHELF GL HCL 680B ASSY SC
$63.90
W0194835 COVER DUCT PC B LONG WATER
$56.00
W0195168 SLIDE 305 RH ASSY
$98.00
W0195169 SLIDE 305 LH ASSY
$72.40
W0195173 FISHER & PAYKEL FRIDGE DEFROST HEATER-RF442BRPW6
$72.40
W0195286 TRAY 680
$72.40
W0195385 GASKET FRAME PUSHIN 680B FC
$72.40
W0195468 GASKET FRAME PUSHIN 442B PC
$72.40
W0195545 SLIDE 355 RH ASSY
$79.81
W0195546 SLIDE 355 LH ASSY
$85.00
W0196116 BIN LARGE 680 ASSY
$88.80
W0196309 MOD DISP AS U2 INT 6 BUTTON SV
W0197556 KIT JOINER WHITE AJRF17W
$100.20
W0197567 EVAP ASSY 680B 230V DP
$118.60
W0197671 TUBE SUCTCAP ASSY 516 1LOOP
$117.20
W0197803 PANEL BACK ASSY 1390X670
$123.20
W0198310 DOOR FC 680X605 P WH RH
$152.10
W0276606 FISHER & PAYKEL FRIDGE METAL REAR WHEEL/ROLLER
$48.00
W0277038 MOD CNTRL F AS51 120230V SVC
$207.90
W0279674 KIT COVER HINGE LOW WHT R
$36.80
W0279897 MOD LAMP AS CEILING SVC
$72.40
W0279923 SUPPORT HINGE LOW NIW
$28.70
W0280008 DOOR PC 680X10525 P WH RH LGO
$252.20
W0280030 FAN FC 3W KIT 680 SERIES A TO
$87.80
W0280034 PC 3W FAN ASSY JSTDCT
$87.00
W0294953 COVER HINGE LOW NIW WH R
$32.50
W0294954 BRACKET HINGE IW RH
W0296834 INVERTER EMB VESD9CEVO SA PFC
$104.70
W0297378 MAGNET 12MM HALL SENSOR
$4.50
W0297470 COMPR PKD EMB VESD9CEVO
$238.30
