RF610ADX5 — 24504-B
FISHER & PAYKEL — Fridge

W0187334 FISHER & PAYKEL FRIDGE SHELF SUPPORT BRACKET

$17.00

W0189764 BOSS HANDLE FLAT SPARES KIT

$20.32

W0194894 FISHER & PAYKEL FRIDGE ACTIVE SMART SENSOR KIT

$75.00

W0196940 FISHER & PAYKEL FRIDGE FAN

$125.00

W0197964 FISHER & PAYKEL FREEZER FAN MOTOR KIT-790/900mm

$198.38

W0198805 MOD CNTRL GLTH M5T ROHS 220V S

W0176062 CLOSING HOOK DR STOP GR RH

W0176063 CLOSING HOOK DR STOP GR LH

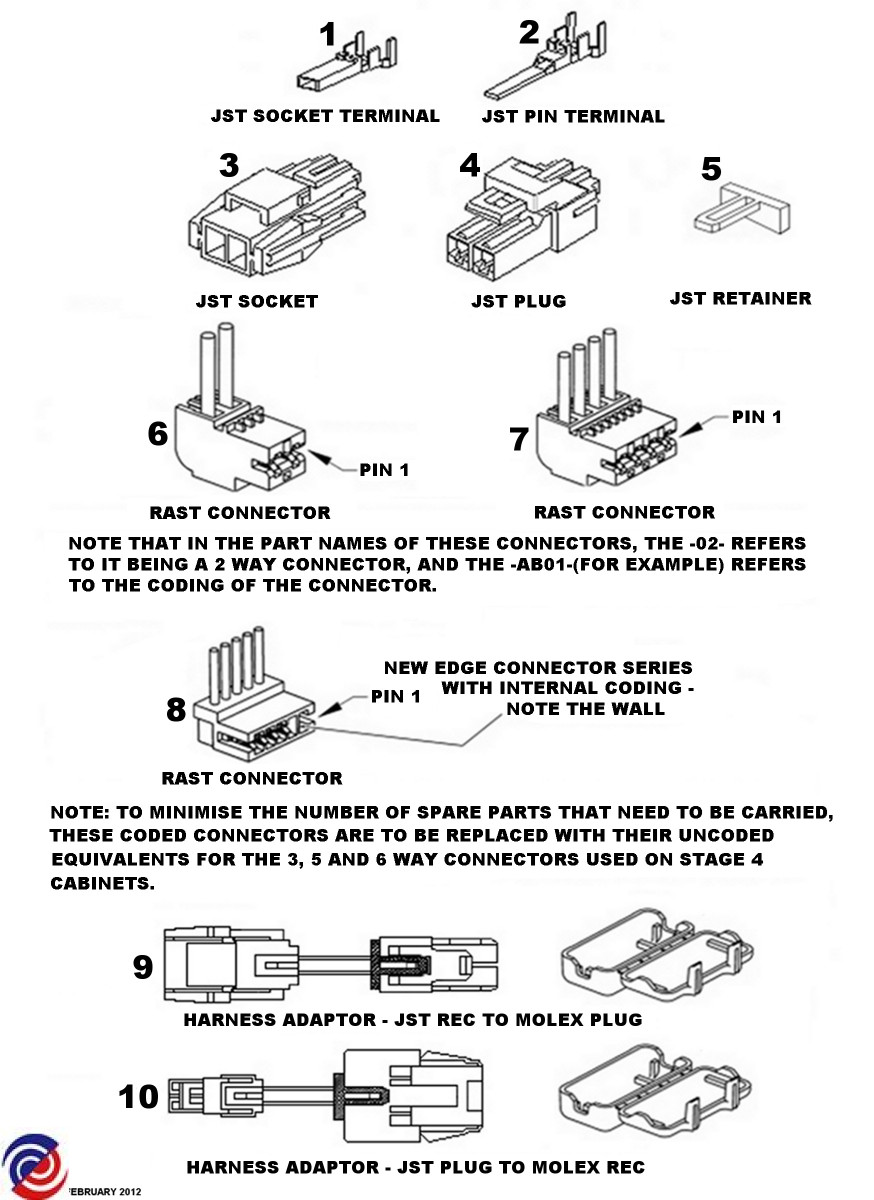

W0177159 ADAPTOR JST REC TO MOLEX KIT

W0183801 CONNECTOR RAST 7234014500

W0185134 CARD REGISTRATION FP AA

$4.50

W0185167 COVER PROTECTOR VEM

$4.50

W0185258 HINGE FLAPPER TOP

$4.50

W0185297 INSULATION INSERT PID

$4.50

W0185349 PIN FLAPPER TOP

$4.50

W0185397 TRIM CORNER SILVER 680790

$4.50

W0185405 GROMMET COMPR MTG 26MM

W0185528 CLIP ACTIVE SMART BAFFLE

$4.50

W0185532 PKT SCREW 8X16 HEX

$4.50

W0185533 RETAINER 2 WAY YLS02V

$4.50

W0185535 CLIP EVAP BAFFLE

$4.50

W0185536 WIRE DRAIN HEATER DOUBLE B

$4.50

W0185539 COVER PLUG TYCO

$4.50

W0185566 CAP DOOR CLOSING RH HGE BRKT

$4.50

W0185567 COVER REED SWITCH ST4 SILVER

$4.50

W0186123 GASKET FOAM LIGHT

$4.50

W0186182 RETAINER 3 WAY YLS03V

$4.50

W0186721 BEARING HINGE WATER RH

$4.50

W0186722 BEARING HINGE WATER LH

$4.50

W0186787 CLIP DEF HEATER B SHORT

$4.50

W0186816 JST PLUG 2PIN YLP02V

$4.80

W0186853 JST PLUG 4PIN YLP04V

$4.50

W0186902 CONNECTOR RAST 7234004500

$5.20

W0186986 BOOK USECARE BOOK NZAUROW

W0186991 PLUG DOOR SHELF WHITE PKT 2

$5.60

W0187015 RETAINER HCL FRONT

$5.70

W0187043 COVER MAGNET DOOR FLAT

$5.00

W0187056 WHEEL LEVELING FOOT ASSY RC

$12.50

W0187063 HOOK TRAY TO BIN

$5.90

W0187080 JST SOCKET 2PIN YLR02V

W0187119 JST SOCKET 3PIN YLR03V

$5.40

W0187134 CONNECTOR RAST 929002EE01

$5.50

W0187188 DEFLECTOR HEAT 790B

$5.50

W0187198 RETAINER SLIDE TRAY

$6.70

W0187267 JST SOCKET 4PIN YLR04V

$5.90

W0187268 COVER DOOR HINGE RH SL

W0187269 COVER DOOR HINGE LH SL

$7.10

W0187309 TRACK FLAPPER CABINET

$6.40

W0187345 CLIP FOOT COMPRESSOR PKT 4

$6.70

W0187386 CONNECTOR RAST 929004EF02

$7.60

W0187448 TERMINAL SYF01T PKT 10

$7.30

W0187532 SLIDE CTRL HUMIDITY RH

$8.90

W0187533 SLIDE CTRL HUMIDITY LH

$8.90

W0187579 CONNECTOR RAST 7234003500

$7.90

W0187615 JST PLUG 6PIN YLP06V

$8.10

W0187616 CAP FLAPPER BOTTOM

$9.30

W0187663 CONNECTOR RAST 7234008500

$9.60

W0187704 BRACKET MOUNT PINION FC RH

$9.80

W0187705 BRACKET MOUNT PINION FC LH

$9.80

W0187802 TRIM CORNER DOOR FLAT SL

$10.30

W0187821 JST PLUG 8PIN YLP08V

$8.70

W0187829 JST SOCKET 6PIN YLR06VF

$9.10

W0187876 CONNECTOR RAST 7234010500

$10.90

W0187918 MAGNET DOOR SWITCH ST4

$11.00

W0187984 BOLT BLIND END HINGE BRACKET

$9.90

W0187997 COVER LAMP PC P42

$11.50

W0188013 ENDCAP FLAPPER TOP

$11.60

W0188115 SHIELD EVAP CHASSIS 790B

$10.30

W0188206 CONNECTOR RAST 7234005500

$13.30

W0188277 CONNECTOR RAST 929002AB01

$11.30

W0188278 CONNECTOR RAST 929002BA01

$11.30

W0188289 HOUSING FRONT LED PC

W0188328 JST SOCKET 8 PIN YLR08V

$11.70

W0188368 KIT SCW M5X20 HEX PH ST TV PKT

$14.50

W0188369 CONNECTOR RAST 7234006500

$14.50

W0188472 SCREW ST 8X58TA MTS PH H5ZNPL

$15.20

W0188475 SCREW 6 X12 AB TRUSS PH ST TV

$15.20

W0188476 SCREW 8X22 WAFER PHIL TV PKD

$15.20

W0188478 SCREW 10X25 CSK SQ SS PK 10

$15.20

W0188525 SCOOP ICE

$15.60

W0188577 TRIM DOOR DESIGNER SL

$13.90

W0188578 CLIP SLIDE PKT X 2

$22.70

W0188594 WINDOW LED PC

$14.10

W0188614 ENDCAP FLAPPER BOTTOM

$16.30

W0188856 GUIDE CTRL HUMIDITY RH

$17.60

W0188868 HARNESS EARTH 100MM

$16.30

W0188876 COVER FAN HOUSING

$15.60

W0188924 BRACKET HRAIL HINGE RH PLATED

$17.60

W0188925 BRACKET HRAIL HINGE LH PLATED

$17.60

W0188959 SCREW M6X12 PAN SS PKT 10

$17.60

W0189025 GUIDE CTRL HUMIDITY LH

$17.60

W0189091 PINION ANTIRACK FC PKD

$17.60

W0189146 ADAPTOR JST PLUG TO MOLEX KIT

$17.60

W0189168 DOOR STOP ASSY

$17.60

W0189218 PKT SCREW 8X22 WAFER

W0189360 DIVIDER BOTTLE 900

$18.10

W0189406 RAIL BOTTLE SUPPORT 900 SL

$18.40

W0189486 COVER REAR PARTIAL

$17.90

W0189593 BOTTLE HOLDER SINGLE ASSY

$17.50

W0189690 HOUSING FAN INVERTER

$18.90

W0189708 CONNECTOR RAST 7234012500

$17.60

W0189757 BAR ANTI RACKING 900 FC

$36.00

W0189863 TUBE EVAP TRAY FORM HSHRINK

$17.60

W0189899 INSULATION FLAPPER

$21.30

W0189944 SCREW M5X40 CAP PKT 10

$21.50

W0190058 SHIELD COVER 790B

$20.70

W0190389 CONNECTOR RAST 7234017502

$21.90

W0190452 HARNESS VCC INV IEC EMB

$22.10

W0191404 LID HUMIDITY CTRL 900

$28.40

W0191496 TRACK ANTI RACKING FC

$41.00

W0191526 GUIDES TUBE RH RF FREESTANDING

$29.70

W0191527 GUIDE TUBE DOOR LH RF FREESTAN

$25.80

W0191573 DUCT RETURN AIR FC 790

$24.90

W0191635 BRACKET DOOR FC RH

$30.50

W0191636 BRACKET DOOR FC LH

$30.50

W0191658 KIT WHEEL BRACKET CLIP

W0191660 GRILLE PC RETURN AIR B MODEL

$30.80

W0191887 CHASSIS EVAP 790B

$33.00

W0192137 COVER DAIRY 900

$35.60

W0192309 COVER DUCT TOP WATER

$32.60

W0192528 RETAINER SLIDE FC 900 LH

$34.50

W0192664 RETAINER SLIDE FC 900 RH

$41.00

W0192665 HOUSING CONDENSER BASE

$33.90

W0192820 SWITCH REED FIELD FIX KIT ST4

$55.00

W0192881 INSULATION COVER DUCT 900B

$43.60

W0193114 SHELF DOOR 900

$64.29

W0193258 BIN ICE 900

$47.30

W0193337 RETAINER SLIDE PC 900 LH

$43.10

W0193387 TRAY COMP MOUNTING 900 FFC

$41.70

W0193508 BODY FLAPPER 900

$47.30

W0193528 RETAINER SLIDE PC 900 RH

$47.30

W0193649 RETAINER WHEEL STEEL

$44.80

W0193878 CORDSET PWR AUNZ ST41

$51.30

W0193921 MOD LAMP AS SGL LED RH SVC

$51.90

W0193927 COVER FAN FC FRONT E790B

$52.10

W0194335 BRACKET STABILITY ASSY

$55.60

W0194520 FISHER & PAYKEL CHEST FREEZER FILTER LONG TAIL-H360XWH

$61.60

W0194561 BIN SMALL 900

$62.40

W0194634 COVER DUCT PC 900B

$63.70

W0195121 BIN MEDIUM 900

$78.00

W0195128 TRAY SLIDING 900

$63.50

W0195168 SLIDE 305 RH ASSY

$98.00

W0195169 SLIDE 305 LH ASSY

$72.40

W0195257 SHELF GL PC 900 ASSY SC

$72.40

W0195420 SHELF GL HCL 900B ASSY SC

$73.10

W0195545 SLIDE 355 RH ASSY

$79.81

W0195546 SLIDE 355 LH ASSY

$85.00

W0195621 MOD HUMIDITY SENSOR AS BI

$77.90

W0195634 HEATER DEFROST DBLE 230V 790

W0195648 TUBE SUCTION CAPILLARY ASSY

$70.70

W0195677 INSERT STL FLAPPER HTR 8W

$86.00

W0195960 FISHER & PAYKEL FRIDGE HANDLE D3 642 BRUSHED

$85.00

W0196073 FAN CONDENSER

$96.00

W0196242 GASKET FRAME E610 FC

$115.00

W0196268 SLIDE DRAWER FC MAIN LH

W0196269 SLIDE DRAWER FC MAIN RH

W0196309 MOD DISP AS U2 INT 6 BUTTON SV

W0196795 BIN FC 900

$102.00

W0196876 HANDLE D3 820 BRUSHED

$97.40

W0196962 GASKET ASSY 900 PC

$160.00

W0197555 PANEL BACK ASSY 1390X780

$112.70

W0197675 CONDENSER EXT 6 PASS

$141.70

W0197791 EVAP ASSY 790B 230V DP

$148.40

W0198742 INVERT PKD FIX ALONE VEMC9C 23

$222.40

W0199443 DOOR PC 445X1135 FUA SX LH

$335.40

W0199528 DOOR PC 445X1130 FA SX RH PKD

$312.70

W0200004 KIT EMB VEMC9CFIXALONE 230V

$688.70

W0200311 DRAWER FC 900X613 F SX P

W0201141 SPRING FLAPPER

W0201148 HINGE FLAPPER BOTTOM

W0201703 CAP DOOR CLOSING LH HGE BRKT

W0276606 FISHER & PAYKEL FRIDGE METAL REAR WHEEL/ROLLER

$48.00

W0279687 KIT COVER HINGE LOW GRY RH

$20.40

W0279688 KIT COVER HINGE LOW GRY LH

$20.40

W0279897 MOD LAMP AS CEILING SVC

$72.40

W0279923 SUPPORT HINGE LOW NIW

$28.70

W0279924 COVER HINGE LOW NIW GRY R

$33.10

W0279925 COVER HINGE LOW NIW GRY L

$33.10

W0294954 BRACKET HINGE IW RH

W0294961 HINGE BRACKET

W0358723 SINGLE LED HOUSING

$9.00
