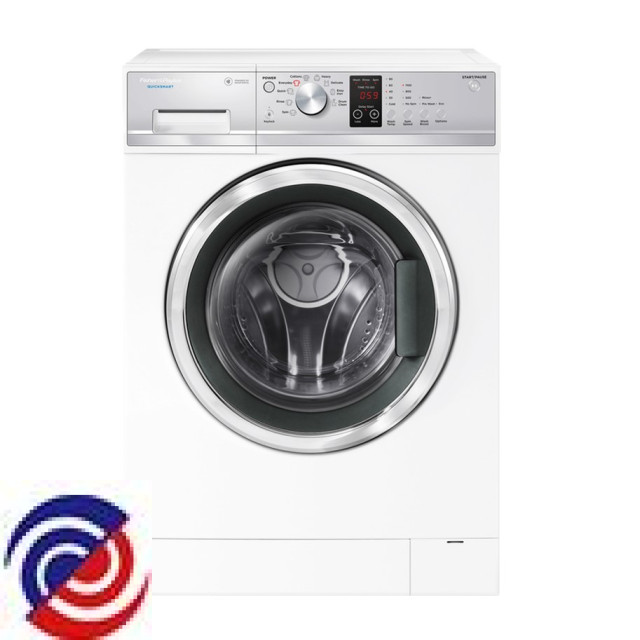

WH7560J3 — 93249-A
FISHER & PAYKEL — Washing Machine
Parts for WH7560J3
.jpg)

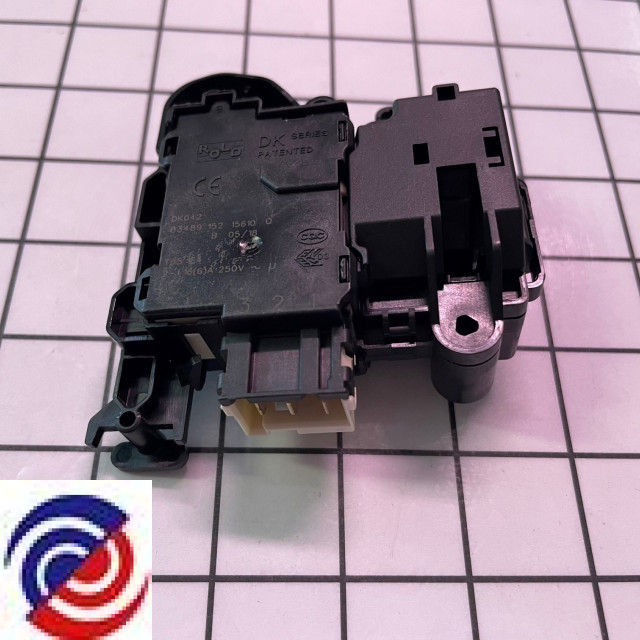

W0194268 FISHER & PAYKEL FRONT LOADER L WASHING MACHINE DOOR LOCK
W0194788 FISHER & PAYKEL HAIER FRONT LOADER WASHER HEATER ELEMENT
$102.00
W0195062 FISHER & PAYKEL FRONT LOADER WASHING MACHINE COLD DUAL INLET VALVE
$108.00
W0196192 FISHER & PAYKEL FRONT LOADER WASHER DRAIN PUMP
$119.50
W0196340 FISHER & PAYKEL HAIER FRONT LOADER WASHER DOOR GASKET/SEAL
$121.00
W0196699 FISHER & PAYKEL FRONT LOAD WASHING MACHINE DOOR OUTER # H0020204106A
$110.00
W0177367 PANEL KICK STRIP
W0177527 PANEL FRONT CABINET WH
W0185111 AIR BELL
$4.50
W0185620 SPRING FUNCTION BUTTON
$4.50
W0185621 GUIDE TOP PANEL
$4.50
W0185623 CAP HINGE
$4.50
W0185644 BRACKET RH SUSPENSION SPRING
$4.50
W0185661 DRAIN HOSE HOLDER
$4.50
W0185667 BUFFER DOOR INNER
$4.50
W0185669 WASHER COUNTER WEIGHT
$4.50
W0185677 SUPPORT SPRING
$4.50
W0185678 CLIP HARNESS
$4.50
W0185684 CLAMP BOWL VENT CABINET
$4.50
W0185685 CLIP VALVE ASSY
$4.50
W0186055 SCREW STATOR
$4.50
W0186209 CLAMP HOSE VALVE
$4.50
W0186213 CLIP
$4.50
W0186214 SPONGE PROTECTOR PRESSURE TUBE
$4.50
W0186219 DOOR CLAMP NUT NYLON
$4.50
W0186228 WASHER STEEL
$4.50
W0186233 SCREW
$4.50
W0186234 CLIP PRESSURE TUBE
$4.50
W0186239 CLAMP PUMP INNER HOSE
$4.50
W0186251 CLAMP HOSE DRAIN PUMP
$4.50
W0186254 CLAMP TUB DRAIN HOSE
$4.50
W0186569 FISHER & PAYKEL FRONT LOAD WASHER DOOR (FRONT) SEAL WIRE CLAMP
W0186610 PIN SHOCK ABSORBER
W0186820 BRACKET HEATER
$4.50
W0186821 DOOR LOCKPLASTIC POLE
$4.80
W0186882 WASHER ROTOR
$4.50
W0186992 BOOK USE CARE AW
$4.70
W0187227 BRACKET RETAINER DOOR HINGE
$5.90
W0187232 BOLT SHOCK ABSORBER
$5.70
W0187335 GUIDE HARNESS SHORT
$6.30
W0187514 DRUM VANE
W0187659 GUIDE HARNESS LONG
$9.10
W0187830 BOLT ROTOR
$9.40
W0187873 CLAMP INLET HOSE
$9.40
W0188006 FOOT
$12.00
W0188072 HOSE DISPENSER TUB
$13.08
W0188271 BUTTON POWER
$13.60
W0188380 BOLT COUNTERWEIGHT
$12.10
W0188528 CLAMP TUB BELLOWS
$17.00
W0188664 SPANNER INSTALLATION
$16.10
W0188667 WATERPROOF MEMBRANE
$14.70
W0188670 SPRING SUSPENSION
$17.60
W0188873 HOSE VALVE TO DISPENSER
W0189244 SYPHON DISPENSER
$17.60
W0189254 HARNESS MOTOR
W0189301 CLAMP 43 TUB DISPENSER
$17.80
W0189346 LIGHT GUIDE
$17.60
W0189468 TRANSIT BOLT
$18.70
W0189488 HOOK DOOR LATCH
$24.00
W0189529 HOUSING PCB
$18.90
W0189534 CLIP
$17.60
W0189780 FISHER & PAYKEL HAIER FRONT LOAD WASHING MACHINE DRAIN HOSE H0020300148
$38.00
W0190567 HOSE DISPENSER TUB
$30.00
W0190583 BRACKET FRONT
$19.90
W0190729 COUNTER WEIGHT REAR
$28.00
W0190842 HOUSING B MOTOR CONTROLLER
$20.70
W0191053 HOUSING PCB BOTTOM COVER
$26.00
W0191212 SEAL TUB FRONT TO REAR
$34.55
W0191440 HOSE TUB PUMP
$40.25
W0191824 BRACKET MAIN BEAM
$28.10
W0191840 PRESSURE SENSOR
$36.90
W0191913 SHOCK ABSORBER 80N
$43.20
W0191942 HOSE INLET AW COLD
$35.95
W0192190 SHOCK ABSORBER 120N
$48.50
W0192239 DOOR PUMP FILTER
W0192708 PANEL DISPLAY CONTROLLER
$36.10
W0192908 COVER INNER DOOR
$66.00
W0192935 CAPACITOR MAINS FILTER
$44.30
W0193005 FISHER & PAYKEL FRONT LOAD WASHING MACHINE DOOR HINGE
$49.00
W0193023 PANEL BASE
$37.70
W0193179 COVER MIDDLE OF DOOR
$66.00
W0193593 DISPENSER
$49.95
W0193712 COUNTERWEIGHT L
$44.20
W0193713 CABLE MAINS
$49.30
W0193823 SHIELD FLAME
$48.30
W0194392 COUNTERWEIGHT R
$56.50
W0194423 PANEL REAR COVER
$52.00
W0194720 KNOB PROGRAMME SELECTOR
$65.50
W0195588 TUB FRONT
W0195663 PORTHOLE DOOR
$135.00
W0195792 PCB BUTTON TOUCH
$101.83
W0195902 HANDLE DISPENSER 7560 8560 P
W0196554 PANEL TOUCH J3
$96.00
W0196664 HARNESS MAIN J3
$86.30
W0196760 TOP COVER
$102.00
W0197491 ROTOR
$132.70
W0198060 STATOR
$165.90
W0199082 CABINET WHT
$180.80
W0199273 PCB DISPLAY
$192.92
W0199355 PCB MOTOR CONTROLLER
$251.00
W0199529 TUB REAR INC BEARING SEAL
$379.00
W0280392 INNER DRUM 7 75KG J SERIES
$242.60
