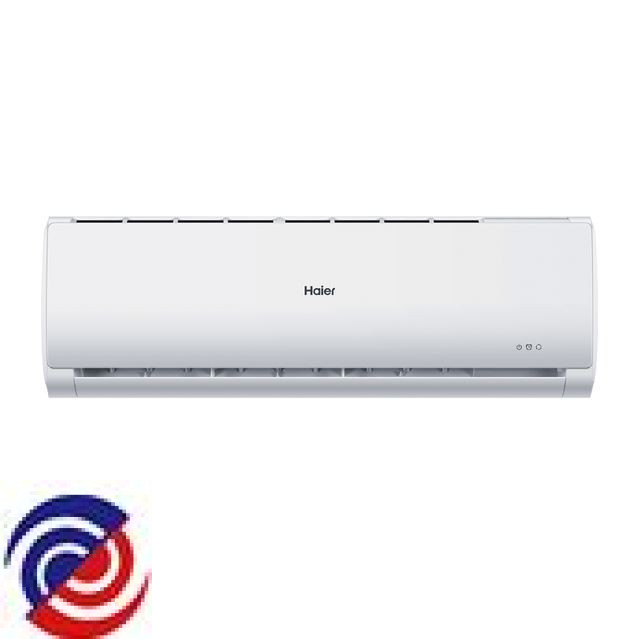

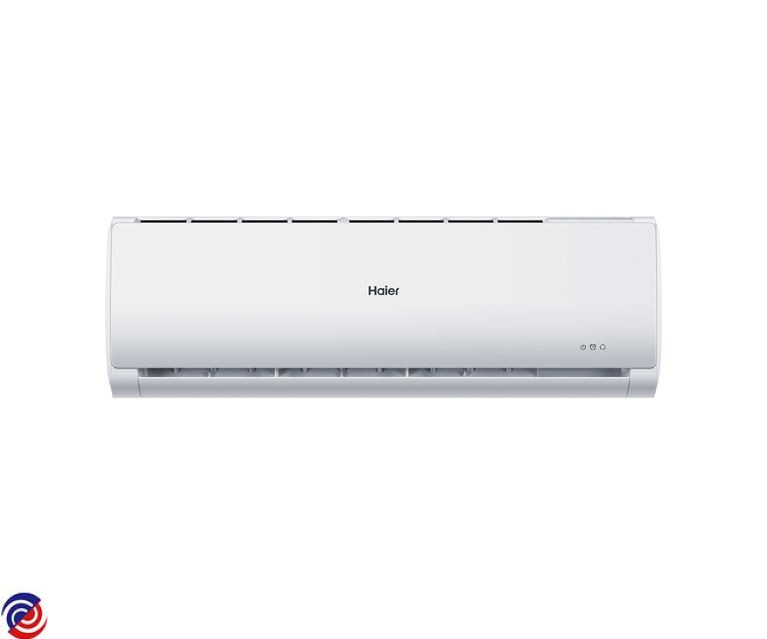

AS71TE1HRA — 51228-A
HAIER — Air-Conditioner

W0185366 GUARD RING

$4.50

W0185376 SCREW ASSY

$4.50

W0185582 BEARING COVER ASSY

$4.50

W0185591 PIPE FIXING BOARD

$4.50

W0185592 BOLT COVER

$4.50

W0185593 SWING BOARD 1

$4.50

W0185598 SHAFT JACKET

$4.50

W0185603 LOUVRE AXLE

$4.50

W0185605 BRACKET MOTOR TOP

$4.50

W0185606 BRACKET MOTOR BOTTOM

$4.50

W0185609 DRAINPIPE STEM

$4.50

W0185610 BOX DISPLAY BOARD

$4.50

W0188329 TOP COVER ASSY

$11.10

W0188896 MOTOR COVER

$15.00

W0189018 FRAMEWORK BOARD

$16.00

W0189205 AIR FILTER

$17.10

W0189206 SNAIL FOAM

$17.10

W0189340 DRAINPIPE

$17.60

W0190600 PROTECT BOARD ELECT BOX RH

$18.90

W0190601 PROTECT BOARD ELECT BOX LH

$18.90

W0190602 COVER BOARD ELECT BOX INNER

$18.90

W0190603 COVER BOARD ELECT BOX OUTER

$18.90

W0190628 COVER ELECT BOX INNER

$18.90

W0190629 COVER ELECT BOX OUTER

$18.90

W0190634 SERVICE COVER

$18.90

W0190644 BEARING

$29.95

W0190648 DRAIN HOSE

$21.80

W0190752 TERMINAL BLOCK

$19.30

W0191047 BATTERY

$20.50

W0191273 BLADE

$21.60

W0191924 ELECTRIC BOX

$26.20

W0191970 STEPPER MOTOR

$27.80

W0192653 DISPLAY PANEL

$37.10

W0192690 REMOTE CONTROL

$59.00

W0192880 MOUNTING PLATE

$34.40

W0194722 CASING ASSY

$73.60

W0195214 AIRCON INDOOR CROSS FLOW FAN

$93.10

W0195654 PANEL

$67.50

W0196510 FRAME ASSY

$78.40

W0196805 DRED TERMINAL

$90.30

W0197680 PCB INDOOR

$189.00

W0199455 EVAPORATOR ASSY

$267.60

W0280174 STEPPER MOTOR

$176.40
