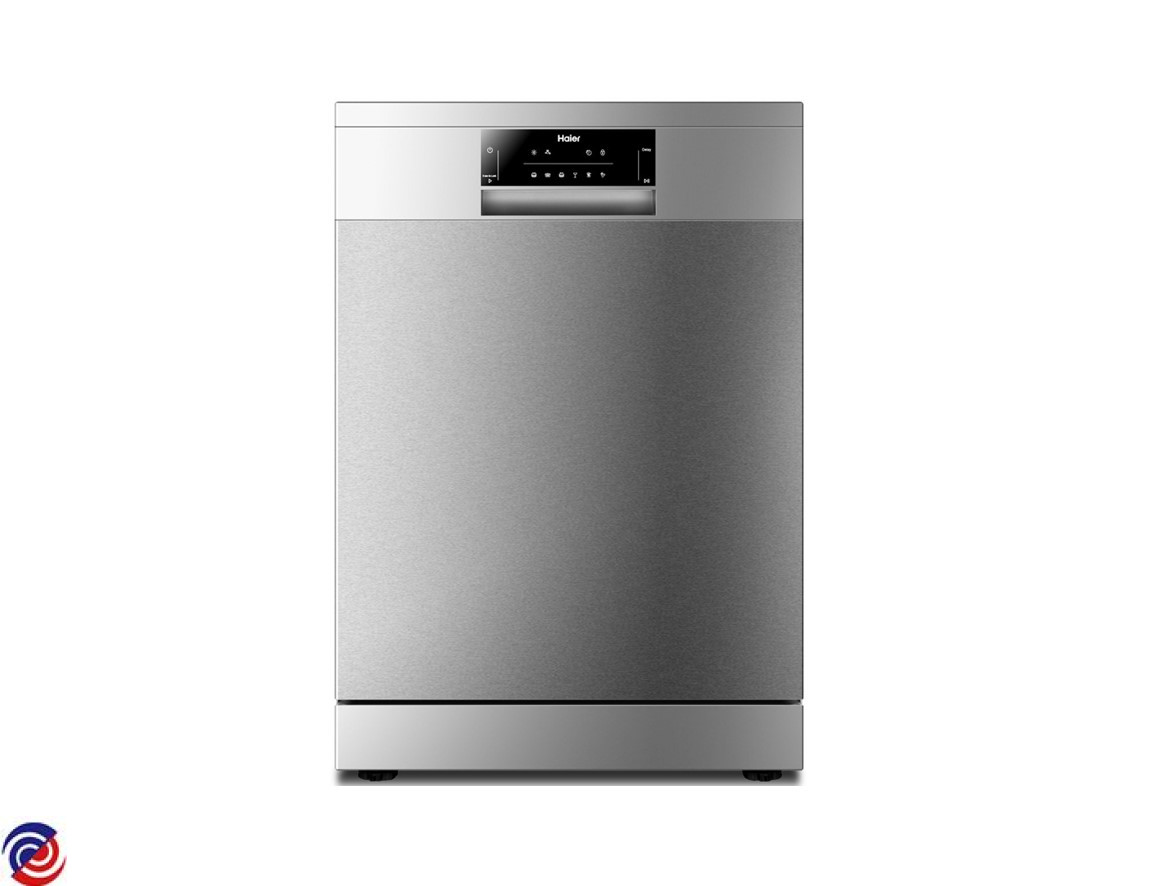

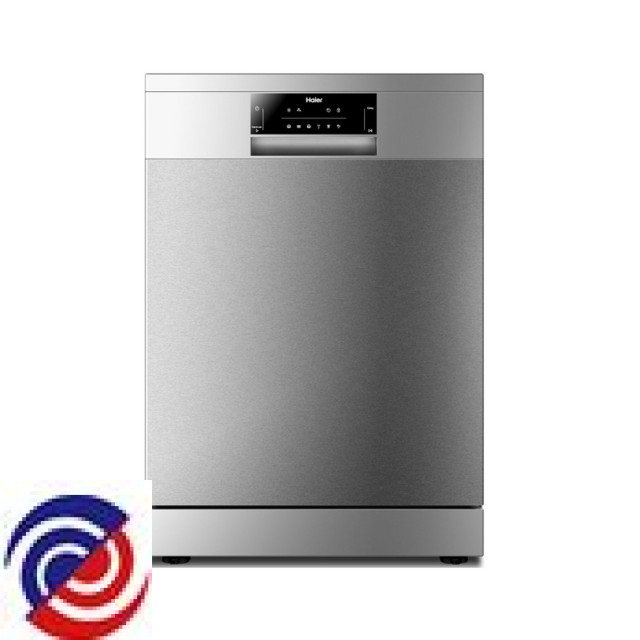

HDW13G1X — 61590-A
HAIER — Dishwasher
Parts for HDW13G1X
W0185381 AXEL STUB LOWER BASKET
$6.00
W0186104 FISHER & PAYKEL DISHWASHER LOWER RACK WHEEL
$14.00
W0187243 FISHER & PAYKEL DISHWASHER UPPER BASKET WHEEL
$7.50
W0190000 HOSE DRAIN LONG
$44.50
W0191234 LOWER SPRAYER
$52.00
W0192618 FISHER & PAYKEL/HAIER SECOND SPRAYER ASSEMBLY
$45.00
W0195500 DETERGENT DISPENSER
$131.00
W0195585 FISHER & PAYKEL HAIER DISHWASHER DOOR LOCK HOOK H0120801601
$79.00
W0176228 CLAMP HOSE 3250MM
W0176254 CLAMP HOSE 2032MM
W0177038 FIXING SCREW
$4.50
W0177161 AXLE STUB UPPER BASKET
$4.95
W0177440 FILTER COARSE
W0177441 FILTER MICRO STAINLESS
W0177442 FILTER FLAT EXTRACTABLE SS
W0185088 BOLT
$4.50
W0185615 SCREW M4 8
$4.50
W0185920 FLAP NON RETURN VALVE
$4.50
W0185921 FRAME NON RETURN VALVE
$4.50
W0185922 PLUG
$4.50
W0185923 BRACKET POWER SUPPLY CABLE
$4.50
W0185949 SCREW M5 10 SS
$4.50
W0185950 HOSE CLAMP
$8.00
W0185952 SCREW NST42 X 13
$4.50
W0185953 SCREW ST35 17
$4.50
W0185955 CLAMP DRAIN HOSE
$7.00
W0185958 SCREW ST5 20HB
$4.50
W0185959 SCREW ST39 19
$4.50
W0185960 BOLT
$4.50
W0185961 SCREW SELFTHREADING
$4.50
W0186107 O RING GASKET
$4.50
W0186691 CLAMP HOSE
$4.50
W0186716 PLATE PLASTIC OVERFLOW
$4.50
W0187021 NUT BREATHER RING WEIR
$4.50
W0187285 HOUSING FLAP VALVE
W0187378 VALVE FLAP UPPER SPRAYARM
$9.95
W0187379 NUT OUTER DUCT GREY
W0187380 COVER TOP TRANSITION GREY
W0187381 ORING AIR VENT
$14.00
W0187773 SCREEN SUMP OUTLET
$8.70
W0187863 ENDCAP RAIL GREY
$15.25
W0187880 FIRE BLANKET
$9.00
W0187957 COVER FOR SUMP
W0188054 HOSE OVERFLOW PLATE
$12.70
W0188086 FLOAT SUPPORT
$10.60
W0188204 PANEL SEALING SHORT
$11.50
W0188205 FOOT FRONT FREESTANDING
$13.20
W0188208 FOOT REAR ADJUSTABLE FREESTAND
$13.30
W0188299 ORING GASKET WEIR
$13.90
W0188447 FISHER & PAYKEL HAIER DISHWASHER TOP FOLD DOWN RACK
$15.10
W0188587 COVER DISPENSER
$14.00
W0188731 PLATE WASH PUMP
$14.50
W0188912 HOSE
$24.00
W0189388 PANEL UPPER REAR
$17.00
W0189494 TRANSITION TOP GREY
W0189500 BRACKET MIDDLE REAR
$17.60
W0189604 HOSE DRAIN SHORT
$27.00
W0189994 DOOR SPRING
$21.50
W0189997 MOUNT RUBBER WASH PUMP
$17.80
W0189998 COVER LOWER SPRAYER
$25.00
W0190004 CROSSPIECE SUPPORT UPPER REAR
$15.90
W0190005 FLOAT
$30.00
W0190006 CLAMP HOSE
W0190007 ROPE CONNECTING SPRING
$21.50
W0190133 GRID CUTLERY BASKET
$22.20
W0190453 RAIL BASKET
$22.20
W0190552 HOSE DIVERTER OUTER DUCT
$23.80
W0190696 DOOR INSULATION
$24.10
W0190864 HANDLE CONTROL PANEL SS
$20.80
W0190865 OUTER DUCT
$25.10
W0190869 COVER PCB
$34.00
W0191001 RAIL SUPPORT ASSY
$25.80
W0191261 GASKET SUMP
$22.60
W0191287 BRACKET LOWER REAR
$22.70
W0191615 SEAL TUBE TOP SPRAYARM
$35.00
W0191632 MICROSWITCH
$55.00
W0192380 CABLE POWER SUPPLY 3 X 1 MM
$38.30
W0192717 BRACKET LOWER FRONT
$29.50
W0192729 VALVE INLET
$41.80
W0193123 DOOR SWITCH
$67.00
W0193620 CUTLERY BASKET
$48.10
W0193662 SENSOR TEMPTURBIDITY EMZ
$80.85
W0193919 FELT SOUND DEADENING SIDETOP
$47.30
W0194329 TRAY BOTTOM BASE
$48.20
W0194641 WEIR INCL FLOW METER
$66.00
W0194944 HOSE INLET LONG 2M PKD
$51.00
W0194948 PANEL LH SIDE SS
$64.90
W0194973 HINGE RH LH INCL BRACKET
$62.47
W0195019 HARNESS CONTROL PANEL
$47.30
W0195400 BASEBOARD SS
$65.40
W0195616 SUMP ASSEMBLY
$70.00
W0195687 PUMP DRAIN
W0196524 CONTROL PANEL HDW13G1 SS
$73.90
W0196741 PANEL RH SIDE SS
$101.50
W0197013 BASKET LOWER
W0197170 DOOR INNER INCL GASKET
$157.00
W0197514 PANEL TOP HDW13G1 SS
W0197614 BASKET UPPER
W0197715 BOARD PCB
$232.34
W0198380 MOTOR CONTROL INC BOXCOVER
$217.00
W0199100 PUMP WASH 1PS INCL HEATER
$299.63
W0199739 DOOR OUTER SS
$348.40
W0281003 SUPPORT FRONT FOOT
$14.70
W0281069 SCREW ST35 13
$4.50
