KSD50HWJ — 956004828 00
KELVINATOR — Air-Conditioner

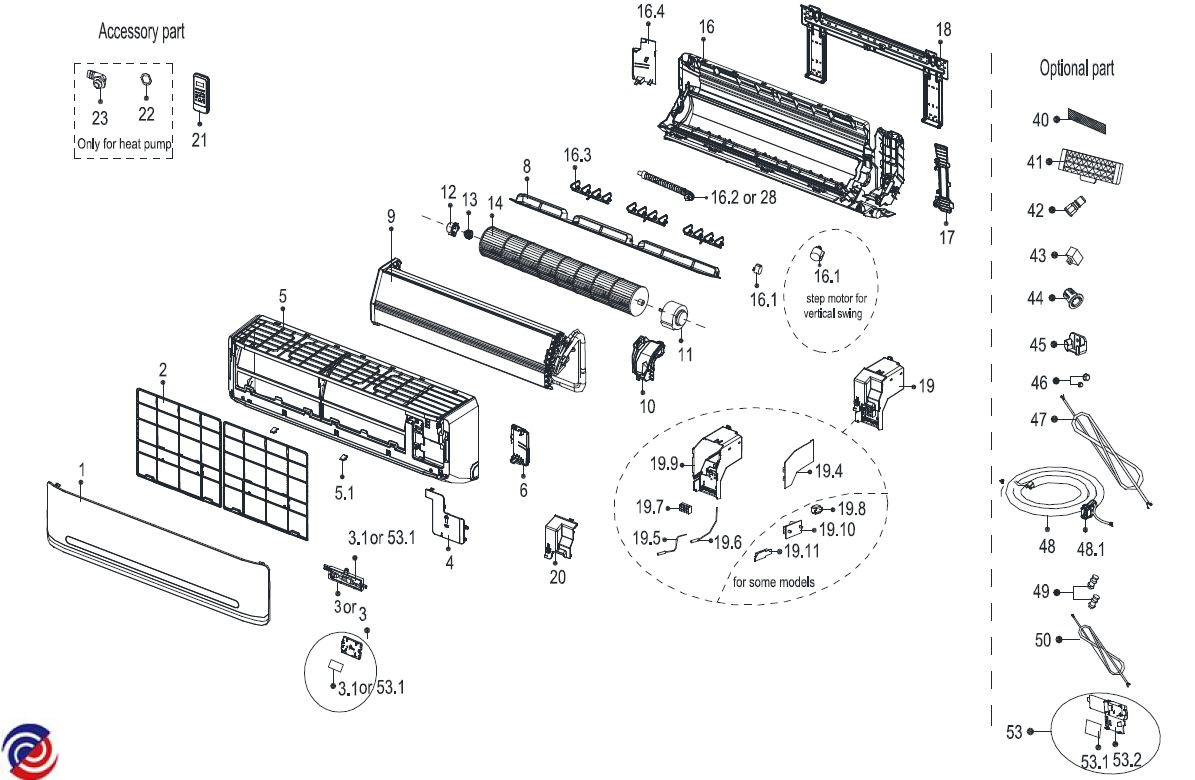

Parts for KSD50HWJ
W0368924 TERMINAL BOARD SUBASSEMBLY
$174.00
W0368971 HOLDER BEARING
$13.00
W0369150 MOTOR, SHUTTER, 12V
$43.00
W0369176 VALVE
$5.30
W0369245 DISPLAY BOARD, ASSEMBLY
W0369253 CONTROL BOX, ASSEMBLY, ID
$261.00
W0369254 MAIN ELECTRONIC BOARD, ASSEMBL
W0369424 REMOTE CONTROL, HOLDER
W0371351 TERMINAL BOARD SUBASSEMBLY
$45.00
W0371353 HOSE DRAIN
$25.00
W0371389 BLADE FAN CROSS FLOW
$96.00
W0371421 BASE BEARING
$59.00
W0372347 SEAL RING
$4.00
W0372356 JOINT DRAIN
$4.00
W0372364 CAP SCREW
$4.00
W0372420 ELECTRONIC INSTALLING BOX
$4.00
W0372437 NUT, FLARE NUT 1/4 - 6.35mm
$5.50
W0372523 NUT, FLARE NUT 1/2 - 12.7mm
$7.00
W0372529 SENSOR PIPE TEMPERATURE
$8.00
W0372588 PLATE, VALVE ASSEMBLY 4-WAY
$10.00
W0372589 COVER CONTROL BOX SUBASSEMBLY
$8.85
W0372630 COVER ELEC EQUIPMENT
$11.00
W0372685 U-TYPED SUPPORT W/COPPER PIPE
$12.25
W0372692 SENSOR TEMP ROOM
$14.00
W0372780 THROTTLE VALVE
$17.50
W0372781 THROTTLE VALVE ELEMENT
$17.50
W0372801 HANDLE, BIG
$19.00
W0372837 RADIATOR
$20.80
W0372855 ELECTRONIC INSTALLING BOX
$22.25
W0372859 WIRE SUBASSEMBLY COMP
$22.10
W0372938 VALVE LIQUID (DISCHARGE)
$29.00
W0372944 AIR OUTLET GRILLE
$30.00
W0372978 COVER CHASSIS RIGHT
$30.00
W0372979 COVER CHASSIS LEFT
$30.00
W0373015 FILTER AIR FRESHENING (GREEN)
$34.00
W0373022 COMBINATION SENSOR
$35.00
W0373033 PARTITION BOARD
$34.50
W0373053 FILTER AIR
$37.00
W0373095 PLATE INSTALLATION
$41.00
W0373118 FILTER AIR FRESHENING
$44.00
W0373123 LEFT SUPPORTER
$45.00
W0373132 VALVE GAS (SUCTION)
$46.00
W0373137 LOUVER HORIZONTAL ASSEMBLY
$46.00
W0373163 REAR NET
$48.00
W0373170 MUFFLER SUBASSEMBLY
$49.40
W0373176 SUPPORTER OF FAN MOTOR
$53.00
W0373224 COLLECTOR WATER
$60.00
W0373237 MUFFLER SUBASSEMBLY
$64.00
W0373272 REMOTE CONTROLLER
$69.00
W0373291 RIGHT CLAPBOARD ASSEMBLY
$68.05
W0373388 LOUVRE VERTICAL
$84.35
W0373408 COVER FAN MOTOR
$88.00
W0373434 AXIAL FLOW FAN
$96.00
W0373440 TOP COVER ASSEMBLY
$95.00
W0373493 PANEL ASSEMBLY
$111.00
W0373523 FRONT PANEL
$122.00
W0373539 VALVE 4-WAY KSD50HRG
$120.00
W0373629 LIQUID VALVE ASSEMBLY
$160.20
W0373631 CHASSIS ASSEMBLY
$162.70
W0373654 INVERTER CONTROL BOARD S/ASSY
$171.00
W0373658 PANEL FRAME ASSEMBLY
$179.00
W0373792 CHASSIS ASSEMBLY
$305.00
W0373801 DISPLAY BOX ASSEMBLY
$316.00
W0373854 4-WAY VALVE ASSEMBLY
$396.15
W0373873 CONDENSER ASSEMBLY
$453.00
W0373878 BRUSHLESS DC MOTOR
$473.00
W0373908 MOTOR BRUSHLESS DC
$541.00
W0373922 DC INVERTER ROTARY COMP
$617.00
W0373925 ELECTRONIC CONTROL BOX A/S
$636.00
W0373955 EVAPORATOR ASSEMBLY
$755.00
