KSE35HRB — 950132768 00

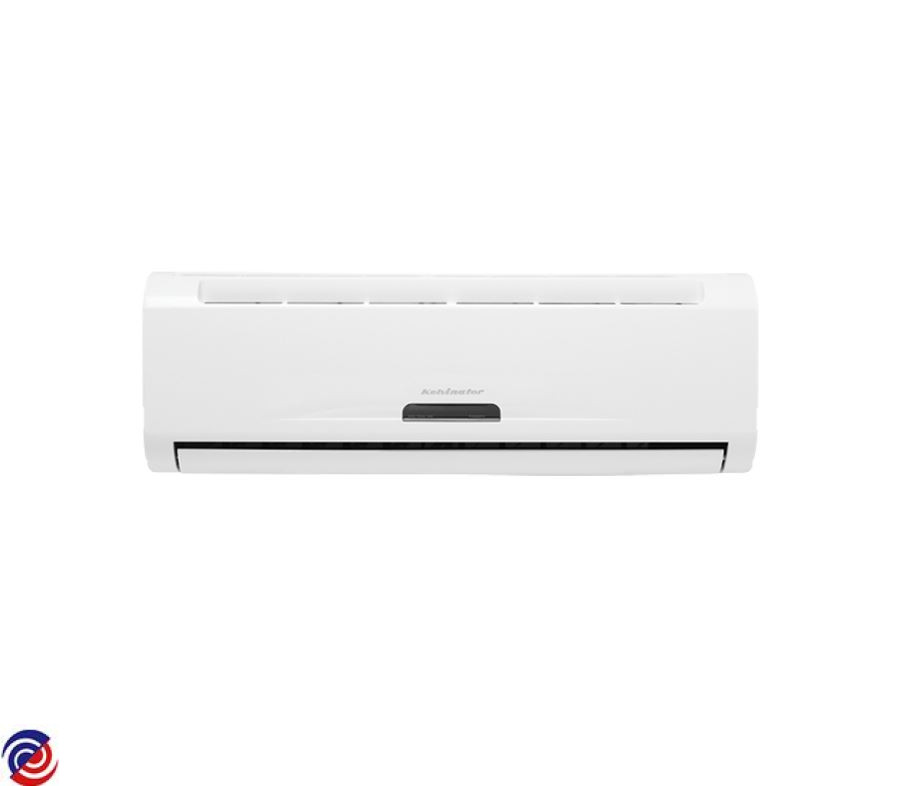

KELVINATOR — Air-Conditioner

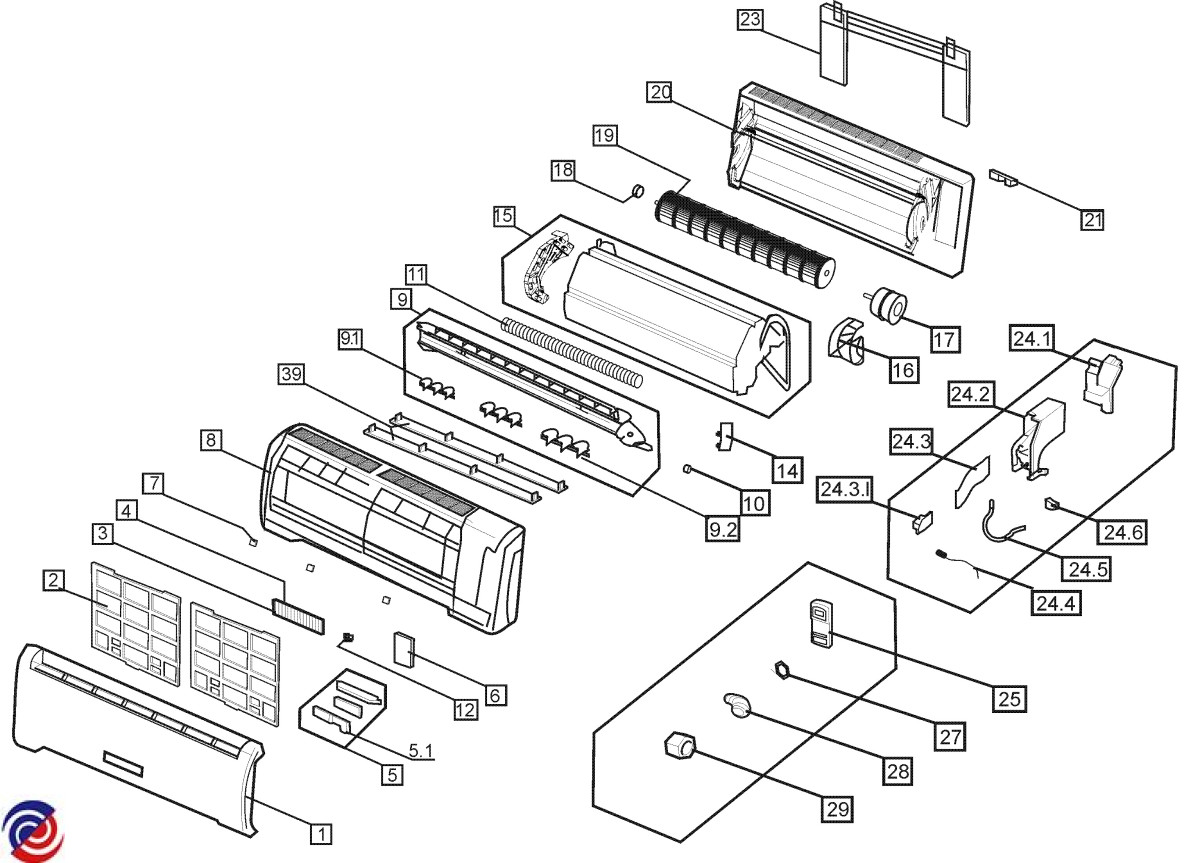

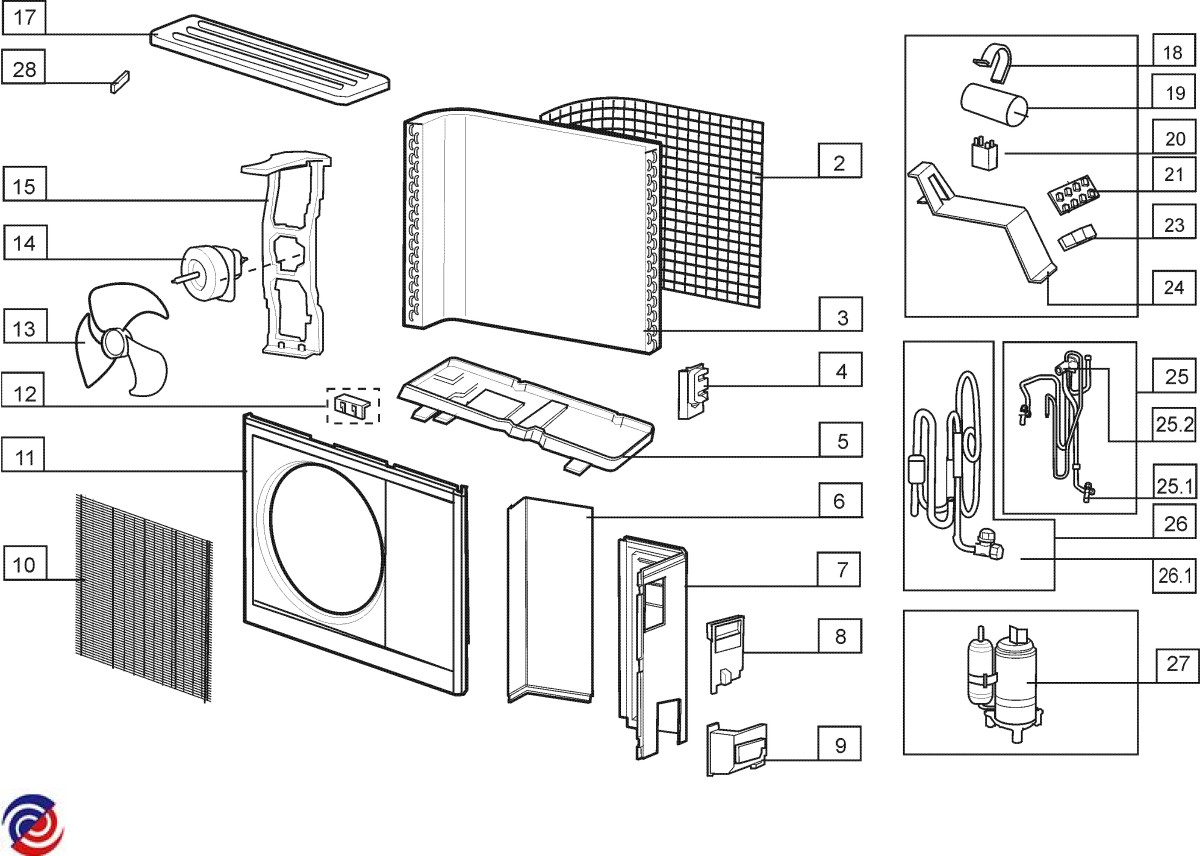

Parts for KSE35HRB
W0014359 FILTER AIR
W0019516 BLADE FAN CROSS FLOW ASSY
$64.00
.JPG)
W0019828 SENSOR INDOOR TEMP
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0075340 SENSOR TEMP EVAPORATOR TEMP
W0094303 MOTOR FAN INDOOR
W0103211 HOSE DRAIN
W0014361 COVER TEMP SENSOR
$5.50
W0016778 VALVE 4-WAY
$120.00
W0019556 LOURVE VERTICAL AIRFLOW DOWN
W0019557 LOUVRE HORIZONTAL
$11.90
W0019610 PLATE INSTALLATION
$30.00
W0019615 REAR NET KSE26CRB
W0019622 MOTOR MOUNTING BRACKET ASSY
$9.90
W0019625 PARTITION PLATE KSE26CRB
$7.70
W0019627 BASE PLATE COMPRESSOR
$55.00
W0019721 CONDENSER COIL ASSY KSE35HRB
$253.00
W0019740 4-WAYS VALVE KSE35HRB
W0019762 VALVE LIQUID ASSY
$51.70
W0019764 4-WAY VALVE ASSY KSE35HRB
W0019845 LOUVER MOTOR KSE35CRB
$45.85
W0019850 MOTOR KSE35HRB
$227.10
W0019852 MOTOR KSE35HRB
W0019857 CAPAC 30UF 450V 2+4 PIN COMP
W0019862 CAPAC 1.5UF 450V 2PIN SOLDER
W0068318 CLAMP NET OUTDOOR
W0068319 BLADE FAN
$54.90
W0068320 BIG HANDLE
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0068682 PLATE INSTALLATION
W0068703 PAN DRAIN
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0070691 COPPER NUT TLM C03 1/2, 12.7MM
$11.00
W0072501 WIRE JOINT. 5P ESD09HRA
W0072504 E-PART BOX COVER ESD18HRB
$40.00
W0072505 E-PARTS BOX ESD18HRB
W0072508 COUPLING PIPE DRAINAGE INDOOR
W0076557 VALVE LOW PRESSURE
$50.00
W0093706 BRACKET EVAPORATOR LH
$6.60
W0093762 MOTOR COVER KSV53HRA
$16.50
W0093764 CHASSIS
$126.50
W0093765 FILTER AIR
W0093766 SCREW CAP KSV53HRA
$5.50
W0093770 VERTICAL GRILLE KSV35HRB
W0093771 LOUVER HOLDER KSV35HRB
W0093775 FRONT PANEL ASSY KSE35HRB
$50.00
W0093776 COVER WINDOW
$11.00
W0093777 FRAME AIR OUT ASSY
W0093786 CABINET FRONT ASSY
$167.75
W0093788 FRONT PANEL ASSY KSE35HRB
$50.00
W0093837 SMALL HANDLE KSV26CRB
$11.00
W0093855 CLIP CAPACITOR
$4.50
W0093889 CONNECTING PIPE CLAMP
$4.50
W0093895 INSTALLATION BOARD, E-PARTS
$14.30
W0093897 FRONT NET KSE26CRB
W0093904 FRONT PANEL OUTSIDE KSE26HRB
$49.50
W0093910 TOP COVER ASSY KSE26CRB
$29.05
W0093914 RIGHT CLAPBOARD KSE26CRB
$38.50
W0094001 DISPLAY BOARD KSE70HRB
W0094003 BOARD MAIN INDOOR
W0094044 COMPRESSOR
$291.50
W0094074 EVAPORATOR ASSY KSV35CRB
W0094170 VALVE 4-WAY
$126.50
W0094279 BLOCK TERMINAL
$11.00
W0094305 MOTOR INDOOR KSE35CRB
W0094349 CAPAC 2.5UF 450V 4PIN FAN RUN
W0094411 BOARD DISPLAY ASSY
$188.85
W0094448 REMOTE CONTROLLER KSV80HRB
W0102580 SEAL CIRCUIT
$4.00
W0127091 LIQUID PIPE VALVE ESD18HRB
