KSE62HRA — 950001063 00
KELVINATOR — Air-Conditioner

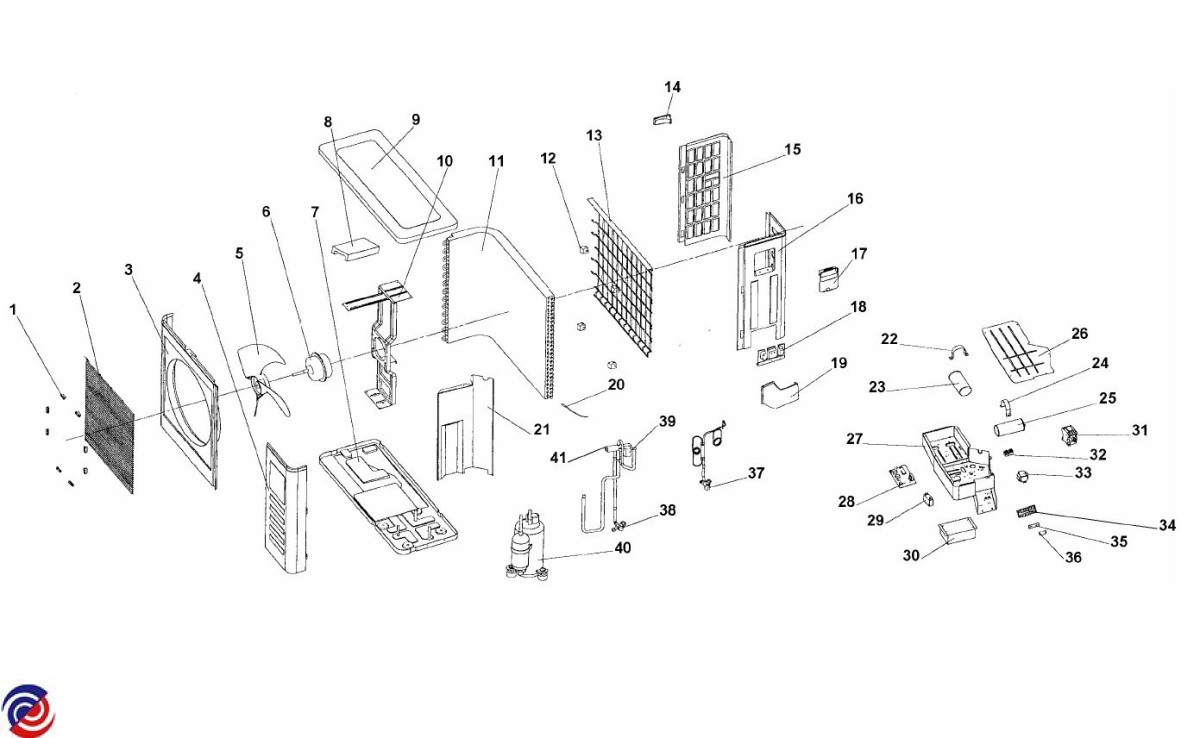

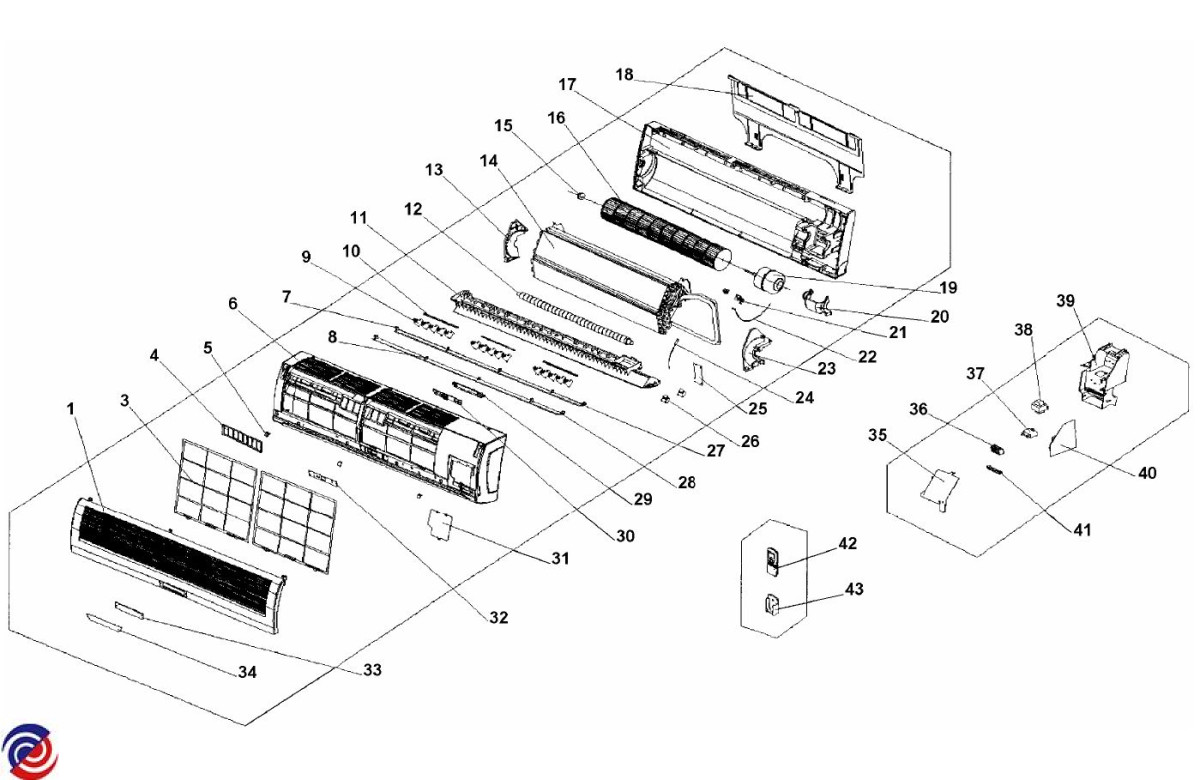

Parts for KSE62HRA

W0018919 SENSOR TEMP INDOOR
W0067849 MOTOR LOUVRE
W0089964 BOARD MAIN INDOOR
W0090000 BOARD MAIN OUTDOOR
W0094263 SENSOR TEMP EVAPORATOR TEMP
W0094264 SENSOR CONDENSATOR TEMP
W0094320 MOTOR FAN OUTDOOR
W0101408 REMOTE CONTROL
W0133678 VALVE REVERSING & COIL ASSY
$225.05
No image available
W0014361 COVER TEMP SENSOR
$5.50
No image available
W0014365 BLADE FAN
No image available
W0014372 CLAMP CAPACITOR
$4.00
No image available
W0014439 CHASSIS
$132.00
No image available
W0014440 COMPRESSOR
$450.95
No image available
W0014441 E-PARTS INSTALLATION BOX
$30.80
No image available
W0014442 AIR CLEANER
No image available
W0014443 BRACKET FAN MOTOR INDOOR
$14.30
No image available
W0014447 COVER WINDOW
$39.25
No image available
W0014453 BUSH (SMALL)
$4.00
No image available
W0014478 FUSE
No image available
W0017321 COVER CONTROL BOX ASSY
$29.70
No image available
W0020002 FRONT PANEL KSE53HRA
$77.00
No image available
W0068066 CLAMP TEMP SENSOR ESG21HRIA
No image available
W0068068 EVAPORATOR TEMP SENSOR
No image available
W0068073 SMALL HANDLE
No image available
W0068076 CAPAC F/MTR 3UF ESE21CRA
No image available
W0068318 CLAMP NET OUTDOOR
No image available
W0068321 CLAMP CAPACITOR
No image available
W0068324 WASHER FOR WIRE JOINT ESD09HRA
No image available
W0068681 PANEL SIDE RH OUTDOOR
No image available
W0068682 PLATE INSTALLATION
No image available
W0068684 DRAIN HOSE ESE21CRA
No image available
W0068685 TRANSFORMER ESE21CRA
No image available
W0068688 FRONT NET MSE30CR
No image available
W0068689 FRONT PANEL OUTSIDE ESE18CRA
No image available
W0068690 FOAM OVEN HOLDER MOTOR ESE18C
No image available
W0068691 COVER TOP OUTDOOR
No image available
W0068692 HOLDER FAN MOTOR
No image available
W0068694 REAR NET ESE18CRA
No image available
W0068695 LEFT CLAPBOARD ESE18CRA
No image available
W0068697 UNDERLAY REAR NET MSE30CR
No image available
W0068700 CLAMP WIRING
No image available
W0068703 PAN DRAIN
No image available
W0068917 POWER CORD CLAMP ESE21CRA
No image available
W0068919 CAPACITOR COMPRESSOR II ESE21
No image available
W0068921 BLOCK TERMINAL 2P
$32.20
No image available
W0069052 BOARD SOFT STARTER ASSY
No image available
W0069056 CAPAC 90*UF COMPRESSOR ESE24CR
No image available
W0069058 WIRE JOINT 5P MSE30CR
No image available
W0069064 LIQUID PIPE VALVE ESE24CRA
No image available
W0069065 VALVE GAS PIPE
No image available
W0069528 SEPARATING BOARD ESE21HRB
No image available
W0069529 RELAY CONTACTOR
$69.90
No image available
W0069535 SUPPORT LH EVAP (ESG21HRIA)
No image available
W0069536 HOLDER BEARING
No image available
W0069537 BLADE FAN CROSS FLOW ASSY
No image available
W0069539 PLATE INSTALLATION
No image available
W0069541 SUPPORT RH EVAP ESG21HRIA
No image available
W0069542 PIPE CLAMP ESE21CRA
No image available
W0069569 INDICATOR HOLDER ESE18HRB
No image available
W0069570 PROTECTING PLATE ESE18HRB
No image available
W0069571 COVER OVERLAY INDICATOR
No image available
W0069574 EVAPORATOR
$319.00
No image available
W0069575 INDICATOR FOR LED
No image available
W0069588 LOUVRE HOLDER ESE21CRA
No image available
W0069590 BUSH (LARGE) MSE30CR
No image available
W0070322 HOLDER REMOTE CONTROLLER MSE3
No image available
W0070655 NUT FLARE TLM B02 3/8 9.52MM
$7.70
No image available
W0070981 TRANSFORMER MSE30CR
No image available
W0072241 CONDENSER ESE21HRA
$349.50
No image available
W0072244 COPPER NUT TLM-D04 5/8 15.88MM
No image available
W0072321 SENSOR TEMP (CONDENSOR)
No image available
W0073079 BLOCK TERMINAL CONNECTOR
No image available
W0075159 FAN MOTOR ESE18HRB
No image available
W0089928 FRONT RIGHT CLAPBOARD ESE18CR
No image available
W0089948 FILTER AIR
No image available
W0089949 SCREW CAP ESE21CRA
No image available
W0089952 AIR OUT FRAME ASSY ESE21CRA
No image available
W0089953 HORIZONTAL LOUVRE UP ESE21CRA
No image available
W0089954 HORIZONTAL LOUVRE DOWN ESE21C
No image available
W0089957 CHASSIS INDOOR
No image available
W0089958 E-PARTS BOX ESE21CRA
No image available
W0089959 COVER CONTROL BOX
No image available
W0089963 CABINET FRONT ASSY
No image available
W0089998 DISPLAY BOARD ASSY ESE21HRA
No image available
W0095894 FAN MOTOR ESE21CRA
No image available
W0096058 REMOTE CONTROLLER ESE18HRA
No image available
W0115123 COIL VALVE REVERSING
No image available
W0129378 HORIZONTAL AIRFLOW GRILLE
$30.00
