KSE70CRA — 950001059 00

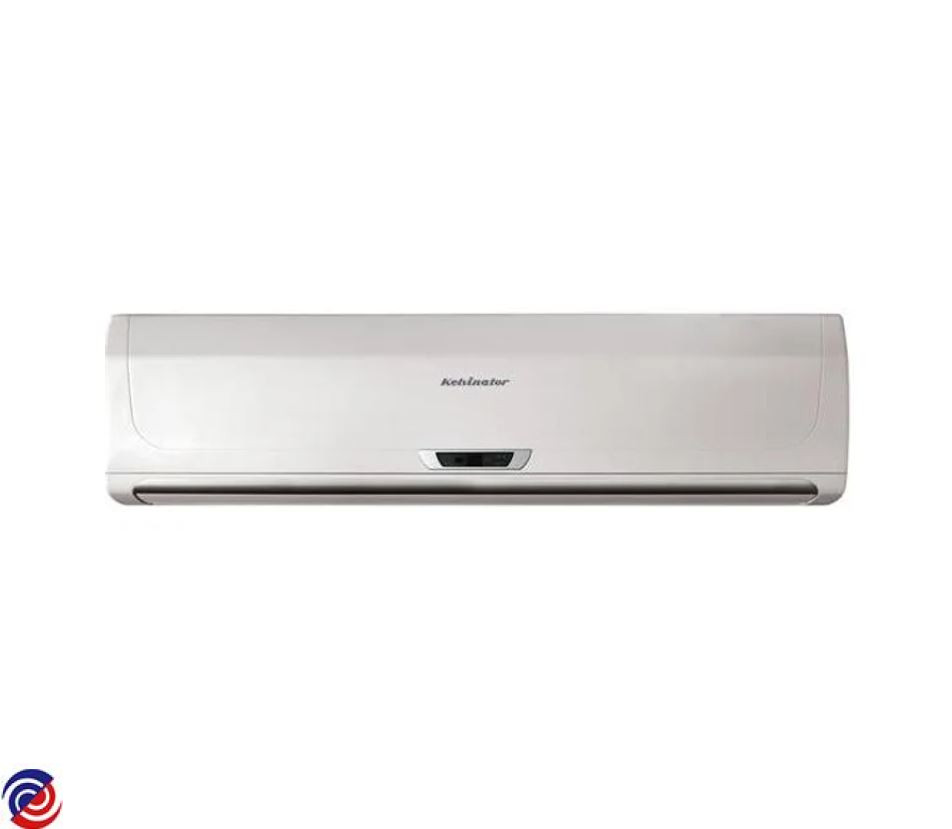

KELVINATOR — Air-Conditioner

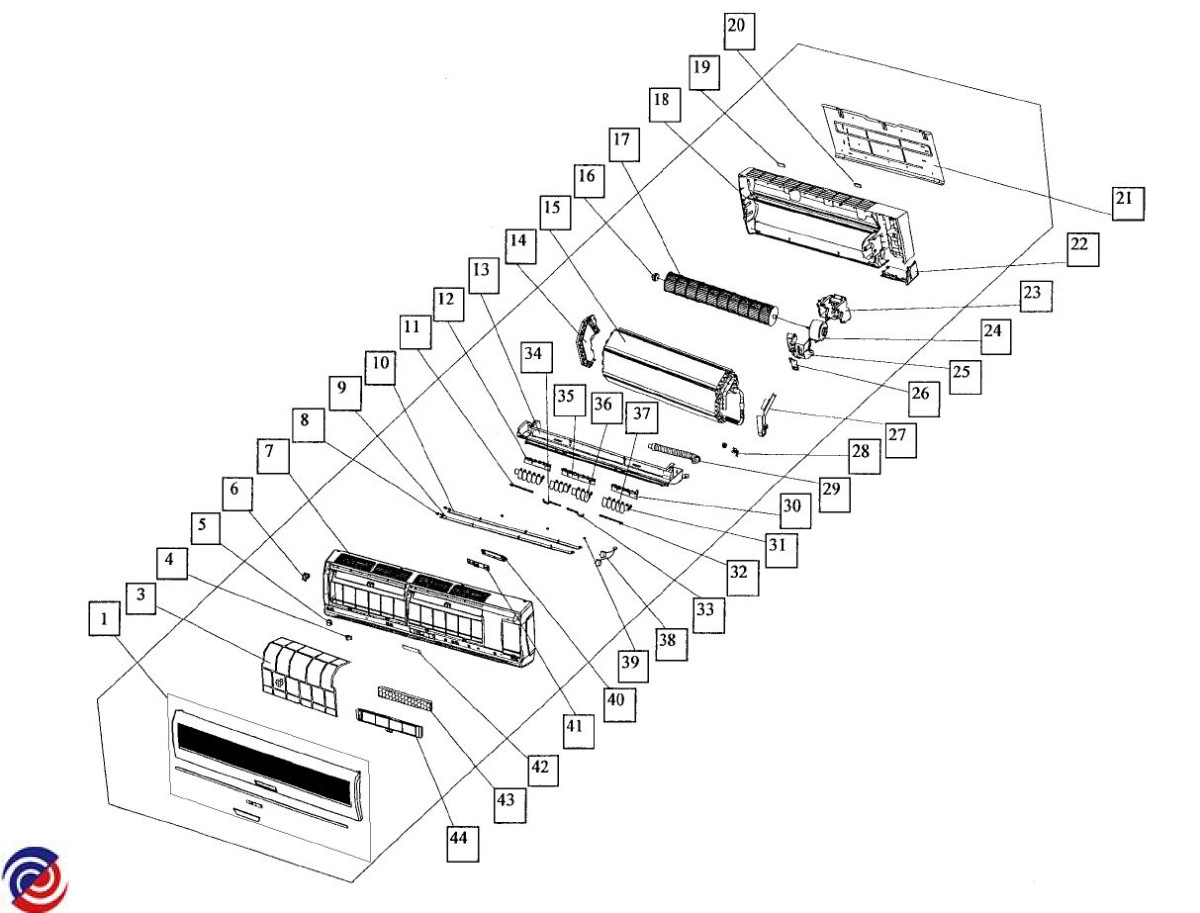

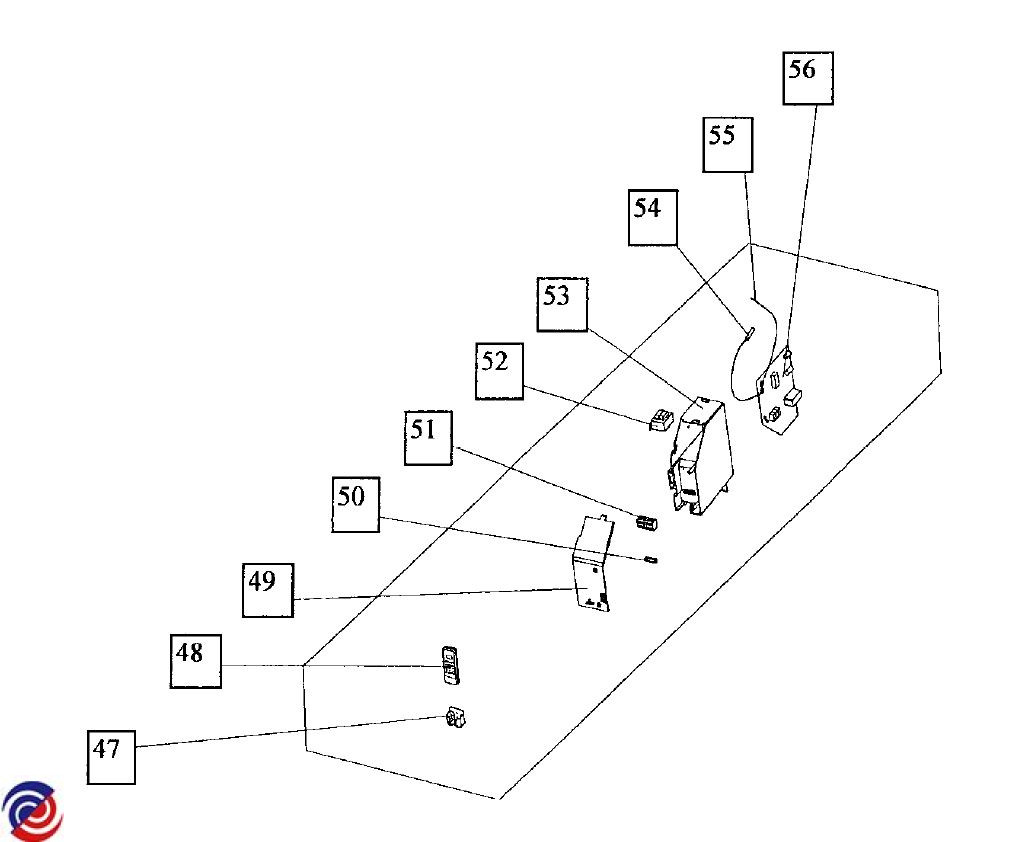

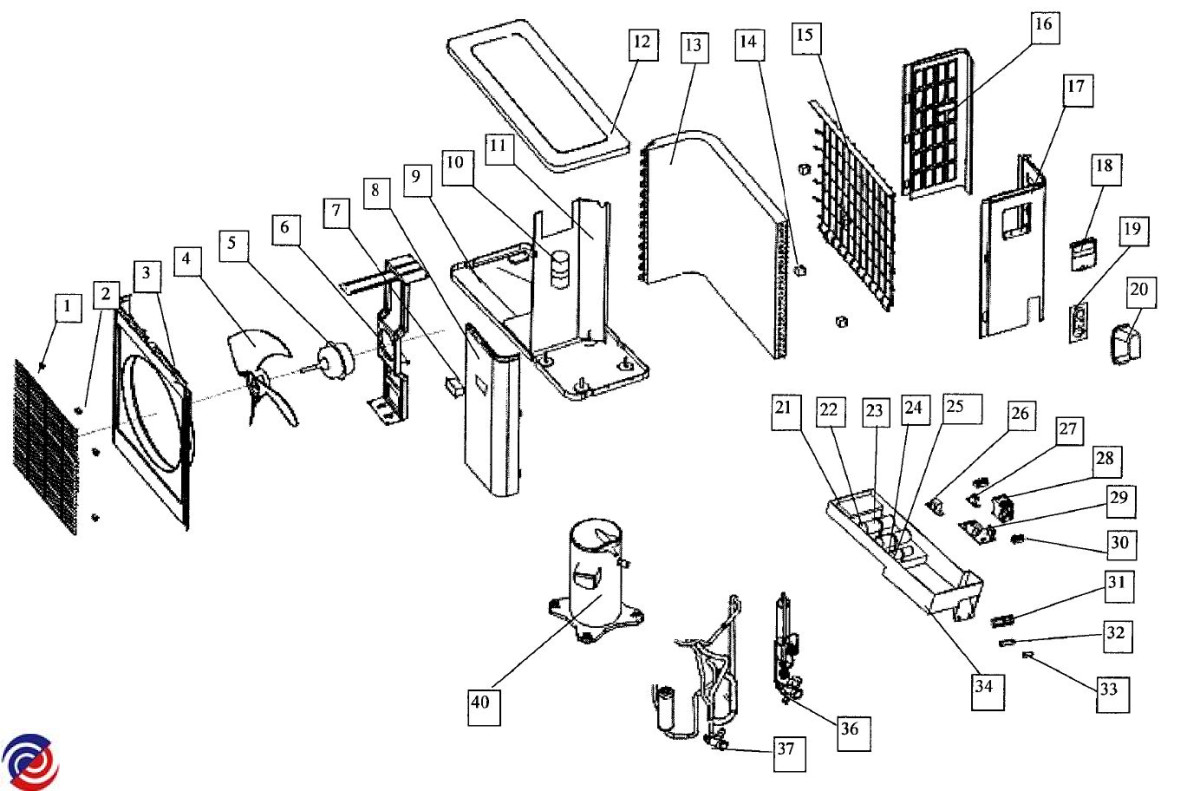

Parts for KSE70CRA
.JPG)
W0014469 HOLDER BEARING
$7.30
.JPG)
W0018919 SENSOR TEMP INDOOR
.JPG)
W0090000 BOARD MAIN OUTDOOR

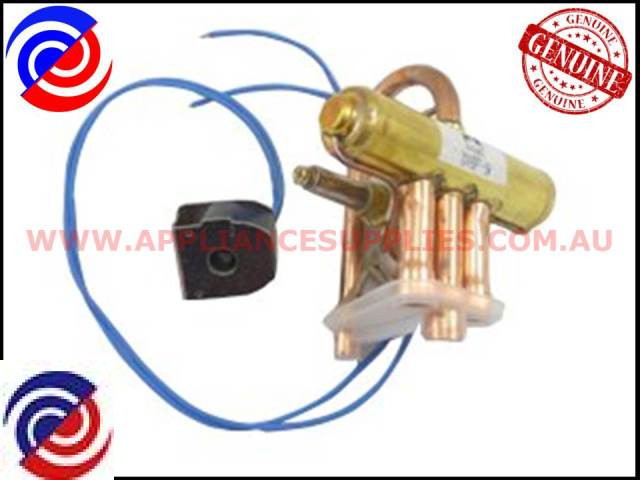

W0133678 VALVE REVERSING & COIL ASSY
$225.05
W0014365 BLADE FAN
W0014372 CLAMP CAPACITOR
$4.00
W0014439 CHASSIS
$132.00
W0014440 COMPRESSOR
$450.95
W0014441 E-PARTS INSTALLATION BOX
$30.80
W0014452 CAPAC 3UF 450V 2PIN SOLDER FAN
W0014475 PAN DRAIN
$24.90
W0014476 CHASSIS
$132.00
W0014477 COMPRESSOR
$516.00
W0014478 FUSE
W0017321 COVER CONTROL BOX ASSY
$29.70
W0020032 CAPILLARY
$11.00
W0068073 SMALL HANDLE
W0068076 CAPAC F/MTR 3UF ESE21CRA
W0068318 CLAMP NET OUTDOOR
W0068321 CLAMP CAPACITOR
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0068681 PANEL SIDE RH OUTDOOR
W0068682 PLATE INSTALLATION
W0068685 TRANSFORMER ESE21CRA
W0068688 FRONT NET MSE30CR
W0068689 FRONT PANEL OUTSIDE ESE18CRA
W0068690 FOAM OVEN HOLDER MOTOR ESE18C
W0068691 COVER TOP OUTDOOR
W0068692 HOLDER FAN MOTOR
W0068694 REAR NET ESE18CRA
W0068695 LEFT CLAPBOARD ESE18CRA
W0068697 UNDERLAY REAR NET MSE30CR
W0068698 CAPACITOR COMPRESSOR (50UF)
W0068699 CAPACITOR FAN MOTOR 5UF
W0068700 CLAMP WIRING
W0068703 PAN DRAIN
W0068919 CAPACITOR COMPRESSOR II ESE21
W0068921 BLOCK TERMINAL 2P
$32.20
W0069052 BOARD SOFT STARTER ASSY
W0069054 SOFT STARTER ESE30CRA
W0069056 CAPAC 90*UF COMPRESSOR ESE24CR
W0069058 WIRE JOINT 5P MSE30CR
W0069064 LIQUID PIPE VALVE ESE24CRA
W0069065 VALVE GAS PIPE
W0069292 COVER TOP OUTDOOR
W0069293 LEFT CLAPBOARD MSE30CR
W0069294 REAR NET MSE30CR
W0069296 HANDLE SMALL
$10.00
W0069299 REFRIGERANT CONTAINER MSE30CR
W0069300 CLAMP CONTAINER REFRIGERANT
W0069301 PANEL FRONT RIGHT
$49.50
W0069466 POWER CORD CLAMP MSE30CR
W0069524 E-PARTS BOX ESE24CRB
$80.30
W0069528 SEPARATING BOARD ESE21HRB
W0069529 RELAY CONTACTOR
$69.90
W0069580 BOARD MAIN CONTROL ESE24CRB
W0069682 COVER E-PARTS BOX MSE30CR
W0069683 BLADE FAN
W0069684 MOTOR FAN ESE30CRA
W0069685 CONDENSER MSE30CR
W0069686 BOARD MAIN OUTDOOR
W0069687 RELAY CONTACTOR
$74.40
W0069688 WIRE JOINT MSE30CR
W0069698 HOLDER FAN MOTOR MSE30CR
W0070322 HOLDER REMOTE CONTROLLER MSE3
W0070655 NUT FLARE TLM B02 3/8 9.52MM
$7.70
W0070981 TRANSFORMER MSE30CR
W0072241 CONDENSER ESE21HRA
$349.50
W0072244 COPPER NUT TLM-D04 5/8 15.88MM
W0072314 SHROUD FAN
$110.00
W0072315 REAR RIGHT CLAPBOARD MSE30CR
W0072316 INSTALLATION PLATE VALVES MSE
W0072318 VALVE GAS PIPE
$46.20
W0072319 VALVE LIQUID PIPE
$52.00
W0072321 SENSOR TEMP (CONDENSOR)
W0073079 BLOCK TERMINAL CONNECTOR
W0075159 FAN MOTOR ESE18HRB
W0089787 EVAPORATOR TEMP SENSOR ESE09CR
W0089928 FRONT RIGHT CLAPBOARD ESE18CR
W0090064 E-PARTS BOX MSE30CR
W0094711 HANDLE
W0102653 CLAMP CAPACITOR
W0115123 COIL VALVE REVERSING
W0127198 SEPARATING BOARD MSE30CR
