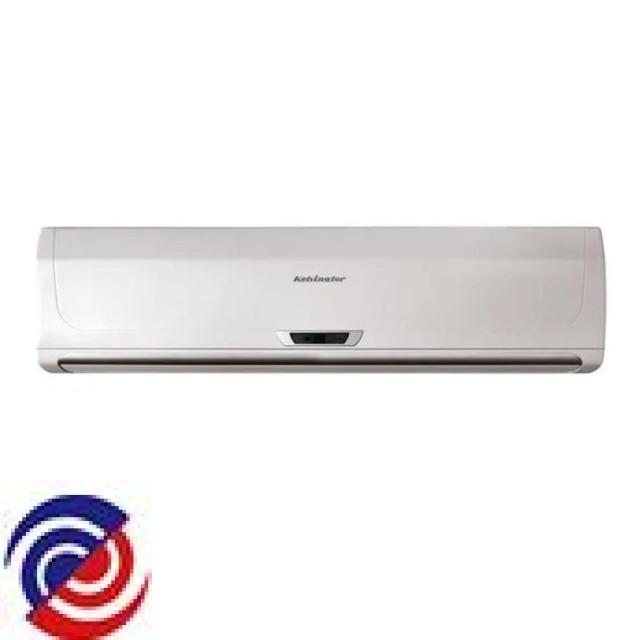

KSE70HRA — 950001064 00
KELVINATOR — Air-Conditioner

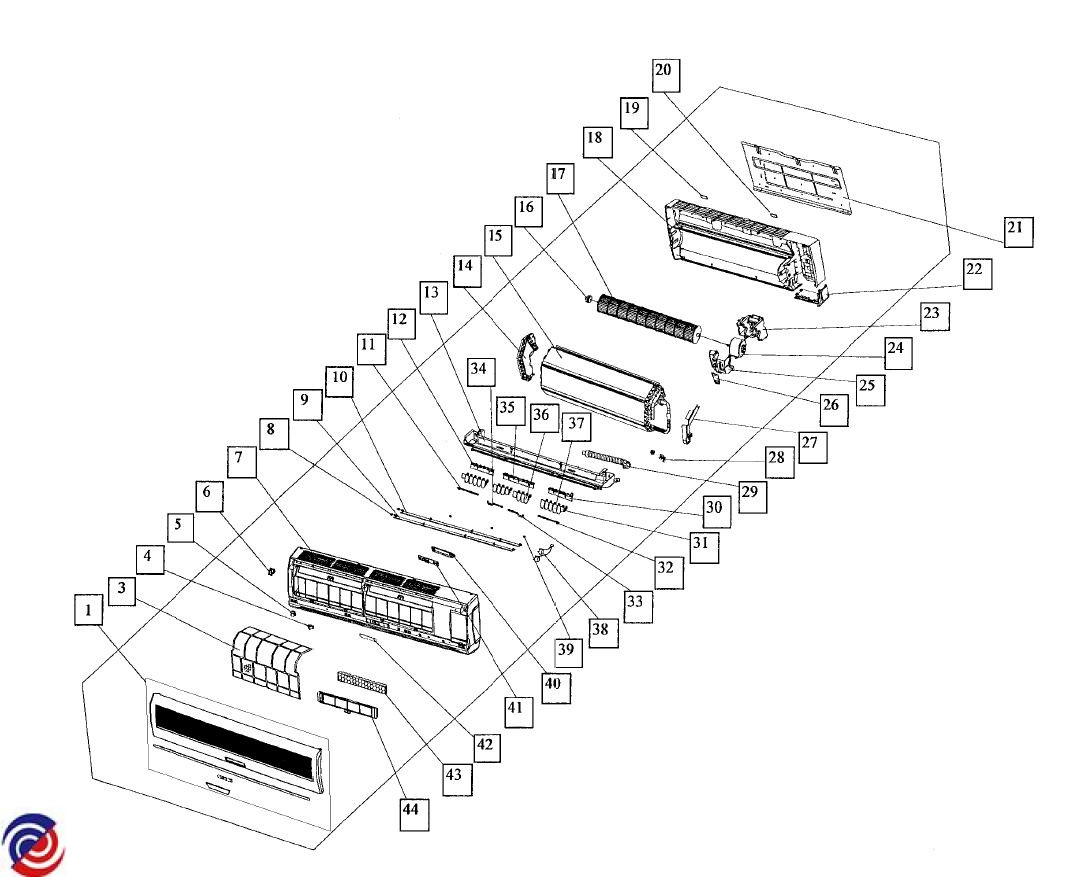

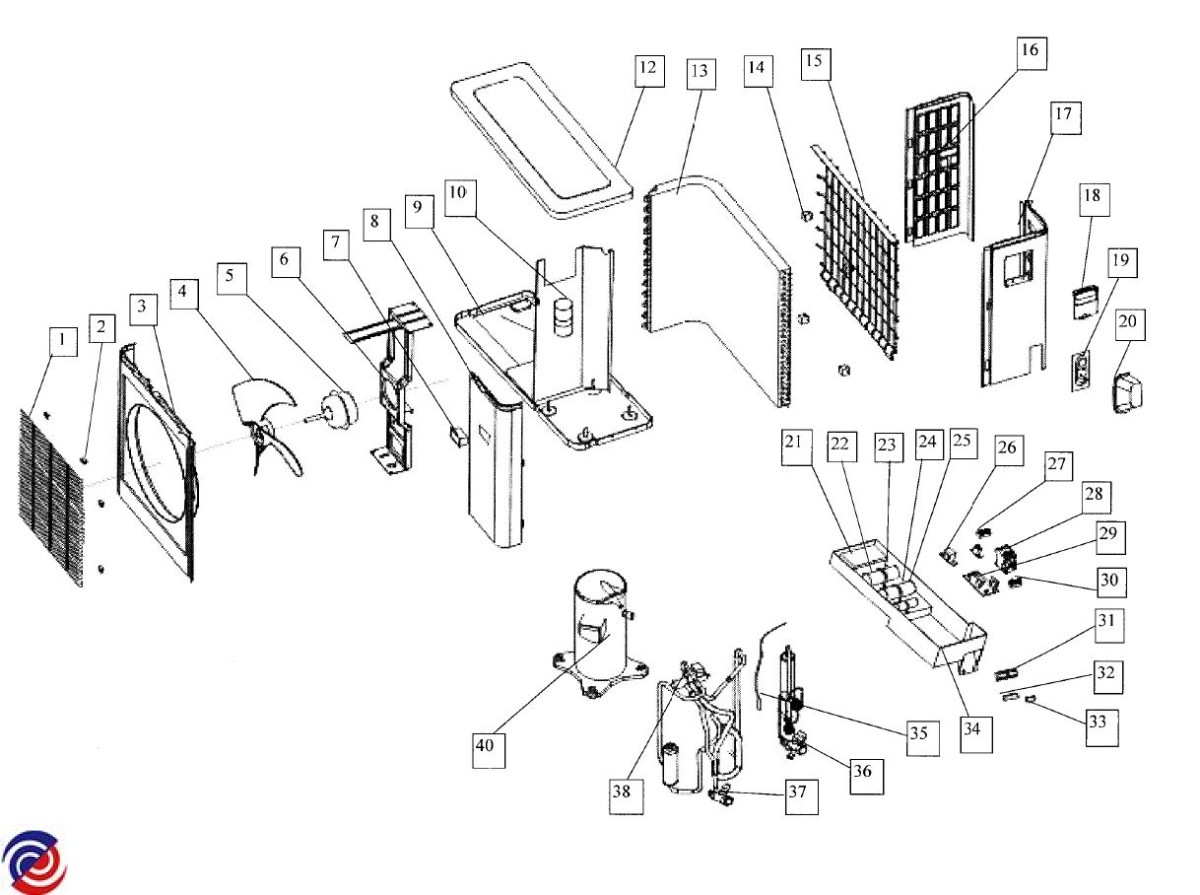

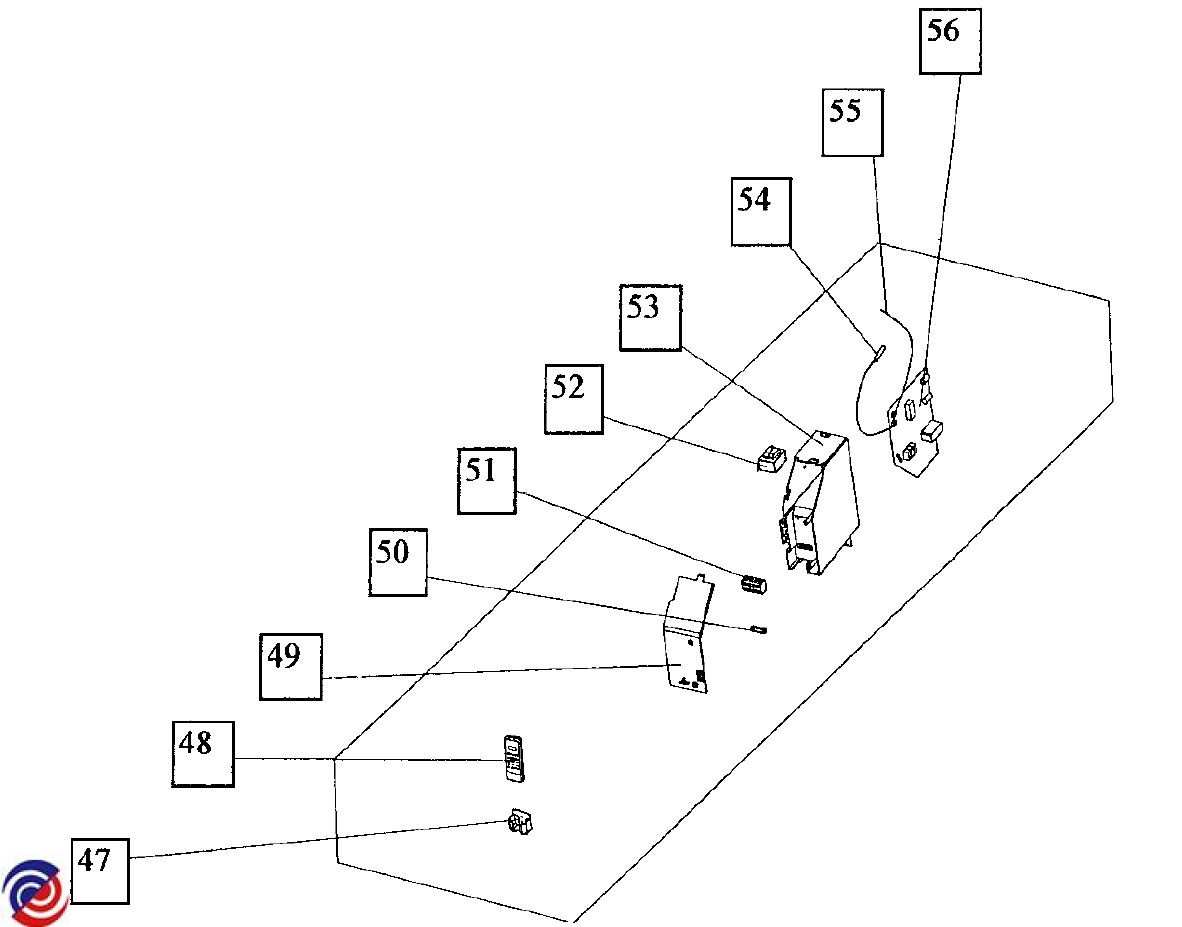

Parts for KSE70HRA
W0014468 BLADE FAN ASSY CROSS FLOW
.JPG)
W0014469 HOLDER BEARING
$7.30
.JPG)
W0018919 SENSOR TEMP INDOOR
W0067849 MOTOR LOUVRE
W0069583 BOARD MAIN INDOOR
$200.05
W0069699 BOARD MAIN OUTDOOR
W0103211 HOSE DRAIN
W0133678 VALVE REVERSING & COIL ASSY
$225.05
W0014361 COVER TEMP SENSOR
$5.50
W0014372 CLAMP CAPACITOR
$4.00
W0014451 INDICATOR HOLDER ESE24CRB
$6.60
W0014452 CAPAC 3UF 450V 2PIN SOLDER FAN
W0014467 LEFT CONNECTOR LOUVRE MSE30CR
$5.50
W0014470 COVER CHASSIS REAR LH
$11.00
W0014471 BACK COVER FOR CHASSIS, RIGHT
$11.00
W0014472 BRACKET FAN MOTOR INDOOR
$18.35
W0014473 FILTER AIR
W0014475 PAN DRAIN
$24.90
W0014476 CHASSIS
$132.00
W0014477 COMPRESSOR
$516.00
W0014478 FUSE
W0014479 VALVE 4-WAY
$308.00
W0068066 CLAMP TEMP SENSOR ESG21HRIA
W0068318 CLAMP NET OUTDOOR
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0068685 TRANSFORMER ESE21CRA
W0068688 FRONT NET MSE30CR
W0068697 UNDERLAY REAR NET MSE30CR
W0068698 CAPACITOR COMPRESSOR (50UF)
W0068699 CAPACITOR FAN MOTOR 5UF
W0068700 CLAMP WIRING
W0068921 BLOCK TERMINAL 2P
$32.20
W0069054 SOFT STARTER ESE30CRA
W0069056 CAPAC 90*UF COMPRESSOR ESE24CR
W0069058 WIRE JOINT 5P MSE30CR
W0069292 COVER TOP OUTDOOR
W0069293 LEFT CLAPBOARD MSE30CR
W0069294 REAR NET MSE30CR
W0069296 HANDLE SMALL
$10.00
W0069299 REFRIGERANT CONTAINER MSE30CR
W0069300 CLAMP CONTAINER REFRIGERANT
W0069301 PANEL FRONT RIGHT
$49.50
W0069466 POWER CORD CLAMP MSE30CR
W0069524 E-PARTS BOX ESE24CRB
$80.30
W0069570 PROTECTING PLATE ESE18HRB
W0069577 EVAPORATOR ASSY
W0069590 BUSH (LARGE) MSE30CR
W0069627 WATERPROOF BOARD ESE24CRB
W0069660 SCREW CAP MSE30CR
W0069661 DOWN CLAP FOR PANEL FRAME
$4.00
W0069662 CAP UPPER FRAME
$4.00
W0069665 LEFT MED CONNECTOR LOUVRE MSE3
W0069666 LOUVRE SMALL MSE30CR
W0069667 LOUVRE BIG
W0069668 LEFT HOLDER LOUVRE MSE30CR
W0069670 MED HOLDER LOUVRE
W0069671 MED LOUVRE MSE30CR
W0069672 BUSH SMALL
$4.00
W0069673 RIGHT HOLDER LOUVRE MSE30CR
W0069674 RIGHTR CONNECTOR MSE30CR
W0069675 RIGHT MED CONNECTOR LOUVRE
W0069676 LEFT HOLDER FOR EVAPORATOR
W0069677 INSTALLATION PLATE MSE30CR
W0069678 MOTOR FAN ESE30CRA
W0069679 COVER MOTOR
W0069680 MOTOR COVER II MSE30CR
W0069681 FILTER HOLDER
$7.00
W0069682 COVER E-PARTS BOX MSE30CR
W0069683 BLADE FAN
W0069684 MOTOR FAN ESE30CRA
W0069687 RELAY CONTACTOR
$74.40
W0069688 WIRE JOINT MSE30CR
W0069698 HOLDER FAN MOTOR MSE30CR
W0070322 HOLDER REMOTE CONTROLLER MSE3
W0070655 NUT FLARE TLM B02 3/8 9.52MM
$7.70
W0070981 TRANSFORMER MSE30CR
W0072244 COPPER NUT TLM-D04 5/8 15.88MM
W0072245 CONDENSER ESE30HRBA
W0072314 SHROUD FAN
$110.00
W0072315 REAR RIGHT CLAPBOARD MSE30CR
W0072316 INSTALLATION PLATE VALVES MSE
W0072318 VALVE GAS PIPE
$46.20
W0072319 VALVE LIQUID PIPE
$52.00
W0072321 SENSOR TEMP (CONDENSOR)
W0089787 EVAPORATOR TEMP SENSOR ESE09CR
W0090055 FILTER AIR
W0090058 FRAME AIR OUT ASSY
W0090059 LOUVRE HORIZONTAL UP
W0090060 LOUVRE HORIZONTAL DOWN
W0090062 CHASSIS
$132.00
W0090064 E-PARTS BOX MSE30CR
W0090066 CORNER BOARD FOR CHASSIS
W0090068 DISPLAY BOARD ASSY ESE30HRBA
W0090070 CABINET FRONT ASSY
$68.20
W0093834 PANEL KSE88HRA
$49.50
W0094711 HANDLE
W0096058 REMOTE CONTROLLER ESE18HRA
W0102653 CLAMP CAPACITOR
W0115123 COIL VALVE REVERSING
