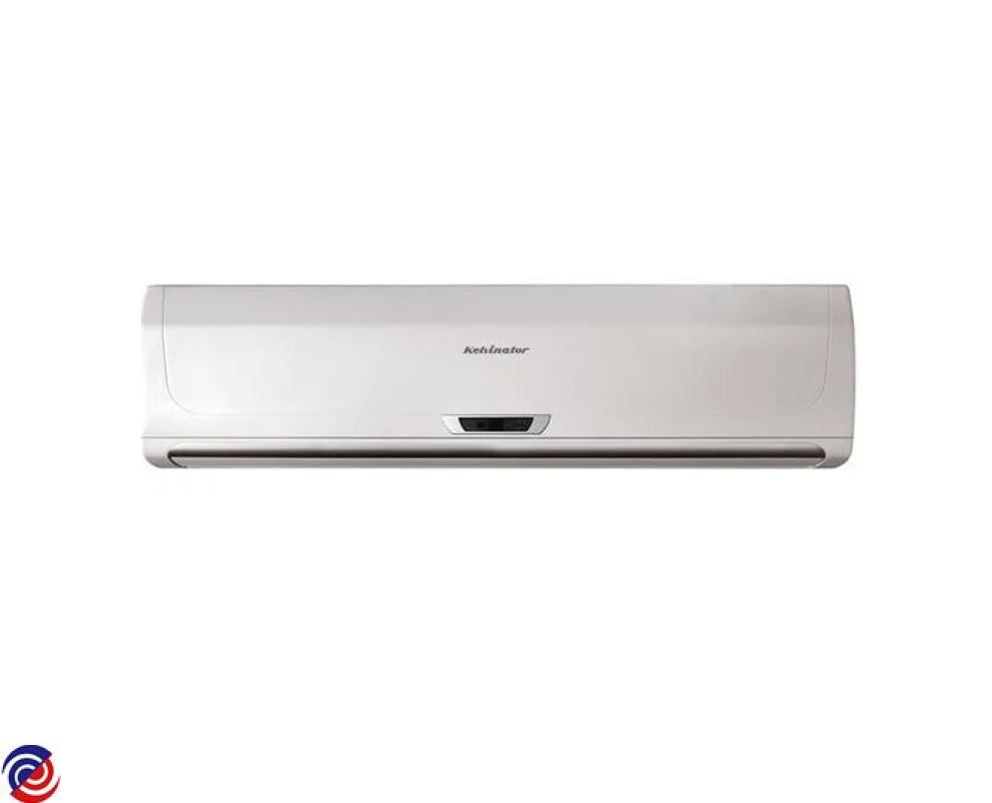

KSE70HRB — 950132747 00
KELVINATOR — Air-Conditioner
Parts for KSE70HRB
W0014359 FILTER AIR
W0019566 FILTER AIR
.JPG)
W0019828 SENSOR INDOOR TEMP
W0067849 MOTOR LOUVRE
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0069693 MOTOR FAN OUTDOOR
W0094264 SENSOR CONDENSATOR TEMP
W0103211 HOSE DRAIN
W0014361 COVER TEMP SENSOR
$5.50
W0014446 GUARD. FAN KSE88CRA
$29.70
W0014475 PAN DRAIN
$24.90
W0015662 RELAY CONTACTOR
$69.90
W0017337 WIRE JOINT FOR MULTIPLEXER
$5.50
W0019517 BLADE FAN CROSS FLOW ASSY
W0019563 BOX CONTROL INDOOR
$77.00
W0019564 COVER CONTROL BOX ASSY
$11.00
W0019565 LOURVE VERTICAL AIRFLOW DOWN
$54.90
W0019658 PARTITION PLATE ASSY KSE62HRB
$29.70
W0019661 BASE PLATE COMPRESSOR
$77.00
W0019685 BOARD MAIN INDOOR
$195.00
W0019693 BOARD MAIN OUTDOOR
W0019741 HIGH PESSURE VALVE KSE70HRB
$46.20
W0019771 HIGH PRESSURE VALVE ASSY
$46.20
W0019772 VALVE 4-WAY
$146.00
W0019773 4-WAYS VALVE ASSY KSE70HRB
W0019821 TRANSFORMER KSE70HRB
W0019827 SENSOR EVAPORATOR TEMP
W0019835 TERMINAL KSE70HRB
W0019859 CAPAC 60UF 450V 2/4 PIN COMP.
$214.90
W0019861 FAN MOTOR CAPACITOR KSE70HRB
W0019911 BOARD DISPLAY ASSY
$80.00
W0068318 CLAMP NET OUTDOOR
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0069293 LEFT CLAPBOARD MSE30CR
W0069294 REAR NET MSE30CR
W0069296 HANDLE SMALL
$10.00
W0069298 CLAMP CAPACITOR
W0069301 PANEL FRONT RIGHT
$49.50
W0069683 BLADE FAN
W0070655 NUT FLARE TLM B02 3/8 9.52MM
$7.70
W0072244 COPPER NUT TLM-D04 5/8 15.88MM
W0072313 REAR RIGHT CLAPBOARD MSE30CR
W0072314 SHROUD FAN
$110.00
W0072316 INSTALLATION PLATE VALVES MSE
W0072325 TERMINAL BLOCK 8P KSE88CRA
$13.20
W0072508 COUPLING PIPE DRAINAGE INDOOR
W0075140 4-WAY VALVE ESD18HRB
W0075156 CAPAC 50UF 450V 4 PIN COMPRESS
$55.00
W0093773 LOUVER HOLDER KSV62HRB
W0093790 COVER. SMALL. MOTOR KSV62HRA
$8.80
W0093791 MOTOR COVER KSV62HRA
W0093792 SCREW CAP KSV62HRA
$5.50
W0093793 CHASSIS INDOOR
W0093795 FRAME AIR OUT ASSY
W0093804 PANEL FRONT ASSY KSE70HRB
W0093806 LOURVE VERTICAL AIRFLOW UP
W0093807 COVER WINDOW
$60.00
W0093809 LOURVE VERTICAL
$54.95
W0093812 PANEL FRAME ASSY KSV62HRB
$70.00
W0093813 FRONT PANEL ASSY KSE62HRB
$30.00
W0093859 CLIP CAPACITOR
$4.50
W0093889 CONNECTING PIPE CLAMP
$4.50
W0093890 PLATE INSTALLATION
$30.00
W0093922 HOLDER. FAN MOTOR KSE88CRA
W0093949 COVER TOP
$70.00
W0094001 DISPLAY BOARD KSE70HRB
W0094010 POWER MODULE ASSY KSE70HRB
W0094011 BOARD POWER MODULE ASSY
W0094012 MAIN CONTROL BOARD KSE70HRB
$208.95
W0094025 MAIN CONTROL BOARD ASSY KSE70
W0094038 COMPRESSOR
$494.95
W0094083 EVAPORATOR ASSY KSE70CRB
W0094100 CONDENSER COIL ASSY KSE70HRB
$297.00
W0094113 4-WAYS VALVE KSE62HRB
$127.00
W0094257 TRANSFORMER
$86.70
W0094285 BLOCK TERMINAL
$11.00
W0094292 SOFT-START CONTROLLER
W0094308 MOTOR FAN INDOOR
$245.40
W0094314 MOTOR INDOOR KSE62HRB
$206.00
W0094329 ASYCHRONISM MOTOR KSE70HRB
W0094342 CAPACITOR COMPRESSOR KSE70HRB
W0094344 CAPAC 50UF 450V 4 PIN COMPRESS
$30.80
W0094353 CAPAC 3UF 450V 2PIN SOLDER FAN
W0094448 REMOTE CONTROLLER KSV80HRB
W0094711 HANDLE
W0102580 SEAL CIRCUIT
$4.00
W0129523 CAPAC 5UF 45OV 4PIN KPK35CRA
W0132300 VALVE ASSY LOW PRESSURE
