KSR20G

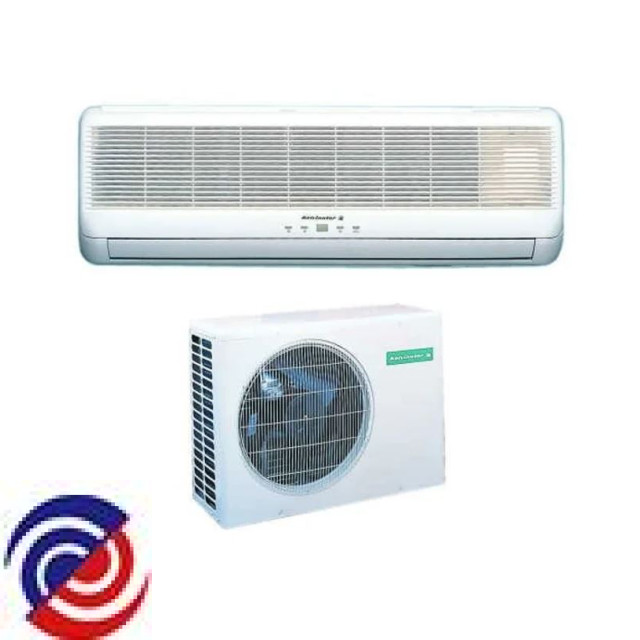

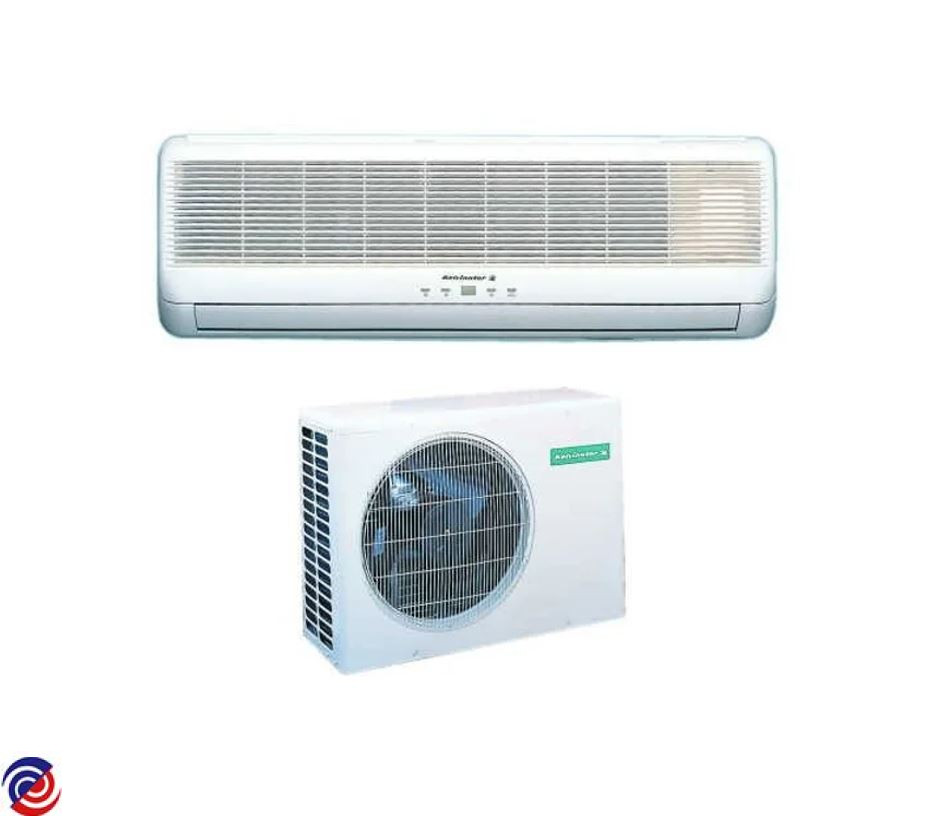

KELVINATOR — Air-Conditioner

W0022363 PLATE INSTALLATION

$23.10

W0093552 EXTRA FAN KSC/KSR20E

W0101038 VALVE SERVICE 12_7MM KSR20F*01

W0101044 BARRIER ASSY

W0101059 VALVE SERVICE 6_35MM KSR20F*01

W0102008 BASE ASSY OUTDOOR KSC20G

W0102975 CHASSIS ASSY KSC20G

W0108694 GRILLE DISCHARGE O/S KSC/R35F

W0108822 GRILL ASSY DISCHARGE INDOOR

$190.00

W0108831 GRILLE ASSY FRONT(I/DR) KSR20G

W0108855 GRILLE ASSY INLET KSR20G

W0109510 COVER ASSY. MOTOR KSR20G

W0109522 COVER ASSY.CONTROL O/DR KSR20G

W0115114 VALVE CHECK KSR20D

W0115117 VALVE REVERSING KSR20D

W0115136 MUFFLER KSR20F

W0115182 COVER TOP ASSY KSC20E

W0118453 BEARING FAN

W0123012 MOTOR ASSY. OUTDOOR KSC20G

W0123019 MOTOR ASSY

W0125110 BOX CONTROL OUTDOOR KSR20G

W0125140 BOX CONTROL ASSY INDOOR

$154.00

W0128843 GROMMET COMPRESSOR KSR20F-01

W0130613 TUBE CAPILLARY(BEND) KSR20G

W0130693 TUBE ASSY KSC20G

W0130786 TUBE ASSY REVERSING KSR20G

W0132815 CONDENSER ASSY KSR20G

W0133312 EVAPORATOR ASSY KSC20G

W0134991 BLADE FAN ASSY CROSS FLOW

W0135056 VANE HORIZONTAL KSC20G

W0135057 VANE HORIZONTAL

W0136055 THERMISTOR ASSY

W0136134 CORD POWER ASSY KSC20G 15A

W0136926 REMOTE CONTROL ASSY KSR20G

W0137043 CABLE. FLAT KSC20G

W0137101 BOARD ASSY MAIN

$130.00

W0137107 BOARD DISPLAY

W0137108 PWB (PCB)ASSY MAIN(DC) KSR20G
