KSV25CRF — 950001556 00

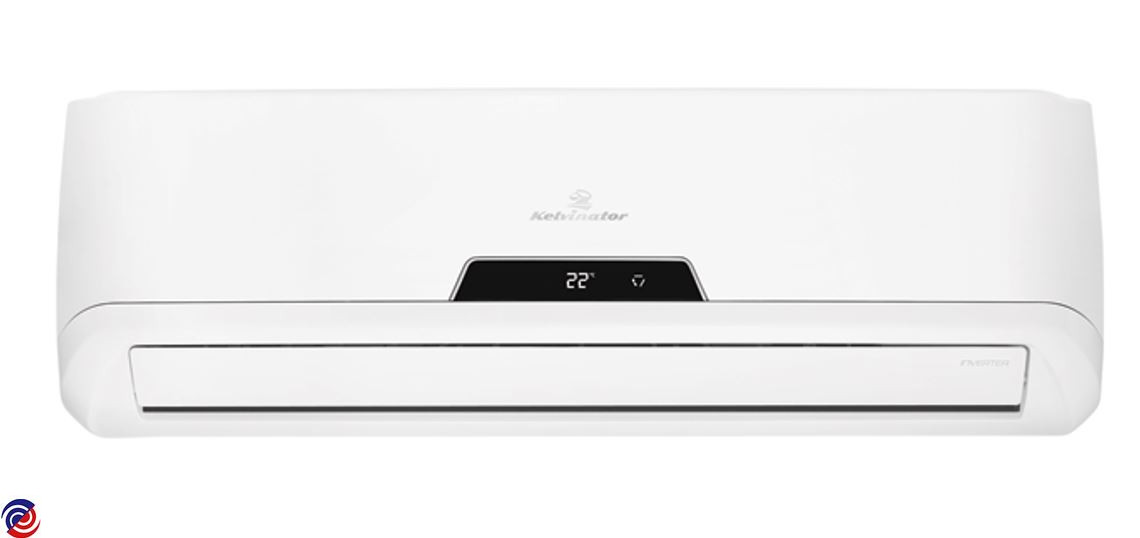

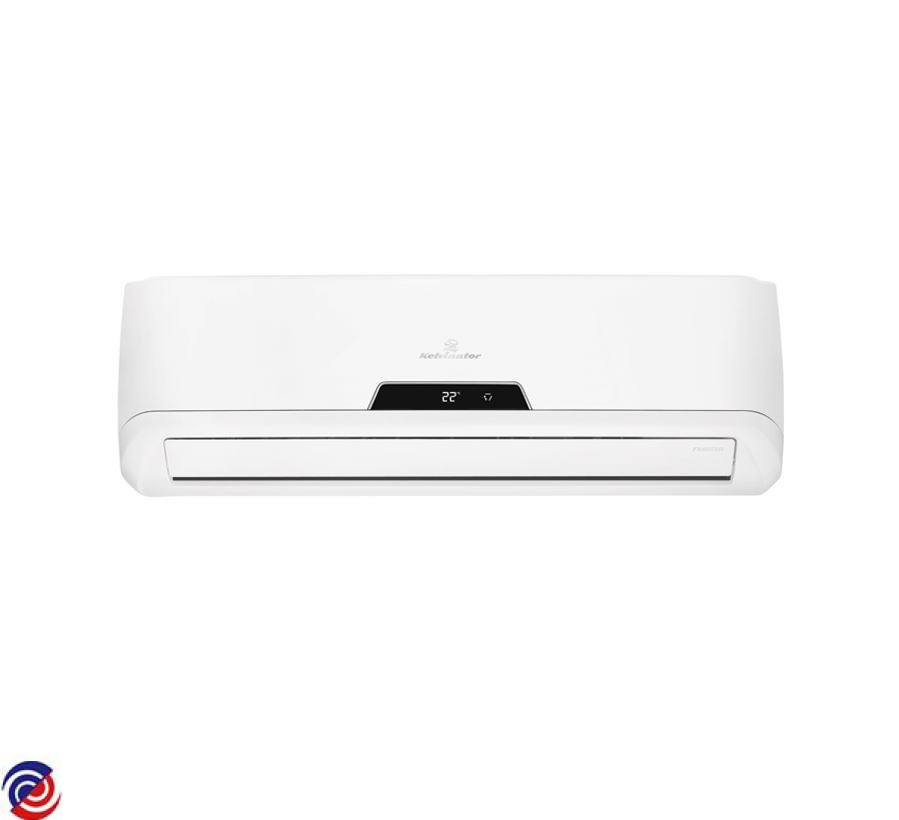

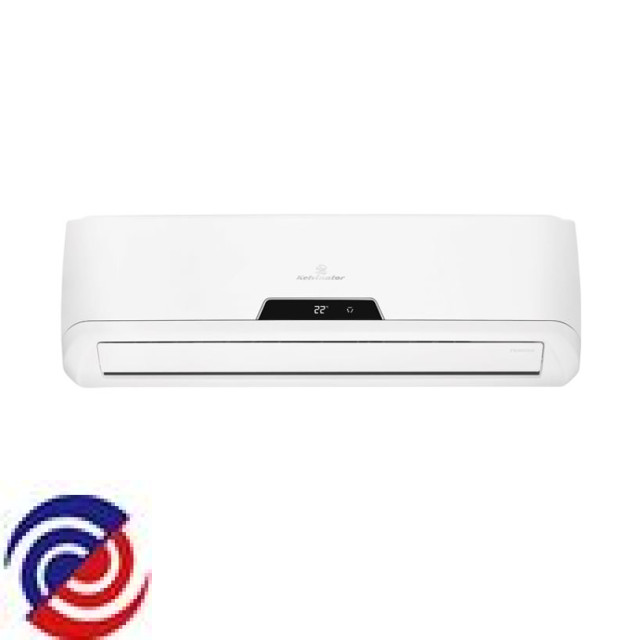

KELVINATOR — Air-Conditioner
Parts for KSV25CRF
W0014946 FILTER CARBON
W0011172 COMPRESSOR KSV26CRE
$786.85
W0012110 EVAPORATOR ASSY
$443.75
W0012162 CONDENSER ASSY
$301.95
W0012303 CLAPBOARD, SUB ASSY
$50.00
W0012331 FRAME, WALL MOUNTING
W0012342 COVER, TOP SUB ASSY
$44.00
W0012372 PANEL SIDE RH OUTDOOR
$27.50
W0012505 REAR GRILL KSV26HRC
$26.40
W0012535 PANEL, FRONT
$115.00
W0012552 SHIELD, LOWER SUB ASSY ELEC
$40.00
W0012557 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012591 MOTOR SUPPORT KSV26HRC
$26.55
W0012611 SUPPORT, VALVE
$47.00
W0012946 BOARD MAIN ASSY OUTDOOR ELECT
W0013012 CHASSIS, SUB ASSY
$200.00
W0013360 TUBE ASSY, DISCHARGE
$54.95
W0013361 TUBE ASSY, INHALATION
$34.95
W0013514 DRAIN PIPE KSV35CRC
$15.20
W0014086 VALVE CUT-OFF DISCHARGE 1/4
W0014087 VALVE CUT OFF
$50.00
W0014103 VALVE, ELECTRONIC EXPANSION
$105.80
W0014457 BLADE FAN AXIAL FLOW
$91.30
W0014484 FAN, CROSS FLOW
W0014562 BUSH AXILE LH
W0014569 LOUVER, AIR 2
W0014570 LOUVER, AIR 1
$4.00
W0014631 BUSH AXILE
W0014667 CRANK
$5.50
W0015173 FILTER, SUB ASSY
W0015175 FILTER (HEPPA)
W0018884 MOTOR FAN INDOOR KSV26CRE
W0018902 MOTOR FAN OUTDOOR KSV26CRE
$245.00
W0018975 MOTOR LOURVE
W0019464 CASE ASSY, REAR
$116.85
W0019465 CASE, FRONT
$69.95
W0019467 PANEL, FRONT ASSY
$60.05
W0019540 BOX, ELECTRIC
$40.00
W0019600 COVER, BOX ELECTRIC 2
$40.00
W0019933 BOARD MAIN ASSY INDOOR ELECT
$280.05
W0020512 COVER, ELECTRIC BOX 1
$10.00
W0020558 GRILL FRONT OUTDOOR
$88.00
W0020659 SUPPORT, EVAPORATOR
$10.00
W0020660 BAR, STAY SUB ASSY
$10.00
W0020774 PLATE, PRESS MOTOR
$30.00
W0020775 HELICOID TONGUE
$7.00
W0020857 RING, BEARING
W0020880 SMALL HANDLE KSV26CRC
$11.00
W0020883 HANDLE LARGE OUTDOOR
$29.55
W0020950 LOUVER, GUIDE
W0021241 BOARD MAIN INDOOR
W0021245 BOARD MAIN OUTDOOR
$427.50
W0021799 BOARD, DISPLAY INDOOR
W0022348 CAPAC CBB61S
$5.45
W0023277 SENSOR TEMPERATURE
$44.05
W0023279 SENSOR TUBE TEMP (20K BLK)
W0023352 CORD POWER KSV26CRC
$33.00
W0024728 TERMINAL BOARD KSV26HRC
$14.90
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024759 JUMPING CONNECTOR KSV35CRC
$4.50
W0024867 MAGNET COIL KSV26NRC-OUD
$70.10
W0024876 COIL REACTOR
$85.65
W0026763 FIXED CLAMP
$4.00
W0026850 PLUG WATER TRAY
W0052640 BOX. SUB ASSY ELECTRIC
W0096142 SCREW COVER
$4.00
W0096481 PIPE CLAMP KSV26CRC
$4.00
W0102058 REMOTE CONTROL
W0142539 BEARING. O-GASKET SUB ASSY
