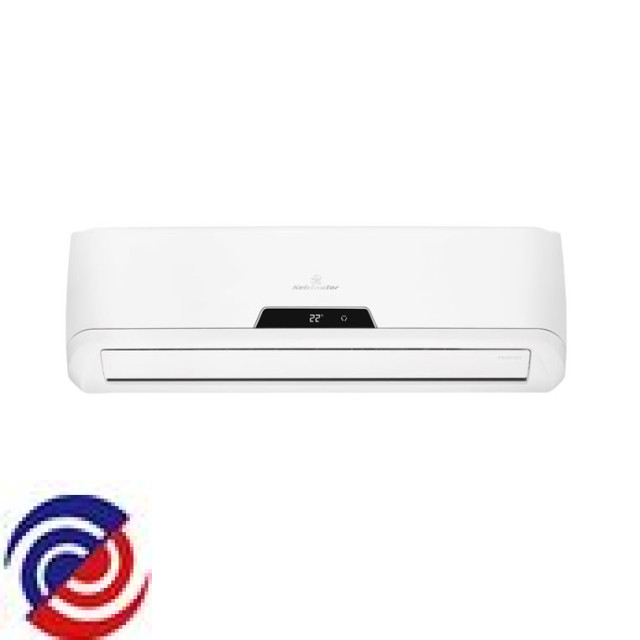

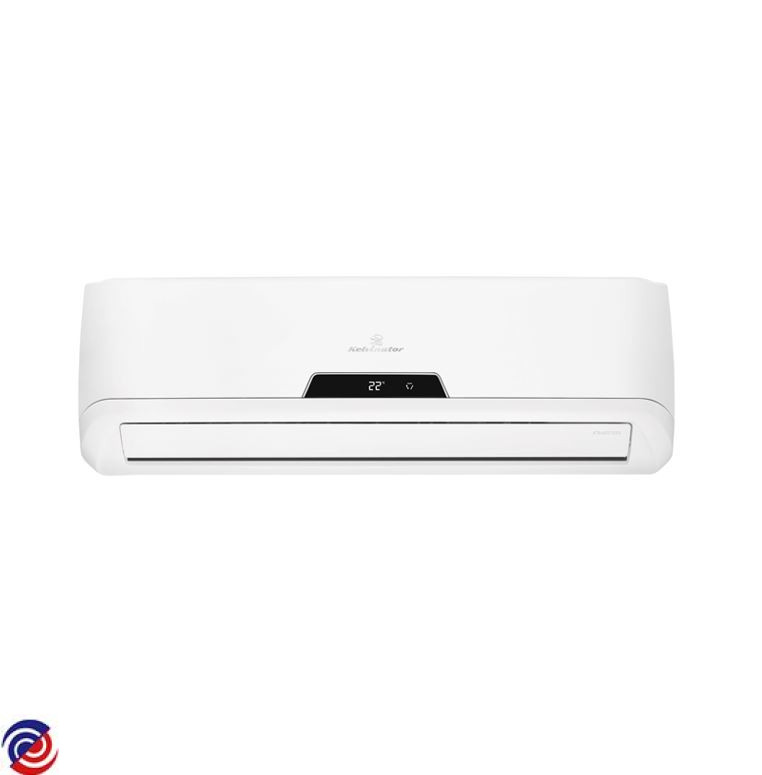

KSV35CRE — 950001225 00
KELVINATOR — Air-Conditioner
Parts for KSV35CRE
W0011175 COMPRESSOR KSV35CRE
$436.91
W0012111 EVAPORATOR ASSY
$258.69
W0012159 CONDENSER ASSY
$223.97
W0012299 CLAPBOARD SUB ASSY
$35.00
W0012331 FRAME, WALL MOUNTING
W0012341 COVER, TOP SUB ASSY
$42.67
W0012373 PLATE, LEFT SIDE
$21.00
W0012487 CABINET
W0012512 REAR GRILL KSV35CRC
$18.48
W0012552 SHIELD, LOWER SUB ASSY ELEC
$28.00
W0012553 SHIELD, COVER ELEC BOX SUB ASS
W0012592 SUPPORT, MOTOR
$28.00
W0012611 SUPPORT, VALVE
$32.90
W0012955 BOARD MAIN ASSY O/D ELECTRIC
$369.04
W0013016 CHASSIS SUB ASSY
$140.00
W0013363 TUBE, INHALATION SUB ASSY
$59.50
W0013364 TUBE, DISCHARGE SUB ASSY
$38.47
W0013514 DRAIN PIPE KSV35CRC
$10.64
W0014096 VALVE ASSY, CUT OFF
W0014102 VALVE ASSY, CUT OFF
W0014104 VALVE, ELECTRONIC EXPANSION
$74.06
W0014458 FAN, AXIAL FLOW
$38.47
W0014484 FAN, CROSS FLOW
W0014562 BUSH AXILE LH
W0014569 LOUVER, AIR 2
W0014570 LOUVER, AIR 1
$2.80
W0014631 BUSH AXILE
W0014667 CRANK
$3.85
W0015173 FILTER, SUB ASSY
W0018884 MOTOR FAN INDOOR KSV26CRE
W0018901 MOTOR FAN OUTDOOR KSV35CRE
$153.93
W0018975 MOTOR LOURVE
W0019444 CASE, FRONT
$28.00
W0019464 CASE ASSY, REAR
$81.80
W0019466 PANEL, FRONT ASSY
$35.00
W0019540 BOX, ELECTRIC
$28.00
W0019547 BOX, ELECTRIC ONLY OUTSIDE
W0019600 COVER, BOX ELECTRIC 2
$28.00
W0019940 BOARD MAIN INDOOR ASSY ELECT
$277.76
W0020512 COVER, ELECTRIC BOX 1
$7.00
W0020559 GRILL, FRONT
$21.00
W0020659 SUPPORT, EVAPORATOR
$7.00
W0020660 BAR, STAY SUB ASSY
$7.00
W0020774 PLATE, PRESS MOTOR
$21.00
W0020775 HELICOID TONGUE
$4.90
W0020857 RING, BEARING
W0020950 LOUVER, GUIDE
W0021051 FILTER PC BOARD OUTSIDE
$241.40
W0021241 BOARD MAIN INDOOR
W0021243 BOARD MAIN OUTDOOR
$255.89
W0021300 REMOTE CONTROL
W0021799 BOARD, DISPLAY INDOOR
W0022338 CAPACITOR CBB61 1*MF 500VAC
W0023277 SENSOR TEMPERATURE
$30.84
W0023279 SENSOR TUBE TEMP (20K BLK)
W0023352 CORD POWER KSV26CRC
$23.10
W0024728 TERMINAL BOARD KSV26HRC
$10.43
W0024732 TERMINAL BOARD 4-BIT
$10.43
W0024759 JUMPING CONNECTOR KSV35CRC
$3.15
W0024867 MAGNET COIL KSV26NRC-OUD
$49.07
W0024876 COIL REACTOR
$59.96
W0026746 NUT, FLARE (ONE TIME) 9.52MM
$13.09
W0026749 NUT, FLARE (ONE TIME) 6.35MM
$7.70
W0026765 CLAMP, WIRE
$2.80
W0026843 COMPRESSOR GASKET KWH07CRC
$7.00
W0026850 PLUG WATER TRAY
W0096142 SCREW COVER
$2.80
W0096481 PIPE CLAMP KSV26CRC
$2.80
W0096529 HANDLE
$7.70
W0142539 BEARING. O-GASKET SUB ASSY
