KSV50HRH — 956004526 00

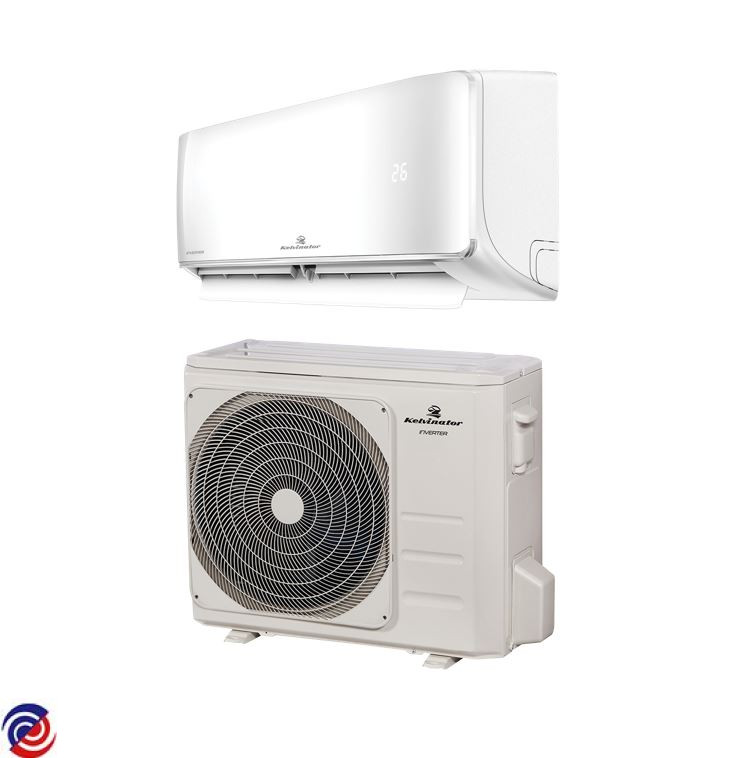

KELVINATOR — Air-Conditioner
Parts for KSV50HRH
W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
.jpg)
W0284450 REMOTE CONTROLLER
W0014916 MOTOR LOUVRE
$79.00
W0014921 MOTOR FAN INDOOR
W0015093 COMPRESSOR
W0015407 SENSOR TEMP ASSY DISCHARGE
W0015410 SENSOR PIPE TEMP ASSY
W0015411 SENSOR AMBIENT TEMP ASSY
W0015412 SENSOR PIPE TEMP ASSY
W0016445 BLADE FAN CROSS FLOW
W0016449 BLADE FAN AXIAL FLOW
W0016450 FILTER AIR
W0016453 FILTER AIR FRESHENING
$41.70
W0016454 FILTER AIR FRESHENING
$28.35
W0016455 HOSE DRAIN
$23.20
W0016456 JOINT DRAIN
$4.50
W0016469 LOUVRE VERTICAL
$84.35
W0016470 HOLDER BEARING
W0016474 CHASSIS ASSEMBLY
W0016477 COVER CHASSIS RIGHT
$30.00
W0016478 COVER CHASSIS LEFT
$30.00
W0016482 COVER ELEC CONTROL BOX
$11.30
W0016483 COVER FAN MOTOR
$78.45
W0016486 LOUVER HORIZONTAL ASSEMBLY
$43.55
W0016487 COVER ELEC EQUIPMENT
$9.85
W0016490 COLLECTOR WATER
$57.35
W0016496 COVER ELECTRONIC CONTROL BOX
$6.05
W0016498 CLAMP PIPE BOARD
$5.00
W0016501 PANEL ASSEMBLY
W0016510 PLATE INSTALLATION
$36.30
W0016517 PLATE VALVE
$34.40
W0016522 BOARD TERMINAL
$76.45
W0016523 PARTITION BOARD ASSEMBLY
$40.00
W0016524 PLATE RIGHT SIDE
W0016525 CHASSIS ASSEMBLY
$200.00
W0016527 PLATE LEFT SIDE ASSEMBLY
W0016528 PANEL FRONT
W0016534 SUPPORT FAN MOTOR ASSY
$40.00
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0019122 VALVE ASSEMBLY 4-WAY
$355.05
W0019137 VALVE GAS (SUCTION)
$40.95
W0019141 VALVE LIQUID (DISCHARGE)
$25.35
W0019146 NUT, FLARE NUT 1/2 - 12.7mm
$6.50
W0019147 NUT, FLARE NUT 1/4 - 6.35mm
$4.50
W0019313 ELEC CONTROL BOX PCB ASSY
$762.00
W0019327 REACTOR
$90.00
W0019329 JOINT WIRE
W0019333 WIRE ASSY COMPRESSOR
$24.50
W0282496 PANEL FRAME ASSEMBLY
$162.45
W0282536 COVER NET, REAR
$34.30
W0282856 VALVE ASSEMBLY, LIQUID
$66.00
W0282865 CONDENSER ASSEMBLY
W0282872 EVAPORATOR ASSEMBLY
$727.15
W0284051 PIPE NUT
$4.00
W0284111 SENSOR TEMP ROOM
W0284115 HOLDER, REMOTE CONTROL
W0284177 HANDLE, BIG
$16.55
W0284373 GRILLE, AIR OUTLET
W0284392 BOARD PCB DISPLAY BOX ASSY
W0284431 PANEL, TOP
W0284570 MOTOR FAN OUTDOOR BRUSHLESS
W0284657 ELEC CONTROL BOX PCB ASSY
$300.30
