KSV50HWH — 956004521 00
KELVINATOR — Air-Conditioner

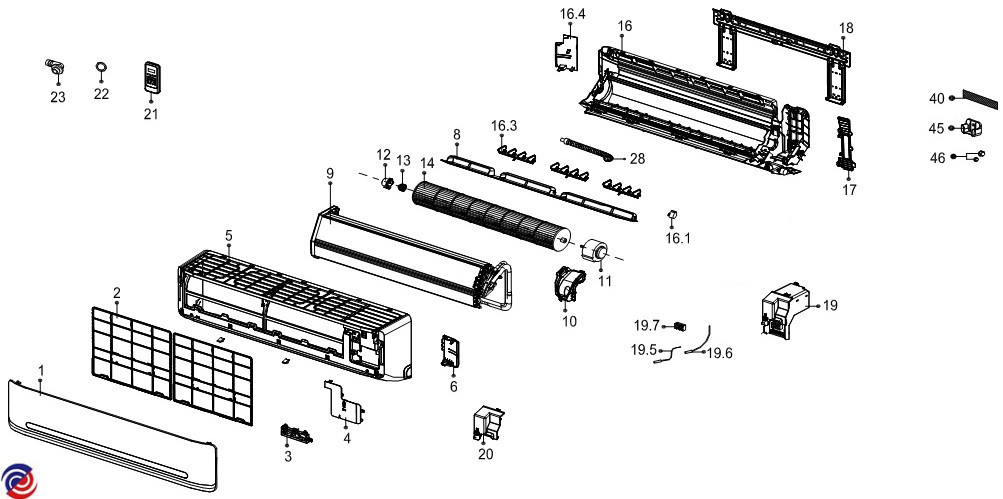

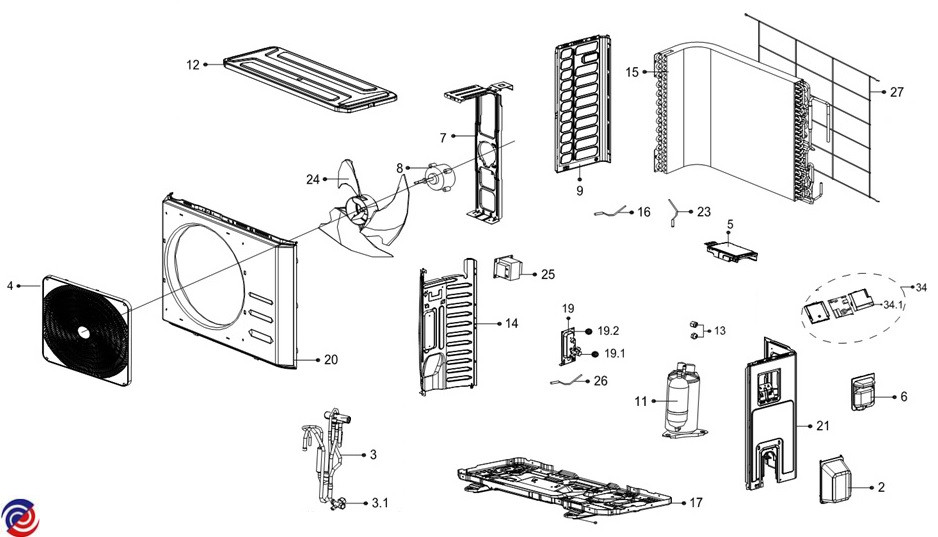

Parts for KSV50HWH
W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
.jpg)
W0284450 REMOTE CONTROLLER
W0014916 MOTOR LOUVRE
$79.00
W0015093 COMPRESSOR
W0015407 SENSOR TEMP ASSY DISCHARGE
W0015410 SENSOR PIPE TEMP ASSY
W0016445 BLADE FAN CROSS FLOW
W0016449 BLADE FAN AXIAL FLOW
W0016450 FILTER AIR
$34.90
W0016453 FILTER AIR FRESHENING
$41.70
W0016454 FILTER AIR FRESHENING
$28.35
W0016455 HOSE DRAIN
$23.20
W0016456 JOINT DRAIN
$4.50
W0016469 LOUVRE VERTICAL
$84.35
W0016470 HOLDER BEARING
W0016474 CHASSIS ASSEMBLY
W0016477 COVER CHASSIS RIGHT
$30.00
W0016478 COVER CHASSIS LEFT
$30.00
W0016482 COVER ELEC CONTROL BOX
$11.30
W0016483 COVER FAN MOTOR
$78.45
W0016486 LOUVER HORIZONTAL ASSEMBLY
$43.55
W0016487 COVER ELEC EQUIPMENT
$9.85
W0016490 COLLECTOR WATER
$57.35
W0016492 CAP SCREW
$4.50
W0016496 COVER ELECTRONIC CONTROL BOX
$6.05
W0016498 CLAMP PIPE BOARD
$5.00
W0016501 PANEL ASSEMBLY
W0016510 PLATE INSTALLATION
$36.30
W0016517 PLATE VALVE
$34.40
W0016522 BOARD TERMINAL
$76.45
W0016523 PARTITION BOARD ASSEMBLY
$40.00
W0016524 PLATE RIGHT SIDE
W0016525 CHASSIS ASSEMBLY
$200.00
W0016527 PLATE LEFT SIDE ASSEMBLY
W0016528 PANEL FRONT
W0016534 SUPPORT FAN MOTOR ASSY
$40.00
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0019122 VALVE ASSEMBLY 4-WAY
$355.05
W0019137 VALVE GAS (SUCTION)
$40.95
W0019141 VALVE LIQUID (DISCHARGE)
$25.35
W0019146 NUT, FLARE NUT 1/2 - 12.7mm
$6.50
W0019147 NUT, FLARE NUT 1/4 - 6.35mm
$4.50
W0019313 ELEC CONTROL BOX PCB ASSY
$762.00
W0019327 REACTOR
$90.00
W0019329 JOINT WIRE
W0019333 WIRE ASSY COMPRESSOR
$24.50
W0282441 MOTOR BRUSHLESS DC
W0282450 SENSOR TEMP ROOM
$12.50
W0282451 SENSOR PIPE TEMPERATURE
$6.15
W0282496 PANEL FRAME ASSEMBLY
$162.45
W0282536 COVER NET, REAR
$34.30
W0282856 VALVE ASSEMBLY, LIQUID
$66.00
W0282865 CONDENSER ASSEMBLY
W0282872 EVAPORATOR ASSEMBLY
$727.15
W0282892 ELEC CONTROL BOX PCB ASSY
W0282897 DISPLAY PCB & WI-FI DOGLE
W0284051 PIPE NUT
$4.00
W0284111 SENSOR TEMP ROOM
W0284115 HOLDER, REMOTE CONTROL
W0284177 HANDLE, BIG
$16.55
W0284373 GRILLE, AIR OUTLET
W0284431 PANEL, TOP
W0284570 MOTOR FAN OUTDOOR BRUSHLESS
