KSV52HRD — 950001561 00

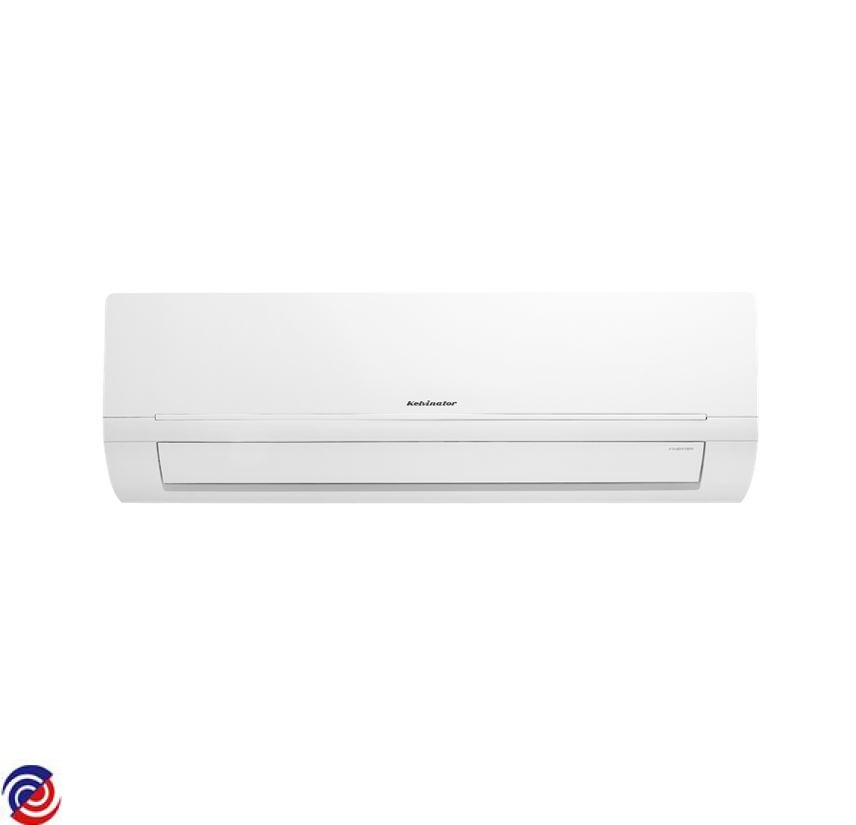

KELVINATOR — Air-Conditioner

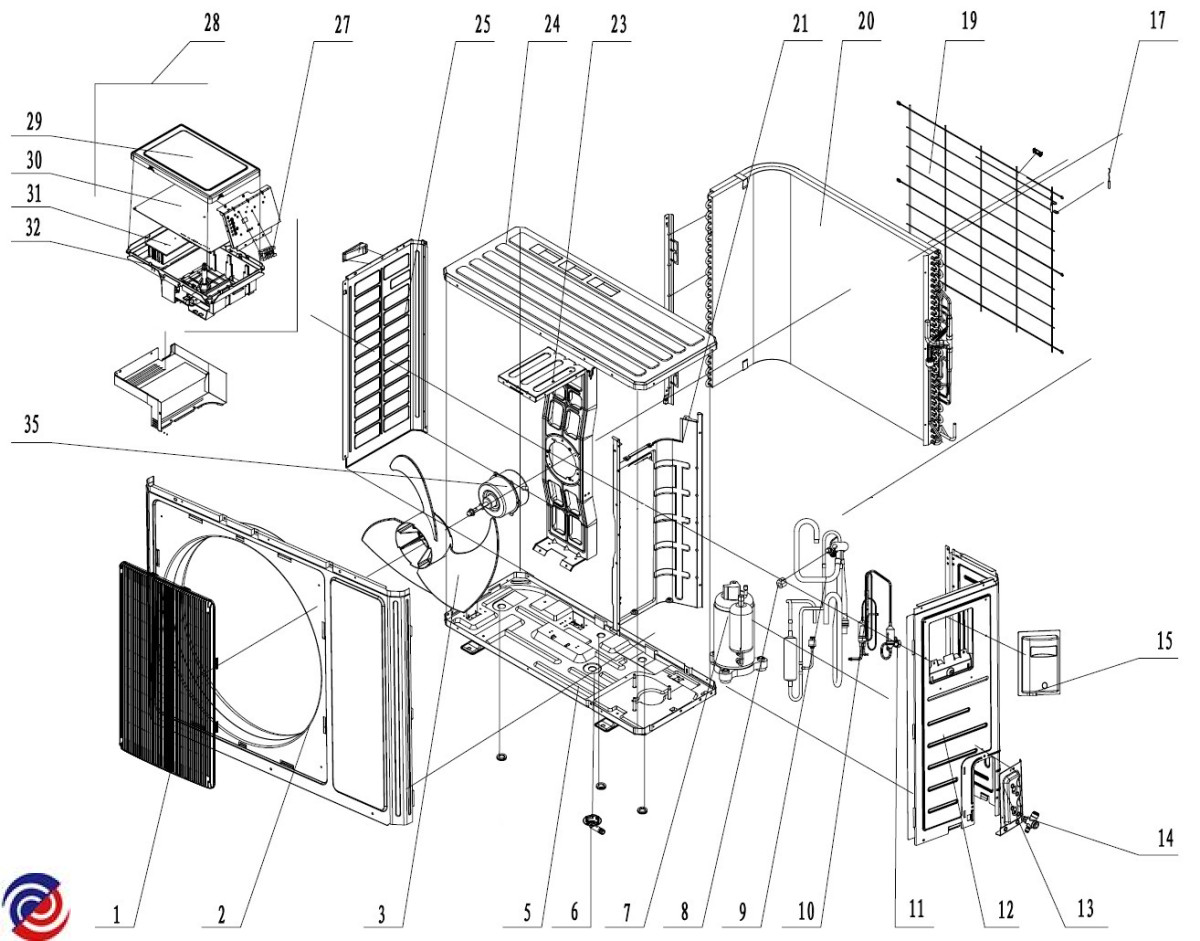

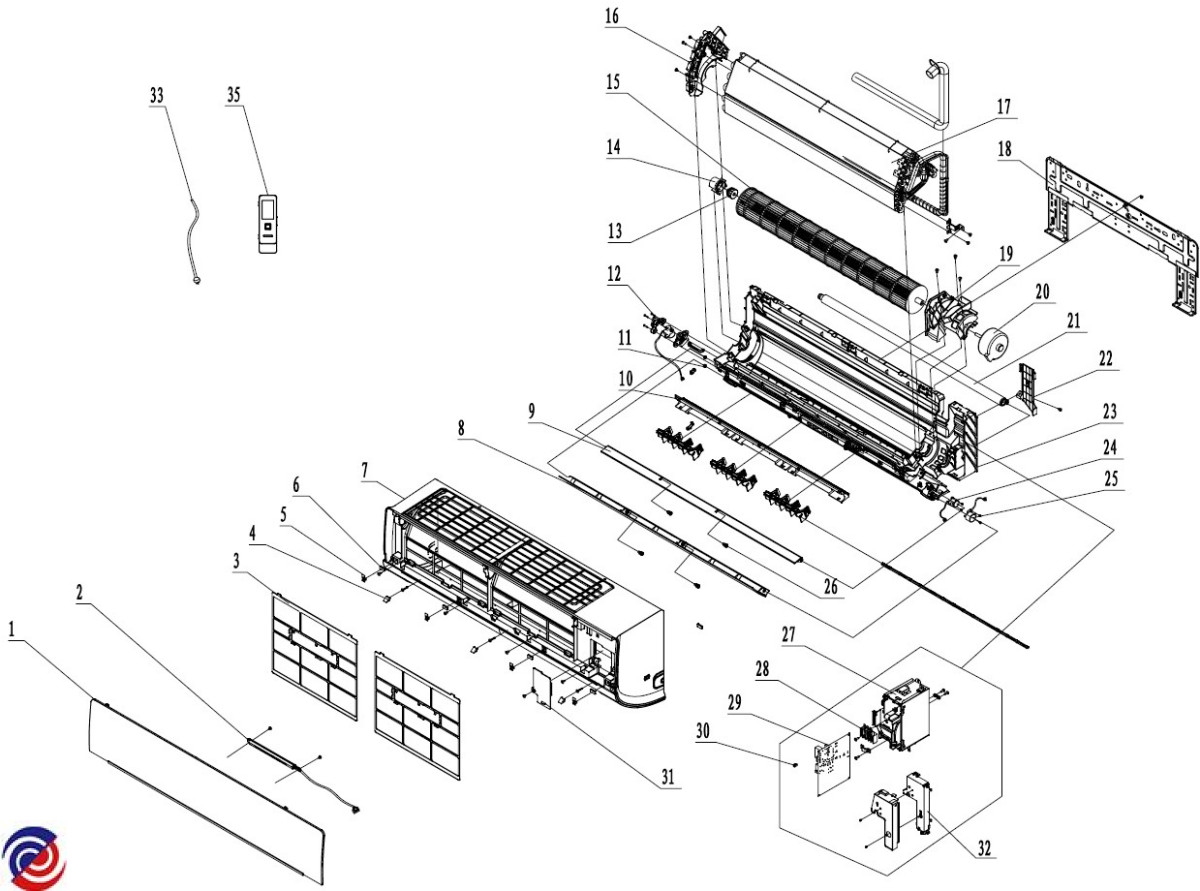

Parts for KSV52HRD

W0014946 FILTER CARBON
W0021209 KELVINATOR AIRCON INDOOR MAIN PCB KSV/26/35/52/53
W0021299 REMOTE CONTROL
$114.70
No image available
W0011113 PANEL ASSY-FRONT
$140.00
No image available
W0011181 COMPRESSOR & FITTINGS
$392.00
No image available
W0012134 EVAPORATOR ASSY
$288.30
No image available
W0012137 CONDENSER ASSY
$375.35
No image available
W0012308 CLAPBOARD, SUB ASSY
$50.00
No image available
W0012333 FRAME WALL MOUNTING KSV53HRC
$31.00
No image available
W0012347 TOP COVER KSV53HRC
$70.00
No image available
W0012387 PLATE, RIGHT SIDE
$27.50
No image available
W0012388 LEFT SIDE PLATE KSV53HRC
$27.50
No image available
W0012514 GRILL, REAR
$50.00
No image available
W0012584 CHASSIS SUB ASSY
$88.00
No image available
W0012601 SUPPORT, VALVE SUB ASSY
$47.00
No image available
W0012602 MOTOR SUPPORT SUB-ASSY
$44.00
No image available
W0012746 IRON FASTENER
$4.00
No image available
W0013066 CAPILLARY SUB ASSY
$50.00
No image available
W0013161 VALVE ASSY, 4-WAY
$199.95
No image available
W0013518 HOSE DRAIN
$55.40
No image available
W0013881 COUPLING CONNECTER DRAINAGE
No image available
W0014086 VALVE CUT-OFF DISCHARGE 1/4
No image available
W0014100 VALVE, CUT OFF 5/8
$59.95
No image available
W0014256 BOX ASSY, ELECTRIC OUTDOOR
$666.25
No image available
W0014464 FAN AXIAL FLOW KSV53HRC
No image available
W0014489 BLADE FAN CROSS FLOW ASSY
No image available
W0014562 BUSH AXILE LH
No image available
W0014574 LOUVRE HORIZONTAL SMALL
$11.95
No image available
W0014579 LOUVRE HORIZONTAL MAIN
$24.85
No image available
W0014631 BUSH AXILE
No image available
W0015165 FILTER SUB-ASSY
$14.30
No image available
W0015175 FILTER (HEPPA)
No image available
W0018882 MOTOR LOURVE
No image available
W0018891 MOTOR FAN INDOOR KSV53HRC
$305.00
No image available
W0018912 MOTOR FAN OUTDOOR KSV53HRC 01
No image available
W0018975 MOTOR LOURVE
No image available
W0018977 MOTOR LOURVE
No image available
W0019448 PANEL FRONT ASSY IN KSV53HRC
$49.50
No image available
W0019542 ELECTRIC BOX KSE26CRC
$16.50
No image available
W0019584 ELECTRIC BOX
$30.80
No image available
W0019596 ELEC BOX COVER 2 KSV53HRC
No image available
W0019609 COVER ELECTRIC BOX
$11.00
No image available
W0019664 COVER, ELECTRIC BOX
$24.95
No image available
W0020509 CABINET ASSY REAR
$210.00
No image available
W0020562 FRONT GRILL KSV53HRC
No image available
W0020655 HOLDER REMOTE CONTROL
No image available
W0020664 EVAPORATOR SUPPORT KSV53HRC
$6.60
No image available
W0020784 MOTOR PRESS PLATE KSV53HRC
$9.90
No image available
W0020788 HELICOID TONGUE KSV53HRC
$8.00
No image available
W0020858 RING OF BEARING KSV53HRC
$11.40
No image available
W0021205 BOARD MAIN
$597.10
No image available
W0021801 BOARD DISPLAY
No image available
W0023291 SENSOR TEMPERATURE KSV70HRE
$44.05
No image available
W0023354 CONNECTING CABLE
$33.00
No image available
W0024728 TERMINAL BOARD KSV26HRC
$14.90
No image available
W0024763 WIRE JUMPER
$21.85
No image available
W0024938 SWITCH PRESSURE PROTECT
No image available
W0025275 RADIATOR
$80.00
No image available
W0026759 MAGNET KSV26CRC
$5.50
No image available
W0026834 BEARING FAN BLADE
No image available
W0093604 FRONT CASE ASSY KSV53HRC
$99.00
No image available
W0096142 SCREW COVER
$4.00
No image available
W0096482 PIPE CLAMP KSV53HRC
$4.00
No image available
W0096528 HANDLE
No image available
W0117871 TERMINAL BOARD KSV53HRC
$13.20
No image available
W0118577 VALVE 4-WAY
$76.90
