KSV53HRA — 950001083 00

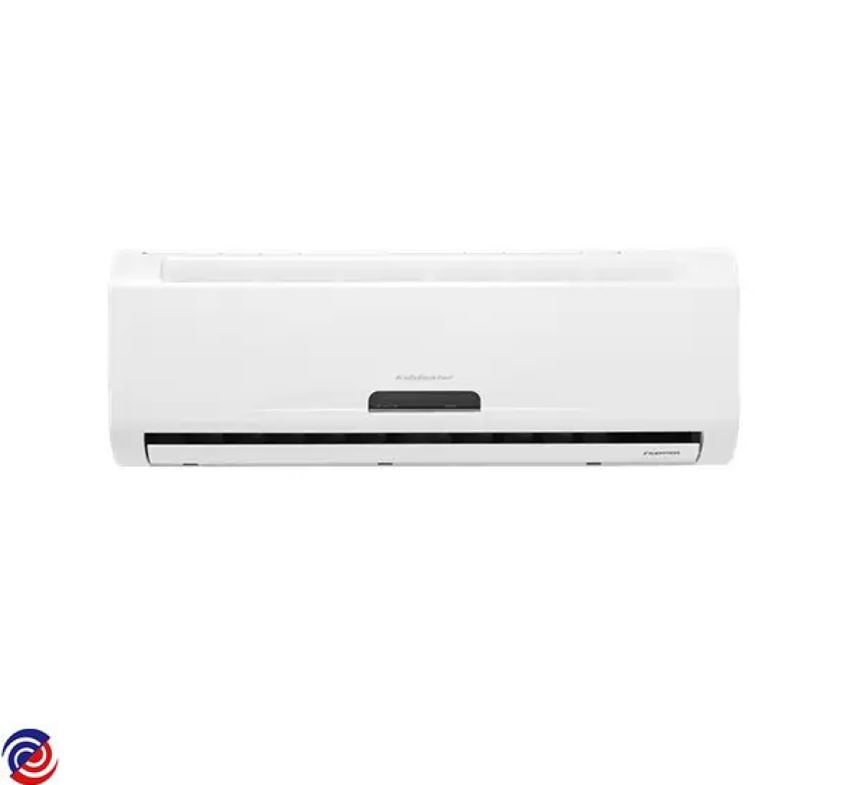

KELVINATOR — Air-Conditioner
Parts for KSV53HRA
W0014359 FILTER AIR
W0019516 BLADE FAN CROSS FLOW ASSY
$64.00
W0019915 BOX CONTROL ASSY OUTDOOR
$496.00
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0075340 SENSOR TEMP EVAPORATOR TEMP
.JPG)
W0094263 SENSOR TEMP EVAPORATOR TEMP
W0094273 SENSOR TEMP ASSY
W0094303 MOTOR FAN INDOOR
W0094412 BOARD DISPLAY ASSY
W0094413 BOX CONTROL ASSY INDOOR
$240.00
W0094445 KELVINATOR AIRCON REMOTE CONTROL
W0103211 HOSE DRAIN
W0127090 SENSOR TEMP EVAPORATOR TEMP
W0014361 COVER TEMP SENSOR
$5.50
W0014478 FUSE
W0019556 LOURVE VERTICAL AIRFLOW DOWN
W0019560 LOURVE VERTICAL AIRFLOW UP
$54.90
W0019616 COVER. INDUCTANCE KSV53HRA
$29.70
W0019620 TOP COVER ASSY KSV53HRA
$66.00
W0019631 FRONT PANEL KSV53HRA
$121.00
W0019632 BASE PLATE COMPRESSOR
$77.00
W0019633 MOTOR MOUNTING BRACKET ASSY
$66.00
W0019692 BOARD MAIN OUTDOOR
W0019725 CONDENSOR ASSY
$352.00
W0019820 TRANSFORMER
$80.35
W0019844 MOTOR LOUVRE
$45.85
W0019862 CAPAC 1.5UF 450V 2PIN SOLDER
W0068069 INDOOR TEMP SENSOR
W0069526 POWER CORD CLAMP ESE18CRA
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0070691 COPPER NUT TLM C03 1/2, 12.7MM
$11.00
W0072501 WIRE JOINT. 5P ESD09HRA
W0072505 E-PARTS BOX ESD18HRB
W0072508 COUPLING PIPE DRAINAGE INDOOR
W0072538 SENSOR DISCHARGE TEMP 500MM
W0075344 COMPRESSOR
W0093671 BLADE FAN AXIAL FLOW
$44.00
W0093762 MOTOR COVER KSV53HRA
$16.50
W0093763 LEFT HOLDER. EVAPORATOR
$9.90
W0093765 FILTER AIR
W0093767 SCREW CAP KSV53HRA
W0093768 AIR FILTER KSV53HRA
W0093769 CHASSIS KSV53HRA
W0093776 COVER WINDOW
$11.00
W0093777 FRAME AIR OUT ASSY
W0093778 FRONT PANEL KSV53HRA
W0093780 BOX DISPLAY
$40.00
W0093781 PANEL FRONT
$77.00
W0093782 DISPLAY BOARD ENCLOSURE
$27.50
W0093783 FRONT FRAME ASSY KSV53HRA
$68.20
W0093784 DISPLAY BOARD ENCLOSURE
$14.30
W0093849 E-PART BOX COVER KSV53HRA
$11.00
W0093886 PLATE INSTALLATION
$30.90
W0093888 RIGHT HOLDER. EVAPORATOR
$9.90
W0093889 CONNECTING PIPE CLAMP
$4.50
W0093901 LEFT SUPPORTER KSV26HRA
$14.30
W0093912 BOARD OF TERMINAL KSV26HRA
W0093917 FRONT NET OUTDDOR KSV53HRA
$50.00
W0093998 DISPLAY BOARD KSV53HRA
W0094000 BOARD MAIN INDOOR
$220.00
W0094071 EVAPORATOR ASSY
$346.50
W0094173 LOW PRESSURE VALVE ASSY
W0094174 VALVE LIQUID ASSY
$51.70
W0094236 SOUND-PROOF MATERIAL
$11.00
W0094237 SOUND-PROOF MATERIAL
W0094259 COIL REACTOR (R1815E)
$210.50
W0094321 MOTOR FAN
$314.35
W0094368 RUBBER KSV53HRA
$5.50
W0102580 SEAL CIRCUIT
$4.00
