KSV53HRB — 950132774 00

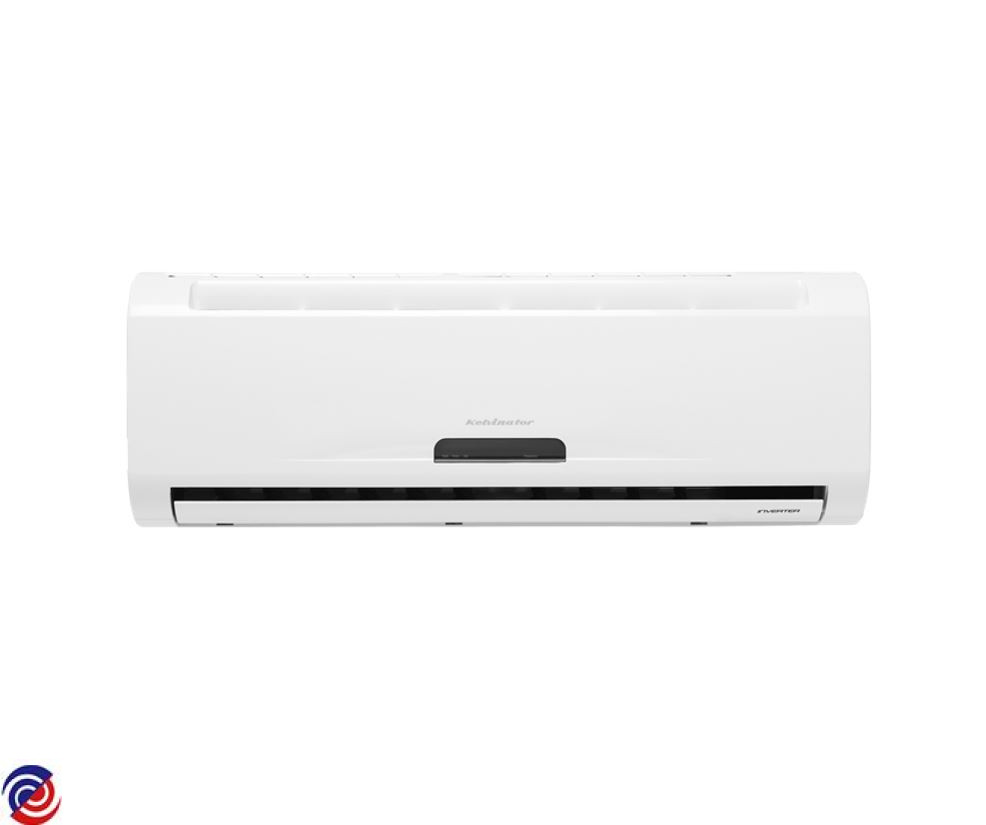

KELVINATOR — Air-Conditioner
Parts for KSV53HRB
W0014359 FILTER AIR
W0019516 BLADE FAN CROSS FLOW ASSY
$64.00
W0019926 REMOTE CONTROL
W0068065 HOLDER FILTER
W0069459 HOLDER BEARING
W0075340 SENSOR TEMP EVAPORATOR TEMP
W0093852 HOLDER REMOTE CONTROLLER
$7.00
W0094273 SENSOR TEMP ASSY
W0094303 MOTOR FAN INDOOR
W0094412 BOARD DISPLAY ASSY
W0103211 HOSE DRAIN
W0127090 SENSOR TEMP EVAPORATOR TEMP
W0014361 COVER TEMP SENSOR
$5.50
W0016778 VALVE 4-WAY
$120.00
W0016783 WIRE JOINT ESD09HRA
$11.00
W0016794 SEPERATING BOARD ESD18HRB
$49.50
W0019518 BLADE FAN AXIAL FLOW
$91.30
W0019556 LOURVE VERTICAL AIRFLOW DOWN
W0019560 LOURVE VERTICAL AIRFLOW UP
$54.90
W0019581 REAR NET KSV53HRB
$11.00
W0019610 PLATE INSTALLATION
$30.00
W0019618 E-PARTS BOX'S COVER KSV53HRB
$11.00
W0019634 MOUNT TERMINAL OUTDOOR
$6.60
W0019635 MOTOR MOUNTING BRACKET ASSY
$27.50
W0019636 RIGHT CLAPBOARD KSV53HRB
$99.00
W0019651 LEFT SUPPORTER KSV62HRA
$88.00
W0019652 SUPPORT BOARD. MOTOR HOLDER
$14.30
W0019665 BASE PLATE COMPRESSOR
$88.00
W0019682 BOARD MAIN INDOOR
W0019701 COMPRESSOR ROTARY
$672.90
W0019719 EVAPORATOR ASSY KSV35HRB
W0019726 CONDENSOR COIL ASSY KSV53HRB
$275.00
W0019727 CONDENSER COIL ASSY KSV53HRB
W0019740 4-WAYS VALVE KSE35HRB
W0019768 4-WAYS VALVE ASS'Y KSV53HRB
$126.50
W0019844 MOTOR LOUVRE
$45.85
W0019862 CAPAC 1.5UF 450V 2PIN SOLDER
W0019863 CAPAC 2.5UF 450V SOLDER IN
W0019919 BOX CONTROL ASSY OUTDOOR
$665.05
W0068069 INDOOR TEMP SENSOR
W0068321 CLAMP CAPACITOR
W0068324 WASHER FOR WIRE JOINT ESD09HRA
W0068682 PLATE INSTALLATION
W0068690 FOAM OVEN HOLDER MOTOR ESE18C
W0068696 BIG HANDLE ESE18CRA
W0068703 PAN DRAIN
W0070406 HANDLE SMALL (ESG21HRIA)
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0070691 COPPER NUT TLM C03 1/2, 12.7MM
$11.00
W0072501 WIRE JOINT. 5P ESD09HRA
W0072504 E-PART BOX COVER ESD18HRB
$40.00
W0072505 E-PARTS BOX ESD18HRB
W0072508 COUPLING PIPE DRAINAGE INDOOR
W0072537 HOLDER. E-PARTS ESD18HRB
W0072538 SENSOR DISCHARGE TEMP 500MM
W0075156 CAPAC 50UF 450V 4 PIN COMPRESS
$55.00
W0075346 GRILL FRONT OUTDOOR
$40.00
W0075349 MOUNT TERMINAL OUTDOOR
$27.50
W0076557 VALVE LOW PRESSURE
$50.00
W0093706 BRACKET EVAPORATOR LH
$6.60
W0093762 MOTOR COVER KSV53HRA
$16.50
W0093764 CHASSIS
$126.50
W0093765 FILTER AIR
W0093766 SCREW CAP KSV53HRA
$5.50
W0093770 VERTICAL GRILLE KSV35HRB
W0093771 LOUVER HOLDER KSV35HRB
W0093776 COVER WINDOW
$11.00
W0093777 FRAME AIR OUT ASSY
W0093781 PANEL FRONT
$77.00
W0093786 CABINET FRONT ASSY
$167.75
W0093889 CONNECTING PIPE CLAMP
$4.50
W0093915 COVER REACTANCE FILTER
$29.70
W0093940 FRONT PANEL KSV53HRB
$77.00
W0093942 FRONT RIGHT CLAPBOARD ASSY
$77.00
W0093943 TOP COVER ASSEMBLY KSV53HRB
$59.40
W0093998 DISPLAY BOARD KSV53HRA
W0094026 BOARD MAIN OUTDOOR
W0094071 EVAPORATOR ASSY
$346.50
W0094175 VALVE LIQUID PIPE ASSY
W0094178 4-WAYS VALVE ASSY KSV53HRB
W0094258 COIL REACTOR
$60.00
W0094259 COIL REACTOR (R1815E)
$210.50
W0094260 COIL REACTOR (R1502)
$138.00
W0094295 RADIATOR KSV62HRA
$159.50
W0094305 MOTOR INDOOR KSE35CRB
W0094307 MOTOR ASYNCHRONISM (IRON)
W0094313 MOTOR FAN OUTDOOR
$297.30
W0094358 MOUNT COMPRESSOR
$27.50
W0094435 ELECTRICAL BOX ASSY KSV53HRB
$581.40
W0102580 SEAL CIRCUIT
$4.00
W0127091 LIQUID PIPE VALVE ESD18HRB
