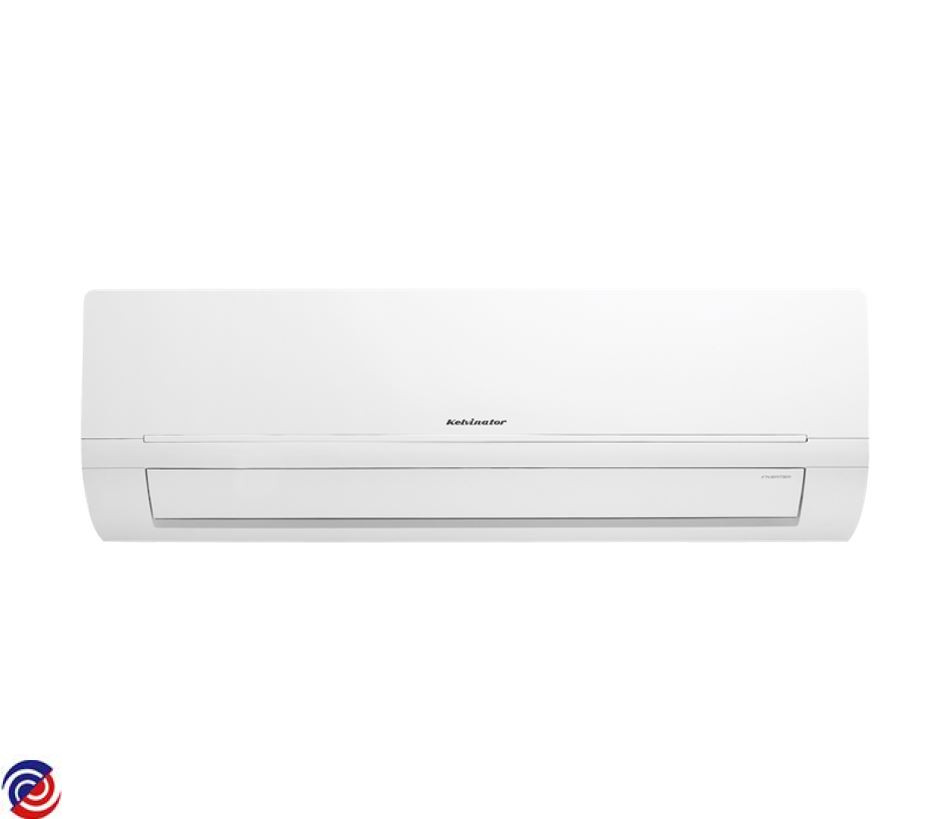

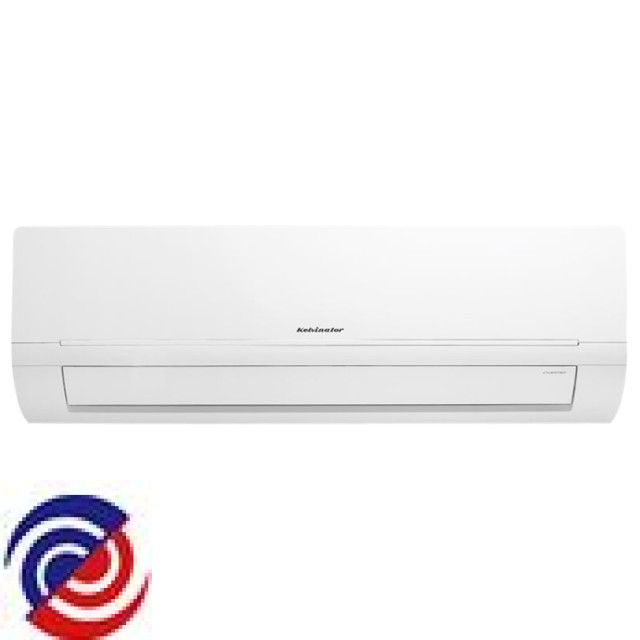

KSV62HRC — 950132913 00
KELVINATOR — Air-Conditioner
Parts for KSV62HRC
W0014946 FILTER CARBON
W0021299 REMOTE CONTROL
$114.70
W0023278 SENSOR TEMPERATURE
W0012099 EVAPORATOR ASSY
$778.95
W0012174 CONDENSER ASSY KSV62HRC
$374.00
W0012234 CHASSIS SUB ASSY
$88.00
W0012289 PANEL PARTITION LH OUTDOOR
$27.50
W0012337 BRACKET WALL MOUNTING
W0012347 TOP COVER KSV53HRC
$70.00
W0012380 LEFT SIDE PLATE KSV53HRC
$27.50
W0012383 RIGHT SIDE PLATE KSV53HRC
$44.00
W0012478 COVER, PCB-ELECTRIC BOX
W0012507 REAR GRILL KSV53HRC
$14.30
W0012555 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012556 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012608 VALVE SUPPORT SUB-ASSY
$14.30
W0012927 BOX CONTROL ASSY OUTDOOR
$792.55
W0013137 CAPILLARY SUB-ASSY
$60.00
W0013174 4-WAY VALVE ASSY KSV53HRC
$199.90
W0013516 HOSE DRAIN
$30.00
W0013881 COUPLING CONNECTER DRAINAGE
W0013998 SEAL DRAINAGE
$6.00
W0014084 ONE WAY VALVE A KSV53HRC
$51.70
W0014086 VALVE CUT-OFF DISCHARGE 1/4
W0014091 VALVE CUT-OFF SUCTION 5/8
$68.75
W0014464 FAN AXIAL FLOW KSV53HRC
W0014490 BLADE FAN CROSS FLOW ASSY
W0014562 BUSH AXILE LH
W0014578 LOURVE SMALL
$84.35
W0014583 GUIDE LOUVER KSV62HRC
$34.40
W0014670 LEVER SWING MOTOR TO LOUVRE
$13.60
W0014671 SWING LEVER 1 KSV62HRC
W0014672 SWING LEVER 3 KSV62HRC
$13.65
W0015168 FILTER MAIN INDDOR
W0015175 FILTER (HEPPA)
W0018892 MOTOR FAN INDOOR KSV62HRC
W0018911 MOTOR FAN OUTDOOR
$380.00
W0018971 Motor, Louver (Left/Right)
W0018974 MOTOR LOURVE
W0018976 Motor, Louver (Main) R/Hand
$52.00
W0018980 Motor, Louver (Main) L/Hand
$56.05
W0019449 CHASSIS FRONT ASSY
$126.50
W0019450 PANEL FRONT ASSY INDOOR
$79.00
W0019536 BOX ELECTRIC
$77.00
W0019545 INSULATING PLATE OF ELEC BOX C
$13.00
W0019548 ELECTRIC BOX OUTSIDE KSV53HRC
$34.10
W0019596 ELEC BOX COVER 2 KSV53HRC
W0019598 ELECTRIC BOX COVER KSV62HRC
$11.00
W0019798 WATER TRAY ASSY KSV62HRC
$140.00
W0019872 BOX CONTROL ASSY INDOOR
W0020510 CABINET ASSY REAR
$130.00
W0020562 FRONT GRILL KSV53HRC
W0020657 LEFT EVEP SUPPORT KSV62HRC
$8.05
W0020658 RIGHT SUPPORT OF EVAPORATOR
$10.65
W0020679 SCREW COVER KSV62HRC
$40.00
W0020770 PIPE CLAMP KSV62HRC
$4.00
W0020785 MOTOR FIXED CLIP 1 KSV62HRC
$4.50
W0020786 MOTOR FIXED CLIP 2 KSV62HRC
$4.50
W0020859 MOTOR HOLDER KSV62HRC
$8.75
W0020885 HANDLE KSV53HRC
$29.55
W0020886 SMALL HANDLE
$11.00
W0021222 BOARD MAIN OUTDOOR
$397.10
W0021228 BOARD MAIN INDOOR KSV62HRC
W0021801 BOARD DISPLAY
W0022307 CAPAC 60UF 370V 4 PIN COMPRESS
$41.00
W0023284 SENSOR TEMPERATURE
W0023290 SENSOR TEMPERATURE
W0023347 POWER CORD KSV62HRC
$51.60
W0023357 CONNECTING CABLE KSV62HRC
$170.00
W0023361 WIRE SIGNAL
$49.50
W0024729 TERMINAL BOARD 3-BIT ASSY
$20.00
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024764 JUMPER KSV62HRC
$4.50
W0024861 COIL VALVE 4-WAY
$30.00
W0024872 REACTOR KSV53HRC
$176.00
W0024936 FUSE
$16.50
W0024938 SWITCH PRESSURE PROTECT
W0025272 RADIATOR KSV53HRC
$38.50
W0026763 FIXED CLAMP
$4.00
W0026834 BEARING FAN BLADE
W0026835 BEARING FAN
W0026850 PLUG WATER TRAY
W0026854 RUBBER GROMMET KSV53HRC
$6.60
W0036046 COMPRESSOR & FITTING
$466.95
W0047828 PANEL FRONT ASSY OUTDOOR
$77.00
W0050275 FIXING CLIP (EVAPORATOR)
$4.50
W0050276 CLIP FRONT PANEL INDOOR
$4.00
W0050459 CLAMP CAPACITOR
$4.50
W0070010 LOUVRE AIR
$11.65
W0070011 GUIDE LOUVER KSV62HRC
$95.00
W0070055 BUSH AXIAL (GUIDE LOUVRE)
W0070100 SWING LEVER 2 KSV62HRC
$10.40
W0071665 FILTER GENERATOR COLD PLASMA
$70.95
W0096483 CLAMP WIRING
$4.50
W0124468 MAGNETIC RING KSV26CRC
$5.50
W0138649 CRANK KSV62HRC
$8.00
W0142538 O GASKET CROSS FAN BEARING
