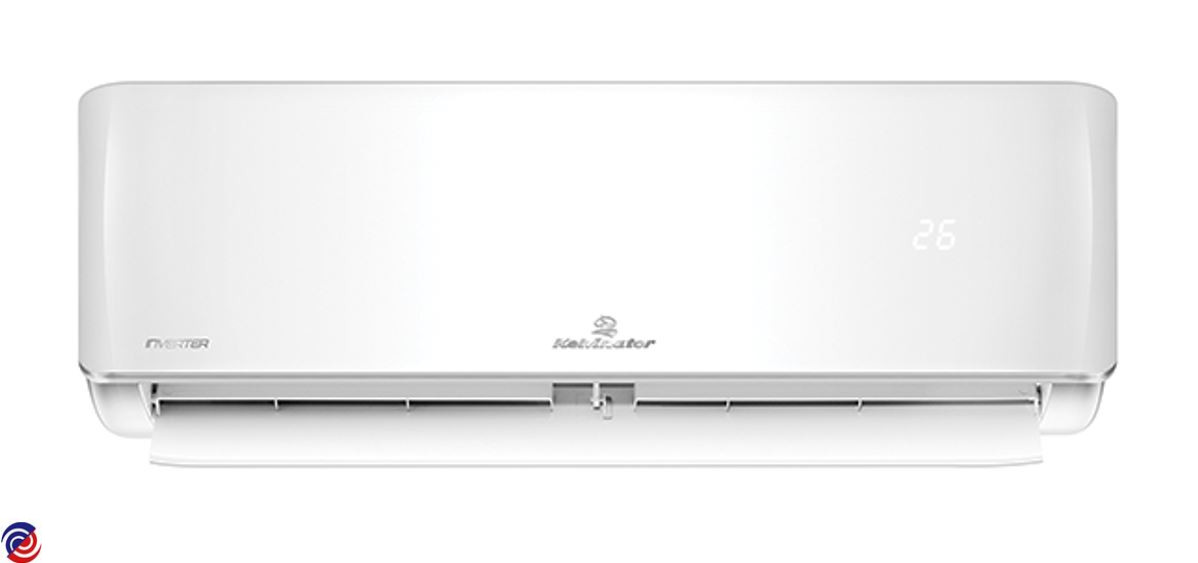

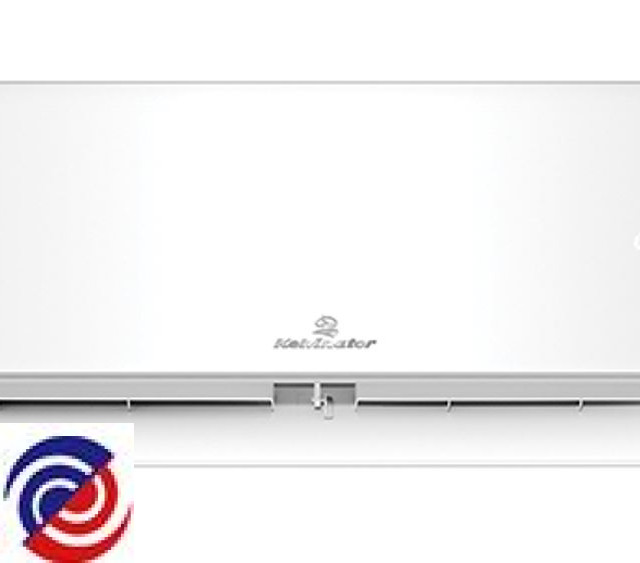

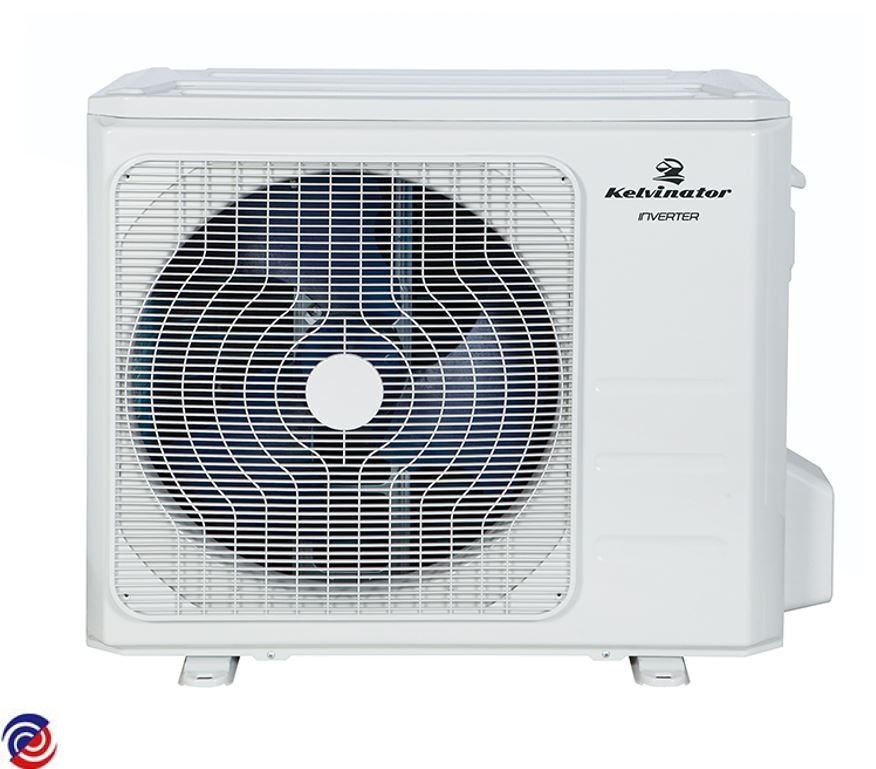

KSV70CRG — 956002868 00
KELVINATOR — Air-Conditioner

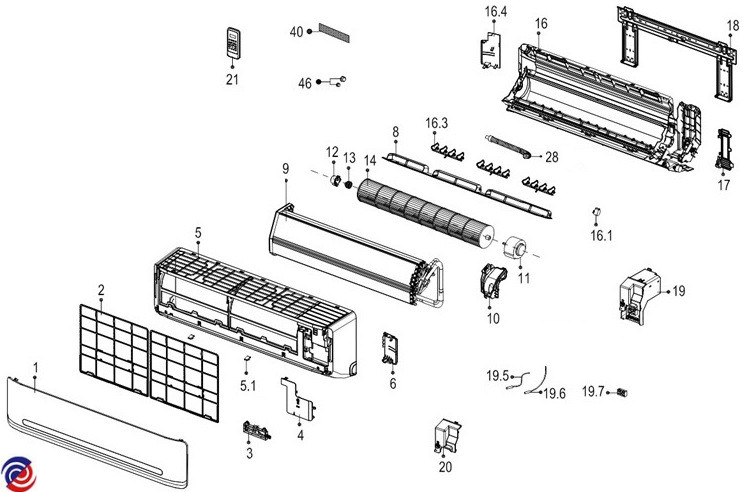

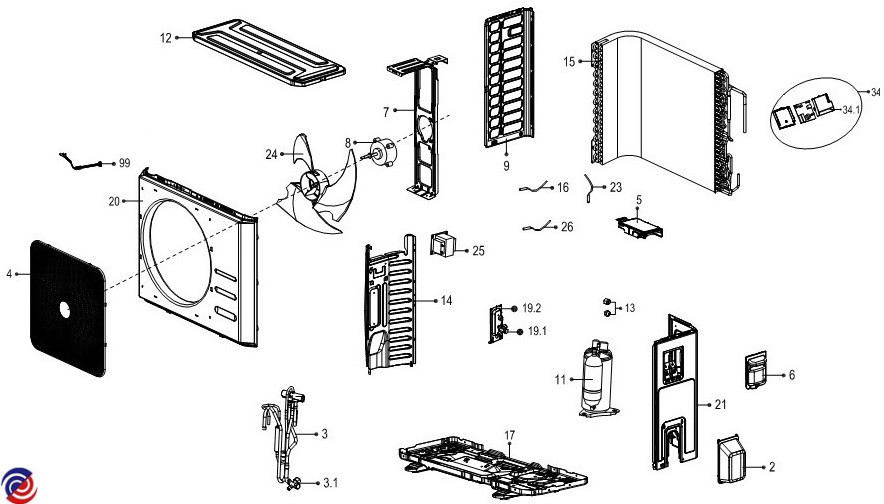

Parts for KSV70CRG
W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
W0014916 MOTOR LOUVRE
$79.00
W0014921 MOTOR FAN INDOOR
W0014923 MOTOR FAN OUTDOOR
W0015092 COMPRESSOR
W0015407 SENSOR TEMP ASSY DISCHARGE
W0015409 SENSOR AMBIANT TEMP ASSY
$49.35
W0015410 SENSOR PIPE TEMP ASSY
W0015411 SENSOR AMBIENT TEMP ASSY
W0015412 SENSOR PIPE TEMP ASSY
W0016445 BLADE FAN CROSS FLOW
W0016449 BLADE FAN AXIAL FLOW
W0016450 FILTER AIR
W0016452 FILTER AIR FRESHENING
W0016453 FILTER AIR FRESHENING
$41.70
W0016455 HOSE DRAIN
$23.20
W0016456 JOINT DRAIN
$4.50
W0016466 HOLDER, REMOTE CONTROL
W0016469 LOUVRE VERTICAL
$84.35
W0016470 HOLDER BEARING
W0016472 FRAME PANEL ASSEMBLY
$130.00
W0016474 CHASSIS ASSEMBLY
W0016477 COVER CHASSIS RIGHT
$30.00
W0016478 COVER CHASSIS LEFT
$30.00
W0016482 COVER ELEC CONTROL BOX
$11.30
W0016483 COVER FAN MOTOR
$78.45
W0016486 LOUVER HORIZONTAL ASSEMBLY
$43.55
W0016487 COVER ELEC EQUIPMENT
$9.85
W0016490 COLLECTOR WATER
$57.35
W0016492 CAP SCREW
$4.50
W0016496 COVER ELECTRONIC CONTROL BOX
$6.05
W0016497 GRILLE AIR OUTLET
$34.50
W0016498 CLAMP PIPE BOARD
$5.00
W0016501 PANEL ASSEMBLY
W0016510 PLATE INSTALLATION
$36.30
W0016517 PLATE VALVE
$34.40
W0016523 PARTITION BOARD ASSEMBLY
$40.00
W0016524 PLATE RIGHT SIDE
W0016527 PLATE LEFT SIDE ASSEMBLY
W0016528 PANEL FRONT
W0016529 CHASSIS ASSEMBLY
$200.00
W0016530 COVER ASSEMBLY, TOP
W0016531 SUPPORT FAN MOTOR ASSY
$40.00
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0019130 VALVE ASSEMBLY 4-WAY
$110.00
W0019136 VALVE GAS (SUCTION)
$59.45
W0019139 VALVE LIQUID (DISCHARGE)
$39.10
W0019144 NUT, FLARE NUT 5/8 - 15.9mm
$10.75
W0019145 NUT , FLARE NUT 3/8 - 9.52mm
$6.25
W0019189 EVAPORATOR ASSEMBLY
W0019195 CONDENSER ASSEMBLY
W0019309 DISPLAY BOX ASSEMBLY
$130.00
W0019316 ELEC CONTROL BOX PCB ASSY
W0019325 ELEC CONTROL PCB ASSY INDOOR
$387.20
W0019326 REMOTE CONTROLLER
W0019328 REACTOR
$117.90
W0019329 JOINT WIRE
W0019333 WIRE ASSY COMPRESSOR
$24.50
W0274358 HANDLE, BIG 'STEEL TYPE
