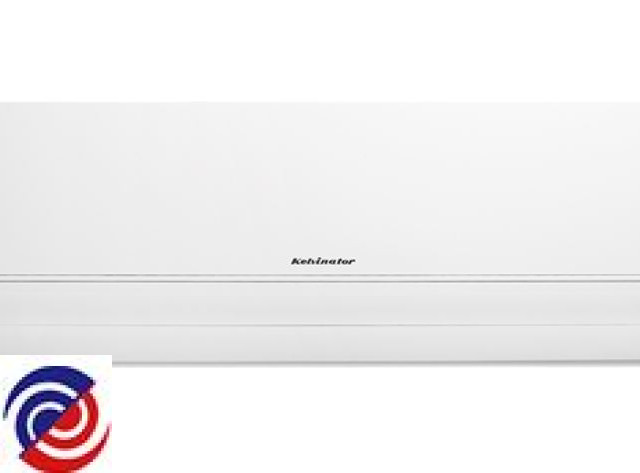

KSV70HRD — 950001562 00
KELVINATOR — Air-Conditioner

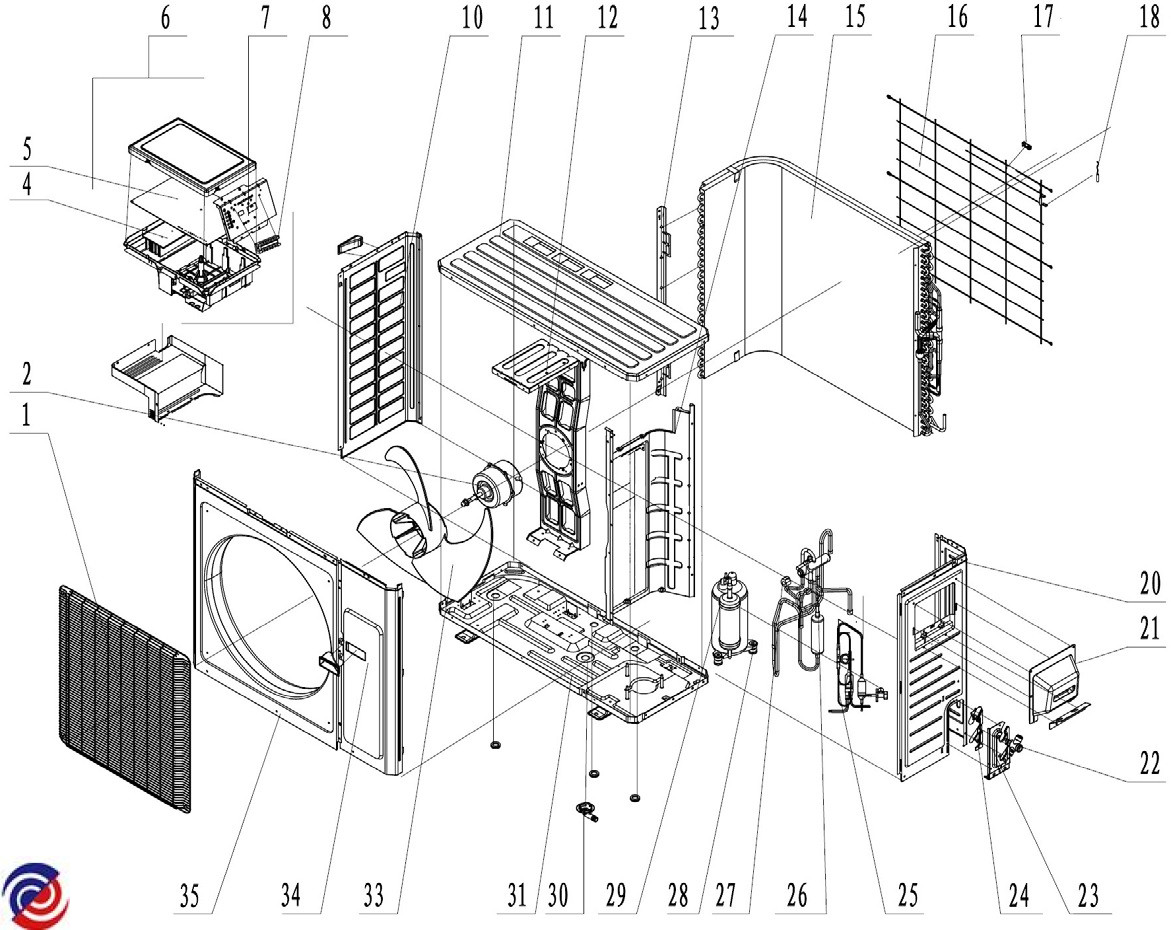

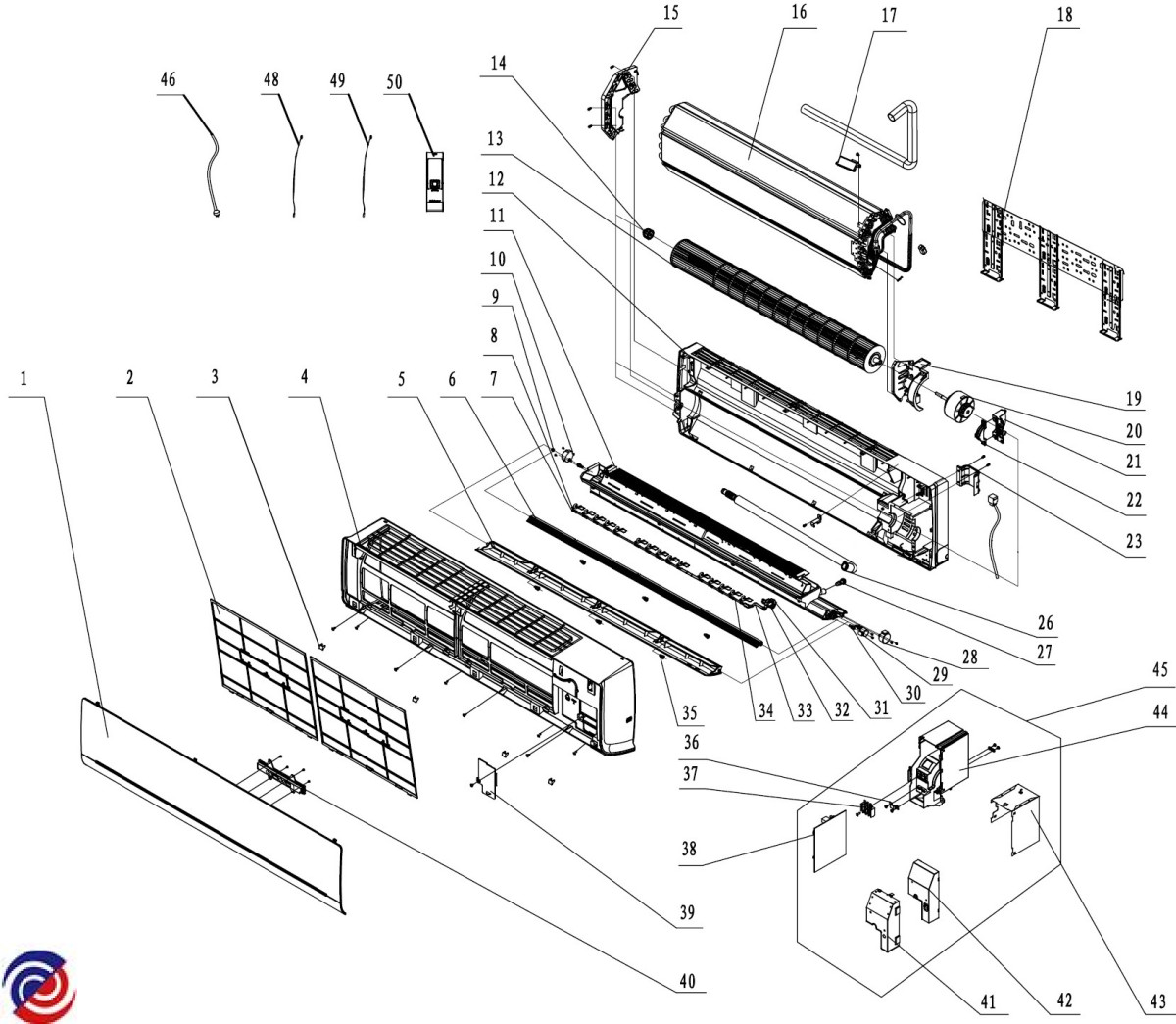

Parts for KSV70HRD
W0014946 FILTER CARBON
W0021299 REMOTE CONTROL
$114.70
W0023278 SENSOR TEMPERATURE
W0011177 COMPRESSOR & FITTINGS
$548.25
W0012133 EVAPORATOR ASSY
$363.00
W0012136 CONDENSER ASSY
$475.00
W0012203 CONDENSOR SUPPORT PLATE
$14.30
W0012300 CLAPBOARD SUB ASSY
$38.50
W0012337 BRACKET WALL MOUNTING
W0012348 COVER TOP
$70.00
W0012376 PANEL FRONT PLATE SUB-ASSY
$50.00
W0012381 PANEL SIDE LH
$49.50
W0012382 PANEL SIDE RH OUTDOOR
$70.00
W0012461 BAFFLE VALVE SUPPORT
$4.50
W0012511 GRILLE REAR OUTDOOR
$26.40
W0012539 PANEL FRONT ASSY
$130.00
W0012555 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012556 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012605 MOTOR SUPPORT SUB-ASSY
W0012615 VALVE SUPPORT SUB-ASSY
$14.30
W0013006 CHASSIS SUB ASSY
$88.00
W0013065 CAPILLARY SUB ASSY
$50.00
W0013160 VALVE ASSY, 4-WAY
$199.95
W0013516 HOSE DRAIN
$30.00
W0013881 COUPLING CONNECTER DRAINAGE
W0014091 VALVE CUT-OFF SUCTION 5/8
$68.75
W0014255 BOX ASSY, ELECTRIC OUTDOOR
$751.70
W0014465 BLADE FAN AXIAL FLOW
$54.95
W0014490 BLADE FAN CROSS FLOW ASSY
W0014562 BUSH AXILE LH
W0014578 LOURVE SMALL
$84.35
W0014583 GUIDE LOUVER KSV62HRC
$34.40
W0014631 BUSH AXILE
W0014671 SWING LEVER 1 KSV62HRC
W0014672 SWING LEVER 3 KSV62HRC
$13.65
W0015169 FILTER SUB ASSY
$15.70
W0015175 FILTER (HEPPA)
W0018906 MOTOR FAN
$261.00
W0018971 Motor, Louver (Left/Right)
W0018974 MOTOR LOURVE
W0018976 Motor, Louver (Main) R/Hand
$52.00
W0018980 Motor, Louver (Main) L/Hand
$56.05
W0019449 CHASSIS FRONT ASSY
$126.50
W0019450 PANEL FRONT ASSY INDOOR
$79.00
W0019536 BOX ELECTRIC
$77.00
W0019596 ELEC BOX COVER 2 KSV53HRC
W0019598 ELECTRIC BOX COVER KSV62HRC
$11.00
W0019798 WATER TRAY ASSY KSV62HRC
$140.00
W0019874 BOX CONTROL ASSY INDOOR
W0020563 FRONT GRILL KSV70HRC
W0020655 HOLDER REMOTE CONTROL
W0020657 LEFT EVEP SUPPORT KSV62HRC
$8.05
W0020658 RIGHT SUPPORT OF EVAPORATOR
$10.65
W0020679 SCREW COVER KSV62HRC
$40.00
W0020770 PIPE CLAMP KSV62HRC
$4.00
W0020785 MOTOR FIXED CLIP 1 KSV62HRC
$4.50
W0020786 MOTOR FIXED CLIP 2 KSV62HRC
$4.50
W0020859 MOTOR HOLDER KSV62HRC
$8.75
W0021204 BOARD MAIN
$637.15
W0021228 BOARD MAIN INDOOR KSV62HRC
W0021801 BOARD DISPLAY
W0023283 SENSOR TEMPERATURE
W0023290 SENSOR TEMPERATURE
W0023347 POWER CORD KSV62HRC
$51.60
W0024728 TERMINAL BOARD KSV26HRC
$14.90
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024862 COIL, MAGNETIC (4-WAY VALVE)
$50.00
W0024938 SWITCH PRESSURE PROTECT
W0025275 RADIATOR
$80.00
W0026763 FIXED CLAMP
$4.00
W0026834 BEARING FAN BLADE
W0026850 PLUG WATER TRAY
W0026853 COMPRESSOR GASKET
$7.70
W0048198 TERMINAL BOARD SUPPORT ASSY
$13.20
W0070010 LOUVRE AIR
$11.65
W0070100 SWING LEVER 2 KSV62HRC
$10.40
W0071665 FILTER GENERATOR COLD PLASMA
$70.95
W0089868 MOTOR FAN INDOOR
W0095839 REAR CASE ASSY KSE62HRC
$77.00
W0096483 CLAMP WIRING
$4.50
W0096531 HANDLE BIG
W0138649 CRANK KSV62HRC
$8.00
