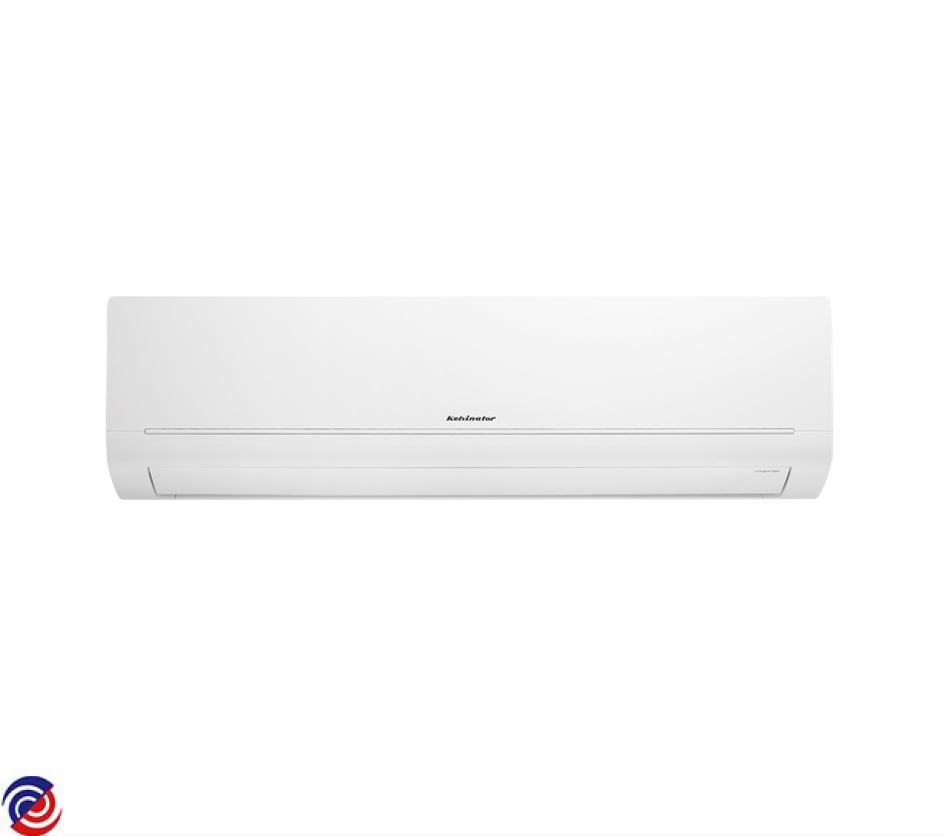

KSV80HRC — 950132915 00
KELVINATOR — Air-Conditioner

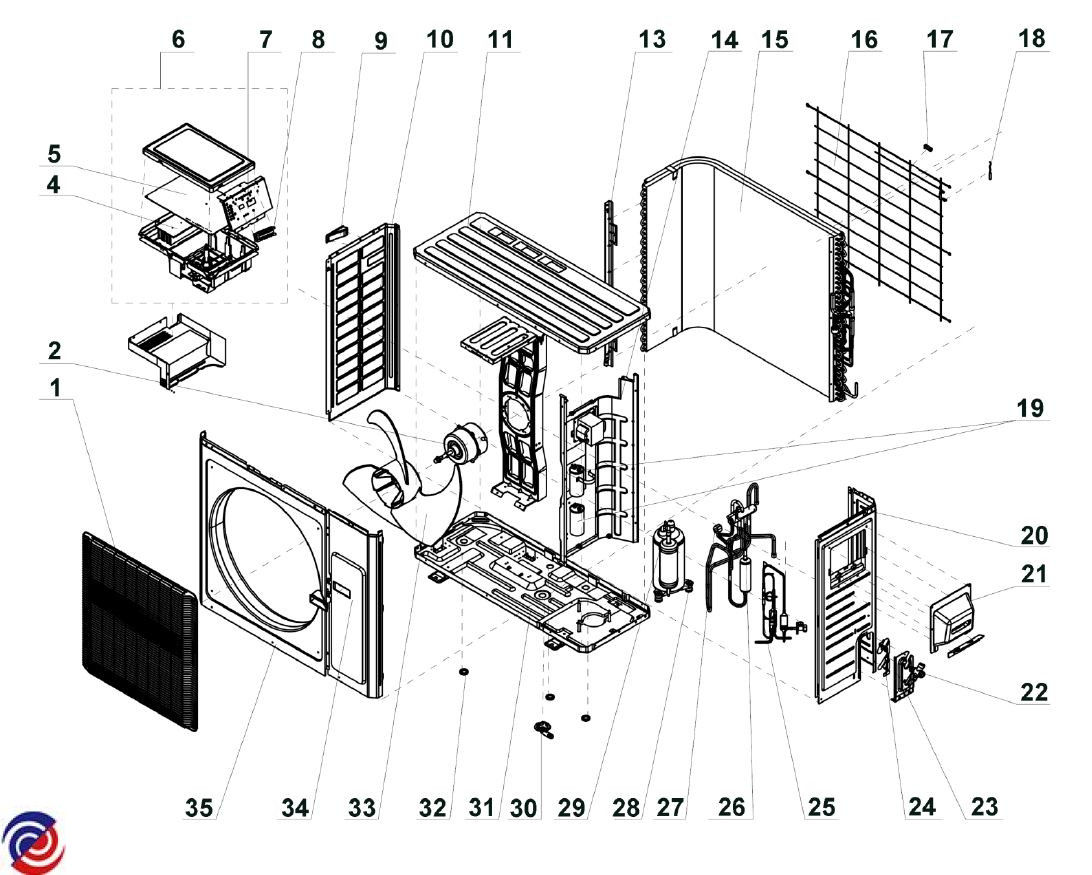

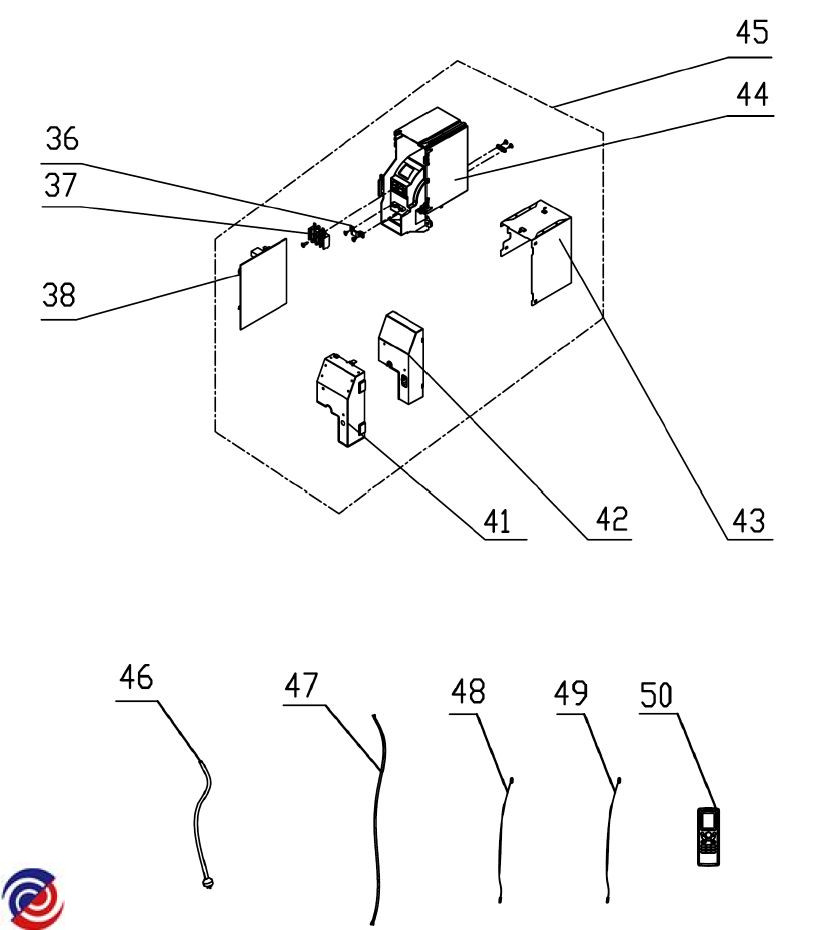

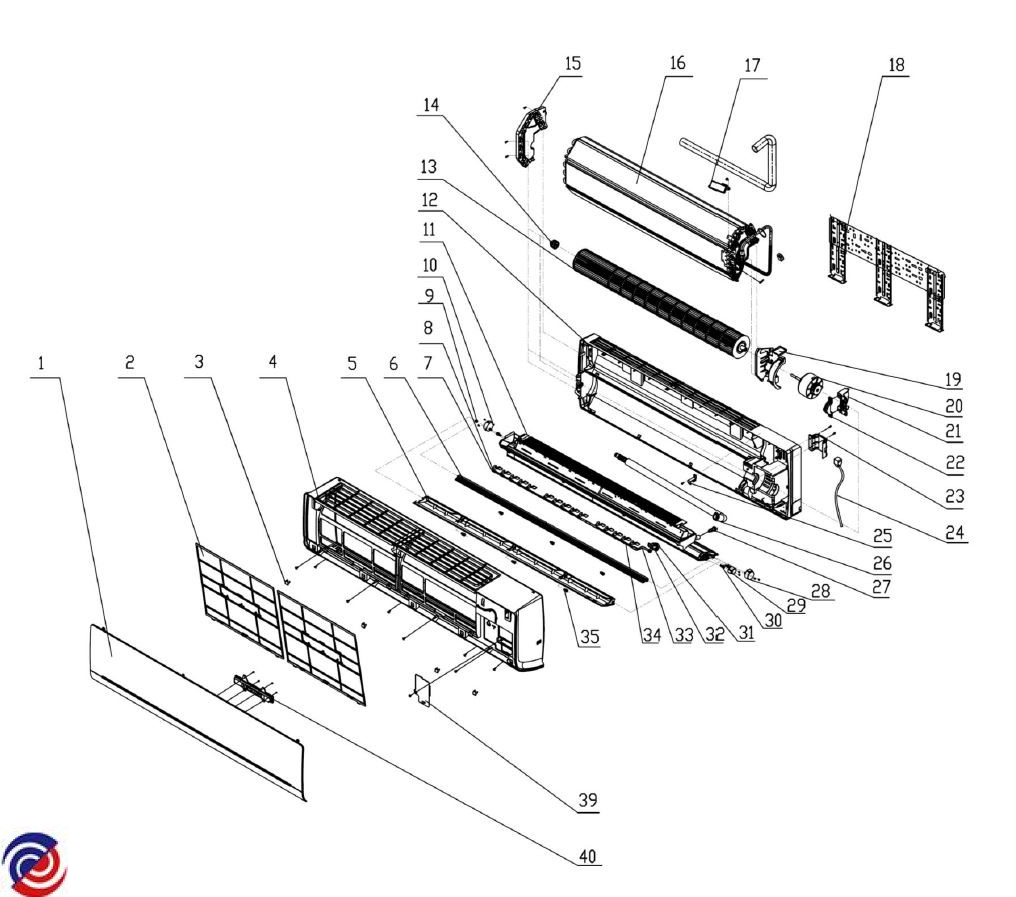

Parts for KSV80HRC
W0014946 FILTER CARBON
W0021299 REMOTE CONTROL
$114.70
W0023278 SENSOR TEMPERATURE
W0011177 COMPRESSOR & FITTINGS
$548.25
W0012100 EVAPORATOR ASSY KSV80HRC
$333.70
W0012178 CONDENSER ASSY KSV80HRC
$863.95
W0012203 CONDENSOR SUPPORT PLATE
$14.30
W0012295 PANEL PARTITION LH OUTDOOR
$49.50
W0012337 BRACKET WALL MOUNTING
W0012348 COVER TOP
$70.00
W0012381 PANEL SIDE LH
$49.50
W0012382 PANEL SIDE RH OUTDOOR
$70.00
W0012385 PANEL FRONT RIGHT
$27.50
W0012461 BAFFLE VALVE SUPPORT
$4.50
W0012478 COVER, PCB-ELECTRIC BOX
W0012488 PANEL FRONT ASSY OUTDOOR
$77.00
W0012511 GRILLE REAR OUTDOOR
$26.40
W0012555 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012556 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012615 VALVE SUPPORT SUB-ASSY
$14.30
W0012930 BOX CONTROL ASSY OUTDOOR
W0013006 CHASSIS SUB ASSY
$88.00
W0013139 CAPILLARY SUB-ASSY
$69.30
W0013176 4-WAY VALVE ASSY KSV80HRC
$260.00
W0013516 HOSE DRAIN
$30.00
W0013881 COUPLING CONNECTER DRAINAGE
W0013998 SEAL DRAINAGE
$6.00
W0014086 VALVE CUT-OFF DISCHARGE 1/4
W0014091 VALVE CUT-OFF SUCTION 5/8
$68.75
W0014463 FAN AXIAL FLOW KSV70HRC
$84.35
W0014490 BLADE FAN CROSS FLOW ASSY
W0014562 BUSH AXILE LH
W0014578 LOURVE SMALL
$84.35
W0014583 GUIDE LOUVER KSV62HRC
$34.40
W0014631 BUSH AXILE
W0014670 LEVER SWING MOTOR TO LOUVRE
$13.60
W0014671 SWING LEVER 1 KSV62HRC
W0014672 SWING LEVER 3 KSV62HRC
$13.65
W0015168 FILTER MAIN INDDOR
W0015175 FILTER (HEPPA)
W0018971 Motor, Louver (Left/Right)
W0018974 MOTOR LOURVE
W0018976 Motor, Louver (Main) R/Hand
$52.00
W0018980 Motor, Louver (Main) L/Hand
$56.05
W0019449 CHASSIS FRONT ASSY
$126.50
W0019450 PANEL FRONT ASSY INDOOR
$79.00
W0019536 BOX ELECTRIC
$77.00
W0019596 ELEC BOX COVER 2 KSV53HRC
W0019598 ELECTRIC BOX COVER KSV62HRC
$11.00
W0019798 WATER TRAY ASSY KSV62HRC
$140.00
W0019874 BOX CONTROL ASSY INDOOR
W0020510 CABINET ASSY REAR
$130.00
W0020563 FRONT GRILL KSV70HRC
W0020655 HOLDER REMOTE CONTROL
W0020657 LEFT EVEP SUPPORT KSV62HRC
$8.05
W0020658 RIGHT SUPPORT OF EVAPORATOR
$10.65
W0020679 SCREW COVER KSV62HRC
$40.00
W0020770 PIPE CLAMP KSV62HRC
$4.00
W0020785 MOTOR FIXED CLIP 1 KSV62HRC
$4.50
W0020786 MOTOR FIXED CLIP 2 KSV62HRC
$4.50
W0020859 MOTOR HOLDER KSV62HRC
$8.75
W0020886 SMALL HANDLE
$11.00
W0021224 BOARD MAIN OUTDOOR
$765.00
W0021228 BOARD MAIN INDOOR KSV62HRC
W0021801 BOARD DISPLAY
W0022306 CAPAC 60UF 450V 4 PIN COMPRESS
$46.85
W0023284 SENSOR TEMPERATURE
W0023290 SENSOR TEMPERATURE
W0023347 POWER CORD KSV62HRC
$51.60
W0023357 CONNECTING CABLE KSV62HRC
$170.00
W0023361 WIRE SIGNAL
$49.50
W0024729 TERMINAL BOARD 3-BIT ASSY
$20.00
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024861 COIL VALVE 4-WAY
$30.00
W0024875 REACTOR KSV70HRC
$176.00
W0024936 FUSE
$16.50
W0024938 SWITCH PRESSURE PROTECT
W0025271 RADIATOR
$40.00
W0026763 FIXED CLAMP
$4.00
W0026834 BEARING FAN BLADE
W0026835 BEARING FAN
W0026850 PLUG WATER TRAY
W0036338 OVERLOAD PROTECTOR KSV80HRC
$69.95
W0036339 COMPRESSOR OVERLOAD PROTECTOR
$69.90
W0048198 TERMINAL BOARD SUPPORT ASSY
$13.20
W0050275 FIXING CLIP (EVAPORATOR)
$4.50
W0050276 CLIP FRONT PANEL INDOOR
$4.00
W0050277 IRON FASTENER KSV26CRC
W0050412 CLAMP CAPACITOR
$4.50
W0070010 LOUVRE AIR
$11.65
W0070011 GUIDE LOUVER KSV62HRC
$95.00
W0070055 BUSH AXIAL (GUIDE LOUVRE)
W0070100 SWING LEVER 2 KSV62HRC
$10.40
W0070654 NUT FLARE TLM A01 1/4 6.35MM
$7.70
W0071665 FILTER GENERATOR COLD PLASMA
$70.95
W0072244 COPPER NUT TLM-D04 5/8 15.88MM
W0089868 MOTOR FAN INDOOR
W0089889 MOTOR FAN
W0096483 CLAMP WIRING
$4.50
W0096530 HANDLE LARGE OUTDOOR
W0117889 JUMPER KSV80HRC
$7.60
W0124468 MAGNETIC RING KSV26CRC
$5.50
W0138649 CRANK KSV62HRC
$8.00
W0142538 O GASKET CROSS FAN BEARING
W0142666 COMPRESSOR GASKET KSV80HRC
$7.70
