KSV80HRE — 950001223 00
KELVINATOR — Air-Conditioner

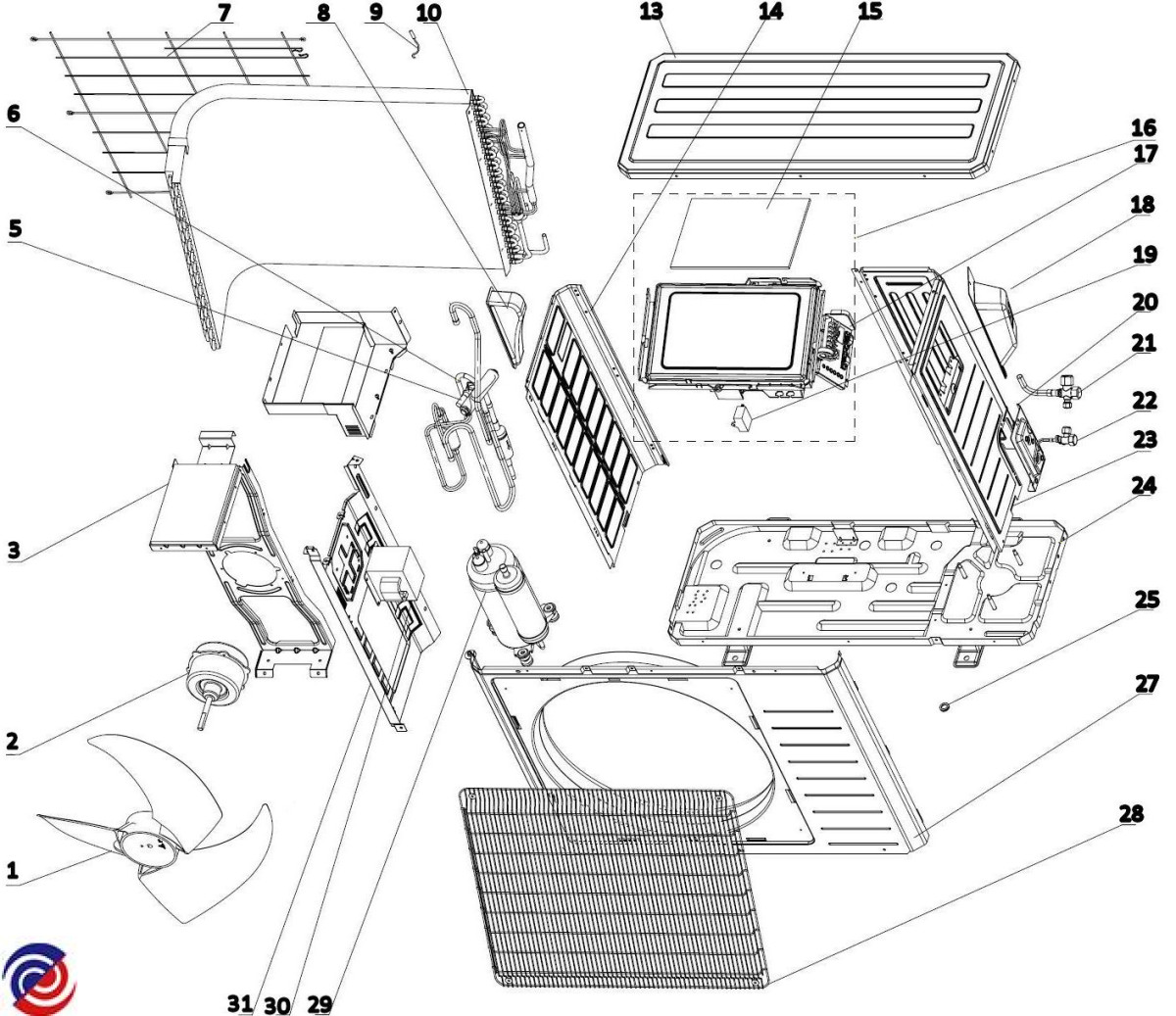

Parts for KSV80HRE
W0011174 COMPRESSOR KSV70CRE
$1,493.65
W0012105 EVAPORATOR ASSY
$362.00
W0012160 CONDENSER ASSY
$405.00
W0012242 CHASSIS SUB ASSY
$200.00
W0012308 CLAPBOARD, SUB ASSY
$50.00
W0012337 BRACKET WALL MOUNTING
W0012347 TOP COVER KSV53HRC
$70.00
W0012386 PLATE, RIGHT SIDE
$110.00
W0012388 LEFT SIDE PLATE KSV53HRC
$27.50
W0012514 GRILL, REAR
$50.00
W0012600 SUPPORT, MOTOR SUB ASSY
W0012601 SUPPORT, VALVE SUB ASSY
$47.00
W0012952 BOARD MAIN ASSY OUTDOOR ELECT
W0013158 VALVE, 4-WAY ASSY
$443.00
W0013516 HOSE DRAIN
$30.00
W0013881 COUPLING CONNECTER DRAINAGE
W0014100 VALVE, CUT OFF 5/8
$59.95
W0014101 VALVE, CUT OFF SUB ASSY
W0014464 FAN AXIAL FLOW KSV53HRC
W0014490 BLADE FAN CROSS FLOW ASSY
W0014563 LOUVER, LOWER GUIDE
$72.20
W0014582 LOUVER, AIR
$4.00
W0014632 BUSH AXILE
W0014648 CRANK, UPPER
$4.00
W0014649 CRANK, LOWER
$4.00
W0014665 ROD, CONNECTING - LOUVER SWING
$4.00
W0014666 GUIDE, CRANK
$4.00
W0015167 FILTER, SUB ASSY
W0018886 MOTOR FAN INDOOR KSV70CRE
W0018909 MOTOR FAN OUTDOOR KSV70HRE
W0018967 MOTOR STEP KSV70CRE
W0019424 CASE, FRONT
$80.00
W0019456 CASE ASSY, FRONT
$55.00
W0019459 CASE ASSY, REAR
$120.00
W0019462 TRAY, WATER ASSY
$49.50
W0019511 COVER, ELECTRIC BOX
$11.00
W0019533 COVER, ELECTRIC BOX
$10.00
W0019535 BOX, ELECTRIC ONLY
$40.00
W0019545 INSULATING PLATE OF ELEC BOX C
$13.00
W0019936 BOARD MAIN ASSY INDOOR ELECT
$380.00
W0020562 FRONT GRILL KSV53HRC
W0020564 WINDOW, RECEIVER
$50.25
W0020678 COVER, SCREW
$4.00
W0020769 PLATE, PRESS (CRANK)
$4.00
W0020770 PIPE CLAMP KSV62HRC
$4.00
W0020787 CLIP, MOTOR FIX
$6.00
W0020885 HANDLE KSV53HRC
$29.55
W0020946 PANEL, FRONT 11
$50.00
W0020947 LOUVER, UPPER GUIDE
$72.20
W0021236 BOARD MAIN INDOOR KSV70HRE
W0021300 REMOTE CONTROL
W0021802 BOARD, DISPLAY
W0022341 CAPACITOR RUN
$10.00
W0023280 SENSOR TUBE TEMP
$44.05
W0023291 SENSOR TEMPERATURE KSV70HRE
$44.05
W0023293 SENSOR INDOOR KSV53HRE
W0023357 CONNECTING CABLE KSV62HRC
$170.00
W0024729 TERMINAL BOARD 3-BIT ASSY
$20.00
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024862 COIL, MAGNETIC (4-WAY VALVE)
$50.00
W0024873 REACTOR KSV70CRC
$99.00
W0024938 SWITCH PRESSURE PROTECT
W0026748 NUT, FLARE (ONE TIME) 16MM
$26.40
W0026749 NUT, FLARE (ONE TIME) 6.35MM
$11.00
W0026850 PLUG WATER TRAY
W0047829 FRONT PANEL KSV53HRC
$116.10
W0103241 CAPILLARY. SUB ASSY
W0142538 O GASKET CROSS FAN BEARING
