KWH15CME — 950001227 00

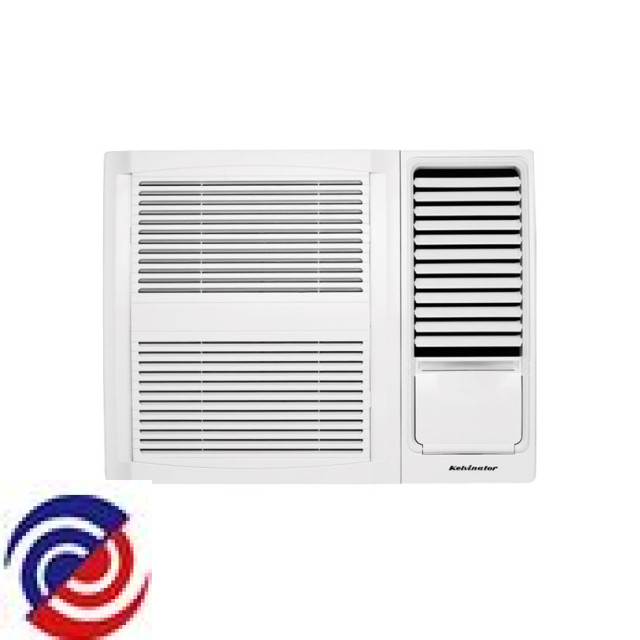

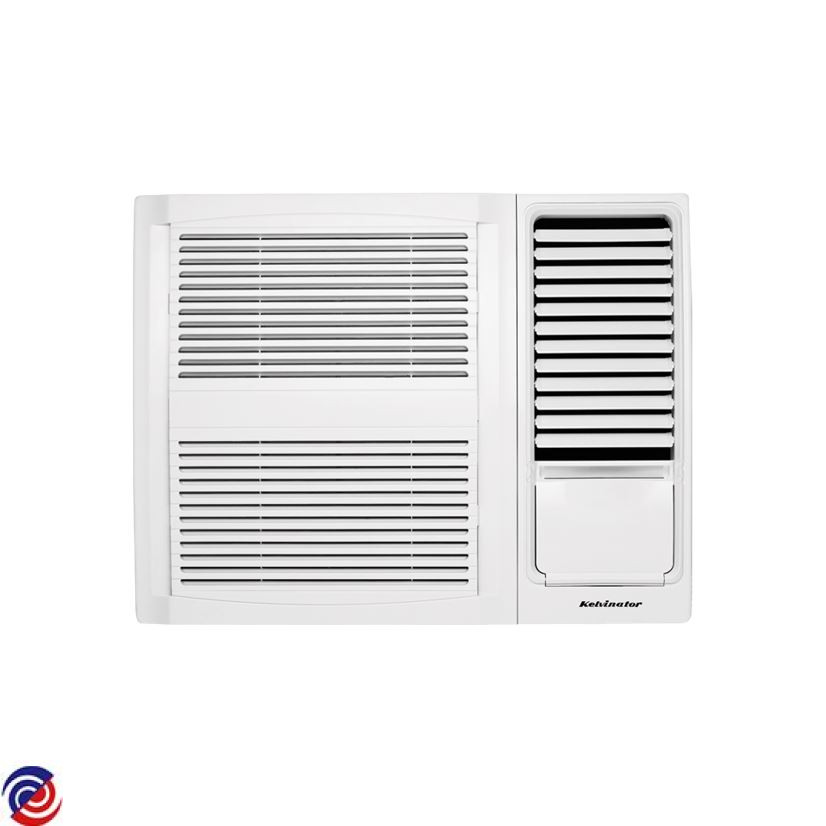

KELVINATOR — Air-Conditioner

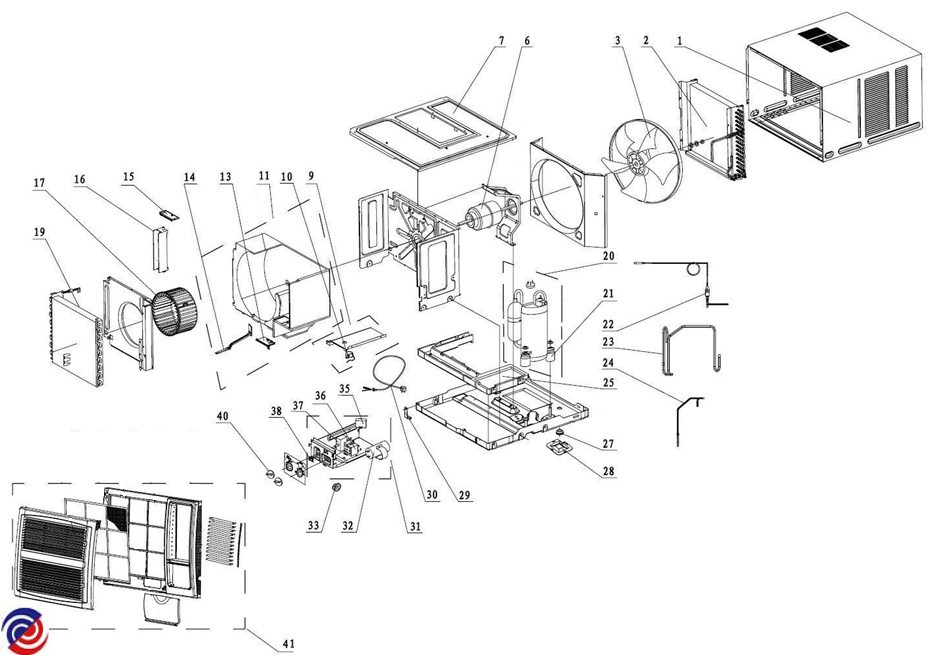

Parts for KWH15CME
W0022340 CAPAC 3.5UF450V 4SMALL PIN RUN
$6.25
W0011166 COMPRESSOR KWH15CME
$568.45
W0012086 EVAPORATOR ASSY KWH15CMC
$273.00
W0012140 CONDENSER ASSY
$234.95
W0012243 UNDER PAN FIXED CLIP KWH15CMC
$4.50
W0012267 PLATE, BASE - AIR FLUE
W0012467 TOP CONNECTING PLATE ASSY
$27.50
W0012484 CABINET ASSY
$161.20
W0013094 CAPILLARY, SUB ASSY
W0013288 TUBE ASSY, DISCHARGE
W0013289 TUBE ASSY, INHALATION
W0014260 BOX ASSY, ELECTRIC
W0014423 BLADE FAN CENTRIFUGAL
$54.95
W0014455 BLADE FAN AXIAL FLOW
$91.30
W0014537 LOUVRE AIR
$11.95
W0014538 LOUVRE HORIZONTAL
W0014661 GUIDE BLADE LEVER (V) KWH15CMC
$13.55
W0015159 FILTER SUB-ASSY KWH15CMC
$26.30
W0016459 HOUSING, PROPELLER SUB ASSY
W0016574 WATER TRAY KWH15CMC
$24.95
W0018878 MOTOR FAN IN & OUTDOOR KWH15CM
$210.10
W0019412 GRILL FRONT
$52.00
W0019592 COVER MAIN CONTROL
$40.00
W0019789 PAN DRAIN
W0020511 BASE, SWING LOUVER
W0020768 LEVER DOOR
$6.60
W0022308 CAPACITOR CBB65 25UF/450V(P2/S
W0023353 CORD POWER KWH15CMC
$34.30
W0024771 POWER CORD BUSHING KWH07CRC
$8.80
W0024906 SWITCH CONTROL KWH15CMC
$35.85
W0024907 MANUAL SWITCH KWH15CMC
$24.20
W0024921 KNOB SUB-ASSY KWH15CMC
$24.85
W0024928 THERMOSTAT
$58.05
W0026844 GASKET, COMPRESSOR
$10.00
W0026847 PLUG, OVER FLOW
$4.50
W0090319 SYNCHRONIZING MOTOR KWH15CMC
W0096137 CROSS BEAM SUB-ASSY KWH15CMC
W0096778 FRONT CASE KWH15CMC
W0282846 CABINET ASSY
W0283018 TRAY, WATER (BW)
$7.00
W0284203 KNOB SUB-ASSY
$19.65
W0284435 PANEL FRONT ASSY
