KWH16CMF — 956004788 00

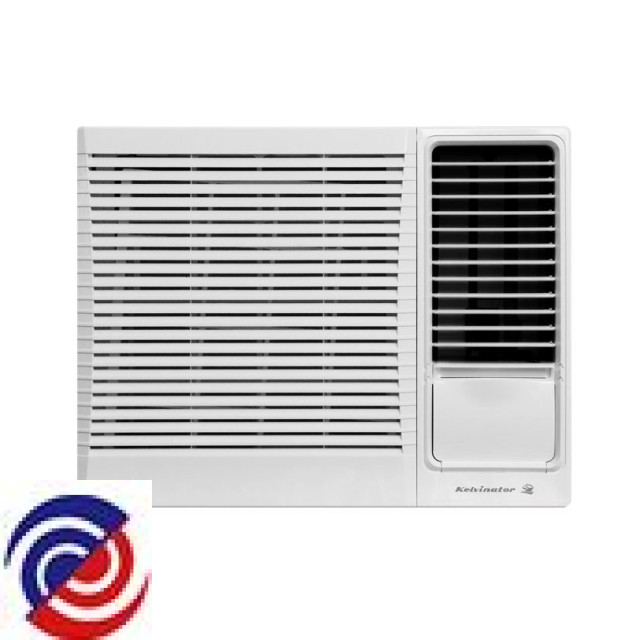

KELVINATOR — Air-Conditioner

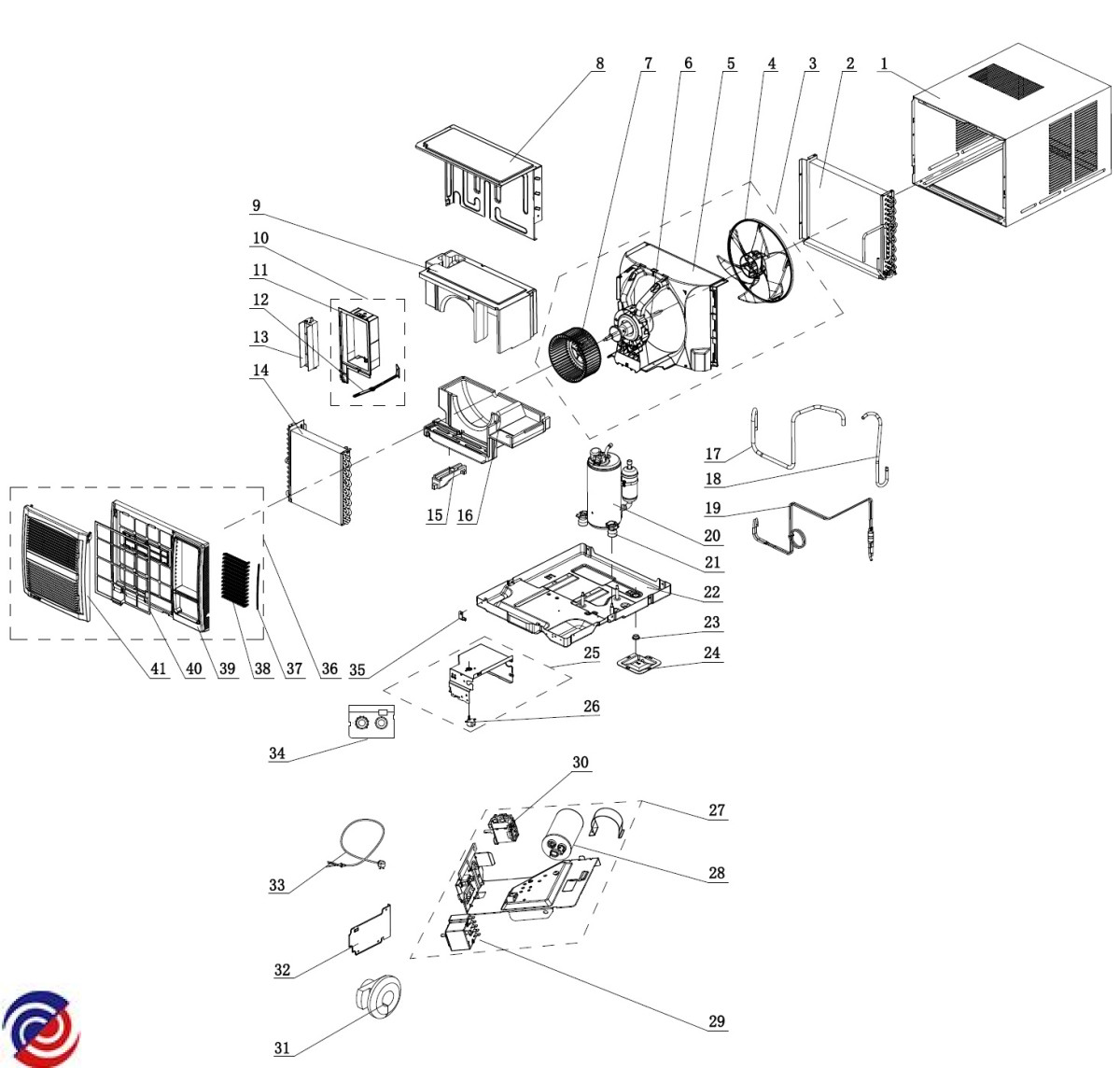

Parts for KWH16CMF
W0371982 REAR CLAPBOARD
W0371983 FAN CENTRIFUGAL
W0371984 CLAPBOARD SUB-ASSEMBLY FRONT
W0371985 FOAM(UPPER PROPELLER)
W0371986 FRAME AIR OUTLET ASSY
W0371987 FRAME AIR OUTLET
W0371988 ROD CONNECTING SUB-ASSY
W0371989 EVAPORATOR ASSY
W0371990 FOAM (WATER TRAY)
W0371991 FOAM(LOWER VOLUTE)
W0371992 TUBE INHALATION
W0371993 TUBE DISCHARGE ASSY
W0371994 COMPRESSOR AND FITTINGS
W0371995 CHASSIS SUB-ASSY
W0371996 BOX ELECTRIC ASSY 2
W0371997 SYNCHRONIZING MOTOR
W0371998 CAPACITOR CBB65
$41.00
W0371999 SWITCH CONTROL
$19.00
W0372000 SIDE PLATE (ELECTRIC BOX)
W0372327 UNDER PAN FIXED CLIP KWH15CMC
$4.50
W0372398 DRAIN PLUG EWJ16&18
$4.00
W0372476 GUIDE BLADE
$5.30
W0372491 CONTROL PANEL
$6.00
W0372525 POWER CORD BUSHING KWH07CRC
$8.80
W0372536 TRAY, WATER (BW)
$8.00
W0372703 LOUVRE AIR
$11.95
W0372713 CAPILLARY SUB-ASSY
$13.45
W0372716 GUIDE BLADE LEVER (V) KWH15CMC
$13.55
W0372772 FRONT CASE
$18.00
W0372873 POWER CORD 10A EWJ16CRA & HRA
$24.00
W0372931 FILTER SUB-ASSY KWH15CMC
$28.00
W0372951 PANEL FRONT
$28.20
W0373207 PANEL FRONT ASSY
$57.00
W0373231 THERMOSTAT
$61.00
W0373340 CABINET ASSY
$80.00
W0373432 BLADE FAN AXIAL FLOW
$96.00
W0373478 BOX ELECTRIC ASSY 3
$109.00
W0373557 MOTOR FAN
$132.00
W0373751 CLAPBOARD SUB-ASSEMBLY (BACK)
$268.00
W0373787 CONDENSER ASSY_X33191 GOLDEN
$283.55
