KWH20HRE — 950001233 BEFORE S/N 83381580
KELVINATOR — Air-Conditioner

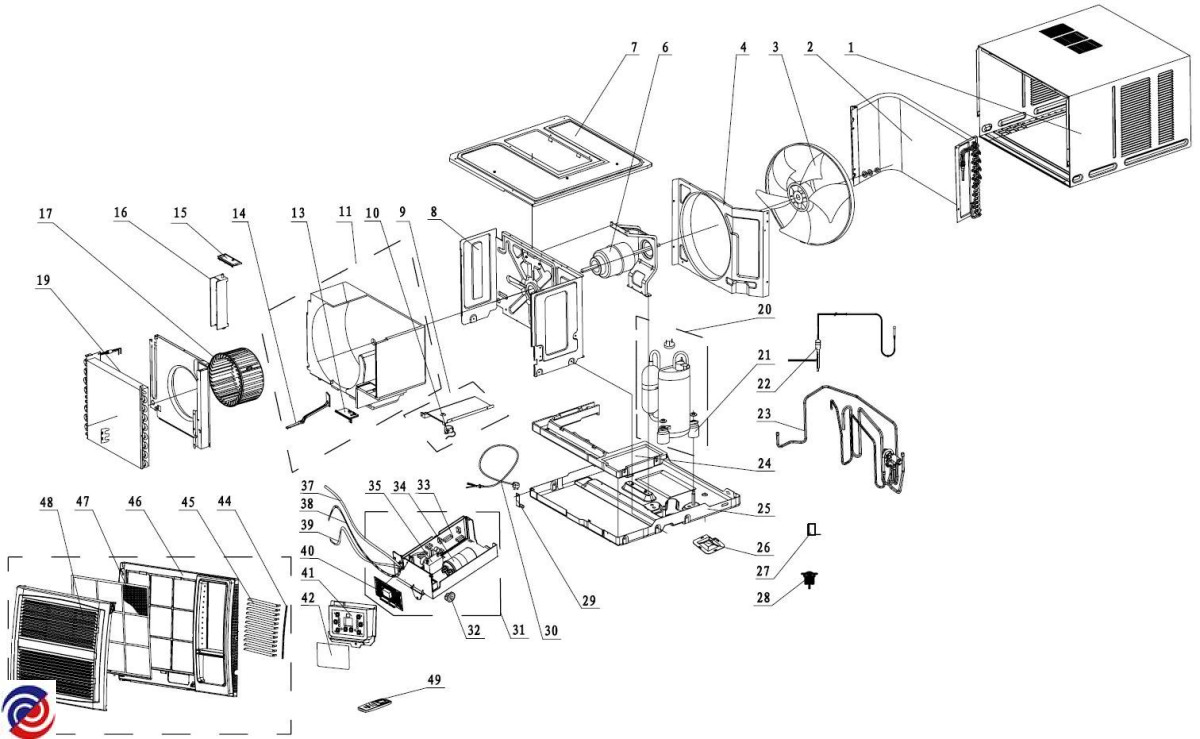

Parts for KWH20HRE

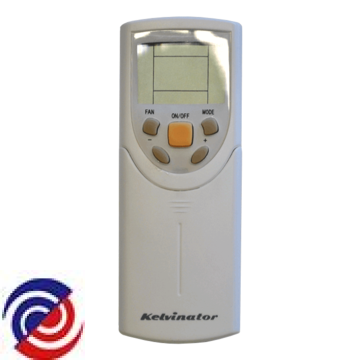

W0021301 REMOTE CONTROL YS1FA 'E SERIES
$57.40
W0022340 CAPAC 3.5UF450V 4SMALL PIN RUN
$4.38
W0011162 COMPRESSOR KWH20CRE
$312.45
W0012089 EVAPORATOR ASSY
W0012158 CONDENSER ASSY
$197.37
W0012211 CHASSIS, SUB ASSY
W0012244 CLAMP CHASSIS TO CABINET
$3.15
W0012279 REAR CLAPBOARD KWH07HRC
$20.79
W0012281 FRONT CLAPBOARD KWH07HRC
$41.58
W0012457 PLATE, BASE ASSY
W0012466 TOP CONNECTING PLATE ASSY
$38.50
W0012481 CABINET ASSY
$138.88
W0013090 CAPILLARY SUB ASSY
$38.08
W0013119 VALVE, 4-WAY ASSY
$137.17
W0014422 BLADE FAN CENTRIFUGAL
$63.91
W0014456 BLADE FAN
$63.91
W0014535 LOUVRE AIR
$8.16
W0014539 LOUVRE AIR
$8.37
W0014615 BASE SWING LOUVRE
$4.62
W0014662 GUIDE BLADE LEVER KWH07CRC
$9.56
W0015160 FILTER SUB-ASSY
$20.02
W0016460 SHROUD FAN ASSY
$20.79
W0018880 MOTOR FAN (CJ60V)
$178.08
W0019414 GRILL FRONT KWH20CRC
W0019508 BOX ASSY, ELECTRIC
W0019590 LCD BOARD (REMOTE CONTROL)
W0019789 PAN DRAIN
W0019790 TRAY, WATER
$17.50
W0021192 BOARD MAIN
W0021740 BOARD, DISPLAY
W0022308 CAPACITOR CBB65 25UF/450V(P2/S
W0023293 SENSOR INDOOR KSV53HRE
W0023294 SENSOR INDOOR KWH20CRE
W0023295 SENSOR INDOOR KWH20HRE
W0023351 POWER CORD 10A EWJ16CRA & HRA
$16.03
W0024770 SLEEVING KWH15CMC
$5.39
W0024865 VALVE 4 WAY
$40.64
W0026654 DECAL
$8.16
W0026844 GASKET, COMPRESSOR
$7.00
W0065196 VALVE DRAINAGE
$40.22
W0070096 LEVER DOOR
$8.12
W0090326 MOTOR STEP KWH07CRC
$30.94
W0096138 SUPPORT CROSS BEAM
$7.00
W0096777 FRONT CASE KWH07CRC
W0274875 HOLDER REMOTE CONTROL
