KWH22CRF — 956004789 00

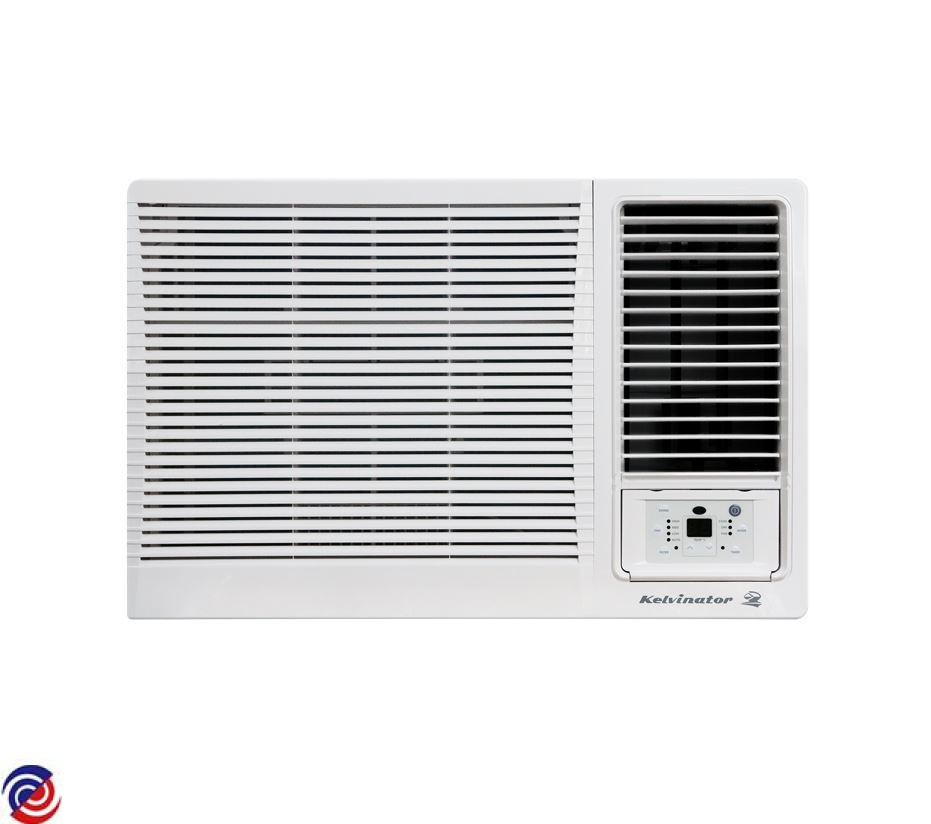

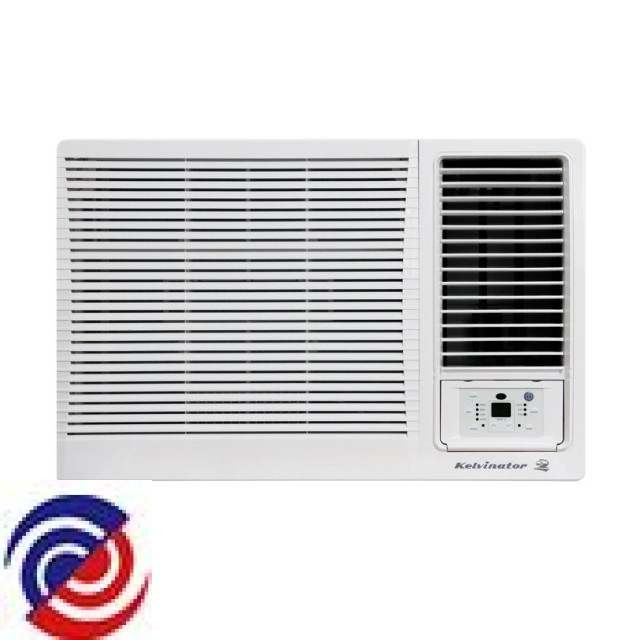

KELVINATOR — Air-Conditioner

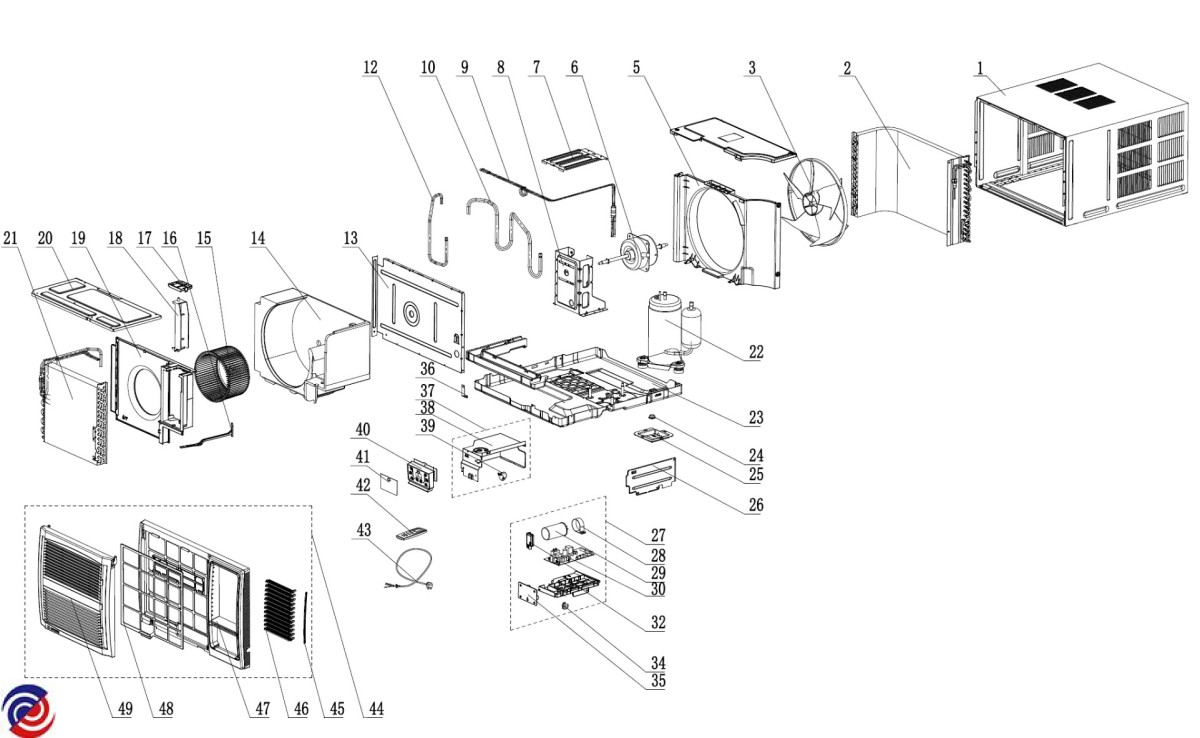

Parts for KWH22CRF
W0372001 CONDENSER, ASSEMBLY
$196.35
W0372002 COMPRESSOR
$260.25
W0372325 TOP COVER (SMALL)
$3.00
W0372328 CHASSIS, CLAMP
$2.63
W0372332 PLATE, BAFFLE
$3.00
W0372398 DRAIN PLUG EWJ16&18
$3.00
W0372477 BOX, INSTALLATION
$4.01
W0372481 SUPPORT, PLATE
$3.94
W0372482 SIDE PLATE (ELECTRIC BOX)
$4.09
W0372525 POWER CORD, PLUG
$2.63
W0372536 TRAY, WATER (BW)
$6.00
W0372550 SHUTTER
$6.75
W0372666 AIR INTAKE, SUPPORT PLATE
$8.66
W0372668 PANEL, CONTROL
$9.75
W0372696 DISCHARGE PIPE
$9.19
W0372704 AIR, SHUTTER
$3.00
W0372709 MOTOR, SHUTTER
$9.83
W0372718 GUIDE BLADE LEVER KWH07CRC
$11.25
W0372741 FAN, BLADE, CENTRIFUGAL
$10.80
W0372748 COVER PLATE
$11.03
W0372816 BLOWING OUTLET, FRONT
$13.73
W0372817 TOP COVER
$13.73
W0372821 INSULATING HOSE
$13.80
W0372833 CAPILLARY, ASSEMBLY
$14.66
W0372854 FRONT COVER
$17.25
W0372862 MEMBRANE
$18.00
W0372913 PARTITION, PLATE
$18.34
W0372927 COVERPLATE, ELECTRIC EQUIPMENT
$19.28
W0372957 FILTER, OTHER
$24.00
W0372960 CAPACITOR
$23.25
W0372972 POWER CORD
$24.00
W0373004 BLOWING OUTLET, FAN, REAR
$23.66
W0373030 PANEL, INTAKE, AIR
$25.43
W0373071 SUPPORT, MOTOR
$27.45
W0373127 SUCTION PIPE
$31.35
W0373243 FRONT COVER, ASSEMBLY
$48.00
W0373250 REMOTE CONTROL
$48.75
W0373430 FAN BLADE, ODU
$72.00
W0373471 CHASSIS
$72.30
W0373575 MAIN ELECTRONIC BOARD, OD
$102.75
W0373688 FAN,MOTOR
$152.25
W0373690 ELECTRONIC, BOX, ASSEMBLY
$150.00
W0373699 CABINET ASSY
$157.50
W0373807 EVAPORATOR, ASSEMBLY
$223.80
