KWH27HRF — 956004801 00

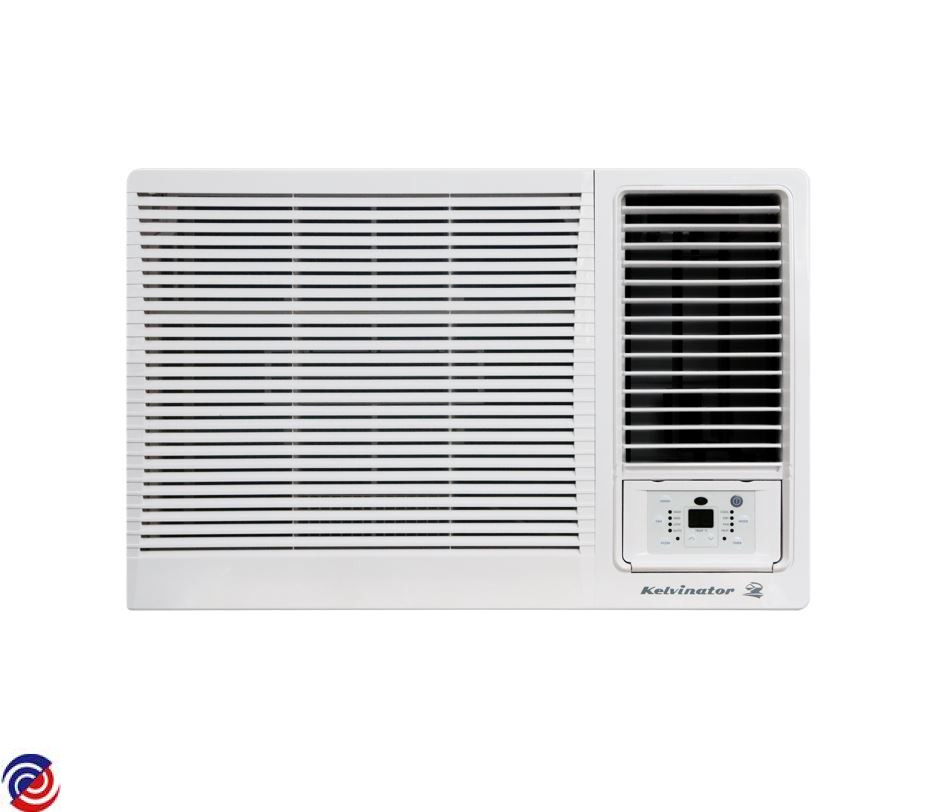

KELVINATOR — Air-Conditioner

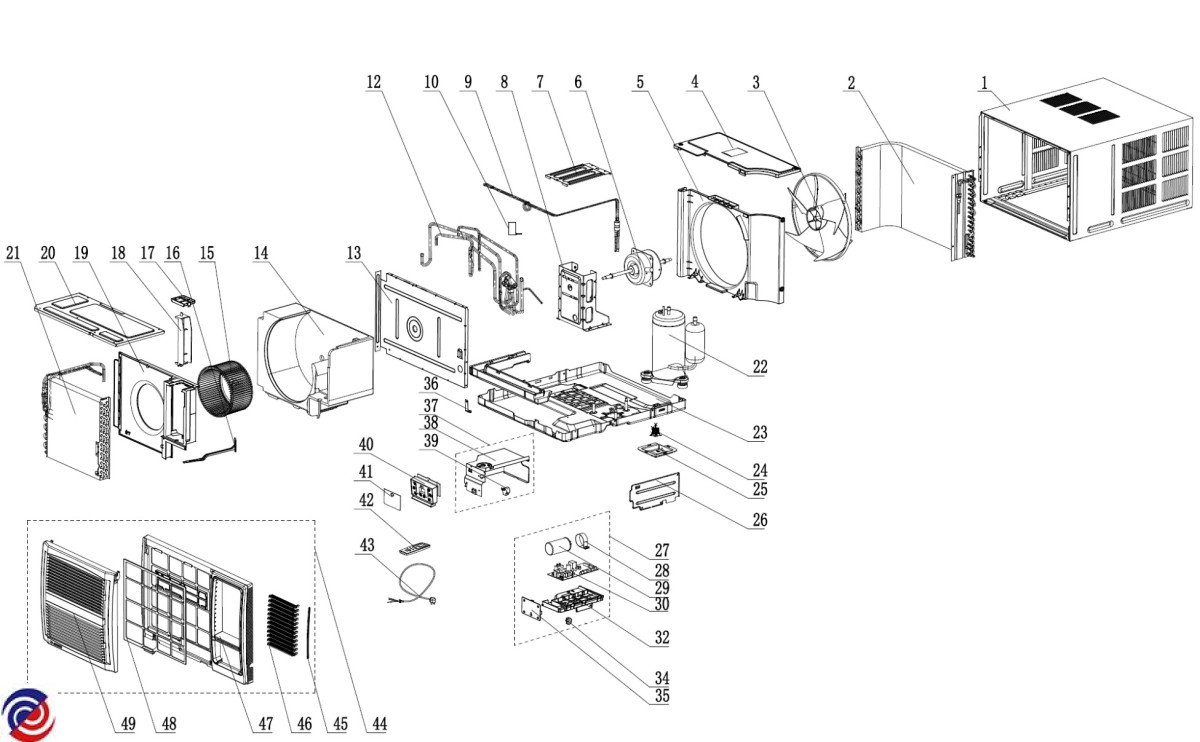

Parts for KWH27HRF
W0372325 TOP COVER (SMALL)
$4.00
W0372328 CLAMP CHASSIS TO CABINET
$4.00
W0372332 PLATE, BAFFLE
$4.00
W0372477 BOX, INSTALLATION
$5.35
W0372481 PLATE, CONNECTION
$5.45
W0372482 SIDE PLATE (ELECTRIC BOX)
$5.45
W0372525 POWER CORD BUSHING KWH07CRC
$8.80
W0372536 TRAY, WATER (BW)
$8.00
W0372550 AIR LOUVER
$8.00
W0372574 COVER, PLATE REAR
$8.00
W0372666 LEVER DOOR
$11.60
W0372668 PANEL, CONTROL
$13.00
W0372704 LOUVRE AIR
$11.95
W0372709 STEPPING MOTOR
$13.50
W0372718 GUIDE BLADE LEVER KWH07CRC
$15.00
W0372741 FAN CENTRIFUGAL
$14.90
W0372748 ELECTRICAL BOX
$15.35
W0372816 PARTITION
$18.95
W0372817 COVER, FRONT
$18.95
W0372821 FOAM(PROPELLER HOUSING)
$19.20
W0372854 FRONT CASE
$23.00
W0372863 MEMBRANE
$24.00
W0372913 FRONT CLAPBOARD SUB-ASSY
$25.55
W0372927 ELECTRIC BOX ASSY
$26.80
W0372957 FILTER SUB-ASSY
$30.00
W0372972 POWER CORD
$32.00
W0373004 REAR CLAPBOARD
$31.55
W0373030 AIR INTAKE PANEL
$33.50
W0373071 MOTOR SUPPORT
$37.85
W0373075 CAPACITOR 30/3.5UF
$41.00
W0373090 CAPILLARY SUB-ASSY
$38.75
W0373230 VALVE 4 WAY
$58.05
W0373243 FRONT PANEL ASSY X33191
$64.00
W0373250 REMOTE CONTROLLER X33191
$65.00
W0373251 VALVE DRAINAGE
$65.00
W0373430 BLADE FAN
$96.00
W0373483 CHASSIS SUB-ASSY
$103.35
W0373616 BOARD MAIN
$158.00
W0373686 4-WAY VALVE ASSY
$195.00
W0373688 FAN MOTOR
$203.00
W0373697 ELECTRIC BOX ASSY 2 X33191
$205.00
W0373699 CABINET ASSY
$210.00
W0373810 EVAPORATOR ASSY
$313.55
W0373852 CONDENSER ASSY X33191
$393.45
W0373888 COMPRESSOR AND FITTINGS
$495.00
