KWH60HRF 950004804 01

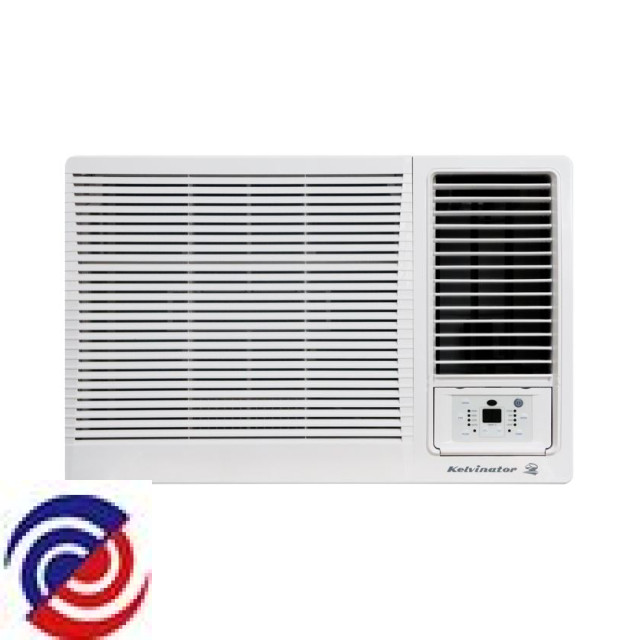

KELVINATOR — Air-Conditioner

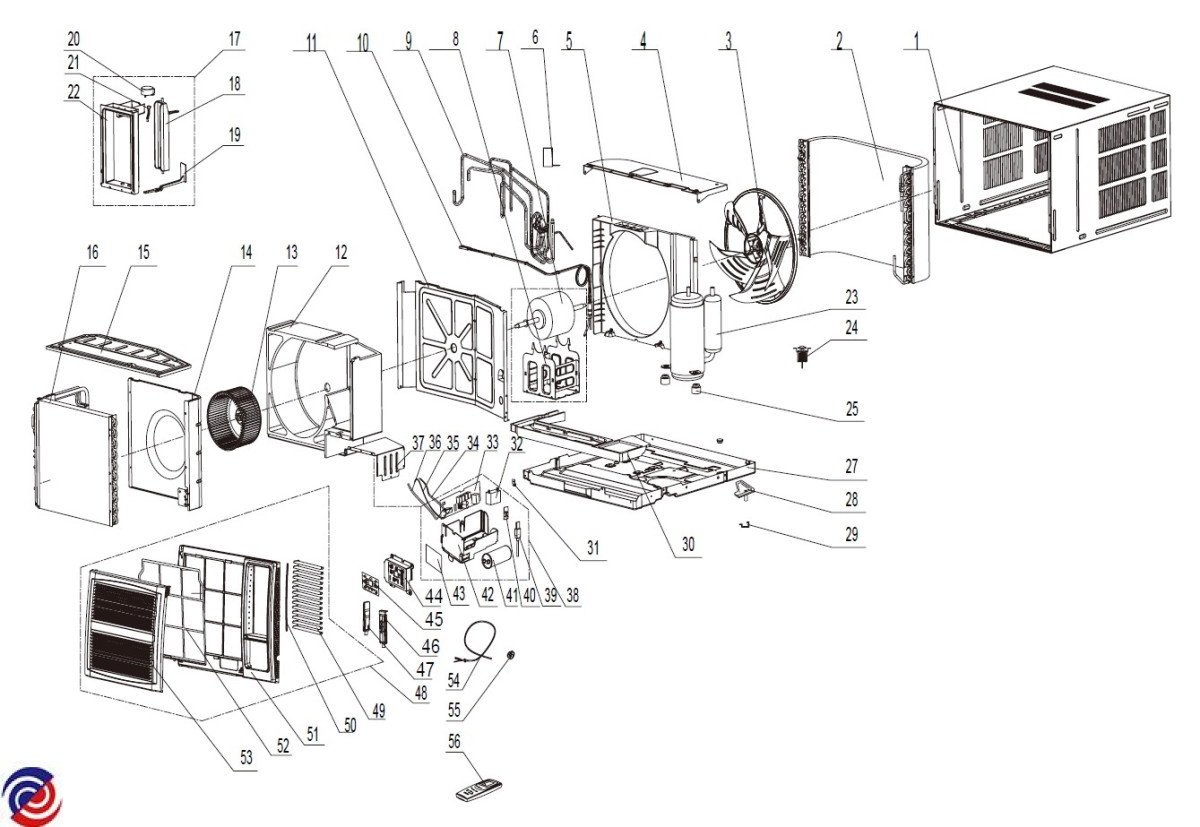

Parts for KWH60HRF 950004804 01
W0368842 SENSOR TUBE TEMP
$47.00
W0371335 CAPACITOR CBB61S
$23.00
W0371336 BOARD MAIN
$123.00
W0371943 GASKET COMPRESSOR
W0371962 FRONT CLAPBOARD PROP HOUSING
W0371972 COMPRESSOR AND FITTINGS
W0371979 REAR CLAPBOARD
W0371980 MOTOR FAN
$304.65
W0371981 CHASSIS SUB-ASSY
W0372315 CRANK
$4.00
W0372326 CLIP PROTECTOR EWJ16HRA
$4.00
W0372388 LEVER SUB-ASSY AIR DOOR
$4.00
W0372407 LINKAGE HORIZONTAL AIR GUIDE
$4.00
W0372408 MEMBRANE DECAL
$5.50
W0372419 CLIP RETAINING CHASSIS
$4.00
W0372480 LOURVE AIR
$5.45
W0372485 BOARD LCD (REMOTE CONTROL)
$6.00
W0372525 POWER CORD BUSHING KWH07CRC
$8.80
W0372612 SUPPORT AIR DOOR
$9.45
W0372648 SENSOR TUBE
$10.95
W0372707 TRAY WATER SUB-ASSY
$13.50
W0372708 SIDE PLATE (ELECTRIC BOX)
$13.50
W0372779 BOX ELECTRIC REMOTE
$17.55
W0372970 AIR OUTLET SUB-ASSY
$29.75
W0373058 FOAM(PROPELLER HOUSING)
$36.45
W0373072 CAPACITOR
$36.80
W0373088 FRONT CASE
$41.00
W0373143 SENSOR TEMPERATURE
$47.00
W0373144 FILTER
$47.00
W0373191 MOTOR LOURVE KWH47HRB
$51.65
W0373213 FRONT CLAPBOARD SUB-ASSY
$56.75
W0373230 VALVE 4 WAY
$58.05
W0373250 REMOTE CONTROLLER X33191
$65.00
W0373251 VALVE DRAINAGE
$65.00
W0373252 BLADE FAN CENTRIFUGAL
$66.00
W0373431 FAN AXIAL FLOW
$96.00
W0373648 BOARD DISPLAY
$174.00
W0373769 BOX ELECTRIC ASSY
$290.00
W0373777 VALVE, 4-WAY ASSY
$285.00
W0373827 EVAPORATOR ASSY
$318.85
