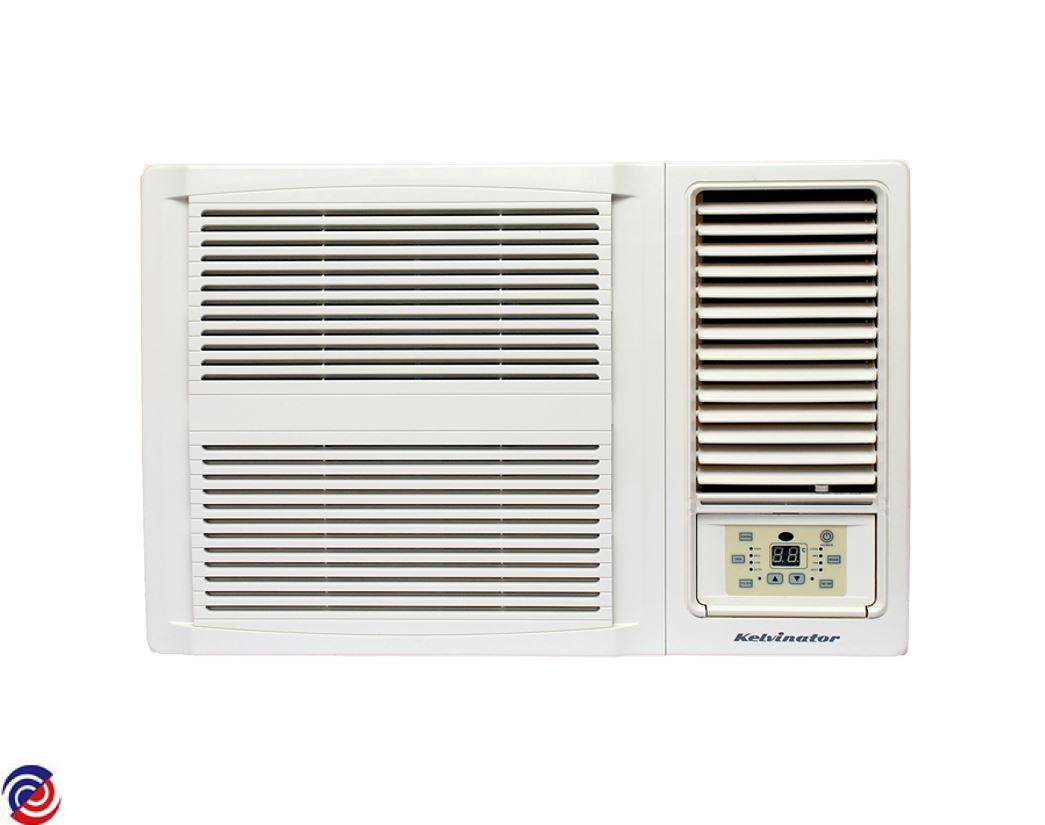

KWH62HRE — 950001237 00
KELVINATOR — Air-Conditioner

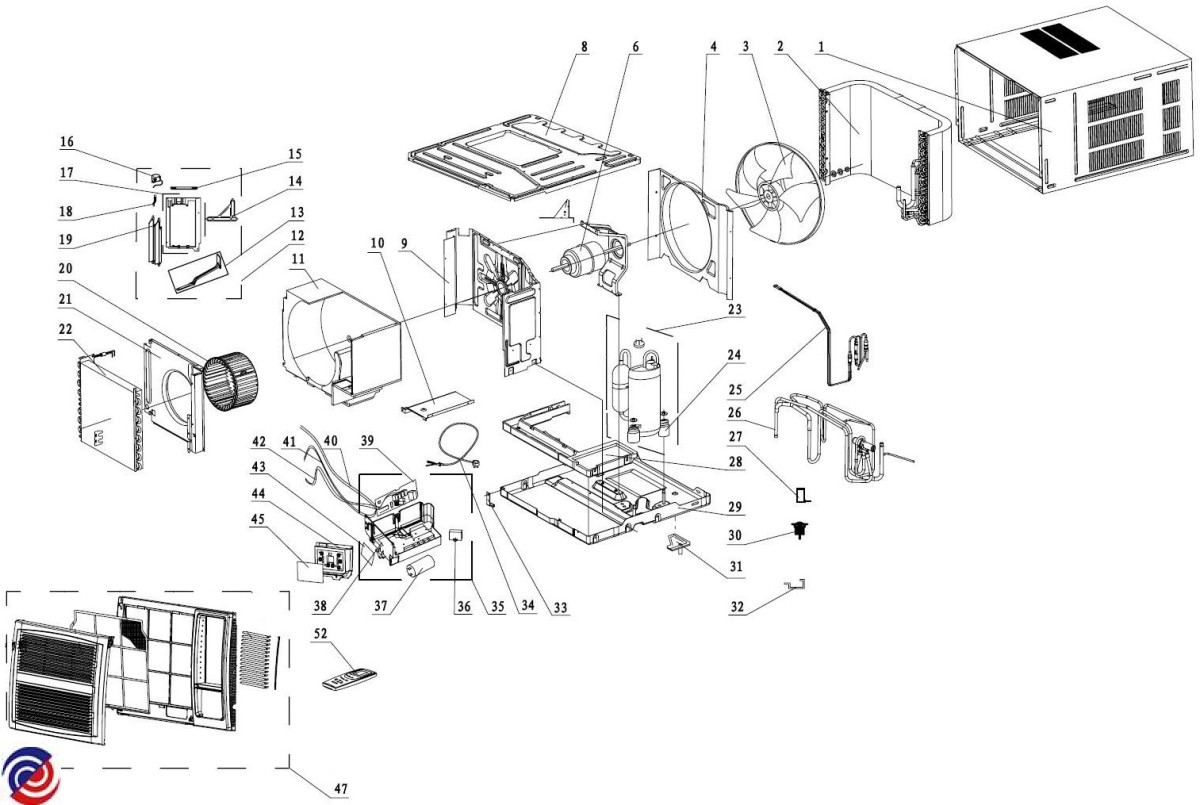

Parts for KWH62HRE
W0012088 EVAPORATOR ASSY
$322.95
W0012148 CONDENSER ASSY KWH62HRC
$362.00
W0012220 CHASSIS, SUB ASSY
$126.50
W0012269 BASE PLATE OF AIR FLUE
$6.60
W0012280 REAR CLAPBOARD KWH18CRC
$44.00
W0012286 COVER FRONT FAN KWH47CRB
$29.70
W0012288 FRONT CLAPBOARD KWH12HRC
$66.00
W0012329 TOP COVER BOARD SUB-ASSY
$59.40
W0013080 CAPILLARY, SUB ASSY
$38.50
W0013110 VALVE, 4-WAY & PRESSURE SWITCH
$405.00
W0014663 VENT FRESH AIR
$20.00
W0016461 SHROUD FAN SHELL EWJ16&18
$44.00
W0016576 TRAY WATER FOAM
$25.80
W0018968 MOTOR LOURVE KWH47HRB
$51.65
W0019422 OUTLET, AIR SUB ASSY
$45.85
W0019506 BOX ASSY, ELECTRIC KWH62HRE
$306.20
W0019531 BOX, ELECTRIC ONLY KWH39CRE
W0020887 CLIP PROTECTOR EWJ16HRA
$4.50
W0021193 BOARD PC MAIN KWH53HRE
W0021740 BOARD, DISPLAY
W0022312 CAPACITOR COMPRESSOR
$44.50
W0022339 CAPAC 7UF 450V 4 SMALL PINS
$17.25
W0023276 SENSOR TEMPERATURE
$44.00
W0023277 SENSOR TEMPERATURE
$44.05
W0023280 SENSOR TUBE TEMP
$44.05
W0024865 VALVE 4 WAY
$58.05
W0026654 DECAL
$11.65
W0026846 COMPRESSOR GASKET
$7.70
W0036041 COMPRESSOR KWH62CRE
$462.65
W0045930 CLIP RETAINING CHASSIS
W0065196 VALVE DRAINAGE
$57.45
W0069477 BLADE FAN CENTRIFUGAL
$62.00
W0069630 FAN AXIAL FLOW
$91.30
W0070000 LOURVE SWING
$54.90
W0070095 LEVER SWING
$11.60
W0070097 LINKAGE SWING MECHANISM
W0070098 FRAME SWING MECHANISM
W0089840 MOTOR FAN
W0115384 POWER CORD 15A
W0138648 CRANK LOUVER
$11.50
W0274875 HOLDER REMOTE CONTROL
W0274881 KELVINATOR AIRCON REMOTE CONTROL
W0283019 DRAIN CORNER PLASTIC
$4.50
W0283226 CABINET ASSY
$774.95
W0284183 PANEL, CONTROL
W0284434 PANEL FRONT ASSY
