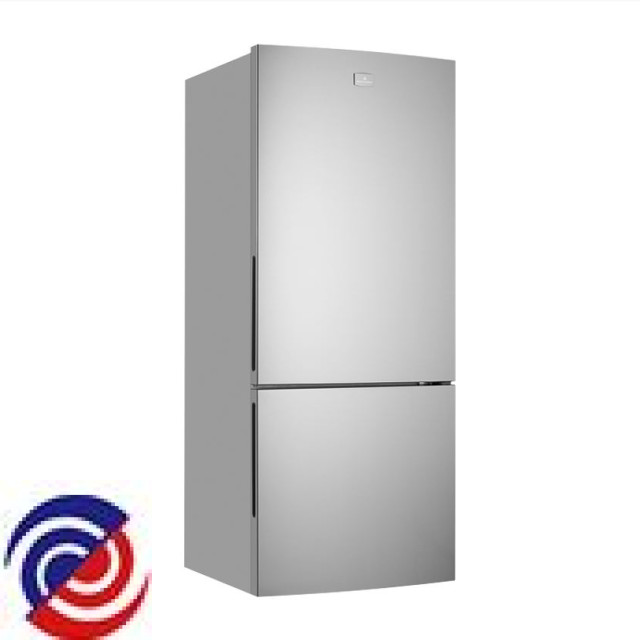

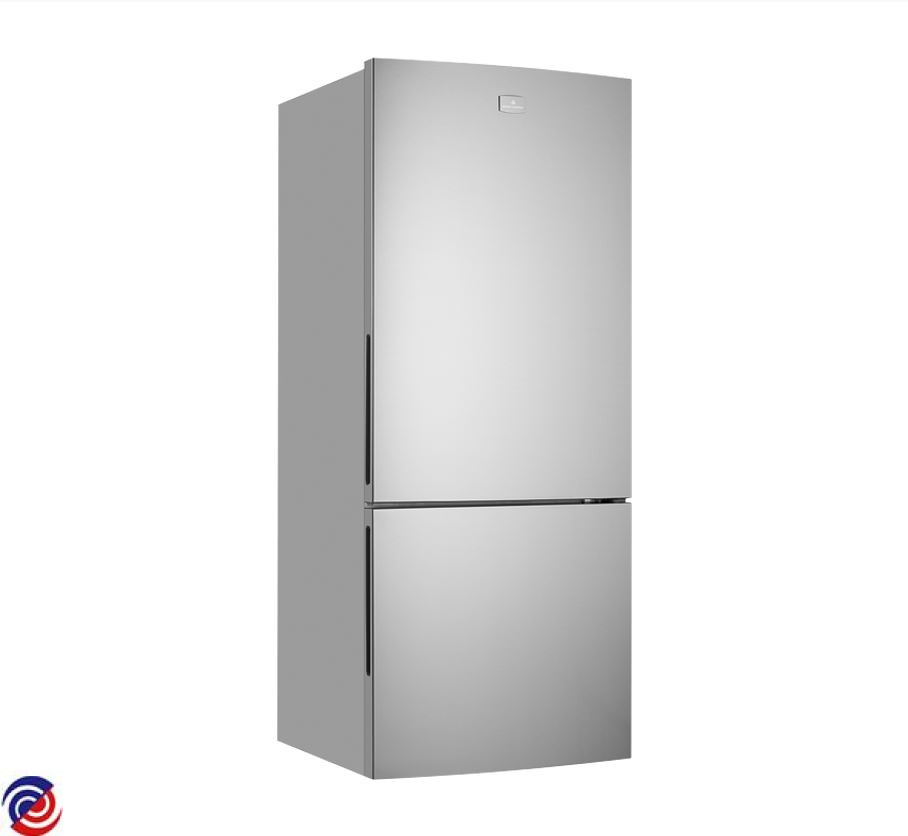

KBM4502AC-R — 925060810 01
KELVINATOR — Fridge
Parts for KBM4502AC-R
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0368323 HEATER RAD DEF R600 240V BF70W
$107.00
W0373335 COVER CRISPER ASSY BF70 WH
$77.00
W0374077 DOOR SHELF,SP8008,561.2X82MM
$95.00
W0365812 DAMPER, COMPRESSOR, 28.6MMX17MM
$14.00
W0365942 GROMMET FAN MOTOR
W0368006 BOLT, FOOT, M5X16 PH
$3.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368404 SHROUD FAN BF
$90.00
W0368443 EGG HOLDER,WHITE,254.8X116.8MM
$19.00
W0368469 LEVER,FOOT
$10.00
W0368758 DRAWER CRISPER SLIDE COVER
$20.00
W0368866 DRIER 12GM(XH9)DBLE/SGLE TAIL
$30.00
W0368883 DRAWER CRISPER SLIDE COVER
$20.00
W0368898 DRAIN,TRAY,276.5X205.3MM
$26.00
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
$71.70
W0371464 COVER GRID AIR RETURN BF
$4.00
W0371568 TUBE,DRAIN,14.6MM,L=218MM
$18.00
W0372322 CAP,SCREW COVER,RIGHT,20.8MM
$3.50
W0372381 CLAMP COMPRESSOR
$3.50
W0372389 CAP,SCREW COVER,LEFT,20.8MM
$3.50
W0372405 SPACER,DAMPER,3-WAYS
$3.50
W0372467 SUPPORT EVAPORATOR BF
$4.95
W0372499 BAFFLE,SLIDE,FRONT, BF WHT
$7.00
W0372513 BEARING HINGE FZR
$7.00
W0372590 HINGE,TOP,RIGHT
$10.00
W0372604 PIN,HINGE,MIDDLE
$10.00
W0372618 EXTENSION SLIDE INSERT FZR LH
$10.00
W0372757 TRAY EVAP DRAIN BM/SD 70W
$14.85
W0372799 ROLLER
$19.00
W0372822 TUBE PROCESS
$21.00
W0372933 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0373054 DRAWER BODY BF70
$36.00
W0373078 HINGE,MIDDLE
$40.00
W0373306 BOTTLE SHELF,SP8008, 562X110MM
$71.00
W0373457 EVAPORATOR FF BF70
$101.00
W0373546 GASKET FC BF70
$126.00
W0373596 MULTIFLOW ASSY BF KLVN
$147.00
W0373647 REAR HOUSING PCB COVER
$173.00
W0373684 VALVE DRAIN ASSY BF
$195.00
W0373823 DOOR PACKED FZR D SS KEL
$342.00
W0373902 DOOR PACKED FC SS KEL
$526.00
W0374544 COMPRESSOR EMB66CLC
$630.00
W0374831 COVER TOP HINGE RIGHT GR
$5.50
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374890 BAFFLE SLIDER FRONT BF
$6.55
W0374902 EPS EVAPORATOR BF 70
$8.00
W0374961 BEARING HINGE FC TOP TF SL R
$10.95
W0374974 CRISPER GASKET 70
$12.00
W0375025 BRACKET MOUNT FAN SURROUND
$16.00
W0375089 TERMINAL BLOCK EMBRACO
$21.00
W0375117 CAPACITOR,RF 4UF-6.3MM
$24.00
W0375161 TERMINAL COVER EMBRACO
$27.00
W0375170 SWITCH, DOOR
$30.00
W0375210 OVERLOAD PROTECTOR EMBRACO
$33.00
W0375214 STARTING DEVICE QPA-20A
$35.00
W0375273 SHELF WIRE BF70
$41.55
W0375392 DRAWER WIRE BASKET LOW 70
$60.00
W0375398 COVER,EVAPORATOR,ASSEMBLY
$65.00
W0375413 DRAWER, CRISPER, FRONT, BF70 KELV
$66.50
W0375453 BIN,SLIDING TYPE,DOOR,SP8008,
$90.00
W0375509 HEATER TUBE DRAIN PAN (TYPE M)
$107.35
