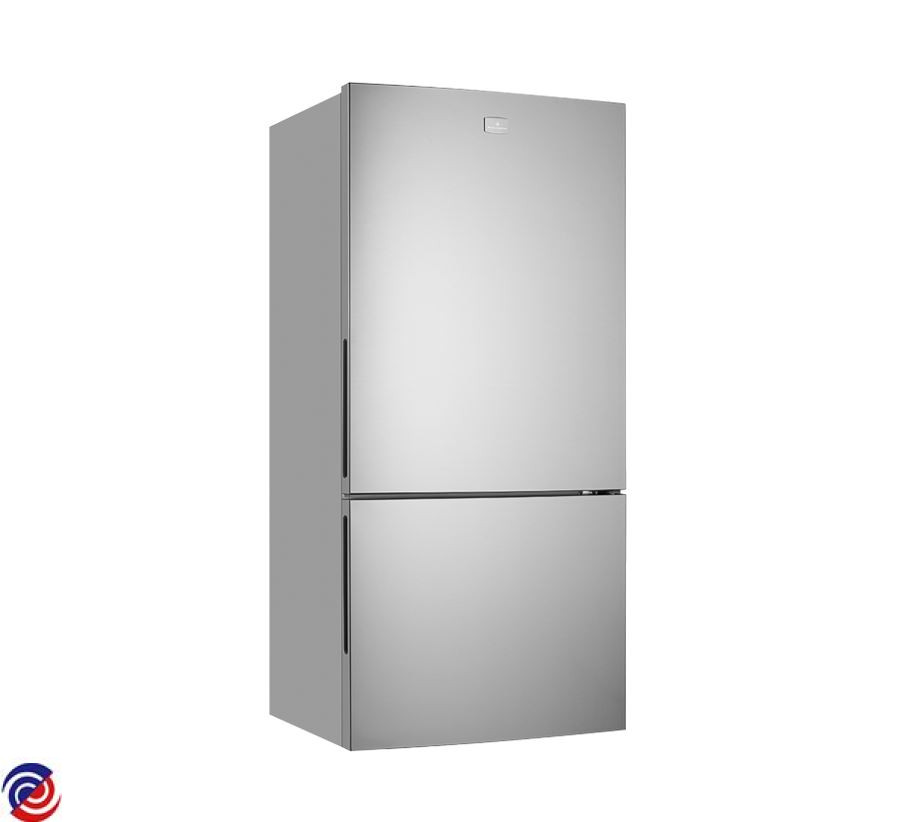

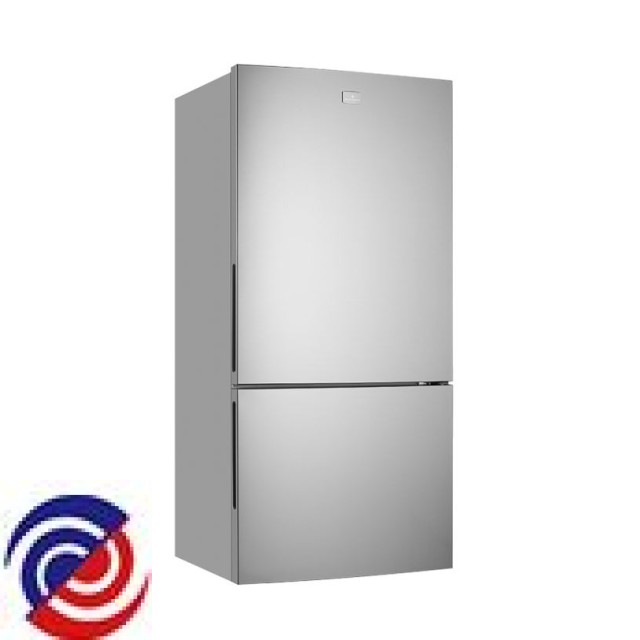

KBM5302AC-R — 925060812 03
KELVINATOR — Fridge
Parts for KBM5302AC-R
W0368416 SHROUD FAN ASSY BF DC 50HZ
$112.00
W0368660 HEATER RAD DEF R600 172W BF80W
$83.00
W0368856 ELECTROLUX WESTINGHOUSE FRIDGE FAN MOTOR DC 3W
$77.00
W0371479 BOTTOM DOOR BIN FC BOTTLE TF80 EL
$64.00
W0376337 FRIDGE FAN BLADE
$35.00
W0365812 GROMMET COMPRESSOR
$14.00
W0365942 GROMMET FAN MOTOR
W0366316 LENS 3 LEDS CLUSTER GALAGA
$21.00
W0367795 COVER SCREW
$4.00
W0367948 RETAINER CLIP
$4.00
W0368006 SCREW TRILOB M5X16
$5.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0368380 BEARING AUTO CLOSER R TF SL
$11.00
W0368396 HINGE BASE ASSY RIGHT WITH ADJ
$46.00
W0368404 SHROUD FAN BF
$90.00
W0368469 FOOT LEVER
$10.00
W0368860 PCBA # LED CLUSTEER GALGA
$25.00
W0368888 DOOR PACKED FC SLV KEL
$441.00
W0368898 PAN DRAIN DYN CON
$26.00
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
W0369974 AIR DUCT, ASSEMBLY, MULTIFLOW
$109.00
W0369982 COVER, HINGE, TOP RIGHT GR
$4.00
W0369989 COVER, EVAPORATOR PANEL, BF80
W0369996 BEARING, HINGE, RIGHT
$4.00
W0370000 WATER DRAIN, EVAPORATOR, FREEZ
$38.50
W0370021 CRISPER, BODY, ASSY BF80 KELV
$90.50
W0370029 ROLLER, FIXING, FOOT, ASSY
$18.00
W0370058 HINGE, BOTTOM, PIN, RIGHT
W0370073 DRAWER, CRISPER, FRONT, BF80 K
$38.80
W0370077 ICE TRAY
$27.50
W0370087 SUPPORT, WIRE, SHELF, LH
$15.35
W0370088 SUPPORT, WIRE, SHELF, RH
W0370091 DRAIN, PAN, ASSEMBLY, WITH HEA
$38.80
W0370165 HARNESS, ASSEMBLY, MULTIFLOW
W0370193 STOPPER, DOOR
W0370224 HEATER, TUBE
W0370401 DRIER REFRIGERATION 280 LTR
$23.85
W0371033 CONFIGURED ELECTRONIC, ERF2003
$175.00
W0371034 CONFIGURED ELECTRONIC, ERF2003
$175.00
W0371035 CONFIGURED ELECTRONIC, ERF200
W0371036 CONFIGURED ELECTRONIC, ERF2003
W0371448 FOOT BASE THREAD
$10.00
W0371464 COVER GRID AIR RETURN BF
$4.00
W0371568 TUBE CORRUGATE PF
$18.00
W0371714 GROMMET FAN PANA DC FAN
W0372322 COVER SCREW MULTIFLOW RH
$4.00
W0372369 SCREW 6X20 SELF TAPPING
$4.00
W0372371 SCREW M5X0.8 SELF TAPPING
W0372389 COVER SCREW MULTIFLOW LH
$4.00
W0372467 EPS FZ AIR STOPPER
$5.00
W0372499 BAFFLE SLIDE BACK
$7.00
W0372534 COVER TOP CABINET WH GR
$8.00
W0372577 SHAFT ROLLER FRONT WTB4600
$9.00
W0372579 BEARING HINGE FZR TOP CLOSED
$9.00
W0372590 HINGE TOP RIGHT
$10.00
W0372593 GROMMET FAN SIDE
$8.75
W0372604 HINGE CENTRE PIN SWING DOOR
$10.00
W0372629 COVER MULTIFLOW BOTTOM
$9.95
W0372687 SEALING MFLOW BACK BF 1725
$13.00
W0372697 SEAL FOAM BOTTOM MF PINOT BF-N
$14.00
W0372799 ROLLER FOOT
$19.00
W0372813 CRISPER SUPPORT LH
$17.70
W0372822 TUBE PROCESS
$21.00
W0372888 RAIL DOOR SUPPORT 80W WHT
$23.60
W0373078 HINGE CENTRE BASE ASSY
$40.00
W0373254 COVER CRISPER BF80 ELUX
$60.10
W0373297 DOOR BIN FC SHALLOW 80 EL
$68.00
W0373394 DOOR BIN FLEX 1/2 TF80W EL
$90.00
W0373398 SHELF FC TF80W
$91.00
W0373452 DRAWER BODY BF80
$92.50
W0373618 EPS EVAPORATOR BF 80
$158.00
W0373628 EVAPORATOR FF BF80
$163.00
W0373633 GASKET FC BF80
$168.00
W0373684 VALVE DRAIN ASSY BF
$195.00
W0373806 DOOR PACKED FZ SLV KEL
$321.00
W0374544 COMPRESSOR EMB66CLC
$630.00
W0374898 TUBE JUMPER H/X 80W EMBRACO
$7.25
W0375077 GEAR CONTROL TEMP
$20.00
W0375089 TERMINAL BLOCK EMBRACO
$21.00
W0375117 CAPACITOR RF 4UF-6.3MM
$24.00
W0375161 TERMINAL COVER EMBRACO
$27.00
W0375170 SWITCH DOOR
$28.00
W0375173 POWERCORD RF AU EMBRACO
$29.00
W0375210 OVERLOAD PROTECTOR EMBRACO
$33.00
W0375214 STARTING DEVICE QPA-20A
$33.00
W0375331 DRAWER WIRE BASKET MID 80
$55.00
W0375434 DRAWER WIRE BASKET LOW 80
$81.00
