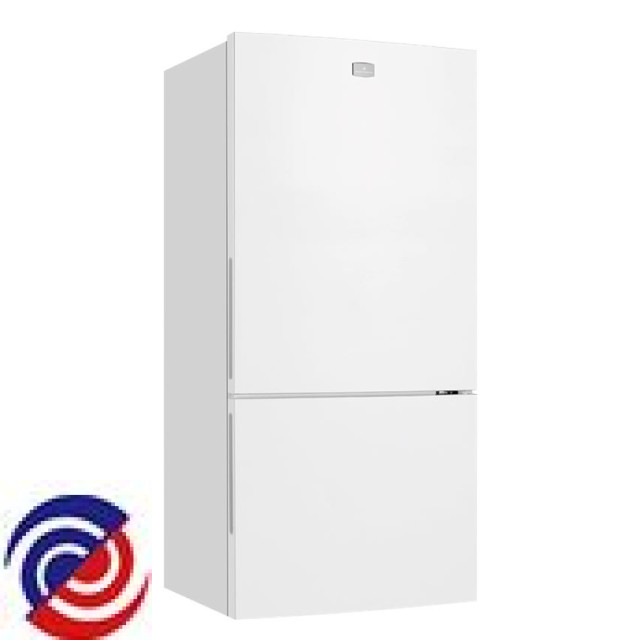

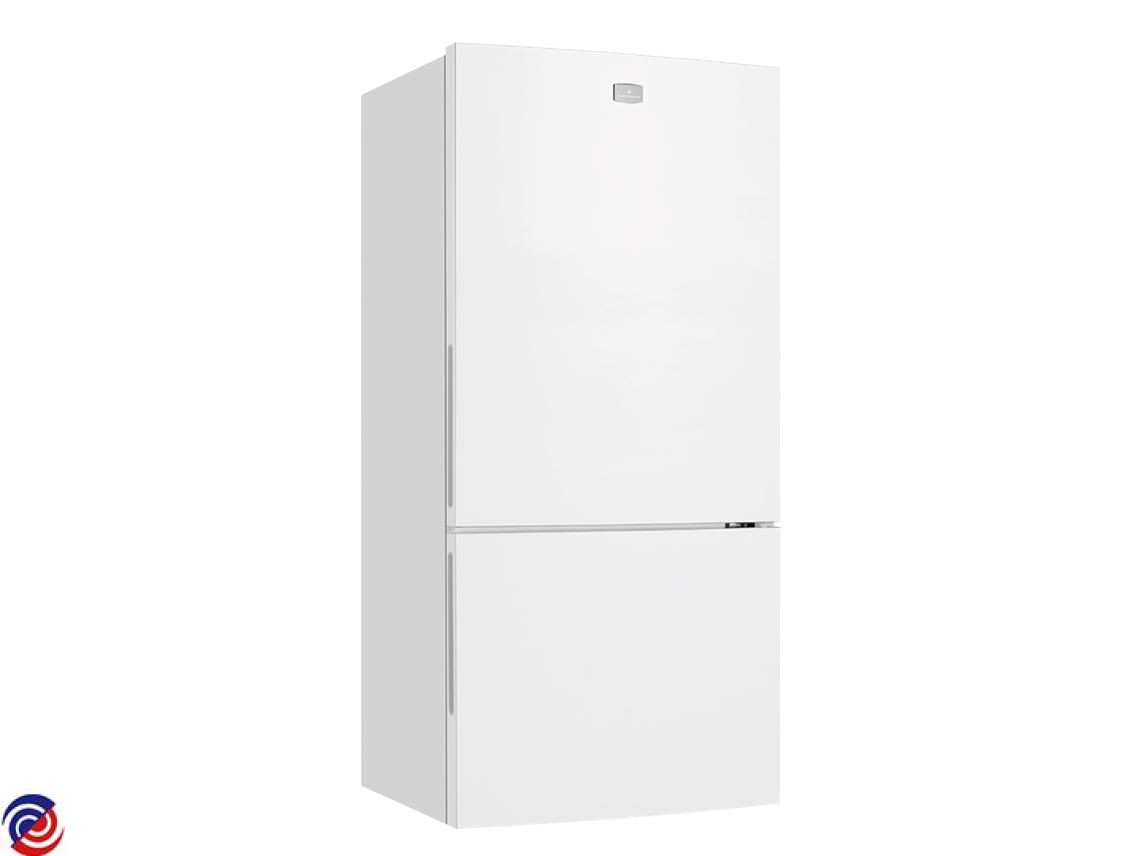

KBM5302WC-R — 925060811 00
KELVINATOR — Fridge
Parts for KBM5302WC-R
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027222 TUBE PROCESS
$14.36
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$3.38
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029435 TRAY EGG 80W
W0029516 KELVINATOR FRIDGE MAIN PCB ERF1600I KBM4502
W0029558 HEATER RAD DEF R600 240V BF80W
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029667 DOOR BIN FC BOTTLE TF80 EL
W0029700 ROLLER FOOT
$12.83
W0029701 FOOT LEVER
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$20.63
W0087752 BLADE FAN
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$12.34
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0027441 SCREW TRUSS 4.2X13
W0027539 BRACKET MOUNT FAN SURROUND
$10.88
W0027544 BAFFLE SLIDER FRONT BF
$4.88
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$138.15
W0027602 GASKET FRZ BF80
$82.58
W0027604 GASKET FC BF80
$119.66
W0029309 HINGE TOP RIGHT
$6.49
W0029360 MULTIFLOW ASSY BF KLVN
W0029373 SUPPORT EVAPORATOR LEFT TF
$4.65
W0029377 DRAWER BODY BF80
W0029388 CRISPER DIVIDER BF WH-ART
$8.93
W0029398 DOOR BIN LOCKABLE TF80 WH ASSY
W0029429 DOOR BIN FLEX 1/2 TF80W EL
$63.68
W0029430 DOOR BIN FC SHALLOW 80 EL
$47.85
W0029446 SHELF FC TF80W
W0029466 COVER TOP HINGE RIGHT WHT
$3.38
W0029476 COVER GRID AIR RETURN BF
$3.38
W0029479 EPS EVAPORATOR BF 80
$111.86
W0029480 COVER SCREW MULTIFLOW LH
$3.38
W0029481 COVER SCREW MULTIFLOW RH
$3.38
W0029485 COVER EVAPORATOR BF80 ASY 1-Z
$51.75
W0029534 HARNESS-ASSY MULTIFLOW KEL
$41.93
W0029535 BEARING AUTO CLOSER R TF WHT
$6.60
W0029563 BEARING HINGE FC TOP TF SL L
$10.39
W0029566 BEARING HINGE FZR TOP OPEN
$4.73
W0029569 DRAWER WIRE BASKET LOW 80
$57.79
W0029573 TRAY EVAP DRAIN BM/SD 80W
$28.84
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029640 EXTENSION SLIDE INSERT FZR LH
$7.05
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029675 HINGE CENTRE PIN SWING DOOR
W0029702 HINGE BASE RIGHT ASSY
W0029745 SHELF WIRE BF80
$36.26
W0029750 CRISPER COVER ASSY BF80 WH
$54.53
W0029820 EPS FZ AIR STOPPER
$3.75
W0029830 SUPPORT EVAPORATOR RIGHT TF
$4.65
W0029843 TUBE CORRUGATE PF
W0029926 CRISPER GASKET 80
$16.50
W0030034 BAFFLE SLIDE BACK
$4.35
W0030051 DRAWER CRISPER FRONT BF80 KELV
$61.35
W0030064 COMPRESSOR EMB66CLC
W0030111 HEATER TUBE DRAIN PAN (TYPE M)
$80.06
W0030113 SPACER 3 TURN HEATER
$3.38
W0030139 SUPPORT WIRE SHELF LH
$6.38
W0030140 SUPPORT WIRE SHELF RH
$6.41
W0030168 DRAWER WIRE BASKET MID 80
$39.00
W0030252 DOOR PACKED FZR WHT KEL
$243.68
W0030253 DOOR PACKED FC WHT KEL
$427.50
W0030288 EVAPORATOR FF BF80
$108.34
W0030312 TERMINAL BLOCK EMBRACO
$14.33
W0030313 TERMINAL COVER EMBRACO
$18.75
W0030314 OVERLOAD PROTECTOR EMBRACO
$22.88
W0030382 TUBE JUMPER H/X 80W EMBRACO
$5.44
W0086608 CORD SERVICE INSULATED
W0088702 BADGE NAMEPLATE
$6.53
W0147520 SWITCH DOOR
$19.88
W0147553 SHAFT ROLLER
W0273634 RUNNER RAIL CRISPER SLIDE RH
W0273635 RUNNER RAIL CRISPER SLIDE LH
