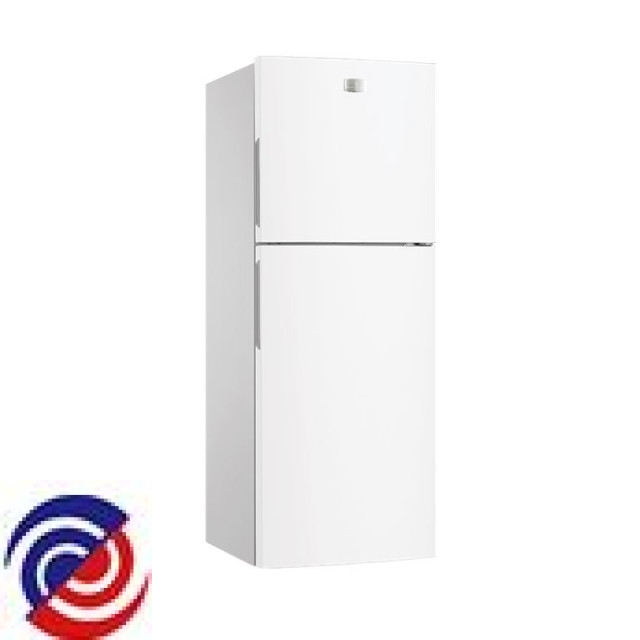

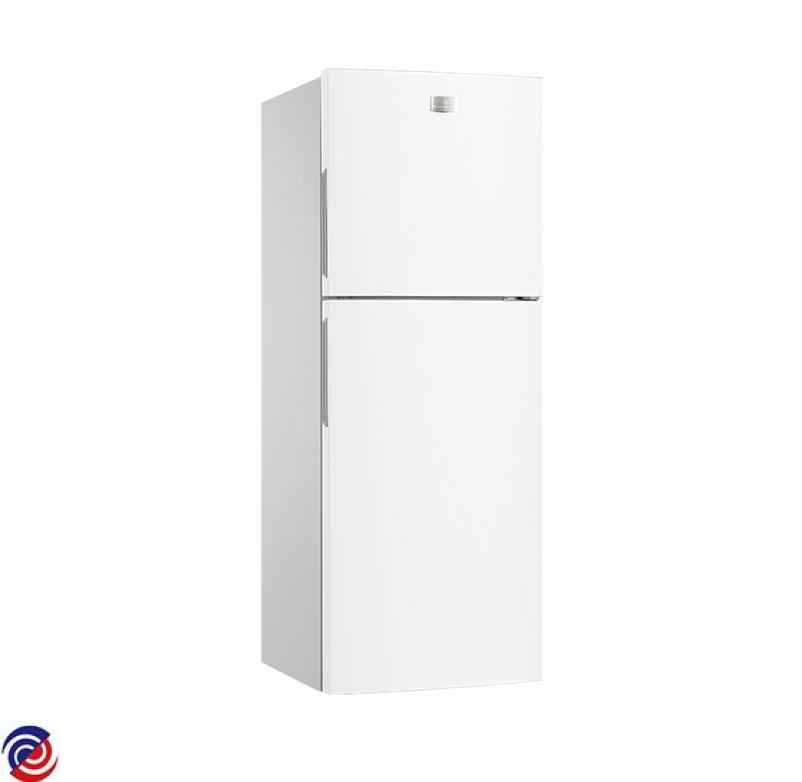

KTB2502WB-R — 925060802 01
KELVINATOR — Fridge

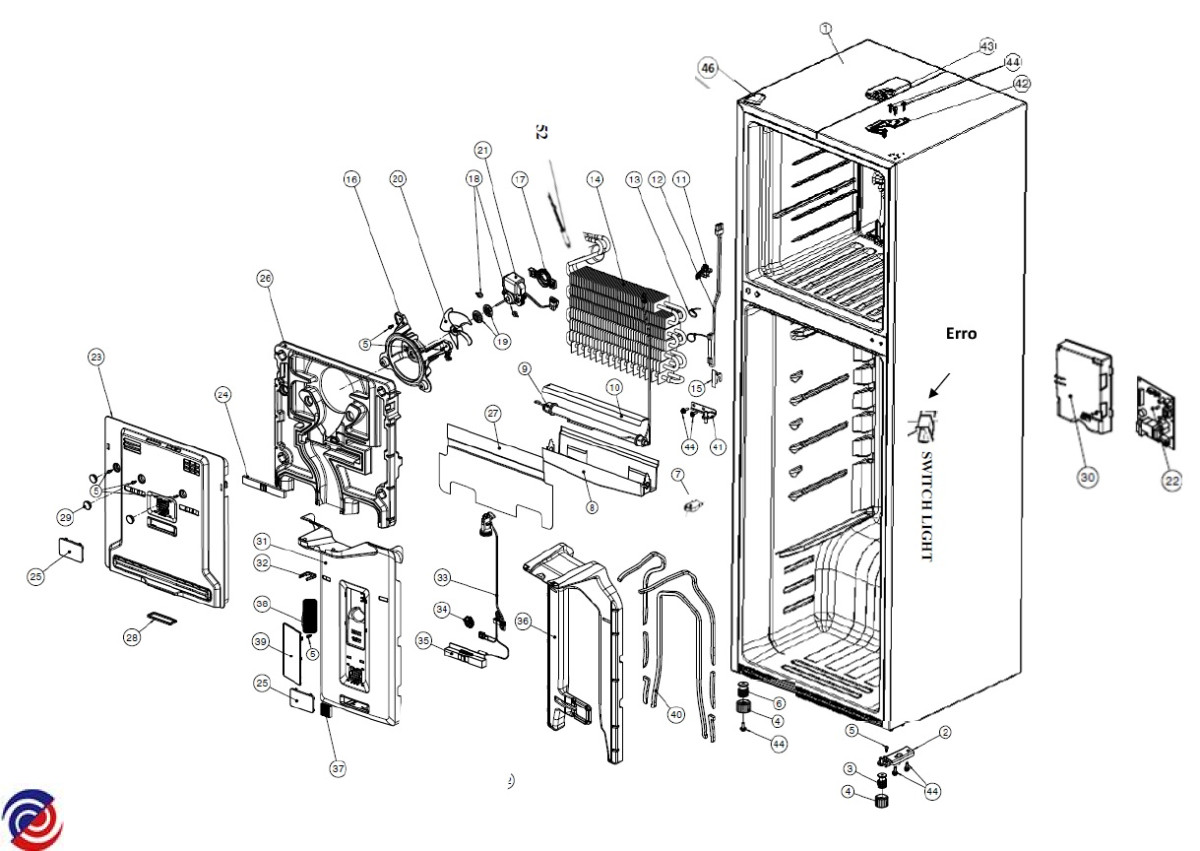

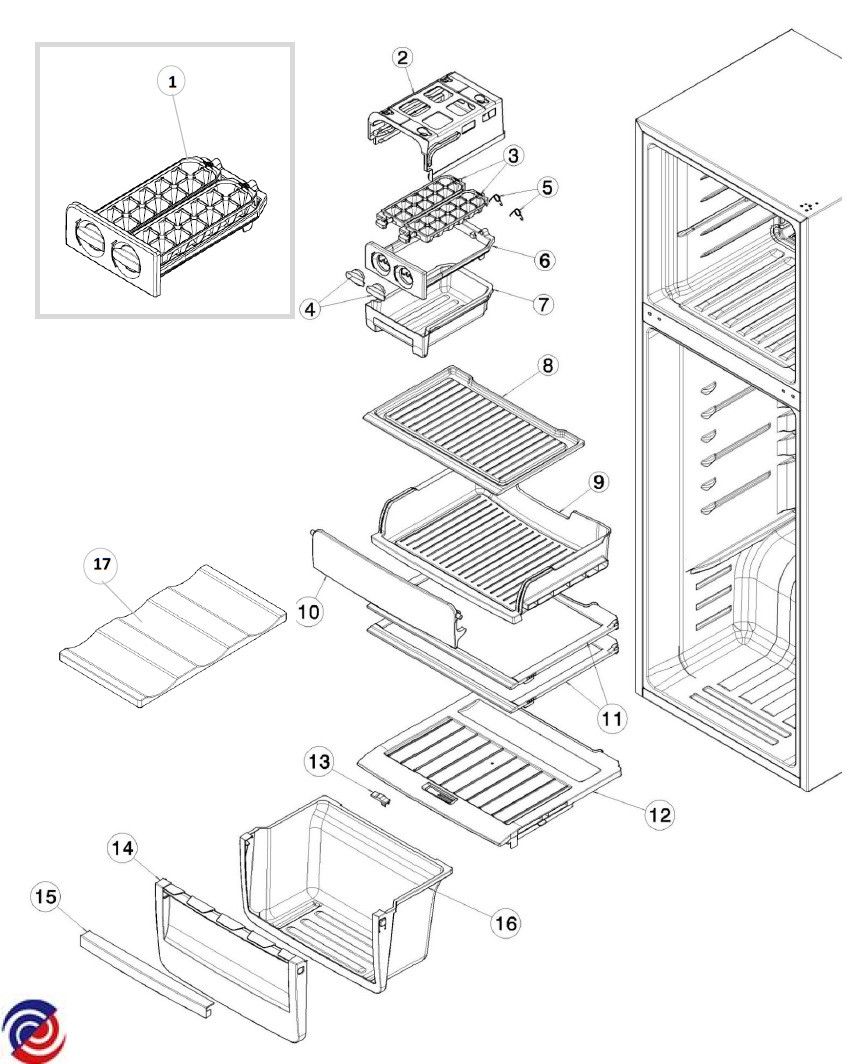

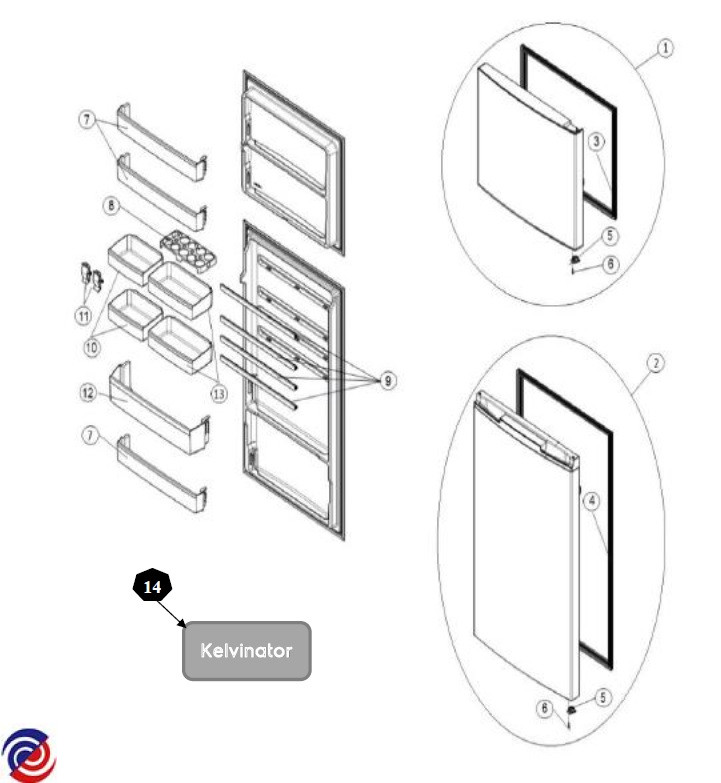

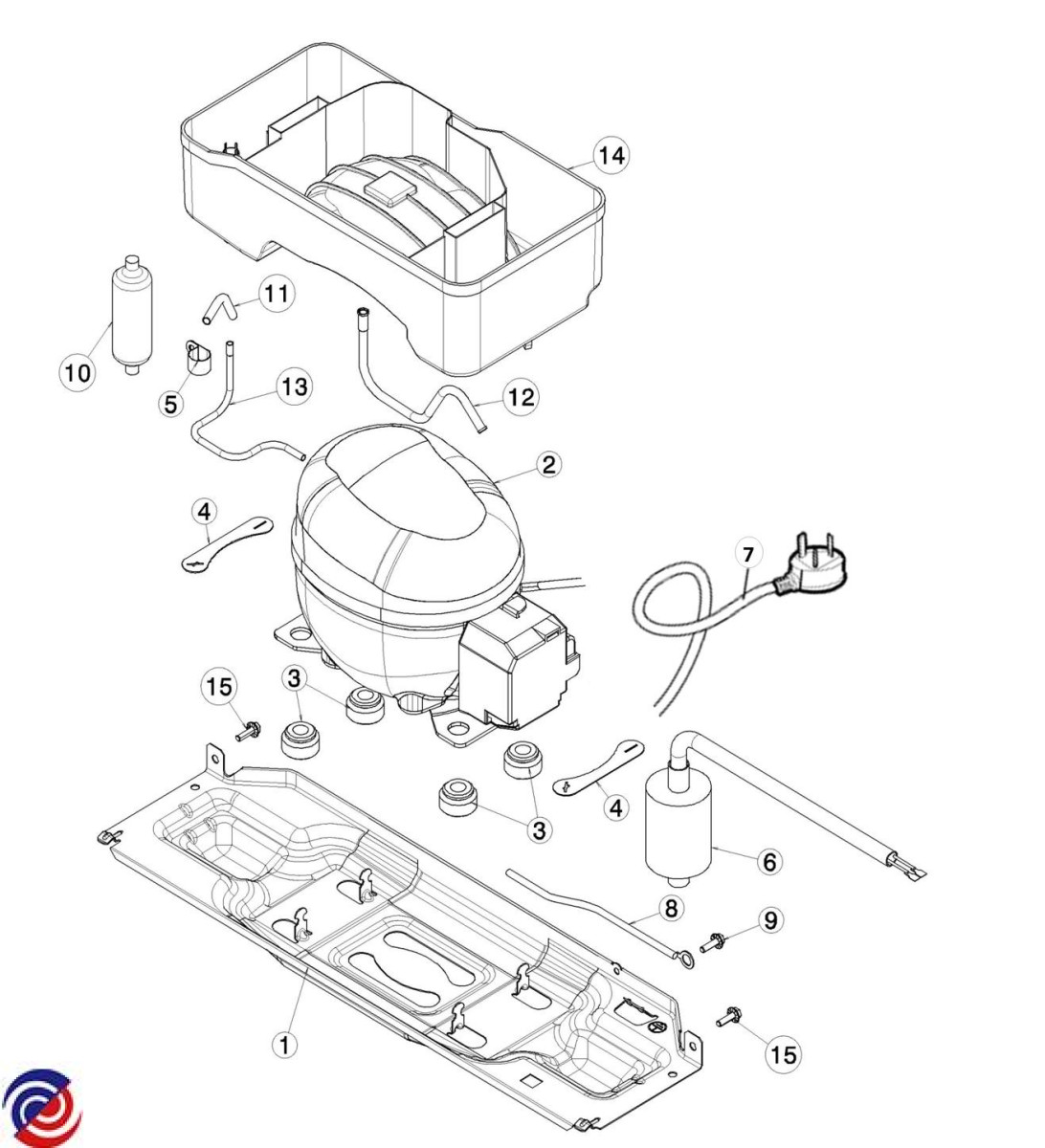

Parts for KTB2502WB-R
W0368433 MOTOR FAN DC 3W
W0368613 BIN DOOR SHALLOW 54W EL
$65.00
W0373260 GLASS SHELF ASSY 54W
$71.00
W0375495 CRISPER BIN TF54W SINGLE PIECE
$107.00
W0376337 FAN BLADE, 100 MM
$38.00
W0365812 DAMPER, COMPRESSOR, 28.6MMX17MM
$14.00
W0365942 GROMMET FAN MOTOR
W0367795 COVER SCREW
$4.00
W0368006 BOLT, FOOT, M5X16 PH
$3.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368597 BIN DOOR FLEX 1/2 EL PACKING
$65.00
W0369914 LENS, COVER, AIR CHANNEL
$6.55
W0369917 COVER, FRONT
$415.00
W0369919 BAFFLE, SIDE PLATE, FREEZER
$3.50
W0369920 COVER, EVAPORATOR, REAR
$211.60
W0369921 WATER DRAIN, VALVE
$14.40
W0369923 HEATER, SUPPORT
$18.40
W0369931 COVER, HINGE, TOP, RIGHT,WHT
$5.00
W0369933 COVER, HINGE, TOP, LEFT,WHT
$3.50
W0370044 BIN,DOOR,BOTTLE,54W
$23.00
W0370077 TRAY ICE CUBE PINOT
$24.75
W0370078 EVAPORATION TRAY
$15.10
W0370081 TUBE,UNIVERSAL,PAN
$18.90
W0370401 FILTER,DRYER
$22.50
W0371030 CONFIG ELECTRONIC, PCBA MAIN ERF1600 TF
$156.65
W0372657 DOOR STOP, BEARING, RIGHT
$12.00
W0372762 BUSHING,FAN,D30MM
$17.00
W0372822 TUBE PROCESS
$21.00
W0372929 STARTING DEVICE, WITH, MOTOR PROTECTOR
$30.00
W0372955 HARNESS MFLOW TF BASIC LED A
$30.00
W0373501 PCB,LED,LIGHT
$111.00
W0374200 CASING, FAN
$58.00
W0374799 COVER, AIR FILTER, DRAWER, FREEZER
$3.50
W0374841 CLAMP NTC EVAPORATOR
$4.00
W0374933 SEAL FOAM
$8.75
W0374937 TERMINAL COVER JIAX-C
$10.00
W0374983 EVAPORATOR PANEL, OVER EVAP FRONT TF
$14.00
W0375045 BRACKET, ICE-MAKER
$17.00
W0375077 GEAR CONTROL TEMP
$20.00
W0375117 CAPACITOR,RF 4UF-6.3MM
$24.00
W0375133 TRAY ICE CUBE PINOT
$29.00
W0375170 SWITCH, DOOR
$30.00
W0375171 SLIDE CONTROL TEMP
$28.00
W0375252 HINGE BOTTOM BASE RIGHT
$40.00
W0375253 HINGE, TOP, RIGHT
$40.00
W0375272 HINGE, MIDDLE, RIGHT
$43.00
W0375719 DOOR SPARE FZR TF54W WHT KEL
$273.00
W0376379 COMPRESSOR
W0376918 RAIL, DOOR, SUPPORT, 54W WHT
$7.00
W0378144 TRAY, WINE SET
$30.00
W0378915 POWER CORD
$50.00
W0379854 TRAY, FRIDGE, 54W
$89.00
W0381378 DOOR ASSEMBLY COMPLETE, FC TF230 WHT KEL
$261.00
W0382924 BASE FOOT
W0382926 FOOT LEVER
$29.90
W0382927 FOOT BASE HINGE
