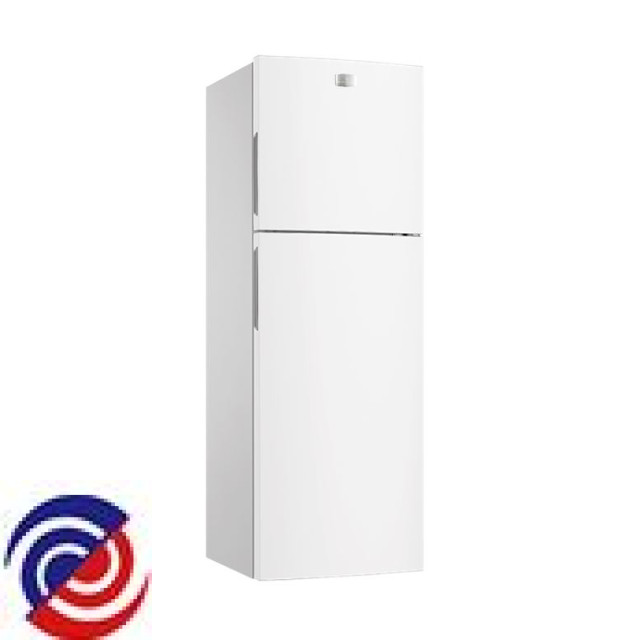

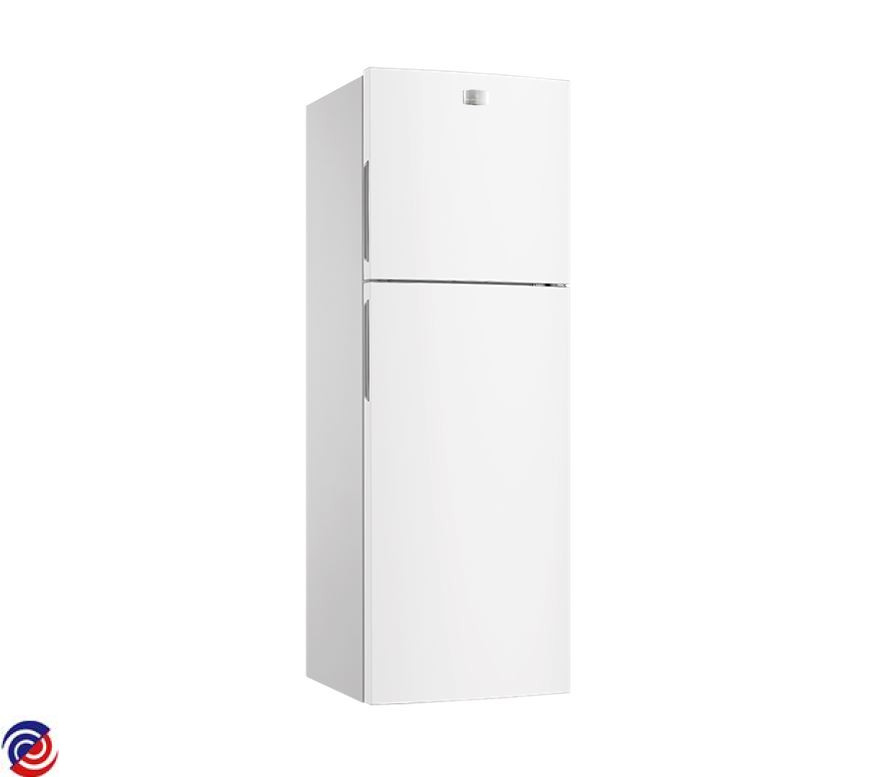

KTB2802WB-R — 925060803 01
KELVINATOR — Fridge

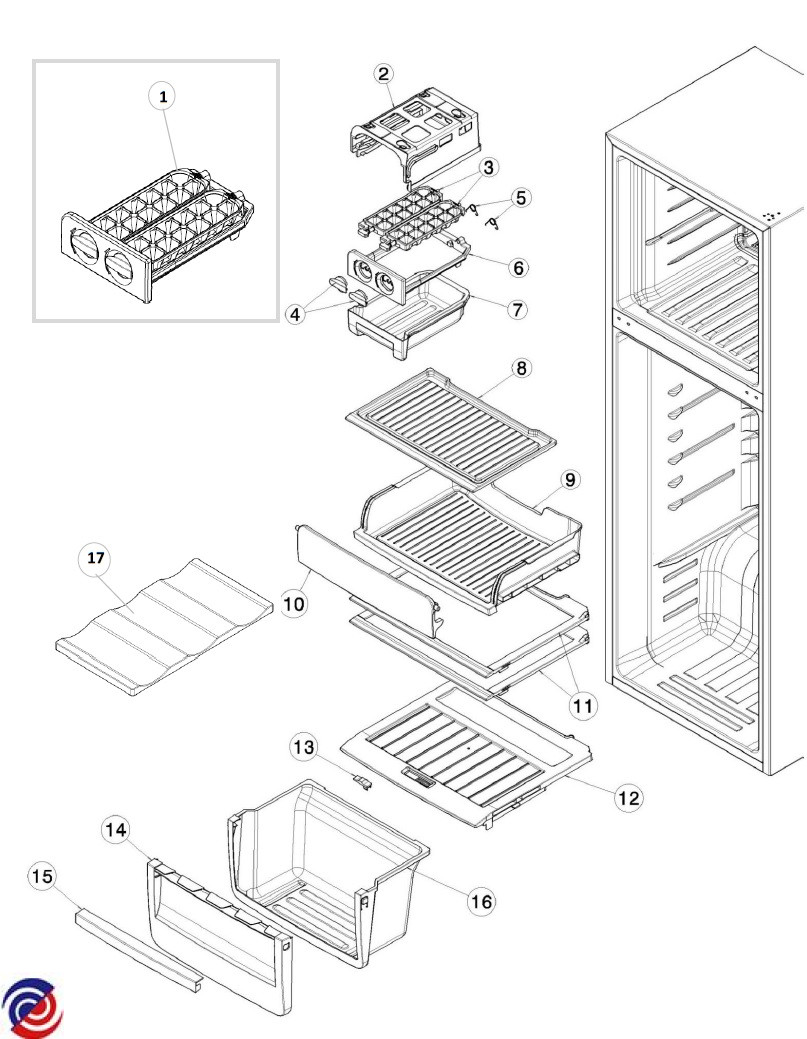

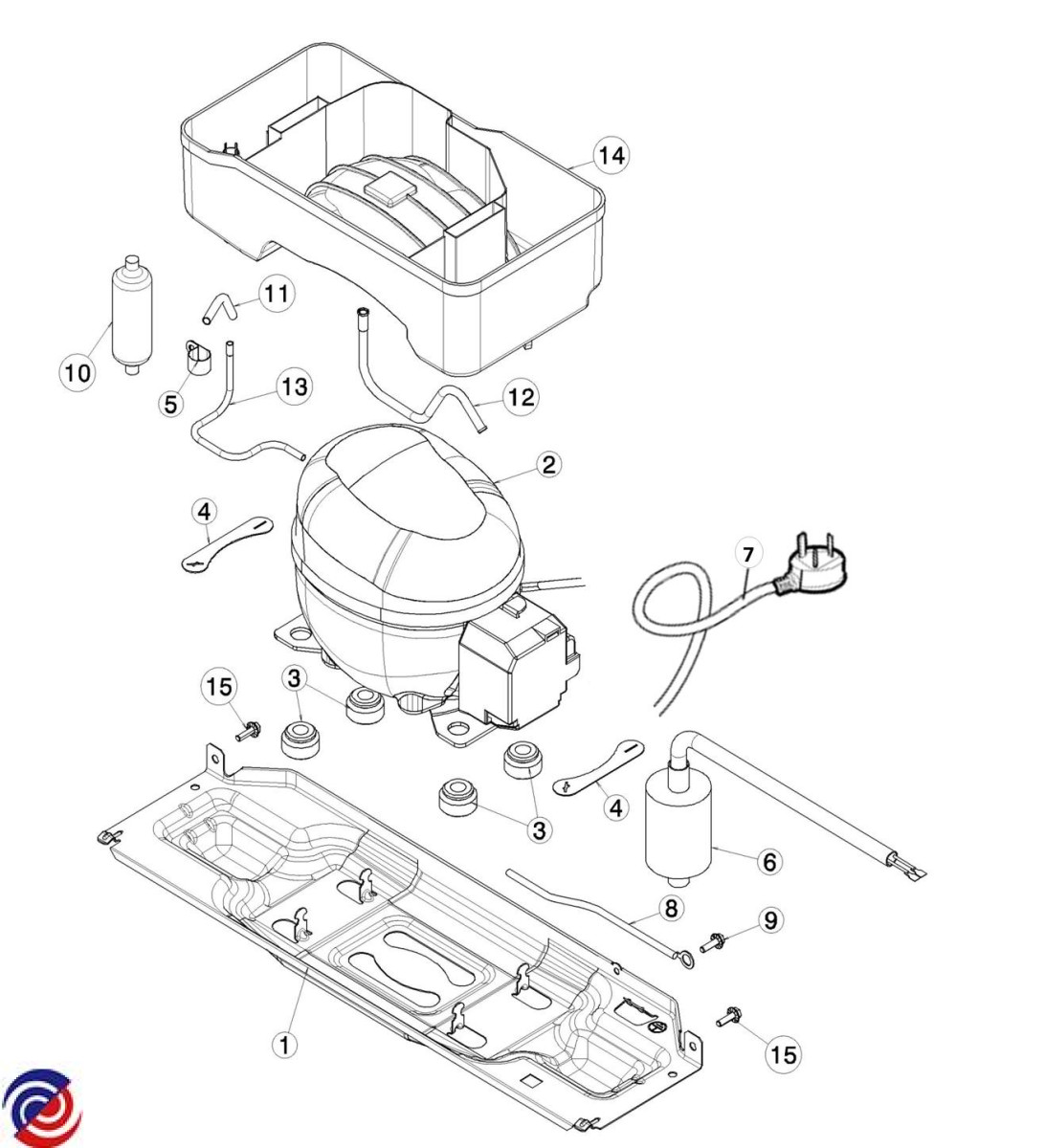

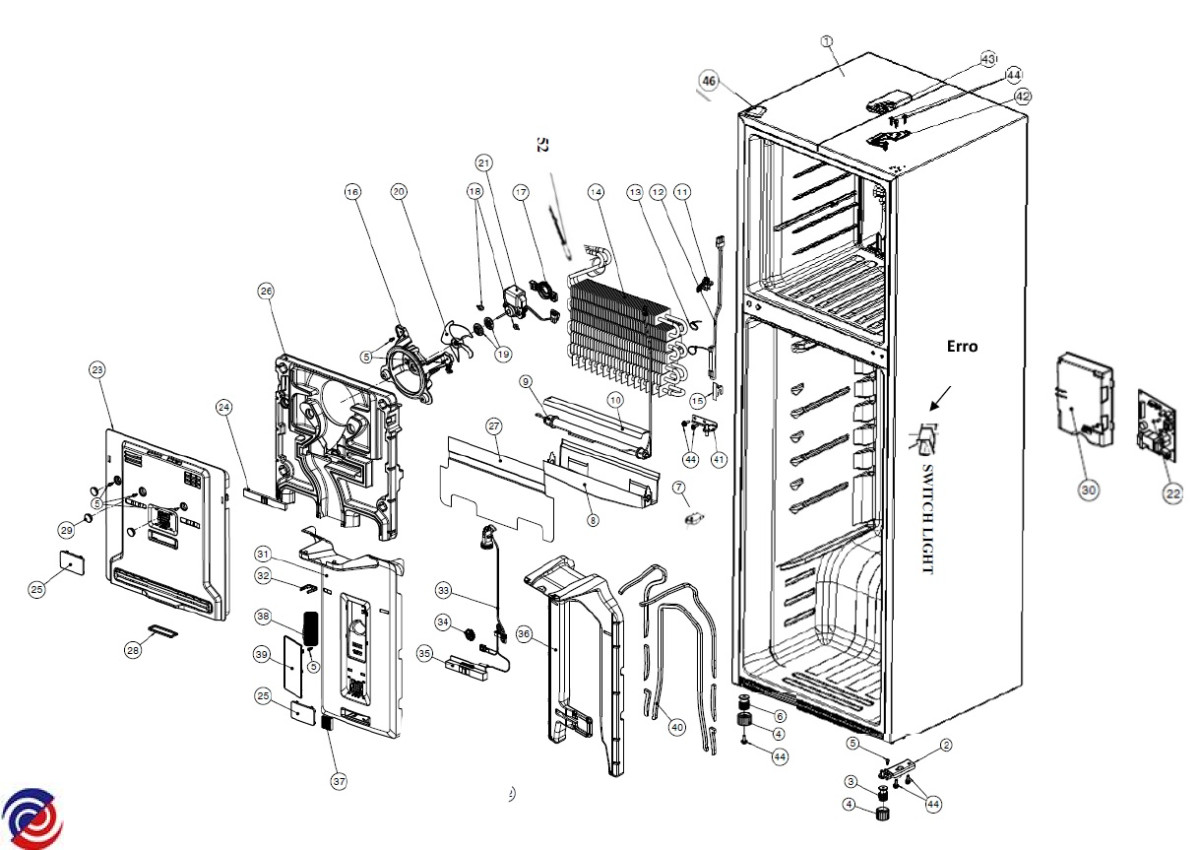

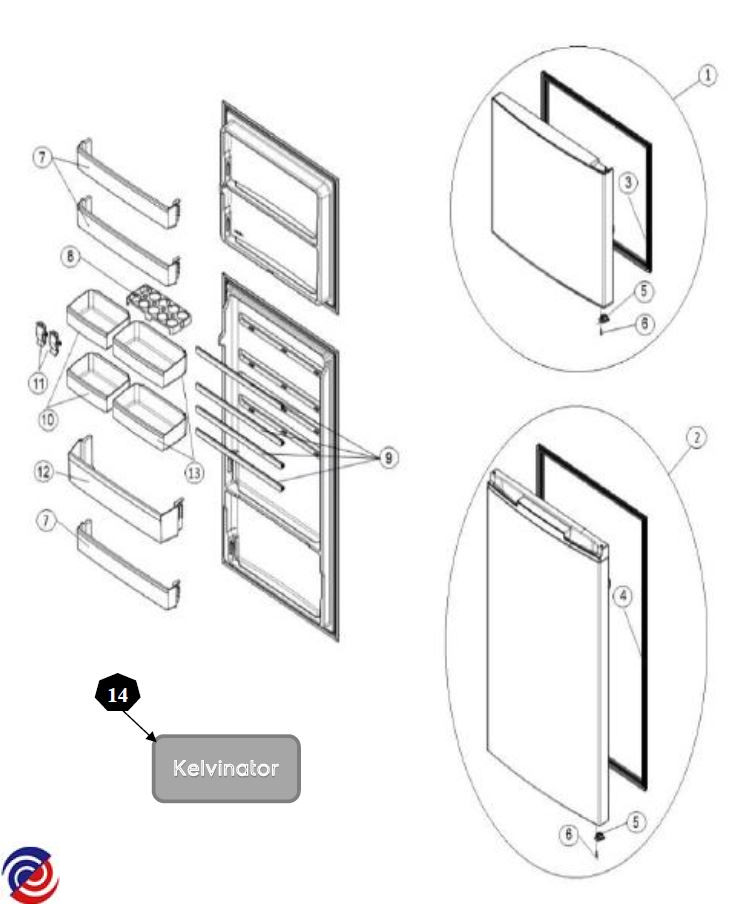

Parts for KTB2802WB-R
W0368433 MOTOR FAN DC 3W
W0368613 BIN DOOR SHALLOW 54W EL
$61.00
W0375495 CRISPER ASSY TF 54W ONE PIECE
$101.00
W0376337 FRIDGE FAN BLADE
$35.00
W0365812 GROMMET COMPRESSOR
$14.00
W0365942 GROMMET FAN MOTOR
W0367795 COVER SCREW
$4.00
W0368006 SCREW TRILOB M5X16
$5.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368021 SCREW TRUSS 4.2X13
$5.50
W0368597 BIN DOOR FLEX 1/2
$61.00
W0369914 LENS, COVER, AIR CHANNEL
$6.55
W0369919 BAFFLE, SIDE PLATE, FREEZER
$4.00
W0369920 COVER, EVAPORATOR, REAR
$211.60
W0369922 WATER, DRAIN VALVE
$13.85
W0369923 DRIP PAN, SUPPORT, DEFROST HEA
$18.35
W0369931 COVER, HINGE, TOP, RIGHT,WHT
$5.50
W0369933 COVER, HINGE, TOP, LEFT,WHT
$4.00
W0370044 BIN, DOOR, BOTTLE,54W
$21.00
W0370077 ICE TRAY
$27.50
W0370078 EVAPORATION TRAY
$15.05
W0370081 TUBE, UNIVERSAL, PAN
W0370401 DRIER REFRIGERATION 280 LTR
$23.85
W0371031 CONFIGURED PCBA MAIN ERF1600 T
$175.00
W0371362 DOOR SPARE FC KTB2802WA
$459.00
W0372657 BEARING AUTO CLOSER R
$12.00
W0372762 GROMMET FAN PANA DC FAN
$17.00
W0372822 TUBE PROCESS
$21.00
W0372929 TERMINAL BLOCK TH1116Y
$28.00
W0372955 HARNESS MULTIFLOW TF BASIC
$30.00

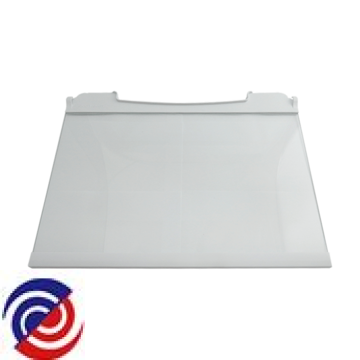

W0373260 SHELF GLASS ASSY 54W
$67.00
W0373501 PCB LIGHTING LED HSLB
$111.00
W0374200 SHROUD FAN
$58.00
W0374799 COVER DEODORIZER WHITE
$4.00
W0374841 CLAMP NTC EVAPORATOR
$4.00
W0374933 SEAL FOAM
$8.75
W0374937 TERMINAL COVER JIAX-C
$10.00
W0374983 COVER EVAPORATOR FRONT TF
$14.00
W0375045 SUPPORT ICE T&S
$17.00
W0375077 GEAR CONTROL TEMP
$20.00
W0375110 DUCT MULTIFLOW TF LARGE
$21.95
W0375117 CAPACITOR RF 4UF-6.3MM
$24.00
W0375133 ICE TRAY
$29.00
W0375170 SWITCH DOOR
$28.00
W0375171 SLIDE CONTROL TEMP
$28.00
W0375252 HINGE BOTTOM BASE RIGHT
$40.00
W0375253 HINGE TOP RIGHT
$40.00
W0375272 HINGE CENTRE RIGHT
$43.00
W0375719 DOOR SPARE FZ KTB2502WA
$273.00
W0376379 COMPRESSOR
W0376918 RAIL, DOOR, SUPPORT, 54W WHT
$7.00
W0377525 COVER, AIR CHANNEL, FRONT
$17.00
W0378144 TRAY, WINE SET
$30.00
W0378915 POWER CORD
$50.00
W0379854 TRAY, FRIDGE, 54W
$89.00
W0382924 BASE FOOT
W0382926 FOOT LEVER
$29.90
W0382927 FOOT BASE HINGE
