KTM4602AC-R — 925060806 02

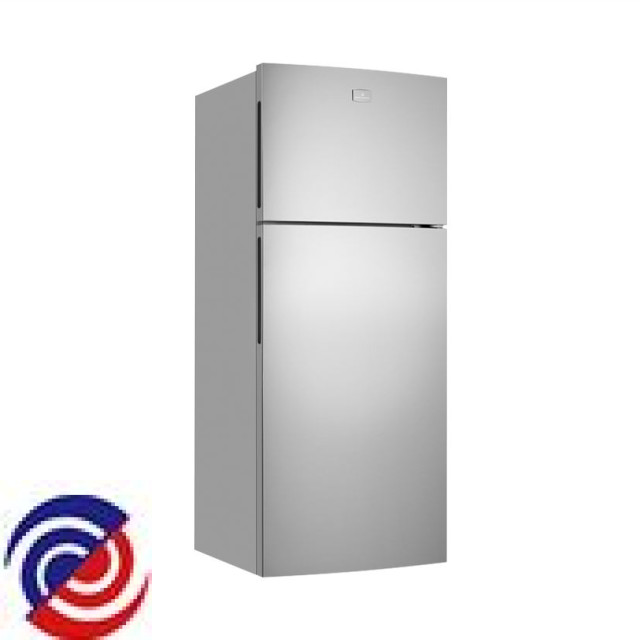

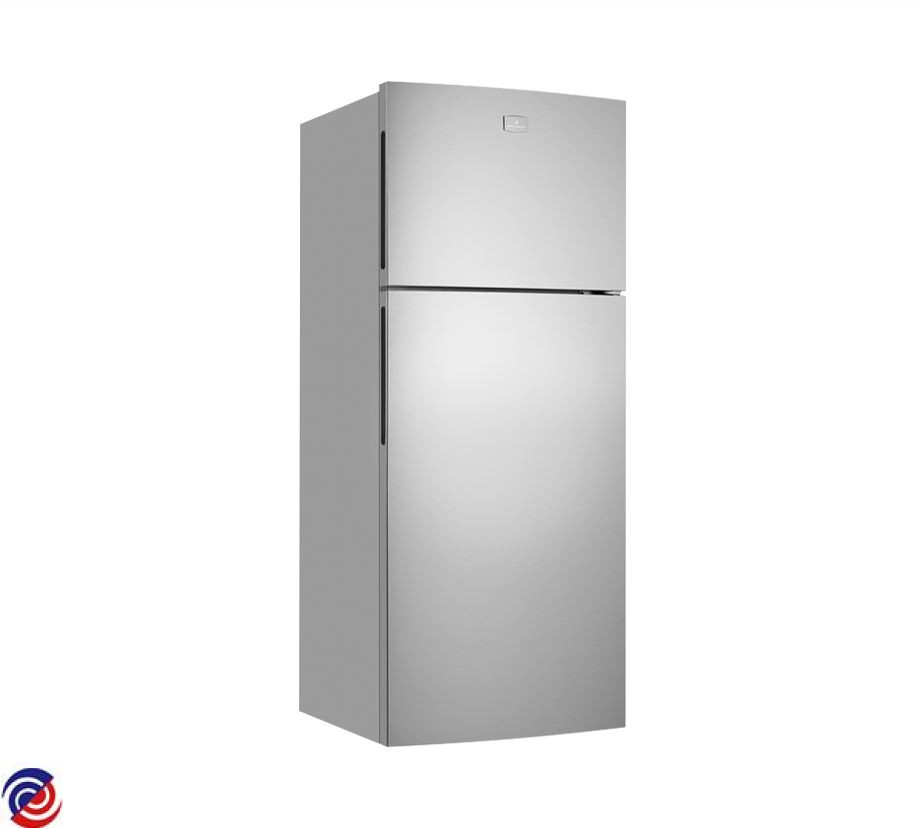

KELVINATOR — Fridge
Parts for KTM4602AC-R
W0368023 CLAMP NTC EVAPORATOR
$4.50
W0368433 MOTOR FAN DC 3W
W0374077 DOOR SHELF,SP8008,561.2X82MM
$95.00
W0376337 FAN BLADE, 100 MM
$38.00
W0365812 DAMPER, COMPRESSOR, 28.6MMX17MM
$14.00
W0365942 GROMMET FAN MOTOR
W0366316 LENS,LED PCB,SIDE,116.02X50.5M
$21.00
W0367795 COVER SCREW
$4.00
W0368006 BOLT, FOOT, M5X16 PH
$3.50
W0368009 CLAMP COMPRESSOR
$4.50
W0368380 BEARING AUTO CLOSER R TF SL
W0368396 HINGE,BOTTOM,ASSEMBLY,RIGHT
$46.00
W0368444 SHELF FC TF70W HLZT
$95.00
W0368758 DRAWER CRISPER SLIDE COVER
$20.00
W0368860 LED PCB
W0368883 DRAWER CRISPER SLIDE COVER
$20.00
W0368898 DRAIN,TRAY,276.5X205.3MM
$26.00
W0369968 COVER, EVAPORATOR, ASSEMBLY
$16.35
W0369982 COVER, HINGE, TOP RIGHT GR
$3.50
W0370214 CENTRE HINGE REVERSIBLE ZINC
$4.00
W0370401 FILTER,DRYER
$22.50
W0371446 COVER,FOOT,LEFT
$14.00
W0371447 HINGE,BOTTOM,ASSEMBLY,LEFT
$46.00
W0371448 BASE,FOOT
$10.00
W0371507 DRAWER CRISPER TF70 KELV ASY
$84.00
W0371514 DUCT EVAPORATOR REAR TF70W
$33.00
W0372540 ROLLER REAR WTB4600WA RAYONG
$8.00
W0372590 HINGE,TOP,RIGHT
$10.00
W0372604 PIN,HINGE,MIDDLE
$10.00
W0372762 BUSHING,FAN,D30MM
$17.00
W0372773 TUBE,DRAIN,14.6MM,L=253MM
$18.00
W0372929 STARTING DEVICE, WITH, MOTOR PROTECTOR
$30.00
W0373283 HARNESS-ASSY M/FLOW TF KELV
$70.00
W0373306 BOTTLE SHELF,SP8008, 562X110MM
$71.00
W0373319 EVAPORATOR FF TF70 N
$73.85
W0373369 DRAWER C/COVER TF70 K ASSY
$83.00
W0374200 CASING, FAN
$58.00
W0374610 HEATER RAD DEF R600 240V TF70W
$94.00
W0374837 CABLE HOLDER, COMPRESSOR
$3.50
W0374881 SUPPORT EVAPORATOR LEFT TF
$7.00
W0374882 SUPPORT EVAPORATOR RIGHT TF
$7.00
W0374933 SEAL FOAM
$8.75
W0374937 TERMINAL COVER JIAX-C
$10.00
W0375030 TRAY EVAP DRAIN TF70W
$14.85
W0375117 CAPACITOR,RF 4UF-6.3MM
$24.00
W0375170 SWITCH, DOOR
$30.00
W0375453 BIN,SLIDING TYPE,DOOR,SP8008,
$90.00
W0375454 DOOR BIN FZR TF70 KELV
$87.55
W0375496 GASKET, FREEZER DOOR, TF70
$105.00
W0375739 DOOR PACKED FZR KTM4602PA-R
$300.05
W0375863 DOOR PACKED FC KTM4602PA-R
$562.00
W0376379 COMPRESSOR
W0379560 SHELF FZR TF70W
$75.00
