45S508D — 914789780 00

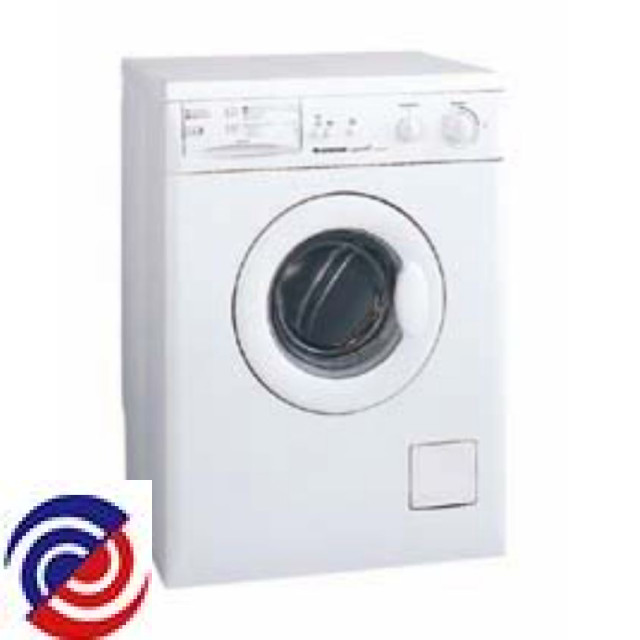

SIMPSON — Washing Machine
Parts for 45S508D
W0016552 SEAL SIEVE
$17.60
W0016554 GASKET DRUM INNER REAR
W0016605 BRACKET HOSES & HARNESS
W0016616 HOLDER SOLENOID
$8.15
W0016620 KNOB TIMER WHT
W0025481 HANDLE DOOR KIT
$36.00
W0074253 BOLT CUSHION
W0074257 PIN WATER DISTRIBUTOR
W0074258 LEVER CAM
W0074262 STOPPER CAPACITOR CABLE
W0074268 PROTECTION PORTHOLE DELAYER
W0074269 COVER INTERLOCK FILTER
W0074270 FILTER
W0074272 ADJUSTER WATER DISTRIBUTER
W0074274 HINGE
W0074293 SPRING DISTRIBUTER
W0074295 GASKET HOSE
W0074297 GASKET THERMOSTAT PROBE
W0074301 HOSE CIRCULATION MANIFOLD
W0074302 HOSE STEAM VENT
W0074305 BELLOWS DOOR GASKET
W0074309 SHOCK ABSORBER
W0074311 PUMP DRAIN ASKOLL
W0074313 BALANCE WEIGHT (REAR)
W0074315 SPRING SUSPENSION TUB
W0074321 DOOR GLASS
W0074322 BLOCK TERMINAL CONNECTOR
W0074331 BELT RUBBER 1287 H
W0074334 PULLEY
$38.50
W0074336 SCREW M8 X 24 PULLEY CLAMPING
W0074339 SCREW BEARING SPIDER
W0074342 SCREW MAIN MOTOR
W0074347 SCREW REAR BALANCE WEIGHT
W0074352 WEIGHT BALANCE (FRONT) 13_5KG
W0074354 VALVE ELECTRIC
W0074356 HEATER 240V 1950W IRCA
W0074358 SUPRESSOR INTERFERENCE
W0074375 HOSE DRAIN DRUM TO MANIFOLD
W0074377 CHAMBER AIR
W0074378 HOSE PRESSURE SWITCH
W0074382 HOSE DRAIN L= 2370
W0074395 PANEL & HANDLE ASSY CONTROL
W0074415 GUARD TIMER/PCB
W0074425 SCREW LOCK TUB
W0074427 FLAP SIEVE
W0074430 CABINET BACK WHITE
W0074434 HOOK DRAIN HOSE
W0074462 SWITCH PRESSURE 2 LEVELS
W0074473 HOSE INLET (1300MM)
W0074474 HOSE HOT FILL
W0074475 SHELL FRONT TUB
W0074479 FOOT ASSY FRONT 20MM
W0074484 BRACKET HOSES & HARNESS
W0074497 GUARD DRAIN PUMP
W0074500 CLAMP CABLE & TUBE BACK PANEL
W0074515 TUBE DISPENSER CONNECTION
W0074516 HOUSING DETERGENT DISPENSER
W0074519 COVER SYPHON ADDITIVES
W0074521 DRAWER DETERGENT
W0074524 DISTRIBUTER WATER
W0074525 CONVEYOR CONTAINER CUP DETERG
W0074532 DRUM COMPLETE
W0074535 PLUG CABINET WHT
W0074539 HOSE FILL DETERGENT
W0074540 CLIP DETERGENT TUBE D=59
W0074548 MOTOR COMMUTATOR
W0074558 CABINET FRONT WHITE
W0074563 HOSE SOLENOID TO CONTAINER CUP
W0074566 LEVER WATER DISTRIBUTOR
W0074571 BUTTON PUSH WHITE
W0074572 KNOB CONTROL TEMP WHT
W0074573 GLASS CONTROL INDICATOR LAMP
W0074574 SPRING RETAINING HEATER
$2.20
W0074576 A-FRAME PORTHOLE FRONT
W0074577 FRAME DOOR INNER
W0074590 MANIFOLD COMPLETE
W0074591 STAND P65J
W0074592 SHELL ASSY REAR TUB
W0074603 SCREW BALANCE WEIGHT (FRONT)
W0075637 TIMER VS81 AKO
W0075640 CAM VS80
$7.70
W0075648 POTENTIOMETER CROUZET
W0075681 BEZEL TEMP REGULATOR
W0075691 SWITCH PUSH BUTTON 3D(ELBI)
W0075693 SWITCH PUSH BUTTON 6D(ELBI)
W0075701 CUP KNOB INDICATOR TIMER CYCLE
W0075724 TOP TABLE
W0075776 FOOT ASSY BACK 20MM
W0075789 WASHER LOCK REAR BAL/WEIGHT
W0112849 PROBE TEMPERATURE NTC
W0112906 SUPPORT CONTROLS
W0126622 RING CONNECTION BELLOW TO TUB
W0126928 GASKET DRUM SHAFT
$33.00
W0126929 RING LOCK BELLOW TO CABINET
W0126930 WASHER LOCK PULLEY
W0127189 O RING PUMP
W0127192 INDICATOR CONTROL RED L=420
W0127208 DELAYER KIT PORTHOLE
W0127220 VALVE ELECTRIC HOT FILL
W0127336 SUPPORT INNER DRUM SPIDER
W0127487 PADDLE KIT 45L DRUM
W0127746 BEARING FRONT 6025-2Z
W0133347 BEARING BACK 20X47X14 - 6204
W0134805 CABLE SUPPLY
