SWF1076 — 914900193 00

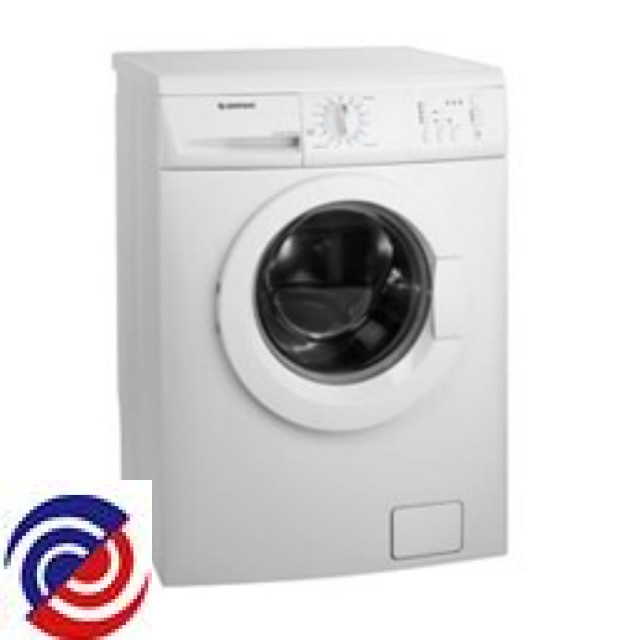

SIMPSON — Washing Machine

W0016550 SPRING CATCH

W0016563 SUPPRESSOR INTERFERENCE

W0016619 HOSE ELECTRIC VALVE CONT L=125

W0016638 GASKET DRUM SHAFT

$28.55

W0016838 DOOR FILTER ACCESS

W0016844 SHAFT PROGRAMME SELECTOR

W0016866 PROTECTION DOOR INTERLOCK

W0016870 ELECTROLUX SIMPSON FRONT LOAD WASHER DOOR CATCH

W0016935 HINGE DOOR

$14.25

W0017012 HANDLE DOOR

W0018731 POWER CORD WITH PLUG

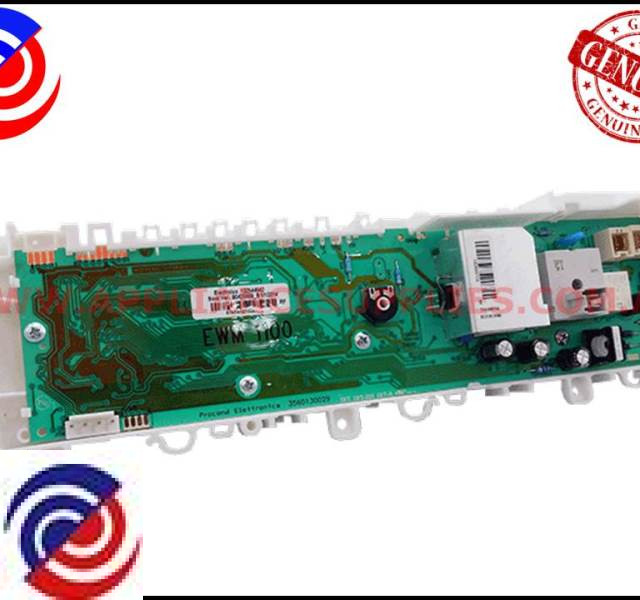

W0018769 BOARD CONFIGURED EWM1100 MAIN

W0025474 FIN INNER DRUM

$20.00

W0034761 HOSE INLET 2_5 D/W NUT/TAIL 2

W0074360 LOCK DOOR INTERLOCK

W0074384 ELECTROLUX WASHING MACHINE DRAIN HOSE 2370mm LONG

W0075903 SHOCK ABSORBER

$30.00

W0075953 BELT DRIVE 1184J6

W0076054 SWITCH PRESSURE LOW FREQUENCY

W0015030 DRUM OUTER FRONT

$125.05

W0016554 GASKET DRUM INNER REAR

W0016590 SPRING HANDLE DOOR

W0016609 SPACER HEATER ELEMENT

$5.50

W0016616 HOLDER SOLENOID

$8.15

W0016830 RING LOCKING

$8.80

W0016832 COVER FILTER

W0016834 HOSE ASSY DISCHARGE

W0016881 SCREW SHELL TUB 6 5X50

$4.50

W0016965 COVER BOARD MAIN

$11.00

W0017002 PUSH BUTTON SUPPORT ENV 06

$5.50

W0017003 DIFFUSER. LUMINOUS DIODE

$9.90

W0017011 FRAME DOOR OUTER

W0018774 KNOB CONTROL PROGRAM SELECTOR

$24.20

W0070002 HOSE CLAMP. 50. 6-53.2MM

W0071337 PIN DOOR HINGE

$6.00

W0071355 HOSE INLET WATER COMPARTMENT

W0071378 PULLEY (G22/85)

W0074253 BOLT CUSHION

W0074259 CLAMP HOSE

W0074262 STOPPER CAPACITOR CABLE

W0074277 LEVER LOCK PORTHOLE

W0074280 BOLT CATCH DOOR EWF1087

W0074289 ASSY. CONVEYOR. WATER

W0074295 GASKET HOSE

W0074340 SCREW BEARING SPIDER

W0074343 SCREW MOTOR 5.5 X 38 EWF1092

W0074371 SPRING SAFETY DOOR

$9.85

W0074379 HOSE PRESSURE SWITCH

$16.50

W0074398 WASHER COUNTERWEIGHT FRONT

$4.50

W0074406 UNIVERSAL MOTOR(G22)

W0074434 HOOK DRAIN HOSE

W0074453 CHAMBER AIR 1 WAY

W0074473 HOSE INLET (1300MM)

W0074481 LEG ASSY 30MM

W0074484 BRACKET HOSES & HARNESS

W0074489 SCREW COUNTERWEIGHT

W0074492 STAND P62S/RIM

W0074501 CLAMP CABLE

W0074503 DRAWER ASSY DETERGENT

W0074508 SYPHON ADDITIVES

W0074535 PLUG CABINET WHT

W0074538 BRACKET HOSES & HARNESS

W0074544 SPANNER LEG LEVELLING

W0074574 SPRING RETAINING HEATER

$2.20

W0074586 DISPENSER ASSY

$41.80

W0074608 CONNECTOR 2 WAY

W0074614 HOSE SOLENOID VALVE CONTAINER

W0075541 SPRING FIXING

W0075542 BUSH HINGE

W0075546 BELLOWS DOOR GASKET

W0075612 BUTTON PUSH (PORTHOLE)

W0075629 HOSE FILTER DRAIN

W0075651 SEAL FILTER

W0075657 SIEVE 45S558E

W0075664 PUMP BODY ASSY

$34.50

W0075676 SUPPORT HOSES REAR PANEL

W0075682 DOOR REINFORCEMENT

W0075745 COVER. DRAIN PUMP. CIRCULATION

W0075777 LEG ASSY

W0075898 SPRING SUSPENSION DRUM

W0075938 DRAIN PUMP

W0075982 VALVE SOLENOID 2-WAY

W0075986 BUTTON PUSH START

W0075987 BUTTON PUSH FUNCTION

W0075988 DELAY PUSH BUTTON

W0076003 PLATE HINGE

$9.00

W0076014 HEATING ELEMENT(240V.1950W)

W0076064 FRAME DOOR INNER

W0076083 WORKTOP

W0076098 CONTROL PANEL SUPPORT

W0089125 CABINET. BACK EWF1495

W0089183 CROSSBAR SUSPENSION

W0089220 ASSY. TUBE. VAPOUR OUTLET

W0089226 SUPPORT INNER DRUM SPIDER

$97.00

W0089235 DRUM INNER COMPLETE

$175.90

W0089238 DRUM REAR OUTER ASSY

W0089259 FRONT CABINET SHELL PAINTED

W0089279 DRAWER HANDLE. SILKSCREENED

W0089285 PANEL CONTROL ASSY

W0112798 BEARING. 30X62X16 EWF1087

W0112836 GLASS PORTHOLE

W0112909 COUNTERWEIGHT. FRONT. 16.5KG

W0127746 BEARING FRONT 6025-2Z

W0130194 SCREW PULLEY M10X25 AF TSP

$4.50
