SWF7025EQWA — 914900776 00
SIMPSON — Washing Machine
Parts for SWF7025EQWA
W0016981 VALVE SOLENOID 2-WAY
W0017029 SPRING, BELLOW, TUB, G33
$15.00
W0017058 ELEMENT HEATING
W0017089 DRAWER DETERGENT
W0017199 BOLT SHOCK ABSORBER
W0017224 LOW FREQENCY ANALOG PRESSUR
W0018790 HOSE PRESSURE SENSOR L620
$6.65
W0027221 HOSE DRAIN ASSY
W0032876 BEARING (20 X 47 X14)
W0075951 BELT DRIVE
W0274160 HOSE ASSY INLET COLD GREY
W0281803 GASKET, BELLOW
W0284368 LOCK DOOR

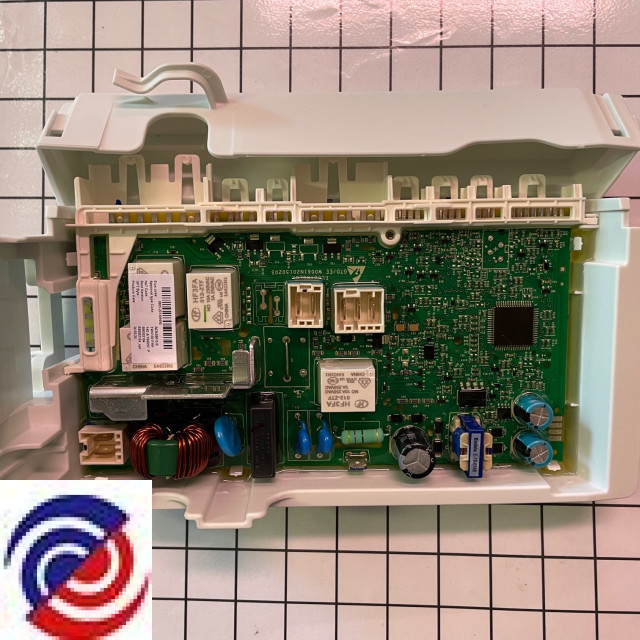

W0293559 PCBA MAIN BOARD EWX13-POTTED
W0015051 NUT, PLASTIC EWN14991W
$4.50
W0016559 SCREW PULLEY
$4.50
W0016566 SEAL SPIDER
$27.05
W0016881 SCREW SHELL TUB 6 5X50
$4.50
W0016906 SHOCK ABSORBER ASSY
W0016922 PULLEY
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016969 TRANSIT BOLT KIT HEC54
$68.00
W0017016 CROSSBAR, COMMAND
$28.00
W0017083 SCREW COUNTERWEIGHT TOP
$4.00
W0017090 PARTITION DRAWER RIB
$5.70
W0017098 CLAMP DET DISPENSER GASKET
W0017104 SUPPORT,HOSE DRAIN,HIGH
W0017108 SUPPORT,HOSE DRAIN,LOW
$8.75
W0017175 SPRING, TUB
$12.65
W0017198 BALL BEARING 25X52X15
$10.20
W0018719 SEAL DRUM OUTER REAR
$27.30
W0018732 CORD POWER SUPPLY AUSTRALIA
$18.25
W0026970 SCREW MOTOR (8X30 TE)
$4.00
W0027062 HINGE, PORTHOLE
W0027079 LATCH, DOOR
$8.80
W0027080 VALVE FLOATING
$41.30
W0027083 DIAPHRAGM
W0027088 DRAIN BODY INTEGRATED
$4.65
W0027095 FILTER DIAPHRAGM
$22.80
W0027099 PROTECTION DOOR LOCK
$4.50
W0027107 LIFTER DRUM
$18.70
W0027122 SYPHON ADDITIVE
$4.40
W0027230 SUPPORT SHOCK ABSORBER
$32.00
W0027233 TUB SHELL FRONT P49
$48.05
W0027251 TUB SHELL REAR
$140.00
W0029236 AIR CHAMBER ASSY
$12.60
W0029297 COUNTER WEIGHT TOP
$27.50
W0029299 COUNTER WEIGHT FRONT
$27.50
W0029602 BRACKET SPRING SUPPORT
$19.75
W0030117 WIRING HARNESS ASSY COMPLETE
$140.00
W0030516 UNIVERSAL MOTOR STK50 AL
$396.95
W0074340 SCREW BEARING SPIDER
W0075275 CLAMP CABLE
W0076222 PANEL, BACK, HIGH
$47.00
W0274360 HOOK OUTLET HOSE
W0275648 PUMP-ASSY DRAIN AL 50HZ LL
W0282257 CLAMP HOSE
$4.50
W0282848 HOSE VALVE CONNEC+CLAMP D:14.8
W0283303 HINGE REINFORCEMENT
$4.50
W0283327 GLASS, DOOR
W0283329 BUSHING HINGE
$4.50
W0283330 PIN DOOR HINGE
$4.50
W0283342 INTERNAL FRAME GRAY
$20.85
W0283360 COVER HINGE GREY
$4.00
W0283534 FRAME FRONT DOOR
$59.35
W0283541 SPRING ON/OFF
$4.00
W0283551 CONTROL PANEL ASSY-WEST
W0283648 CAP EMERGENCY STRIP
$4.50
W0283718 BUTTON ON/OFF PUSH
$12.60
W0283728 RING BELLOW CABINET
W0284134 BOX EMERGENCY STRIP
$10.00
W0284185 HOSE VALVE CONNEC+CLAMP D:16.4
$21.40
W0284401 DISPENSER DET ASSY COMPLETE
W0284426 WORK TOP ASSEMBLY
$89.30
W0284460 PANEL,FRONT,WHITE
$103.20
W0284464 CONTROL PANEL ASSY
W0284502 PCBA USER INTERFACE TC4 EUI14P
