SWT1023A — 913041138 01

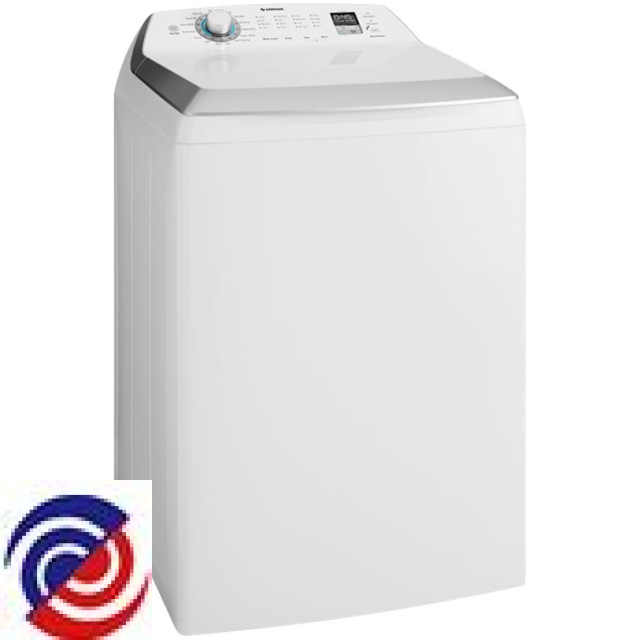

SIMPSON — Washing Machine
Parts for SWT1023A
W0012745 GREASE NULON L90 125G TUBE
$59.25
W0013691 HOSE DRUM TO PUMP TALL BOY
W0016323 SWITCH LID
W0016345 SIMPSON ELECTROLUX TOP LOAD WASHER SUSPENSION RODS KIT QTY 4
W0016354 HOSE DRAIN
W0016402 VALVE INLET ASSY HOT
W0016405 LOCK LID ASSY 1550MM
W0029234 VALVE INLET TRIPLE COLD
W0029471 DRAWER DISPENSER-LARGE
W0029489 SENSOR PRESSURE
W0030129 DET HOUSING ASSY COMPLETE
W0030132 HOSE RECIRCULATION DD
W0030415 PCBA MOTOR CONTROL EMC14 ASSY
W0030462 DAMPER LID - RH
.JPG)
W0037509 PLATE SUPPORT DRUM SPIN
W0043643 TUBE AIR BOWL TO PRESS SWITCH
.JPG)
W0044076 NUT - BLANK
.JPG)
W0050437 MOTOR CLUTCH ACTUATING
W0060242 TOOL AGITATOR SCREW LONG
$72.56
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
.JPG)
W0073237 MOTOR & GEARBOX ASSY + O RING
W0073334 LEVER KNOCK OFF
W0073398 O RING SEAL 34 * 3
.JPG)
W0089169 PUMP DRAIN
W0110636 CAP ROD SUSPENSION
W0114522 SEAL WATER INLET VALVE
$7.43
W0147162 FILTER HOSE INLET RUBBER
$6.34
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$3.38
W0012786 SCREEN DETERGENT DISPENSER
W0012787 RING BALANCE ASSY
W0016340 BRACKET DAMPER
W0016368 COVER RECIRC LARGE WHITE
W0016371 RETAINER NOZZLE (RSB)
$6.34
W0016395 COVER OUTER BOWL & SEAL ACTIVE
W0029233 INSERT VALVE HOT & COLD
$10.16
W0029370 CAP AGITATOR LPA
$15.04
W0029371 AGITATOR LOW PROFILE
$86.63
W0029390 SCREEN SOFTENER DISPENSER
W0029477 PUMP RICIRCULATION
W0029957 NOZZLE RECIRCULATION
W0030124 PANEL TOP LARGE DG
W0030125 LID ASSEMBLY LATCH GLASS
W0030133 TRAY COVER OUTER BLUE
$12.75
W0030138 RETAINER SCREEN DISPENSER
$4.65
W0030145 PANEL CONTROL ASSEMBLY
$72.75
W0030146 KNOB ASSEMBLY DIGITAL
$21.98
W0030157 GASKET USER INTERFACE
$9.56
W0030378 PCBA USER IINTERFACE ASSY HIGH
W0030416 PCBA SELECTOR HI END ASSY
W0030461 DAMPER LID - LH
W0030610 HARNESS WIRING MAIN PCB DG ACT
W0030623 SEAL CONTROL PANEL
$22.88
W0030624 CLIP HOLDER PIPE
W0035585 CLAMP SUPPORT PLATE TUB SPIN
W0035589 CLAMP HOSE WORM DRIVE 20-32MM
W0035590 CLAMP TUBE AIR
W0038190 COVER PUMP
W0038196 COVER HARNESS
$8.93
W0039098 LEG LEVELLING & PAD ASSY
W0044120 NUT M5 X 0.8
W0046425 CLIP SPEED
W0046434 CLIP WIRING
W0046546 SLEEVE HARNESS
W0047498 SCREW NO 6 X 1/2 W/HD
W0047519 SCREW M6 X 20MM HH SS
$3.38
W0047523 SCREW 1/4 10 PLASTITE X 28MM
$3.00
W0047524 SCREW M5 X 8MM DUO TT
W0047525 SCREW NO 10 16 X 1/2 PAN HD
W0047526 SCREW ST 10 X 1/2 HEX W/HD
W0047533 SCREW 1/4 10 PLASTITE X 50MM
W0047534 SCREW EARTH
W0050273 GREASE STAMINA RL2 75 ML
W0056360 PROTECTOR TUBE AIR
W0061305 PAD LEVELLING LEG
$6.98
W0065423 SCREW M8 X 30 MM SS SKT
W0073264 CLAMP HOSE DOUBLE SPRING WIRE
$4.31
W0073317 COVER PUMP TERMINAL (RSB)
$8.93
W0073341 BRACKET PUMP RSB
$7.43
W0073354 GASKET DRUM TO PLATE
W0073370 GUIDE HOSE (RSB)
$4.95
W0084952 TIE CABLE 300MM X4.8MM
W0141419 CLAMP HOSE (22 38 H541)
W0273667 CABLE POWER CORD TL AU
$44.66
W0274360 HOOK OUTLET HOSE
W0275588 PCBA MAIN BOARD 1023A
W0275669 HARNESS MOTOR RECIRC PUMP DG
$51.75
W0275704 CUSHION PCB CONNECTOR
W0282257 CLAMP HOSE
$3.38
