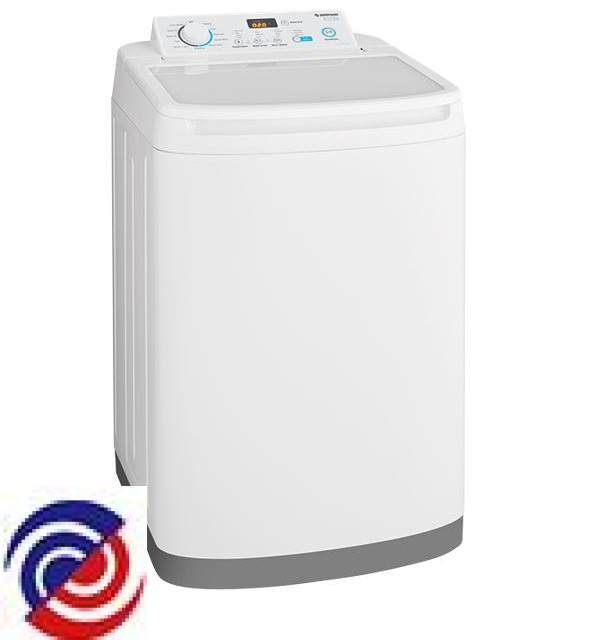

SWT6055TMWA — 913041177 00
SIMPSON — Washing Machine
Parts for SWT6055TMWA
W0012745 GREASE NULON L90 125G TUBE
$79.00
W0016323 SWITCH LID
W0016354 HOSE DRAIN
W0026936 /SIMPSON TOP LOAD WASHER ROD SUSPENSION KIT
W0026975 HOSE BOWL TO PUMP
W0029272 LEVELLING LEG & PAD ASSY
W0029280 PLATE BOWL SUPPORT ASSY
W0029282 COVER OUTER BOWL MED
W0029290 LINK, BRAKE MOTOR
$5.70
W0029489 SENSOR PRESSURE
W0030746 ACTUATOR CLUTCH 220V
.JPG)
W0047077 VALVE ASSY INLET 90DEG 10MM ID
W0048965 HOOK OUTLET HOSE
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
W0073334 LEVER KNOCK OFF
W0073356 AGITATOR MEDIUM
.JPG)
W0073452 FILTER ASSEMBLY LINT
W0110636 CAP ROD SUSPENSION

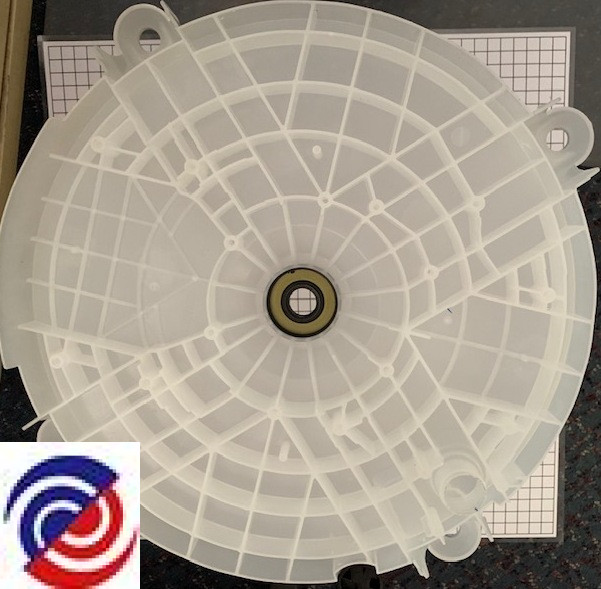

W0153990 BOWL OUTER MEDIUM + SEAL

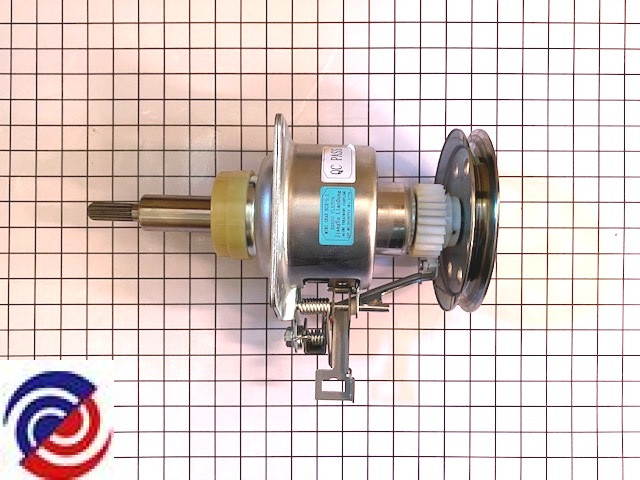

W0271379 GEARBOX ASSY COMPLETE

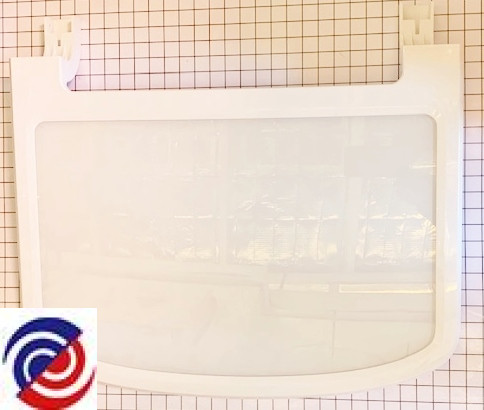

W0283670 LID & GLASS ASSEMBLY - MINI
W0293193 PCBA MBUI MINI LPA -EVA16C30
W0016327 PUMP DRAIN ASSEMBLY
W0016330 CLAMP CAPACITOR
$4.00
W0016331 WASHER MOTOR MOUNTING
$4.50
W0016332 SCREW CAPACITOR CLAMP
$4.50
W0016333 SCREW 19X1/2 HIL
$4.50
W0016334 SCREW 10-16 ABX1/2
$4.50
W0016335 SCREW M6*1.0*
$4.50
W0016336 SCREW 1/4-10 X 28
$4.50
W0016338 SCREW CONTROL PANEL
$4.00
W0016342 CLAMP SPRING PUMP
$5.50
W0016375 BELT MOTOR M23
W0026981 SCREW M6X26MM S/S HEX
W0026982 SCREW M6X24MM
$4.50
W0027024 TIE, PLASTIC, HARNESS
$4.50
W0027363 CAP CAPACITOR
$11.00
W0029233 INSERT VALVE HOT & COLD
$13.55
W0029271 PLINTH GREY
$45.20
W0029273 PANEL REAR PLASTIC
$22.35
W0029278 RING BALANCE ASSY
$48.25
W0029279 SCREW TAPPING M5X16MM
$4.50
W0029284 MOTOR & PULLEY ASSY
W0029285 SCREW, MOTOR, M8X30MM
$4.50
W0029286 BUSH MOTOR INSULATION
$5.75
W0029288 SCREW, GEARBOX M8X16MM
$4.50
W0029289 FRAME SUPPORT
W0029291 FRAME GEAR BOX PROTECTION
$34.05
W0029742 PACKING BOTTOM INSERT
$20.40
W0038186 COVER PUMP MEDIUM
$7.20
W0044783 CUP DISPENSER
W0047498 SCREW NO 6 X 1/2 W/HD
W0047519 SCREW M6 X 20MM HH SS
$4.50
W0073234 VALVE ASSY INLET 90DEG
W0073264 CLAMP HOSE DOUBLE SPRING WIRE
$5.75
W0073438 FRAME FILTER ASSEMBLY
W0141419 CLAMP HOSE (22 38 H541)
W0154062 COVER REED SWITCH
$5.80
W0275758 TUBE, PRESSURE SENSOR
$24.25
W0276385 BRACKET KNOCK OFF SWITCH MTG
$6.95
W0282467 CAPACITOR 12UF/450VAC 5% S2
$15.85
W0282469 SCREW M5 X 16.5 HW
$4.50
W0282470 GROMMET PANEL TOP SILICONE
W0282471 GROMMET VALVE INLET HVER4748
W0283578 CONTROL PANEL SWT6055TMWA
W0283581 HARNESS-ASSY MINI LPA AU REED
W0283582 PANEL TOP MINI -FACELIFT
$68.05
W0283588 SCREEN DETERGENT DISPENSER
$4.80
W0283598 HINGE LID LH - MINI
W0283616 POWER CORD TL AU
W0283682 DAMPER LID - RH CW
W0283683 DAMPER LID - LH CCW
W0283684 HINGE LID RH - MINI
W0283685 SUPPORT HINGE LH - MINI
$5.05
W0283686 SUPPORT HINGE RH - MINI
$4.95
W0284225 KNOB ET ASSY
