V110SGES3 — 956003498 00
VINTEC — Fridge

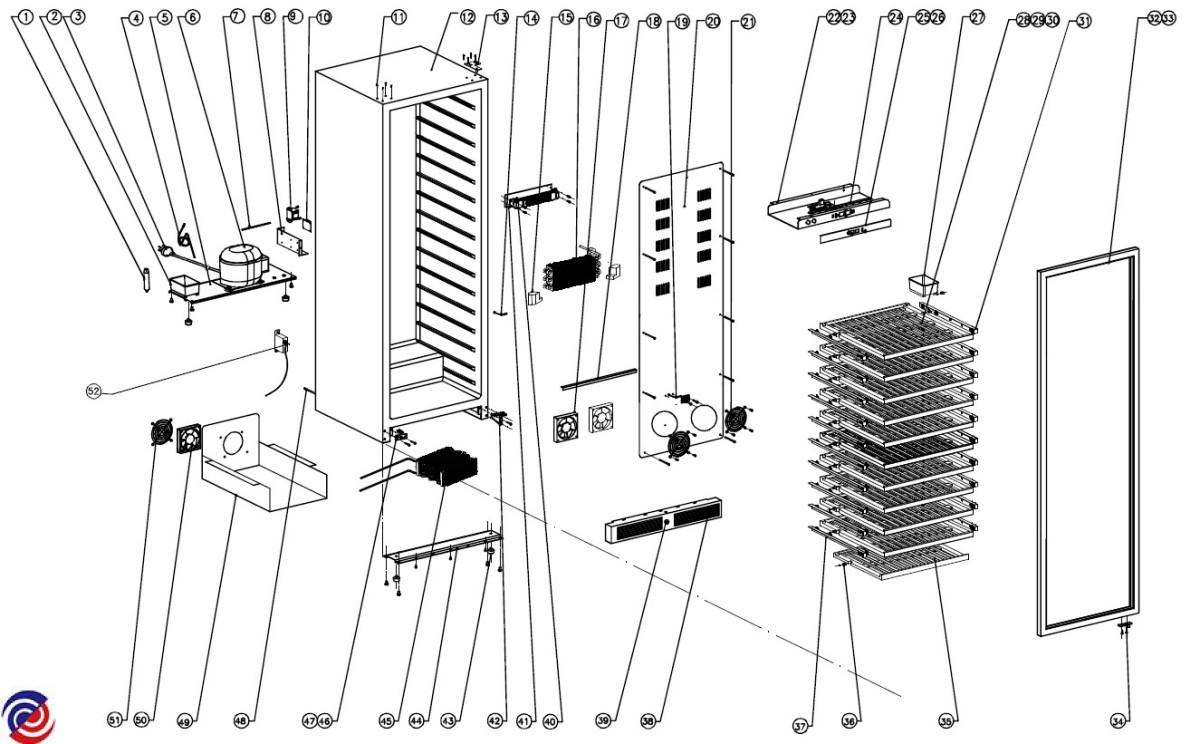

Parts for V110SGES3
W0031591 EVAPORATOR ASSY W/CAP TUBE
W0031633 SHELF SLIDE
$16.50
W0031709 KEYS NSX SET OF 2 KEYS
W0031860 LED -BLUE
W0031917 FAN 12V
W0031922 SENSOR V50/V40D2E
$19.65
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0031574 THERMOSTAT ANTI FREEZE NSX
W0031576 HEATER FOR V110
$79.99
W0031584 AIR CIRCULATING PIPE
$16.50
W0031585 PIPE PROCESS
$16.50
W0031597 PIPE CONNECTING
$16.50
W0031611 CONDENSER
$48.75
W0031612 WATER TANK
$22.80
W0031615 BOX HUMIDITY V30S
$28.20
W0031618 BUTTON, BLACK
$7.24
W0031623 COVER SENSOR
$3.75
W0031635 PLATE FAN BAFFLE
$16.50
W0031637 DISPLAY SUPPORT
$7.50
W0031642 STOPPER DOOR
$12.38
W0031644 SPACER BACK
W0031648 LEG ADJUSTABLE V110/155S
$22.61
W0031652 PLUG, SCREW DECORATIVE
$3.75
W0031657 LOCK ASSEMBLY
$9.45
W0031667 HINGE TOP RIGHT
$12.38
W0031668 HINGE BOTTOM LEFT
$10.39
W0031681 AXIS DOOR LOWER RH HINGE
$12.38
W0031697 HINGE BOTTOM LEFT
W0031698 HINGE BOTTOM RIGHT
$12.38
W0031701 PANEL HEAT INSULATION
$3.38
W0031715 TRIM SHELF STAINLESS STEEL
$17.63
W0031716 SHELF WD V110 / V155 S3 NEW
W0031720 SHELF WOODEN D3
$69.79
W0031739 FOAM EVAPORATOR
$30.15
W0031742 COMPRESSOR+REL V110/V155 R600A
W0031746 COVER FAN
$12.38
W0031747 COVER CONDENSER
$7.50
W0031753 DISPLAY PANEL
W0031764 POWER CORD
$22.35
W0031776 BRACKET COMPRESSOR
W0031777 SUPPORT BRACKET OF FRONT LEG
$24.68
W0031779 BOX ELECTRICAL
$16.50
W0031788 FRAME GRILL V110/155S3
W0031790 TRACK LEFT
$16.50
W0031791 RAIL RIGHT
$16.50
W0031795 AIR DUCT BOARD A
$16.50
W0031796 BOX SETTING
$16.50
W0031825 DOOR S3 V110SG2E
W0031882 PCB BOARD
W0031908 TRANSFORMER V50DG V110/V155
$74.81
W0033352 GASKET V110SG2ES3
W0275873 SUPPORT, SHELF
W0275922 COVER FAN
