VWM198SBA-R — 95600527600
VINTEC — Fridge

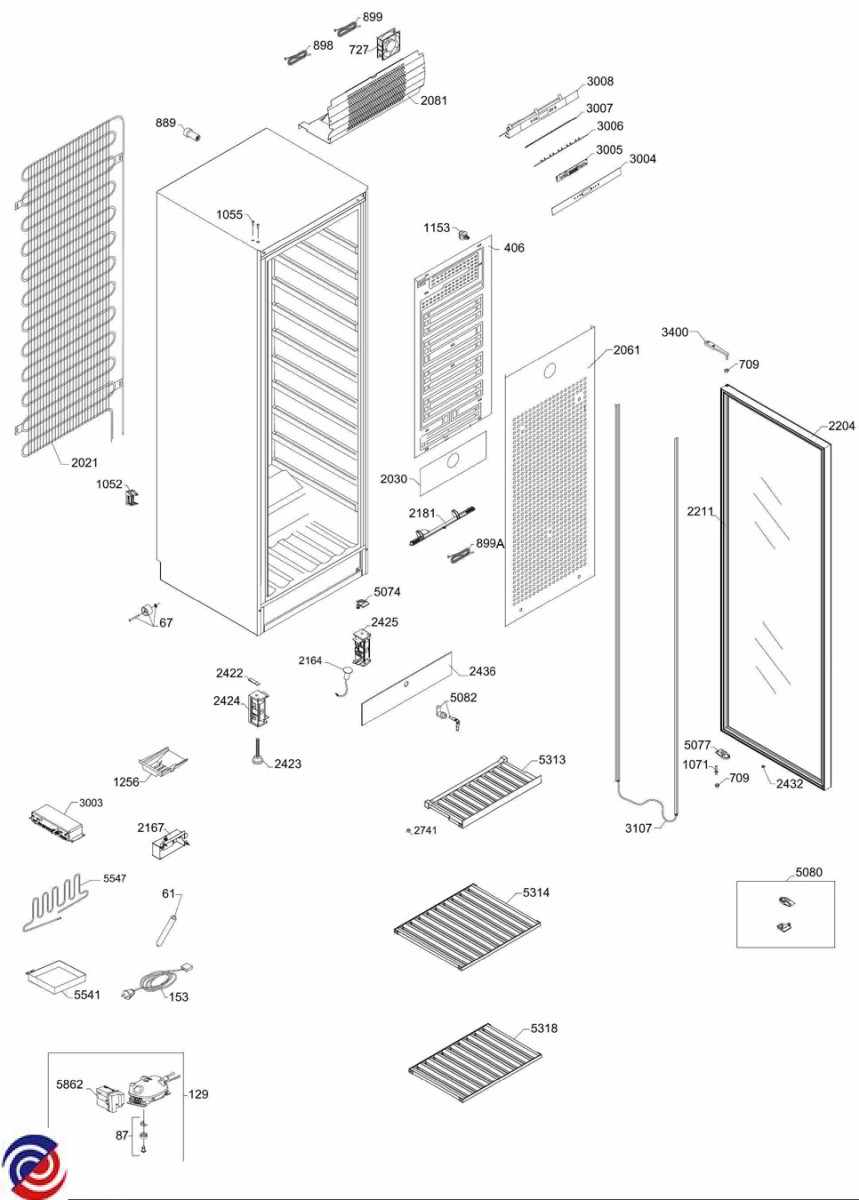

Parts for VWM198SBA-R
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0012131 RETAINER FOR WINE SHELF SHOW
W0013428 PLATE DISTRIBUTING AIR BLK
W0013528 COVERING BLACK RAL9005
$24.75
W0013536 BUSH - TOP
$47.25
W0013537 HOLDER EVAPORATOR
$24.75
W0013543 FILLET RUBBER
W0013780 PLATE BASE FITTINGS COMP
$32.78
W0013931 CONDENSOR
W0014047 COVER MULTI PLUG
$24.75
W0014411 MAGNET V190SG2EBK
W0021083 SLIDE SHOE, LEFT + RIGHT
$25.88
W0021289 DOOR HINGE - LEFT
W0021290 DOOR HINGE - RIGHT
W0026592 PLATE EVAPORATOR BIG
W0026824 LEAD MAINS
W0027642 FILTER CHARCOAL
W0296252 KICKPLATE, GLASS V190
W0360942 GLASS DOOR ASSEMBLY RIGHT V190
W0361332 PIN, BOTTOM DOOR HINGE
$59.96
W0361336 ADJUSTABLE FOOT
W0361338 HINGE
W0361374 SHEET, STEEL FOR AIRBOX
$161.85
W0361407 DRIP TRAY
W0361410 BASE, TOP LED DISPLAY
W0361411 COVER, LED
W0361414 COVER, FOR PHIAL/SENSOR
$36.30
W0361416 CLOSE FUNCTION, DOOR RIGHT
$32.93
W0361418 STOP, BASE DOOR - RIGHT
$37.13
W0361684 TUBING, HEAT
$68.18
W0361694 RELAY, STARTELECTRONIC
W0361699 LED TOP LIGHT VINTEC
W0361700 LEIGHT, LED STRIP DOOR
W0361703 BOX, POWER BOARD
W0361706 FAN 12V
W0361708 HEATER WITH PLATE
$268.76
W0361709 THERMOSTAT, FROST PROTECTION
$187.69
W0361710 USER INTERFACE V190
W0361713 SHELF V190 EU+AU
W0361714 SHELF, PRESENTATION
W0361715 SHELF, BOTTOM V190
W0361718 SENSOR
$62.25
W0361719 SWITCH, DOOR
W0361720 THERMOSTAT PHAIL, FAN BOX
W0361723 THERMOSTAT PHAIL, FAN BOX
$61.99
W0361728 COMPRESSOR XV5 108H5012
W0361745 STRIP, DISPLAY
W0361868 KIT, REVERSING DOOR. L/H HINGE
$50.70
W0361870 LOCK, WITH KEYS
W0362242 CASTOR, COMPLETE
$36.30
