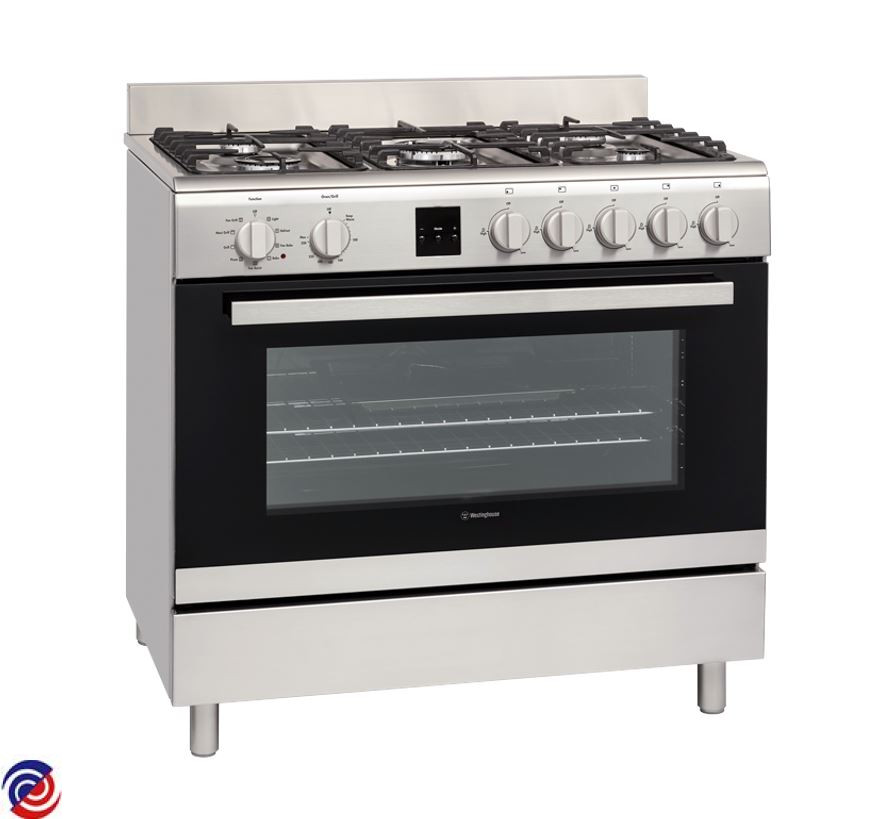

WFE911SB — 956003763 02
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE911SB
W0274840 TRAY (65L, DEEP, BLACK)
$42.70
W0274841 PANEL BOTTOM SUPPORT SHEET
$104.69
W0274842 FRONT FRAME CAVITY
$41.97
W0274843 PANEL DRAWER INNER
$36.40
W0274845 COVER FAN (-BLACK)
$21.00
W0274846 OVEN CAVITY
$119.04
W0274847 TERMINAL BOX AND LABEL
$17.54
W0274848 TIMER DIGITAL FULL RED FR12
$80.54
W0274850 PANEL SIDE ASSEMB (96,M.INX)
$86.52
W0274853 SIDE CLOSING PROFILE (96,RIGHT
$22.16
W0274854 SIDE CLOSING PROFILE (96,LEFT)
$12.92
W0274857 COVER TOP OVEN DOOR
$31.15
W0274868 PANEL CONTROL FLAT INOX
$147.04
W0274870 OUTER GLASS ASSEMBLY
$129.50
W0274896 LENS SIGNAL LAMP KRM 6MM
$23.21
W0274897 IGNITOR 6 OUTLET,SEQ IGN
$30.49
W0274898 IGNITOR EARTHING WIRE
$5.08
W0274899 SWITCH 09/19 ANK/TB GTK
$39.94
W0274900 THERMOSTAT LIMIT NC 200C 250V
$40.29
W0274901 THERMOSTAT 50-285.C
$35.00
W0274903 SIGNAL LAMP 25X25CM BYR T 250V
$5.04
W0274904 MOTOR FAN 230V H
$64.44
W0274906 TERM?NAL BOX 16A KA 2/3
$10.54
W0274907 ELEMENT BOT 230V1200W EGO
$67.90
W0274908 ELEMENT GRILL 1200 1800 W
$73.29
W0274909 SPARK PLUG WITH CABLE
$16.94
W0274910 SPARK PLUG W/CABLE
$22.12
W0274911 ELEMENT CIRC (230V,1600W)
W0274912 LENS TIMER HOLDER (96,BLACK)
$24.15
W0274913 SWITCH HARNESS TRML
$40.46
W0274914 MOTOR COOLING GAS 230V M
$64.44
W0274970 BRACKET VALVE ASS OVEN/SAB
W0274971 BURNER HEAD RAPID BURN./SAB
$28.39
W0274972 BURNER HD SEMI RAPID BURN./SAB
$28.39
W0274973 BURNER HEAD AUX. BURN/SAB
$28.39
W0274974 BURNER CAP RAPID BURNER
$24.54
W0274975 BURNER CAP SEMI RP
$24.54
W0274976 BURNER CAP AUX. BURNER
$24.54
W0274977 NUT FIXING T/COUPLE 3,6 W B
$42.63
W0274978 SPARK PLUG SEG,SABAF
$14.00
W0274979 MICROSWITCH SEGMENT
$35.70
W0274980 BURNER CAP W.B. 3.8KW OUT
$36.40
W0274981 CLIP WIRE SHELF FIXING
$2.80
W0274982 IMPELLER MOTOR FAN H
$29.40
W0274983 EXHAUST FIXING WIRE
W0274984 BURNER CAP W.B. 3.6KW IN
$24.54
W0274985 INJ 096- WOK LP
$7.98
W0274986 SPRING INTERVAL FRONT PANEL
W0274987 ANTI-TIP BRACKET HOLDER
$12.32
W0274988 SPRING KNOB
$2.80
W0274989 CLIP HOB FIXING CLIP
$3.61
W0274990 EXHAUST TOP PANEL (BUILT-IN)
W0274991 BURNER HEAD WOK BURNER
$77.00
W0274992 SPRING RELEASE INNER LEFT,BLAC
W0274993 SPRING RELEASE INNER RIGHT,BLA
W0274994 THERMST BULB HOLDER ELECT
W0274995 CLIP GRILL HEAT ELEMENT
$2.80
W0274996 INJ AUX B./050/G30-29/ LP
$7.98
W0274997 INJ SEMI RP B./065/LP
$7.98
W0274998 INJ RAPID B./085/ LP
$7.98
W0274999 MAIN OVEN EXHAUST
W0275000 HINGE COUNTERPART ,RIGHT
$28.00
W0275001 HINGE COUNTERPART ,LEFT
$28.00
W0275002 TRIVITT (96S TYPE,RIGHT/LEF
$119.04
W0275003 TRIVITT (96,S TYPE,MIDDLE)
$119.04
W0275004 MANIFOLD (96,5G,REGULAR)
$46.55
W0275005 SPLASHBACK
$24.43
W0275006 PANEL OUTER BACK
W0275007 COVER REAR INSULATION
$33.15
W0275008 COVER BOTTOM HEATING
W0275009 COVER BOTTOM INSULATION
W0275010 SUPPORT REAR TOP BRACKET (96)
W0275011 PANEL BASE COOLING FAN
W0275013 TUBE GAS DELIVERY
$9.21
W0275014 TUBE GAS DELIVERY RIGHT
$8.44
W0275015 TUBE GAS DELVIVERY LEFT
$10.08
W0275016 TUBE GAS DELIVERY RAPID
$8.75
W0275017 TUBE GAS DELIVERY WOK
$9.28
W0275018 HINGE SMALL DRAWER
$31.01
W0275019 DUCT COOLING FAN (96,SINGLE)
$32.87
W0275020 OVEN DOOR HINGE
$35.70
W0275021 INJ WOK 3.2/090/G30-29/S
$10.82
W0275023 INJ WOK 3.2/155/G20-13/S
W0275024 COVER COOLING FAN
$16.77
W0275025 BRACKET LIMITER
W0275026 THERMOCOUPLE ,SBF,250,
$40.64
W0275027 THERMOCOUPLE,SBF,520,O
$48.34
W0275028 THERMOCOUPLE,SBF,650,O
$41.34
W0275029 THERMOCOUPLE,SBF,500,O
$41.65
W0275031 SHELF WIRE SIDE (5ST0,LEFT)
$13.93
W0275032 SHELF WIRE SIDE (5ST0,RIGHT)
$13.93
W0275033 HANDLE ADAPTED DEEP TRAY GRID
W0275034 HANDLE DEEP TRAY
$9.98
W0275036 HOB
$280.04
W0275037 PANEL DRAWER
$48.34
W0275038 HANDLE BODY
$91.00
W0275041 M6 LEFT HAND NUT
$2.80
W0275042 INJ 118- SR. B./G20-10/S
W0275043 INJ 170- WOK B./G20-10/S
W0275044 BURNER BODY WOK. BURN
$34.65
W0275045 BURNER BODY AUX. BURN
$14.00
W0275046 BURNER BODY SR. BURN
$24.33
W0275047 BURNER BODY RAPID. BURN
$21.00
W0275048 ANTI-TIP BRACKET WALL BRACKET
$17.40
W0275049 SHELF
$49.04
W0275051 VALVE_FFD_COAX_SEMI RAPID
$65.00
W0275052 VALVE_FFD_COAX_AUX
$65.14
W0275053 VALVE_FFD_COAX_RAPID
$60.20
W0275227 SPARK PLUG GASKET
W0275228 SPACER HANDLEBLACK)
$11.83
W0275230 STOPPER DRAWER PANEL
$4.59
W0275231 TIMER BUTTON (FLUSH,BLACK)
$10.15
W0275232 HOSE FITTING SEAL GASKET
$7.00
W0275233 KNOB (NORD 96,MT1,MATTE INOX,2
W0275234 KNOB (NORD 96,MT2,MATTE INOX,2
$10.43
W0275235 KNOB RING (INNER 96,M.INOX)
W0275236 OVEN DOOR GASKET (96,O,THIN)
$42.04
W0275237 HANDLE WASHER 3 GLASS DEMOUNT
$2.80
W0275248 GASKET DRAWER SHARP EDGE
$28.00
W0275250 MICROSWITCH STOPPER
$6.69
W0275251 FEET ADJ (96,MAT INOX) 90-93CM
$77.00
W0275254 INNER GLASS
$62.34
W0284308 GLASS (PROFILE DOOR,96)
$31.54
W0296256 TRIVET WOK
$65.80
W0363828 SCREW,M,YSB,5X10,F,ST,A3B
$2.80
W0363829 SCREW,S,YTB,3.9X9.5,K,ST,A3S
$2.80
W0363830 SCREW,M,YTB,4X4,F,ST,GEOMET,SY
$2.80
