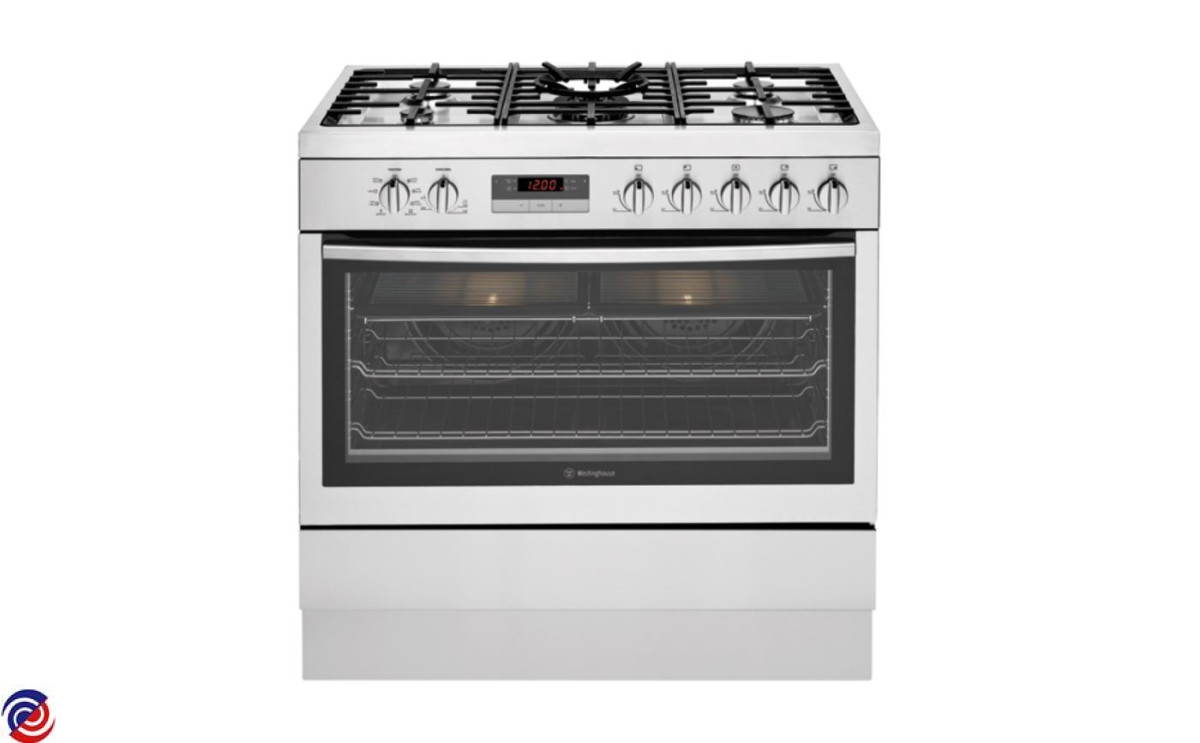

WFE914SA — 943000894 74
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE914SA
.JPG)
W0011297 BLADE FAN
W0011844 HINGE OV DOOR 3-L VULCAN
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013565 SWITCH MULTI 8
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$3.38
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
W0022617 BURNER CROWN RAPID CYLINDER
W0022619 BURNER SEMI-RAPID CYLIND
$30.00
W0022624 BURNER CROWN AUX CYLINDER
W0022734 THERMOCOUPLE 500MM WOK
$23.74
W0022741 SPARK PLUG IGNITOR 400 MM
W0022742 SPARK PLUG IGNITOR 600 MM
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0062420 LIGHT INDICATOR INC LENS
.JPG)
W0063564 CLOCK 3 BUTTON ECOTIME TOUCH
W0063845 BOX IGNITION 6P 240V HMJD BLUE
W0102392 SPARK PLUG WOK 500MM
W0154340 FLEXIBLE HOSE KIT 90cm VULCAN
$54.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011126 BASE BURNER AUX IGN NG
$21.79
W0011142 COVER HINGE STORAGE DRAWER
$11.96
W0011153 DOOR STORAGE DRAWER
W0011201 SUPPORT ELEMENT GRILL VULCAN
$18.90
W0011228 KNOB CONTROL ASSY
$13.76
W0011229 KNOB CONTROL ASSY
W0011264 PLATE CVR TERM ELEC BIOS
$10.39
W0011279 PLATE MOUNTING SWITCH
$11.55
W0011283 PLATE ANTI-TILT RH ASS VULCAN
W0011284 PLATE ANTI-TILT LH ASS VULCAN
W0011298 BLADE FAN
$25.76
W0011329 COVER CLEAN HEAT VULCAN
W0011403 DISH GRILL ENAMELLED VULCAN
$56.78
W0011499 PANEL RH SIDE F/STAND VULCAN
W0011500 PANEL LH SIDE F/STAND VULCAN
W0011543 PANEL STORAGE TOP
$20.63
W0011544 PANEL STORAGE LOWER
$87.04
W0011581 PNL CNT & CLIPS VULCA WFE914SA
$124.43
W0011694 PANEL LOWER BRACE F/STAND VULC
$37.13
W0011695 PANEL FAN COVER
$84.41
W0011697 SPLASHBACK WHOUSE VULCAN 900
$96.86
W0011852 HINGE STORAGE DOOR VULCAN
$57.41
W0011864 SPACER VENT
W0011925 HANDLE DOOR
W0011996 NUT M6 R/H FAN MOTOR
$3.98
W0012046 FRAME FRONT PAINT VULCAN FSTAN
$99.00
W0012264 ELEMENT 2500W VULCAN
W0012315 CLIP THERMOSTAT BIOS
$6.75
W0012319 RETAINER PYRO CATALYSER
$5.78
W0012363 TRIVET CAST IRON WOK
$31.50
W0012392 INJECTOR H/P 0.55MM
W0012393 INJECTOR H/P 0.70MM
W0012395 NIPPLE INJ 0.90
$6.60
W0012403 INJECTOR 1.75 ELUX WOK NG
$6.60
W0012413 COUNTER SUPPORT LH VULCAN F/S
W0012414 COUNTER SUPPORT RH VULCAN F/S
W0012572 END CAP HANDLE VULCAN WEST
W0012586 LEG LEVELLING PLINTH
$12.26
W0012667 INSTALL ANTI TILT HOOK
$10.43
W0012694 SKIRT KNOB WEST VULCAN
$6.41
W0012732 SEAL CONTROL PANEL
$8.36
W0012806 STOP ANTI TILT
$2.48
W0012854 DOOR OVEN INNER GLASS MIDDLE
W0012855 DOOR OVEN INNER GLASS
W0013025 REGULATOR GAS NG INTEG TEST PT
W0013063 INSTALL ANTI -TILT CHAIN
W0013214 RACK PACK
W0013260 SHIELD WIRING
$8.96
W0013326 INSULATION OVEN BACK VULCAN
$22.28
W0013327 INSULATION OVEN WRAP VULCAN
$63.53
W0013463 BRACE OVEN REAR VULCAN
$20.63
W0013465 BRACE PLINTH VULCAN
$10.73
W0013730 BUMPER STOP BLK
$4.91
W0013738 BUMPER STORAGE DOOR VULCAN
W0014000 PLINTH ASSY
W0014019 SCREW #6X3.5X28 HILO PAN PH
$3.38
W0014027 SCREW #8 X 16MM CSK #2PH BT BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$3.38
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$3.38
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$3.38
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021433 FOOT TRIVET
$5.29
W0021560 BRACKET GAS RAIL WHOUSE VULCAN
$17.96
W0021567 TUBE BURNER MID 5B WH VUL FSG
$24.75
W0021568 TUBE BURNER RF WH VULCAN
$24.75
W0021569 TUBE BURNER RR WH VULCAN
$24.75
W0021570 VALVE BSI FSG AUX
W0021571 VALVE BSI FSG SEMI RAPID
W0021572 VALVE BSI FSG RAPID
W0021573 VALVE BSI FSG T/C
W0021577 TUBE BURNER LF 5B WH VUL FSG
$24.75
W0021578 TUBE BURNER LR 5B WH VUL FSG
$21.79
W0021579 HOB WELD ASY 5B WH VULCAN FSG
W0022626 BURNER CAP MATT RAPID CYLINDER
W0022627 BURNER CAP MATTE SEMI-R CYLIND
$16.76
W0022628 BURNER CAP MATTE AUX CYLINDER
$16.76
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$3.38
W0022740 PLUG SPARK 250 MM ENAMELLED
W0022744 SPARK PLUG IGNITOR 900 MM
W0029580 MANIFOLD PIPE 5B WHOUSE VULCAN
$22.28
W0029600 ENDCAP RH VENT VULCAN
$15.23
W0029601 ENDCAP LH VENT VULCAN
$14.85
W0029861 VENT DOOR TOP CAP ASSY VULCAN
W0029862 PAN OV DR OUT ASS VULCAN WEST
$195.30
W0035471 BASE BURNER WOK IGN NG
W0039641 PANEL DECK GLUED ASSY VULCAN
$57.75
W0046265 ELEMENT G/BOOST 3500W VULCAN
W0046659 TRIVET CAST IRON LH/RH
W0046661 TRIVET CAST IRON CENTRE
W0046736 INJECTOR 1.00 H/P
$6.60
W0046737 INJECTOR 1.35 H/P
W0046745 INJECTOR RAPID NG 1.60
$6.60
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$3.38
W0050408 MOTOR FAN COOLING
W0053310 STICKER GAS TYPE LPG
$3.38
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053535 RACK INSERT GRILL DISH VULCAN
W0053538 RACK GRILL DISH SUPPORT VULCAN
W0053539 RACK SHELF OVEN VULCAN
W0056770 FOOT LEVELLING UPRIGHT
W0102092 SCREW M4 X 8 PHIL
W0102372 SWITCH HARNESS 5B WH VULCAN
W0109033 CLIP SPARK PLUG ELUX 125-8-356
W0109968 T'COUPLE TT ELUX BURNER 275
W0109970 THERMOCOUPLE 500MM
W0109972 THERMOCOUPLE 750MM
W0110087 BURNER
$21.75
W0110093 BASE BURNER RAPID IGN NG
$10.43
W0110096 BURNER BODY ASSY S/RAP IGN NG
W0110205 CAP BURNER KIT
$27.75
W0114559 LAMP OVEN HALOGEN 25W
W0153991 REGULATOR GAS NG INTEG TEST PT
$30.75
