WFE914SB — 940001852 04
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE914SB
.JPG)
W0011297 BLADE FAN
W0011844 HINGE OV DOOR 3-L VULCAN
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013565 SWITCH MULTI 8
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0021415 CAP BURNER OUTER MATT WOK
W0022617 BURNER CROWN RAPID CYLINDER
W0022619 BURNER SEMI-RAPID CYLIND
$40.00
W0022624 BURNER CROWN AUX CYLINDER
W0022741 SPARK PLUG IGNITOR 400 MM

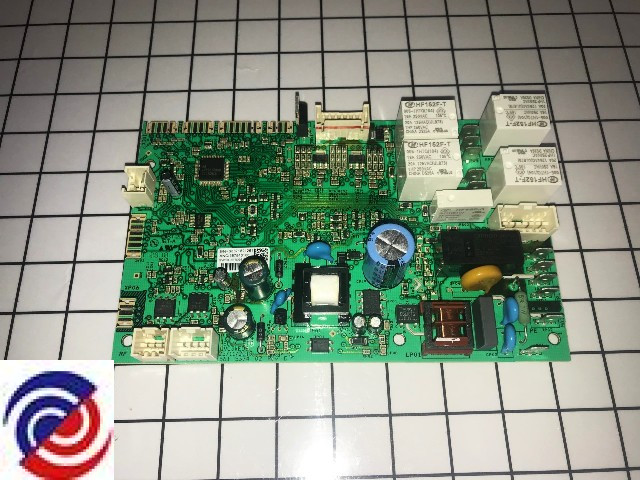

W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0027350 BURNER CAP AUX MATT BLACK ENAM
$17.00
W0027351 BURNER CAP RAPID MATT BLACK EN
W0027390 IGN BOX 6P - 220.240V JAVA
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0102392 SPARK PLUG WOK 500MM
W0102417 THERMOCOUPLE T ELUX BURNER 750
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011126 BASE BURNER AUX IGN NG
$29.05
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011283 PLATE ANTI-TILT RH ASS VULCAN
W0011284 PLATE ANTI-TILT LH ASS VULCAN
W0011298 BLADE FAN
$34.35
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011694 PANEL LOWER BRACE F/STAND VULC
$49.50
W0011695 PANEL FAN COVER
$112.55
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012046 FRAME FRONT PAINT VULCAN FSTAN
$132.00
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012319 RETAINER PYRO CATALYSER
$7.70
W0012392 INJECTOR H/P 0.55MM
W0012393 INJECTOR H/P 0.70MM
W0012395 NIPPLE INJ 0.90
$8.80
W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80
W0012413 COUNTER SUPPORT LH VULCAN F/S
W0012414 COUNTER SUPPORT RH VULCAN F/S
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012732 SEAL CONTROL PANEL
$11.15
W0012806 STOP ANTI TILT
$3.30
W0012854 DOOR OVEN INNER GLASS MIDDLE
W0012855 DOOR OVEN INNER GLASS
W0013025 REGULATOR GAS NG INTEG TEST PT
W0013063 INSTALL ANTI -TILT CHAIN
W0013214 RACK PACK
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013465 BRACE PLINTH VULCAN
$14.30
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021413 CAP BURNER INNER MATT WOK
W0021433 FOOT TRIVET
$7.05
W0021524 IGNITION BOX EARTH LEAD
$6.60
W0021560 BRACKET GAS RAIL WHOUSE VULCAN
$23.95
W0021567 TUBE BURNER MID 5B WH VUL FSG
$33.00
W0021568 TUBE BURNER RF WH VULCAN
$33.00
W0021569 TUBE BURNER RR WH VULCAN
$33.00
W0021570 VALVE BSI FSG AUX
W0021571 VALVE BSI FSG SEMI RAPID
W0021572 VALVE BSI FSG RAPID
W0021573 VALVE BSI FSG T/C
W0021577 TUBE BURNER LF 5B WH VUL FSG
$33.00
W0021578 TUBE BURNER LR 5B WH VUL FSG
$29.05
W0021579 HOB WELD ASY 5B WH VULCAN FSG
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0021672 THERMOCOUPLE 500 MM WOK
W0022171 FOOT LEVELING
$16.35
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0022740 PLUG SPARK 250 MM ENAMELLED
W0022743 PLUG SPARK 800 MM ENAMELLED
W0022744 SPARK PLUG IGNITOR 900 MM
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0029338 LENS NEON FRONT MOUNT (AMBER)
$5.95
W0029677 INSULATION OVEN WRAP PYRO
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0029861 VENT DOOR TOP CAP ASSY VULCAN
W0030006 MANIFOLD PIPE 5B WHOUSE COBRA
$39.60
W0030041 KNOB ASSY GAS W/HOUSE SILVER
W0030046 KNOB ASSY ELEC W/HOUSE SILVER
W0030054 HANDLE DOOR WEST ANOD COBRA
W0030055 SPACER HANDLE W/HOUSE COBRA
W0030108 PLINTH VULCAN
$23.05
W0030172 PAN OV DR OUT ASS W/H FS COBRA
W0030179 PNL CNT & CLIPS WFE914SB COBRA
W0030321 DOOR STORAGE COBRA
W0030368 PLATE MTG SWITCH
$17.00
W0030602 FITTING GAS INLET ELBOW
$20.10
W0046659 TRIVET CAST IRON LH/RH
$120.00
W0046661 TRIVET CAST IRON CENTRE
W0046664 TRIVET WOK SUPPORT WH VULCAN
W0046736 INJECTOR 1.00 H/P
$8.80
W0046737 INJECTOR 1.35 H/P
W0046745 INJECTOR RAPID NG 1.60
$8.80
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053310 STICKER GAS TYPE LPG
$4.50
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053535 RACK INSERT GRILL DISH VULCAN
W0053538 RACK GRILL DISH SUPPORT VULCAN
W0053539 RACK SHELF OVEN VULCAN
$106.00
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0109033 CLIP SPARK PLUG ELUX 125-8-356
W0110088 BURNER ASSY TRIPLE CROWN WOK
W0110093 BASE BURNER RAPID IGN NG
$13.90
W0110096 BURNER BODY ASSY S/RAP IGN NG
W0110103 BURNER ASSY WOK NG
$40.00
W0114559 LAMP OVEN HALOGEN 25W
W0147394 BURNER CAP SEMI RAPID MATT BLK
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154002 LIGHT INDICATOR RED
W0275679 PANEL RH SIDE F/STAND VULCAN
$185.65
W0275680 PANEL LH SIDE F/STAND VULCAN
W0275766 WRAP PLINTH VULCAN
$319.05
W0278899 SWITCH HARNESS 5B WH VULCAN
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0284135 SPACER KNOB IGNITION VULCAN
$13.30
W0284345 ELEMENT C/H 1800W VULCAN E100
