WFEP915SC — 940598481 00
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFEP915SC
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012755 MOTOR FAN OVEN
W0013703 BUTTON CLCK S/S 3-B FORT
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0022630 CROWN BURNER WOK DEFENDI
$52.25
W0022631 CAP BURNER OUTER WOK DEFENDI
$47.45
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0026431 SPRING DAMPER MOTOR
$12.55
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM

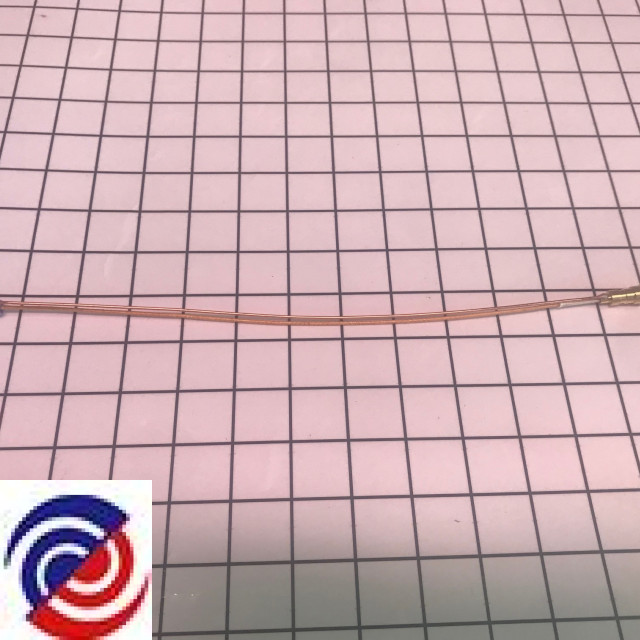

W0283367 T'COUPLE TT ELUX BURNER 275
W0283368 T'COUPLE TT ELUX BURNER 500
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011703 PNL FAN COVER ENAM PYRO COBRA
$235.25
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012637 HARNESS HEXAGON CTRL INPUT
$5.15
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012732 SEAL CONTROL PANEL
$11.15
W0012734 SEAL OVEN VULCAN PYRO
$69.90
W0012806 STOP ANTI TILT
$3.30
W0013063 INSTALL ANTI -TILT CHAIN
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021731 SCREW M4 X 8 WITH PAD
$4.50
W0021732 VALVE SAFETY FS DUAL COPRECI
$210.95
W0022622 BURNER CROWN SEMI-RAP CYL MCH
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0022808 BURNER BODY ASSY DEFENDI 5KW
$232.05
W0022980 SHUTTLE +/-
$10.90
W0026555 CONTROLLER HEX AMBER PYRO
W0029305 CATALYSER 77DIA,12.5H, 64 CSI
$23.10
W0029626 PLUG SPARK 250 MM ENAMELLE
$7.45
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029677 INSULATION OVEN WRAP PYRO
W0029805 SPARK GENERATOR WITH 5 OUTLETS
$62.00
W0029848 RETAINER PYRO CATALYSE VULCAN
W0029882 CAP VENT DOOR TOP ASSY COBRA
$87.05
W0029913 FRAME FR ENA PYRO FSTAND COBRA
W0029930 GLASS OV DR MID 2 COBRA
W0030006 MANIFOLD PIPE 5B WHOUSE COBRA
$39.60
W0030165 ELEMENT GRILL SPLIT ELUX VUL
$90.20
W0030321 DOOR STORAGE COBRA
W0030368 PLATE MTG SWITCH
$17.00
W0030421 LAMP OVEN HALOGEN 25W COBRA
$10.00
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030507 WIRE HARNESS K16 FOODPROBE MOD
$13.20
W0030615 GLASS OV DR INNER BOROSILICATE
W0030616 GLASS OV DR MID1 REFL VULCAN
W0053535 RACK INSERT GRILL DISH VULCAN
W0102092 SCREW M4 X 8 PHIL
W0108997 CAP BURNER INNER WOK DEFENDI
W0109984 THERMOCOUPLE DEFENDI 5KW 500MM
W0109986 SPARK PLUG DEFENDI 5KW 500MM
W0274246 ANTI TILT KIT 90CM VULCAN
$8.70
W0274935 BURNER CAP RAP MATT BLACK ENAM
$22.35
W0274936 BURNER CAP SR MATT BLACK ENAM
$26.30
W0274937 BURNER CAP AUX MATT BLACK ENAM
$22.35
W0275660 HINGE SOFT CLOSE GENESYS
W0275679 PANEL RH SIDE F/STAND VULCAN
$185.65
W0275680 PANEL LH SIDE F/STAND VULCAN
W0275760 TAPE C/CELL FOAM PVC GREY
$13.50
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0275774 BRACKET REAR OVN ELECS. GENESY
$74.00
W0282401 BRKT GAS RAIL MOUNT VULCAN X
W0283053 BRACKET GAS RAIL WH TAURUS+
$10.00
W0283054 HOB WELD ASY 5B WH TAURUS+ FSG
$503.50
W0283064 ADAPTOR VALVE GAS ELUX VULCAN
$19.85
W0283096 SCREW M4 X 7 T20 ZINCSCREW M4
$4.50
W0283127 SWITCH 0+10 POSITION
$30.45
W0283213 SCREW M4 X 44 PAN T20
W0283369 THERMOCOUPLE T ELUX BURNER 750
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283412 SPRING NIP
$5.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283557 TUBE BURNER LF 5B WH VUL FSG
W0283558 TUBE BURNER LR 5B WH VUL FSG
W0283560 TUBE BURNER RF WH VULCAN
W0283561 TUBE BURNER RR WH VULCAN
W0283565 SWITCH HARNESS 5B WH VULCAN
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283698 PNL BCK F/S WELD GAS E100 90CM
$59.55
W0283769 GRILL DISH CARRIER E100 90CM
W0283788 FOOT MT BRACKET TAURUS+ 90CM
$14.50
W0283789 COUNTER SUPPORT LHS TAURUS+ 90
$11.65
W0283790 COUNTER SUPPORT RHS TAURUS+ 90
$11.65
W0283791 LOWER BRACE FS TAURUS+ 90CM
$34.75
W0283876 FEET PLASTIC PACK OF 4
W0283877 HANDLE PEDES TAUR+ 90CM ASPIRE
W0283878 HANDLE TAUR+ 90 ASPIRE BETTER
W0283886 PNL OV DR OUT PYRO TAURUS+ 90C
W0283887 ANTI TILT BRACKET TAURUS+ 90CM
$14.50
W0283891 TUBE BURNER WOK OUTER TAURUS+
$6.40
W0283892 TUBE BURNER WOK INNER TAURUS+
$5.80
W0283894 PNL CNT & CLIPS WFEP915 HEX T+
W0283897 PLINTH CLIP COMP BAG TAUR+90CM
$28.25
W0283898 TRIVET CENTRE ASPIRE TAU+ 90CM
W0283900 TRIVET LHRH ASPIRE TAU+ 90CM
W0283901 TRIVET WOK ASPIRE TAU+ 90CM
W0284064 CLIP SIDEGRIDS
$4.50
W0284192 KNOB ASSY G&ELEC W/H SILVER
W0284246 VALVE COPRECCI FSG AUX
$29.45
W0284247 VALVE COPRECCI FSG SEMIRAPID
$29.45
W0284248 VALVE COPRECCI FSG RAPID
$29.45
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284366 SLIDE SINGLE EXT 1 SET
W0284488 RACK PACK E100 90CM EASY ACCES
$150.50
